Mitsubishi Electric MSH-GD80VB-E1 Manuel utilisateur

CONTENTS

1. TECHNICAL CHANGES ··································· 2

2. PART NAMES AND FUNCTIONS····················· 2

3. SPECIFICATION················································ 3

4. NOISE CRITERIA CURVES ······························ 3

5. OUTLINES AND DIMENSIONS ························ 4

6. WIRING DIAGRAM············································ 5

7. REFRIGERANT SYSTEM DIAGRAM ··············· 5

8. SERVICE FUNCTIONS ····································· 6

9. MICROPROCESSOR CONTROL ····················· 8

10. TROUBLESHOOTING····································· 15

11. DISASSEMBLY INSTRUCTIONS ···················· 24

MSH-GD80VB - E1

SPLIT-TYPE AIR CONDITIONERS

SERVICE MANUAL

Wireless type

Model

INDOOR UNIT

NOTE:

RoHS compliant products have <G> mark on the spec name plate.

Outdoor unit service manual

MUH-GD•VB Series (OBH514)

No. OBH513

REVISED EDITION-A

PARTS CATALOG (OBB513)

Revision A:

• Another type of the electronic control P.C.

board (TYPE 2) has been added to the

original one (TYPE 1). They are both com-

patible with MSH-GD80VB- E1 .

Please void OBH513.

TECHNICAL CHANGES

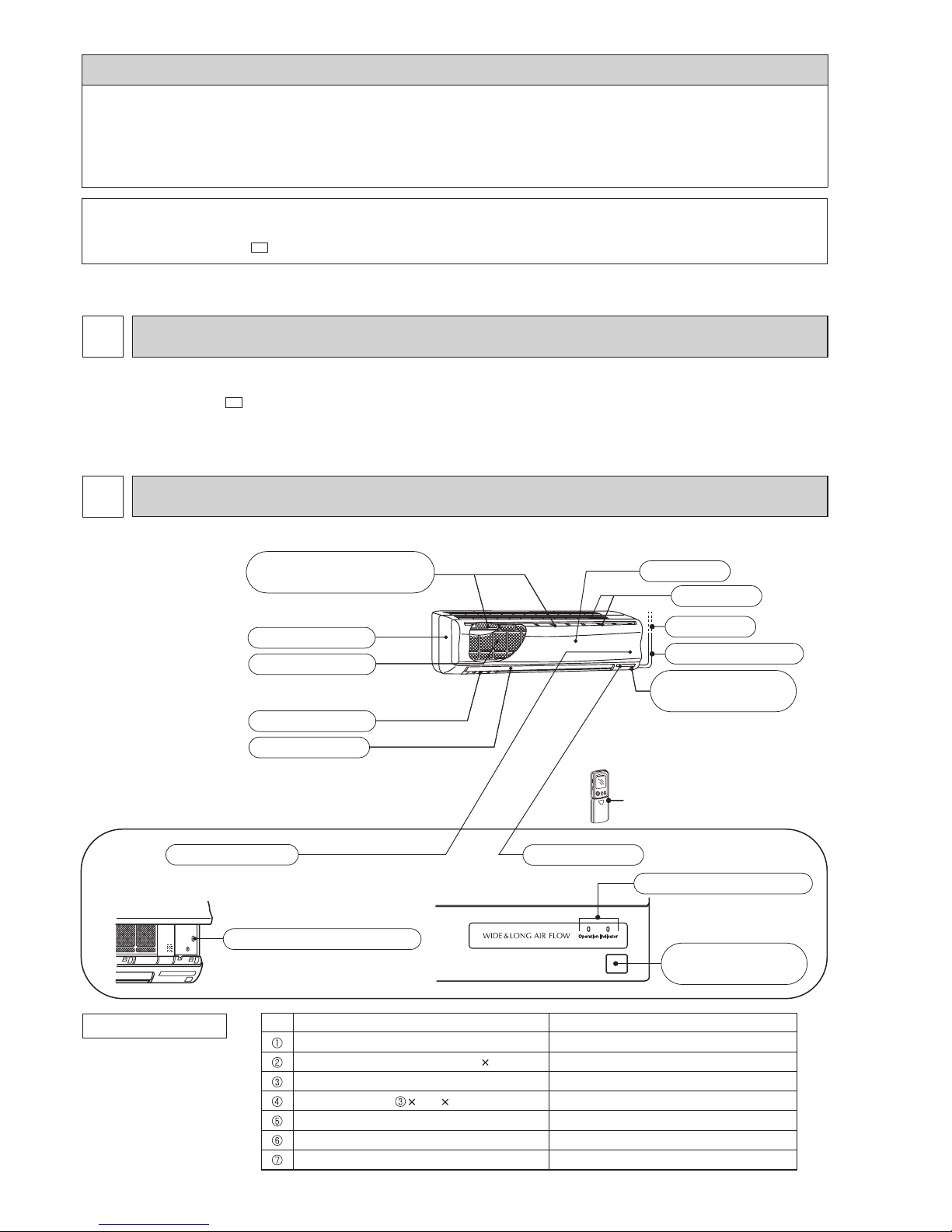

PART NAMES AND FUNCTIONS

Front panel

(When the grille is opened)

Remote controller

Operation section Display section

Emergency operation switch

Operation indicator lamp

Air inlet

To breaker

Power supply cord

Remote control

receiving section

Air cleaning filter (option)

(White bellows type)

Horizontal vane

Vertical vanes

Catechin air filter

Remote control

receiving section

Panel

MSH-GD80VB

MSH-GD80VB - E1

1. New model

ACCESSORIES

Installation plate

Installation plate fixing screw 4 25 mm

Remote controller holder

Fixing screw for 3.5 1.6 mm (Black)

Battery (AAA) for remote controller

Wireless remote controller

Felt tape (Used for left or left-rear piping)

MSH-GD80VB

Use the speciﬁed refrigerant only

Never use any refrigerant other than that specified.

Doing so may cause a burst, an explosion, or fire when the unit is being used, serviced, or disposed of.

Correct refrigerant is specified in the manuals and on the spec labels provided with our products.

We will not be held responsible for mechanical failure, system malfunction, unit breakdown or accidents caused by

failure to follow the instructions.

Revision A:

• Another type of the electronic control P.C. board (TYPE 2) has been added to the original one (TYPE 1). They are both com-

patible with MSH-GD80VB- E1 .

OBH513A

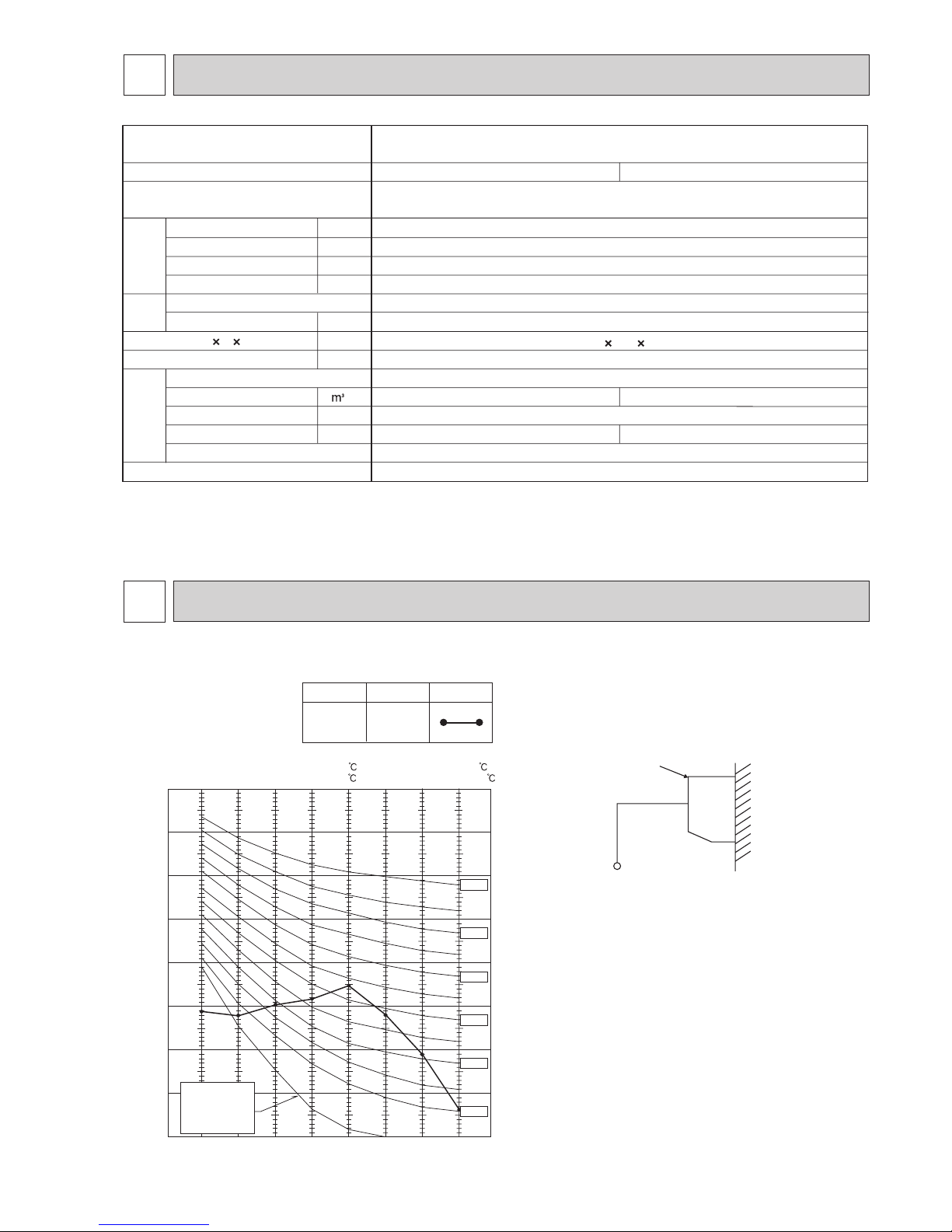

SPECIFICATION

NOTE: Test conditions are based on ISO 5151.

Cooling: Indoor Dry-bulb temperature 27°C Wet-bulb temperature 19°C

Outdoor Dry-bulb temperature 35°C Wet-bulb temperature 24°C

Heating: Indoor Dry-bulb temperature 20°C Wet-bulb temperature 15.5°C

Outdoor Dry-bulb temperature 7°C Wet-bulb temperature 6°C

Indoor-Outdoor piping length: 5 m

Indoor model

Function

Power supply

Air flow

(High/Med./Low)

Running current

Power input

Power factor

Fan motor current

Model

Dimensions W H D

Weight

Air direction

Sound level

(High/Med./Low)

Fan speed

(High/Med./Low)

Fan speed regulator

Remote controller model

Fan

motor Electrical data

Special

remarks

Cooling Heating

Single phase

230 V, 50 Hz

954/822/684

0.34

RC4V40-AA

1,100 325 258

47/42/37

1,280/1,130/970

954/834/726

1,280/1,150/1,020

KM04A

Breaker capacity 10

rpm

MSH-GD80VB

NOISE CRITERIA CURVES

10 63 125 250 500 1000 2000 4000 8000

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

APPROXIMATE

THRESHOLD OF

HEARING FOR

CONTINUOUS

NOISE

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

Test conditions,

Cooling : Dry-bulb temperature 27 Wet-bulb temperature 19

SPL(dB(A)) LINE

High

FAN SPEED

Heating : Dry-bulb temperature 20 Wet-bulb temperature 15.5

MSH-GD80VB

INDOOR UNIT

WALL

MICROPHONE

0.8m

OBH513A

OUTLINES AND DIMENSIONS

258

162

7.5

315

255.547

2.5

98 173

98 173414.5 414.5

253

791

1068

1100

325

Air out

Air in

Insulation 28

Drain hose 16

(Connected part O.D)

Installation plate

Wall hole 75

Wireless remote controller

Installation plate Indoor unit

{

Liquid line 9.52- 0.5 m

Gas line 12-0.43 m

Insulation 50 O.D

32 I.D

Power supply cord

Lead to right 2.0 m

Lead to left 1.0 m

MSH-GD80VB Unit: mm

OBH513A

Indoor

heat

exchanger

Flared connection

Room temperature

thermistor

RT11

Indoor coil

thermistor

RT13 (sub)

Flared connection

Refrigerant pipe 15.88

(with heat insulator)

Refrigerant pipe 9.52

(with heat insulator)

Indoor coil

thermistor

RT12 (main)

Strainer

#50

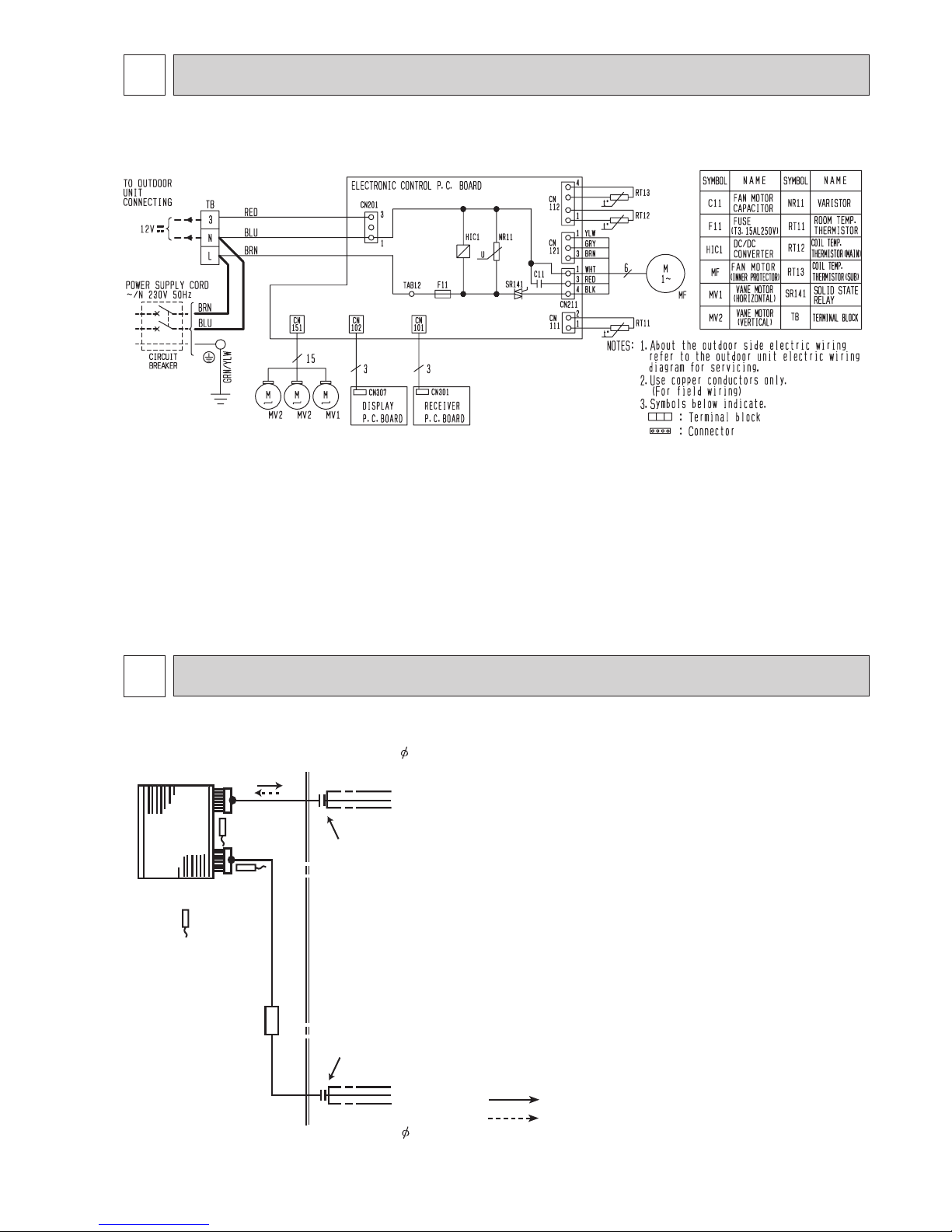

WIRING DIAGRAM

MSH-GD80VB

REFRIGERANT SYSTEM DIAGRAM

Refrigerant flow in cooling

Refrigerant flow in heating

Unit:mm

MSH-GD80VB

OBH513A

SERVICE FUNCTIONS

Table 1

No. 1 unit

No. 2 unit

No. 3 unit

No. 4 unit

1 unit operation

No modification

–

2 units operation

Same as at left

Solder J1

–

3 units operation

Same as at left

Solder J2

–

4 units operation

Same as at left

Solder both J1 and J2

8-2. P.C. BOARD MODIFICATION FOR INDIVIDUAL OPERATION

A maximum of 4 indoor units with wireless remote controllers can be used in a room.

In this case, to operate each indoor unit individually by each remote controller, P.C. boards of remote controller must be

modified according to the number of the indoor unit.

How to modify the remote controller P.C. board

Remove batteries before modification.

The board has a print as shown below:

8-1. TIMER SHORT MODE

For service, set time can be shortened by short circuit of JPG and JPS on the electronic control P.C. board. (Refer to 10-6.)

The time will be shortened as follows.

Set time: 1 minute 1-second

Set time: 3 minute 3-second (It takes 3 minutes for the compressor to start operation. However, the starting time is short-

ened by short circuit of JPG and JPS.)

The P.C. board has the print “J1” and “J2”. Solder “J1” and “J2” according to the number of indoor unit as shown in Table 1.

After modification, press the RESET button.

MSH-GD80VB

How to set the remote controller exclusively for particular indoor unit

After you turn the breaker ON, the first remote controller that sends the signal to the indoor unit will be regarded as the

remote controller for the indoor unit.

The indoor unit will only accept the signal from the remote controller that has been assigned to the indoor unit once they are

set. The setting will be cancelled if the breaker has turned off, or the power supply has shut down.

Please conduct the above setting once again after the power has restored.

NOTE: For modification, take out the batteries and press the OPERATE/STOP (ON/OFF) button 2 or 3 times at first.

After modification, put back the batteries then press the RESET button.

OBH513A

Operation

If the main power has been cut, the operation settings remain.

After the power is restored, the unit restarts automatically

according to the memory. (However, it takes at least 3 minutes

for the compressor to start running.)

How to disable “AUTO RESTART FUNCTION”

Turn OFF the main power for the unit.

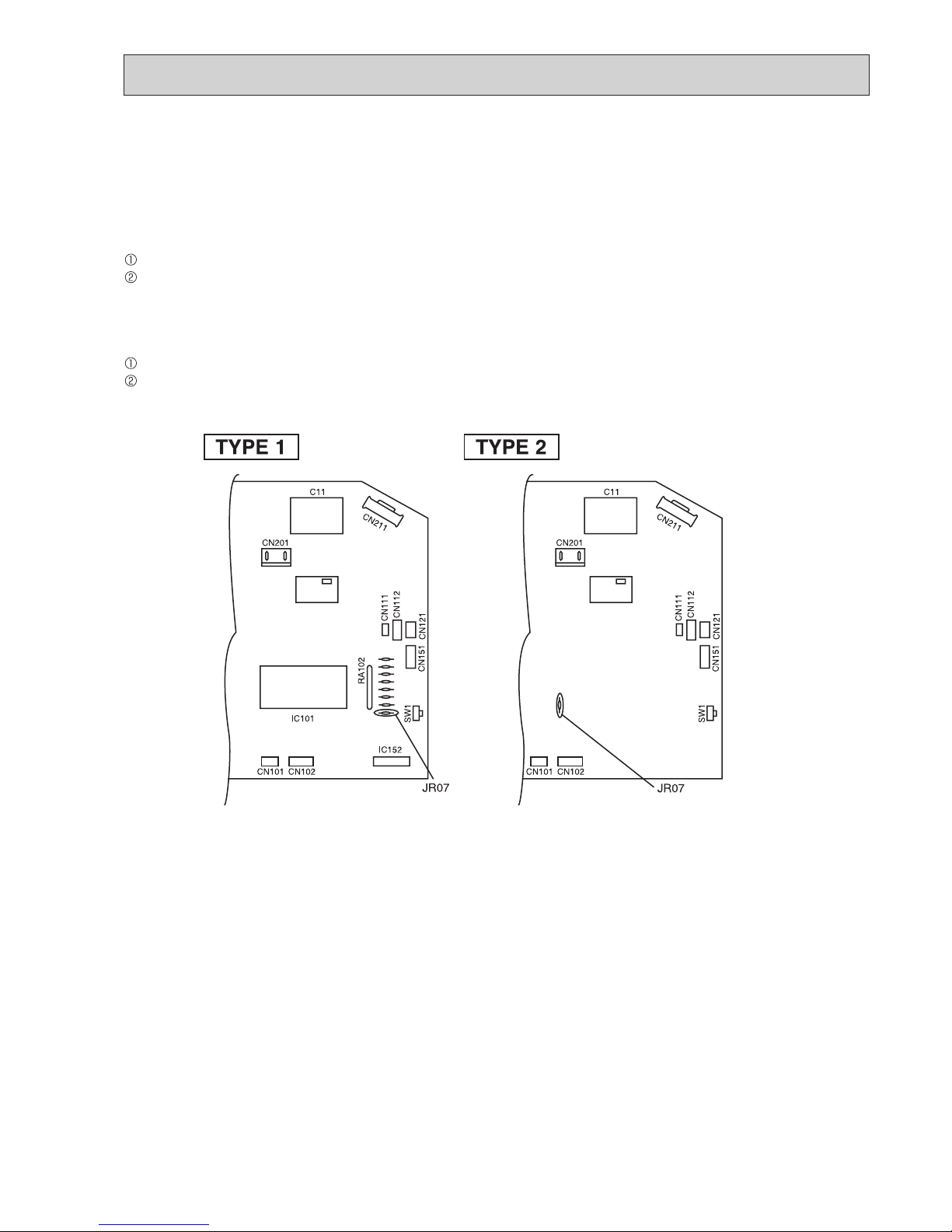

Solder jumper wire to JR07 on the indoor

electronic control P.C. board. (Refer to 10-6.)

NOTE:

•The operation settings are memorized when 10 seconds have passed after the remote controller was operated with the

remote controller.

•If main power is turned OFF or a power failure occurs while AUTO START/STOP timer is active, the timer setting is

cancelled.

•If the unit has been OFF with the remote controller before power failure, the auto restart function does not work as the

power button of the remote controller is OFF.

•To prevent breaker OFF due to the rush of starting current, systematize other home appliances not to turn ON at the same

time.

•When some air conditioners are connected to the same supply system, if they are operated before power failure, the

starting current of all the compressors may flow simultaneously at restart.

Therefore, the special counter-measures are required to prevent the main voltage-drop or the rush of the starting current

by adding to the system that allows the units to start one by one.

When the indoor unit is controlled with the remote controller, the operation mode, set temperature, and the fan speed are

memorized by the indoor electronic control P.C. board. “AUTO RESTART FUNCTION” automatically starts operation in the

same mode just before the shutoff of the main power. However if the unit is operated in “I FEEL CONTROL” mode before

power failure, the operation is not memorized. In “I FEEL CONTROL” mode, the operation is decided by the initial room

temperature.

8-3. AUTO RESTART FUNCTION

OBH513A

MICROPROCESSOR CONTROL

Approx. 2

or more

Difference

between target

temperature

and room

temperature

Approx. 2

or less

This shows that the

air conditioner is

operating to reach

the target temperature.

Please wait until the

target temperature is

obtained.

This shows that the

room temperature is

approaching the

target temperature.

Operation stateIndication

OPERATION INDICATOR lamp

The OPERATION INDICATOR at the right side of the indoor

unit indicates the operation state.

INDOOR UNIT DISPLAY SECTION

The following indication applies regardless of

shape of the indicator.

Lighted

Not lighted

MSH-GD80VB

HEAT

ON/OFF

FAN

TOO

WARM TOO

COOL

VANE

MODE

ECONO COOL

STOP

START

HR.

MIN.

WIDE VANE

LONG

I FEEL

COOL

DRY

CLOCK

RESET CLOCK

OPERATION SELECT button

FAN SPEED CONTROL button

OFF-TIMER button

HR. button

MIN. button

(TIME SET button)

ON-TIMER button

RESET button

ECONO COOL button

VANE button

(Horizontal vane button)

CLOCK SET button

LONG button

WIDE VANE button

(Vertical vane button)

ON/OFF

TOO

COOL

TOO

WARM

Signal transmitting section

Operation display section

OPERATE/STOP

(ON/OFF) button

TEMPERATURE buttons

WIRELESS REMOTE CONTROLLER

NOTE:

• The last setting will be stored after the unit is turned OFF with the remote controller.

• Indoor unit receives the signal of the remote controller with beeps.

OBH513A

The set temperature is determined from the initial room temperature.

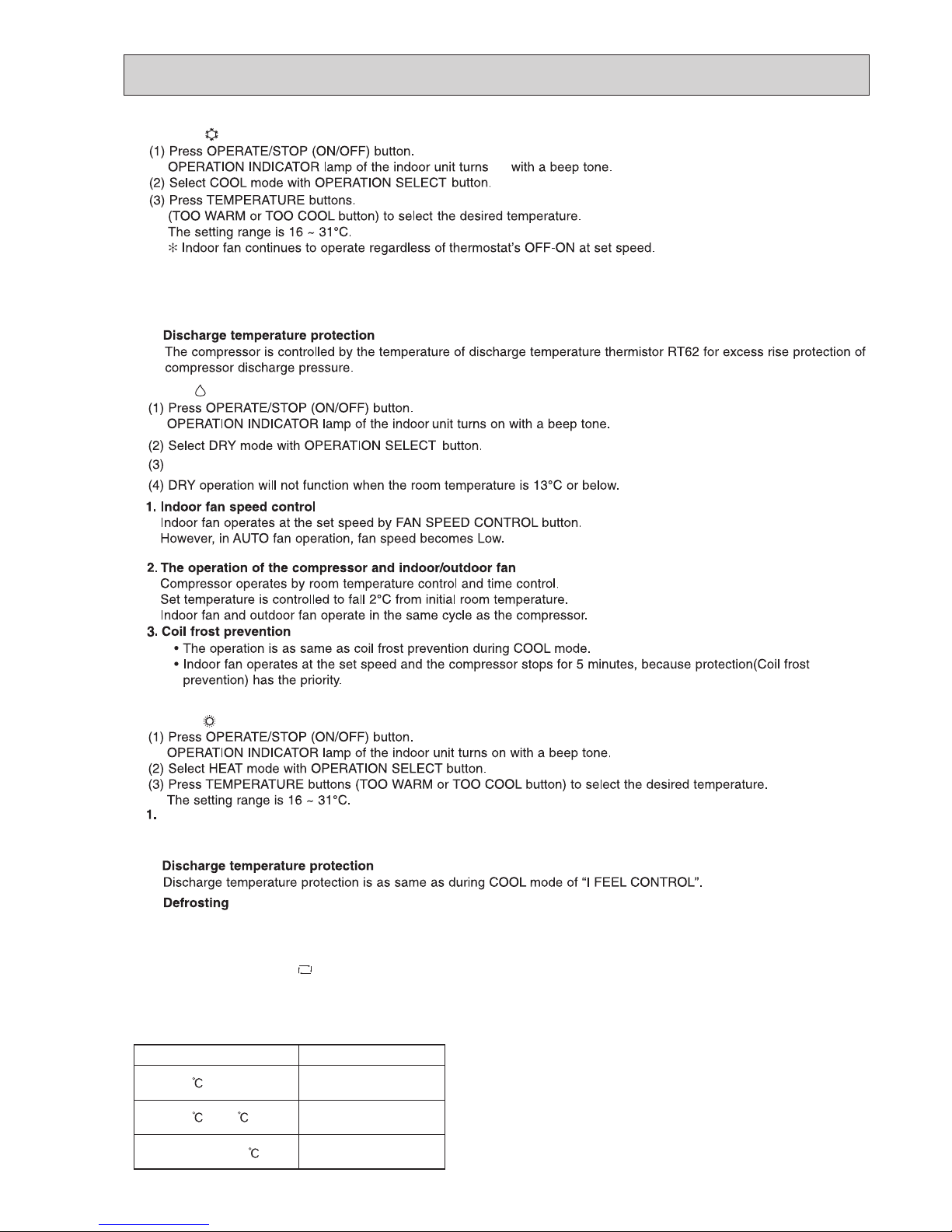

9-1. COOL ( ) OPERATION

9-2. DRY ( ) OPERATION

9-3. HEAT ( ) OPERATION

1. Coil frost prevention

When the temperature of indoor heat exchanger becomes too low, the coil frost prevention mode works.

The indoor fan operates at the set speed and the compressor stops. This mode continues until the temperature of indoor

heat exchanger rises.

Defrosting starts when the temperature of outdoor heat exchanger becomes too low.

The compressor stops once, the indoor/outdoor fans stop, the 4-way valve reverses, and the compressor re-starts.

This mode continues until the temperature of outdoor heat exchanger rises or the fixed time passes.

When the compressor is not operating or is starting, and the temperature of indoor heat exchanger and/or the room

temperature is low or when defrosting is being done, the indoor fan will stop or rotate in Very Low speed.

Cold air prevention control

However, when the coil frost prevention works while the compressor is not operating, the indoor fan speed becomes Low.

Mode

COOL mode of

"I FEEL CONTROL"

DRY mode of

"I FEEL CONTROL"

HEAT mode of

"I FEEL CONTROL"

Initial room temperature

25 or more

23 to 25

less than 23

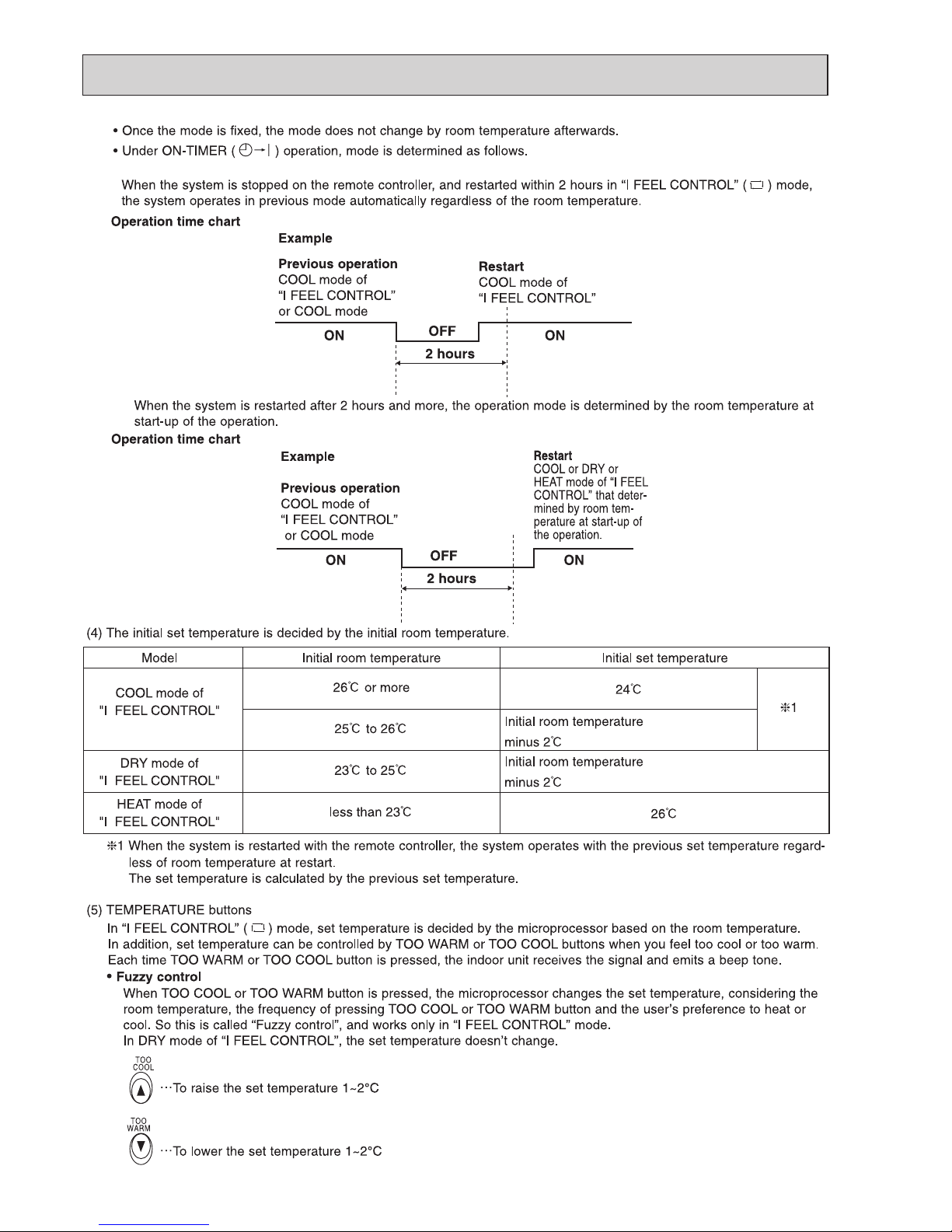

9-4."I FEEL CONTROL" ( ) OPERATION

(1) Press OPERATE/STOP (ON/OFF) button on the remote controller.

OPERATION INDICATOR lamp of the indoor unit turns ON with a beep tone.

(2) Select "I FEEL CONTROL" mode with OPERATION SELECT button.

(3) The operation mode is determined by the room temperature at start-up of the operation.

OBH513A

Table des matières

Autres manuels Mitsubishi Electric Climatiseur

Mitsubishi Electric

Mitsubishi Electric MS2-AY50VGK Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric NAXMMX60A182A Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PEAD-A24 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Mr.Slim MSZ-SGH24VA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PUMY-P-YHMA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric CITY MULTI CMY-ER200CBK Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MUZ-GS30NA-U1 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric TRANE TPEFYP006MA144A Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Mr. Slim MUZ-D30NA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PLFY-P32VAM-E Manuel d'utilisation

Mitsubishi Electric

Mitsubishi Electric MS-SE30VC Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Mr. Slim PED-2EJA1.UK Manuel d'utilisation

Mitsubishi Electric

Mitsubishi Electric PEFY-WL06NMAU-A Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PEH-P8MYA Manuel d'utilisation

Mitsubishi Electric

Mitsubishi Electric MS-GK24VA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PKH18FK Manuel d'utilisation

Mitsubishi Electric

Mitsubishi Electric PUNZ-RP-HA-A Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric City Multi Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PUHY-HP200 Comment utiliser

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PURY-P-THMU-A Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric SRK71ZK-S Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MSZ-GL18NA-U2 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PRH-500MYA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MSZ-AP15VGK Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
