MITEL 7433 IP PHONE FOR MIVOICE MX-ONE

36/1553-DBC 433 01 Uen G 2016-03-08

1 MITEL 7433 DESCRIPTION

The Mitel 7433 phone (see figure below) has a three line display with 2 soft keys and

2 navigation keys. The phone also has a standard key pad, and function keys.

Most features are activatedfrom the functionkeysandthemenusshowninthe display.

For more information on function keys, see 1.3 Function Keys on page 8 and for the

display, see 1.4 Display on page 9.

Note: Clean the phone with a cloth slightly moistened with a mild soap solution.

Figure 1: Mitel 7433 Front View

6/1553-DBC 433 01 Uen G 2016-03-08 4

MITEL 7433 DESCRIPTION

1.1 CABLING

All connections at the back of the phone are marked foreasier identification, see figure

below.

Figure 2: Mitel 7433 Back View

Net

Aastra

7433ip

MITEL 7433 IP PHONE FOR MIVOICE MX-ONE

56/1553-DBC 433 01 Uen G 2016-03-08

Table 1 Phone Connections

Note: The phone does not work during power failure, unless powered through a PoE.

The phone can bepowered eitherfrom the network or from a 5 V AC/DC plug-in power

adapter. Only use the plug-in adapter (power supply) listed below, or an adapter

approved by your local retailer.

• RES 141 319/1 for the EU market except for the UK

• RES 141 319/2 for the US market

• RES 141 319/3 for the UK market

For other markets the power adapter can be locally sourced.

Type of

Connection Description

Power inlet

The phone is powered by an external AC/DC adapter (see details

below) or, alternatively, over a Power over Ethernet (PoE) switch.

• If you use the external power adapter, connect one end

of the adapter to the phone connection marked ,

and the other end to a power outlet.

• If you use the PoE connection, you only have to connect

the phone to the LAN.

LAN inlet

Connect one end of the Ethernet cable to the phone connection

marked Net, and the other end to a LAN connection.

The phone conforms to the 802.1x standard for LAN authentication.

If the phone is equipped with a gigabit Ethernet unit (DBY 412 02)

and connected to a gigabit LAN, it can be powered by a power

adapter, or by a power ethernet switch.

PC inlet

Connect one end of the PC cable to the connection marked , and

the other cable end to a RJ45 connection on your PC.

When the phone is starting up (booting), a connected PC will lose

network connection for a few seconds.

Handset connector

Connect the handset to the connection marked .

6/1553-DBC 433 01 Uen G 2016-03-08 6

MITEL 7433 DESCRIPTION

1.2 FOOT CONSOLE

Your phone is equipped with a foot console. This console is available in two variants;

it can be a stand only, or have a built-in option unit. For more information on option unit,

see section 1.10 Option Unit on page 18.

It is possible to adjust the angle of the phone by tilting the foot console, see figure

below.

Figure 3: Tiltable Foot Console

To install the foot console, do the following:

1. Attach the foot at the arrows on the back of the phone.

2. Press until you hear a click sound.

Note: If you wish to remove the foot console, pull the console firmly towards you to

release it before removing it from the phone.

3. Connect the cables, see 1.1 Cabling on page 4.

MITEL 7433 IP PHONE FOR MIVOICE MX-ONE

76/1553-DBC 433 01 Uen G 2016-03-08

4. Attach the Electrostatic Discharge (ESD) cover on the back of the phone to

protect the connectors from ESD. For this you need a screwdriver.

6/1553-DBC 433 01 Uen G 2016-03-08 8

MITEL 7433 DESCRIPTION

1.3 FUNCTION KEYS

The phone is equipped with a standard alpha numeric keypad and a set of function

keys. The function keys are described below.

Settings

Pressing this key opens the settings menu, see 12 Settings on page 72

for more information.

Contacts

Pressing this key opens the list of contacts in your phone. For more

information on contacts, and what to do from this menu, see section 7

Contacts on page 49.

Call List

Pressing this key opens the call list. The phone keeps a call list of 50

positions listing answered incoming calls, outgoing calls, and missed and

rejected calls. Icons representing incoming, outgoing, and missed calls

are displayed to the left of the number. For information on how to use the

call list, see 4.4 Redial Calls on page 35.

Messages

Pressing this key opens the messages menu.

Mute

Pressing this key during conversation, switches the microphone off.

If the key is pressed when the phone is in idle state, silent ringing is

activated, and the indicator is on. Press any key to deactivate silent

ringing.

Volume

Pressing the volume keys adjusts the volume level of the ring signal and

incoming speech in the handset, or loudspeaker.

Loudspeaker

Pressing this key enables handsfree connection. Handsfree is not

fully available. It is possible for a Mitel 7433 user to hear the other

party, but it is not possible for the other party to hear the Mitel 7433

side.

Line keys

The three line keys are available for both incoming and outgoing calls.

Clear, restart

Press this key to disconnect an ongoing call.

Pressing this key when working from the menus, will take you one step

back.

MITEL 7433 IP PHONE FOR MIVOICE MX-ONE

96/1553-DBC 433 01 Uen G 2016-03-08

1.4 DISPLAY

The phone display consists of threerows, each with 24 characters. The two uppermost

rows display icons and text, conveying information about features, time and date,

owner ID, and so on. The third row displays context dependent soft keys that you use

to make selections in the display.

When a scroll bar is visible at the right in the display, there are more options than the

ones currently shown. Use the navigation keys to scroll the list. The content depends

on the traffic state and which actions are performed at the moment.

It is possible to change the contrast of the display, see 12.3.1 Modifying Contrast on

page 75.

You can also change the display menu language and the date and time presentation,

see 12 Settings on page 72.

Note: All names and numbers presented in the displays in this user guide are exam-

ples.

1.4.1 IDLE PHONE (IDLE MODE)

When the phone is in idle mode, the display shows the time and date information on

the first row, and your name or extension number on the second row.

If you have unanswered calls, these are indicated in the idle phone display.

If follow-me is activated, this is also indicated in the idle phone display.

1.4.2 OUTGOING CALL

During an outgoing call, the display shows the traffic information and the dialed name

(if available) and number.

14 May 2010 16:45

12345 John

more... Availability

1 Missed 16:45

12345 John

more... Availability

FollowMe To 54321 16:45

12345 John

more... Availability

12345 16:45

Anna

more... Hold

0:02:18

6/1553-DBC 433 01 Uen G 2016-03-08 10

MITEL 7433 DESCRIPTION

1.4.3 DISPLAY ICONS

Depending on the phone mode, one or more icons in table 2 on page 10 may appear

in the display.

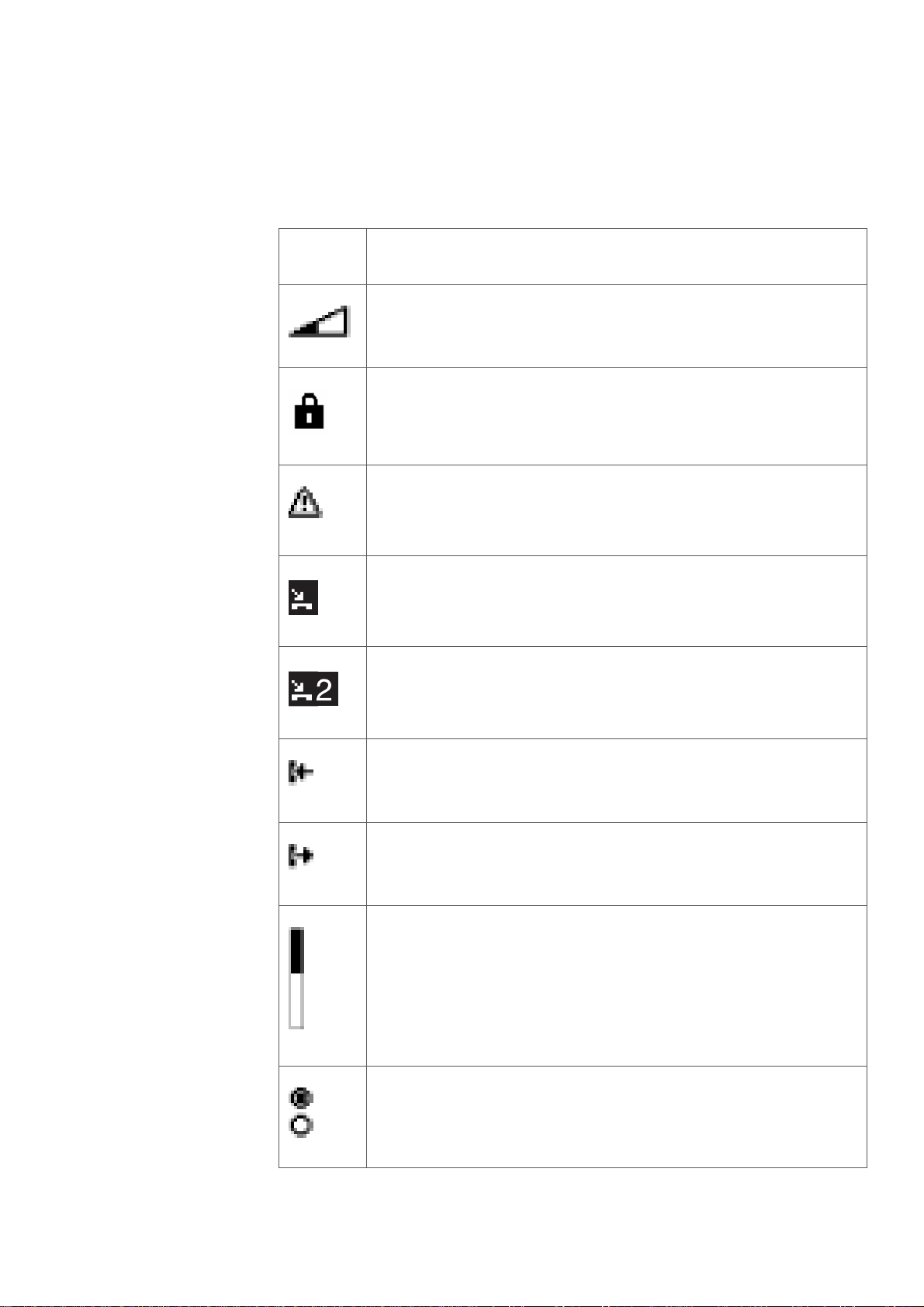

Table 2 Display Icons

Display

icon Description

Volume level bar

Indicates the ring signal volume in idle or ringing mode, or in speech mode, the

loudspeaker or earpiece volume.

Security

Indicates that the ongoing call is secure between the A and B party. The media

(speech) and the signaling are encrypted.

Access warning

Flashes when the access to system services is reduced (some system

services do not work).

New missed call(s)

Indicates new missed and not checked incoming call(s). The number beside

the symbol indicates how many times this caller has tried to call your

extension.

Missed call(s)

Indicates new missed but checked incoming call(s). The number beside the

symbol indicates how many times this caller has tried to call your extension.

Incoming call

Indicates an answered incoming call.

Outgoing call

Indicates an outgoing call.

Bar indicator

Indicates the shown part of the total list and where it is positioned in the total

list.

Setting indicators

Filled symbol indicates the current setting in the shown list
