Additional Auxiliary Features

New Features 1

1 New Features

Additional functionsavailablewiththiscopierareshownbelow.Fordetails

on their operation, refer to the pages indicated.

GX/Y Zoom (Refer to page 2 for more

details.)

GPostcard (Refer to page 3 for more

details.)

GImage Repeat (Refer to page 5 for

more details.)



Note

The “X/Y Zoom”, “Postcard” and “Image Repeat” functions are only

available if the memory is installed.

1New Features

1.1 SpecifyingDifferentVerticalandHorizontalScaling

Proportions (“X/Y Zoom” Function)

Copies can be made by specifying different scaling proportions for the

vertical and the horizontal directions of the document. The zoom ratio can

be between ×0.500 and ×4.000 (in 0.001 increments).

To specify the vertical and horizontal scaling proportions

1Position the document(s) to be copied. (Refer to chapter 6 of the

Operator’s Manual.)

2Select the desired color mode. (Refer to chapter 3 of the Operator’s

Manual.)

3Touch [Auxiliary].

The Auxiliary screen appears.

4Touch [X/Y Zoom].

5Touch [X] or [Y], and use the

keypad to enter the desired zoom

ratio, and then touch [Enter].

6Specify any other necessary settings.

7Using the keypad, enter the number of copies you wish to make, and

then press the [Start] key.

New Features 1

1.2 Reducing the Document to Postcard Size and

Printing Multiple Copies on One Page (“Postcard”

Function)

The document can be reduced to the size of a postcard, and up to four

copies can be printed on one sheet of Letter-size postcard paper.

Document sizes that can be selected

GPreset sizes

5 1/2 × 8 1/2L in., 3 × 5L in., 4 × 6L in., 2 1/4 × 3 1/4L in., A5L, A6L,

B5L, B6L

GCustom sizes

X: 2 to 9 7/8 in.

Y: 2 to 8 1/4 in.

To set the “Postcard” function

1Position the document(s) to be copied. (Refer to chapter 6 of the

Operator’s Manual.)

2Select the desired color mode. (Refer to chapter 3 of the Operator’s

Manual.)

3Touch [Auxiliary].

The Auxiliary screen appears.

4Touch [Postcard].

5Touch [Original Size].

1New Features

6Select the document size,and then

touch [Enter].

HFor metric document sizes,

touch [Metric] to display a

screen containing metric paper

size settings.

HFor a paper size other than the

standard sizes listed on the

screen, touch [Custom Size].

Touch , , , and

to specify the the size of

the original, and then touch

[Enter].

7Load Letter-size postcard paper

lengthwise into the multipurpose

paper drawer (1st drawer) with the

front side of the paper facing up.

HSetthemediatypeselectiondial

to “Thick1”.

HAfter specifying the settings,

touch [Enter].

HIf the document is positioned as

shown on the screen, it will be

copied onto the paper as shown on the screen.

8Using the keypad, enter the number of copies you wish to make, and

then press the [Start] key.



Note

To purchase postcard paper, contact the sales representative for this

copier.

New Features 1

1.3 Tiling Copies (“Image Repeat” Function)

Multiple copies of the original can be printed at the desired zoom ratio to

fill the page. The zoom ratio can be set between ×0.500 and ×4.000 (in

0.001 increments). In addition, the number of times the original is to be

printed can be set between 1 and 100.

To set the “Image Repeat” function

1Position the document(s) to be copied. (Refer to chapter 6 of the

Operator’s Manual.)

2Select the desired color mode. (Refer to chapter 3 of the Operator’s

Manual.)

3Touch [Auxiliary].

The Auxiliary screen appears.

4Touch [Image Repeat].

5Make sure that [Zoom] is selected,

and then use the keypad to enter

the desired zoom ratio.

1New Features

6Touch [# of Images], and then use

the keypad to enter the desired

number of times that you wish to

print the original.

7Touch [Original Size], select the

document size, and then touch

[Enter].

HFor metric document sizes,

touch [Metric] to display a

screen containing metric paper

size settings.

HFor a paper size other than the

standard sizes listed on the

screen, touch [Custom Size].

Touch , , , and

to specify the the size of

the original, and then touch

[Enter].

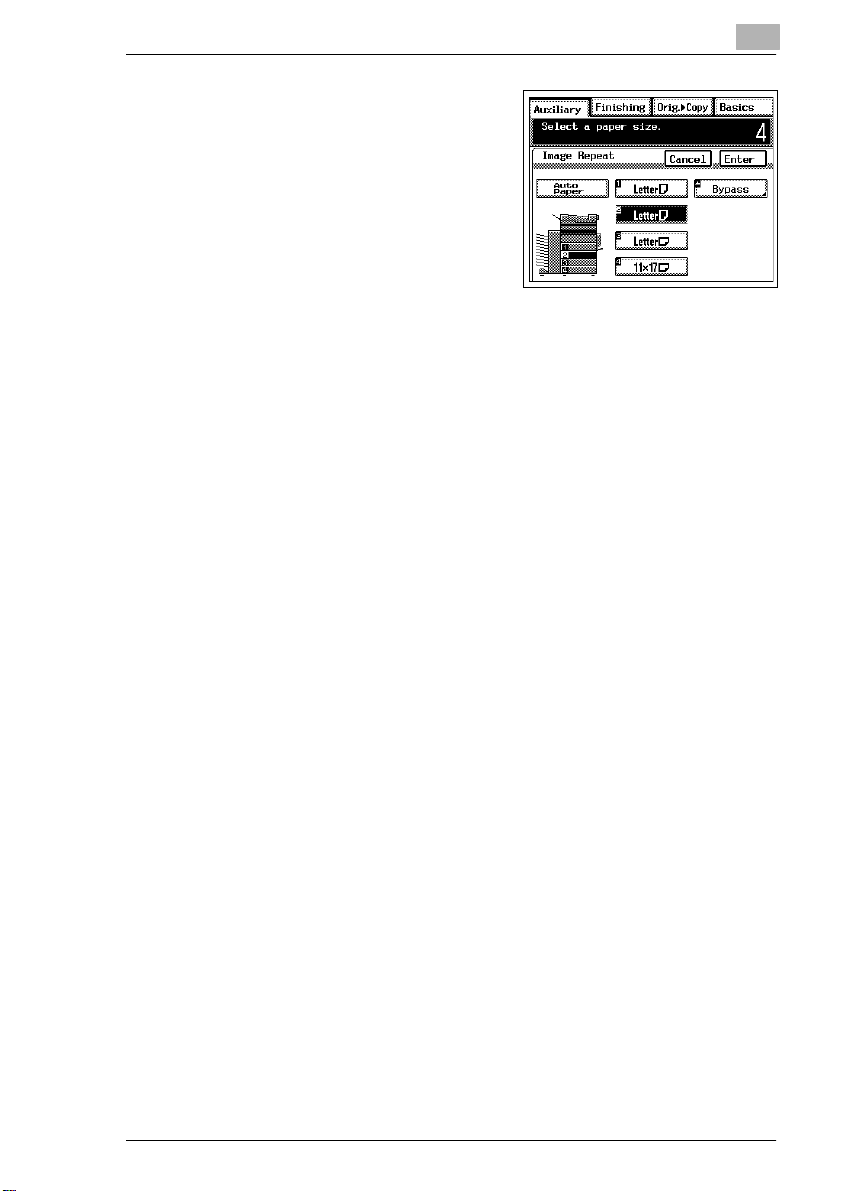

8The appropriate size of loaded

paper for the set zoom ratio,

number of copies, and document

size is selected. Check the selected

paper size, and then touch [Enter].

New Features 1

HTo manually select the paper

source, touch [Paper Size].

Select the tray or drawer

containing the paper that you

wish to use, and then touch

[Enter].

9Press the [Start] key.

2Color shift Correction

2 Color shift Correction

If a difference can be seen between the original document and the copy,

fine adjustments in the color shift can be made.

To set the “Color Shift Correction” parameters

1In the Expert User’s Mode screen,

touch [Color Shift Correction (Bk)] for

the color that you wish to adjust.

The corresponding Color Shift

Correction screen appears.

(Refer to chapter 9 of the Operator’s

Manual.)

2Load paper (11 × 17L) into any paper

drawer,andthen press the[Start]key

to print out the test pattern.

3Fold the printed test pattern perpendicularly to the paper feed

direction, check that there is no shift in the up-and-down direction of

the black reference line, and then touch [Enter].

If there isa shift,touch and to specifythe desired adjustment

for “θ”, and then repeat steps 2 and 3 until there no longer is a shift.

Color shift Correction 2

When the necessary adjustments are finished, touch [Enter].

4Using the black grids as references, check for shifts in cyan,magenta

and yellow.

5In the Expert User’s Mode screen,

touch [Color Shift Correction] for the

color that you wish to adjust.

Touch[X],[Y]or[θ]fortheadjustment

thatyouwishtomake,andthentouch

and to specify the desired

adjustment value.

Continue printing thetest pattern and

making adjustments until there no

longer is a color shift. When the

necessary adjustments are finished, touch [Enter].

The example below shows the adjustment for cyan; however, the

other colors should be adjusted in the same way.

HIf the lines are shifted in the X-

direction:

Touch [X], and then align on the

black grid.
