Mingda MiniBox Manuel utilisateur
USER’S MANUAL

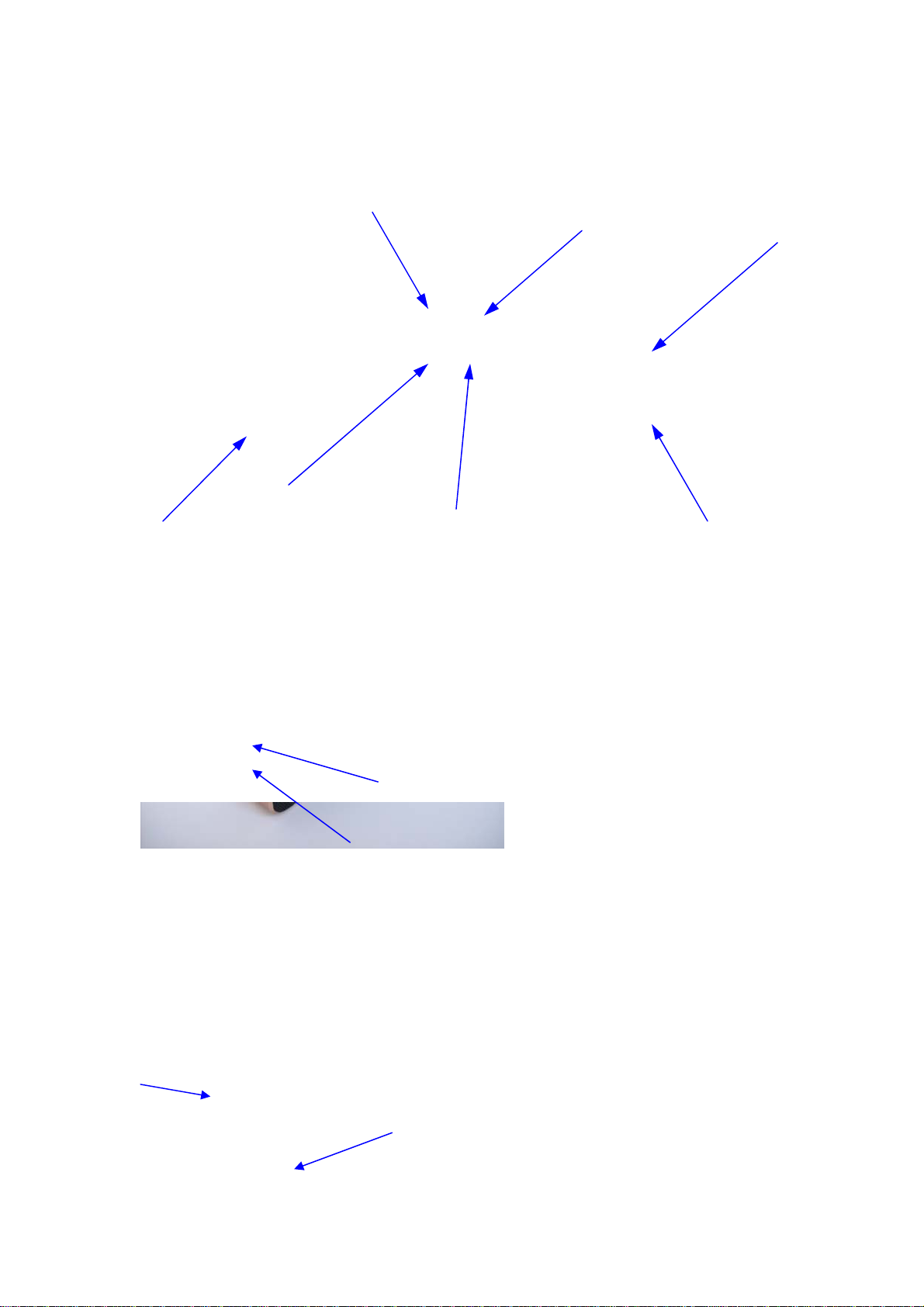

FEATURES & CONTROLS
CONNECTION
VOL -
VOL + SPEAKER - R
SPEAKER -L
Bluetooth
knob
POWER knob
Built-in
microphone
Audio jack
5V DC-in
(Battery charhe)
USB Cable
USB DC5V
charging
OPERATION
TURN POWER ON
Press POWER button and release while the device is at power-off condition.
Back-light LED of power button lights up in green and blinks , indicating the device
is at power-on condition. You may connect a regular audio device to Audio-in jack
directly or refer to Bluetooth Operation in the below for Bluetooth-featured devices.
Status of battery is indicated as follow.
1. With Charger cable disconnected
1a: Battery at workable or full level
Green LED repeats a slow flash.
1b: Battery at low level
Red LED repeats a quick flash every second.
2. With Charger cable connected
2a: Red LED repeats a fast flash to when battery is at low level.
2b: Red and green LEDs repeat a slow flash simultaneously when the battery is at
workable level.
2c: Both red and green LEDs keep lit when the battery is fully charged.
TURN POWER OFF
Press POWER button and release while the device is at power-on condition.
Back-light green LED of power button is black-out , indicating the device is at
power-off condition.
Status of battery is indicated as follow when the charging cable is connected.
a: Red LED repeats a quick flash when the battery is at low level.
b: Red LED repeats a slow flash when the battery is at workable level.
c: Red LED keeps lit when the battery is at its full level.
Remarks : Quick flash implies light up for 1 second and shuts off for 1 second.
Slow flash implies light up for 3 seconds and shuts off for 3 seconds.
BLUETOOTH OPERATION
Turn the BT-Speaker power on and follow the guidance in the below .
2.1. Turn on the Bluetooth
Press the Bluetooth knob and hold for 5 seconds until a beep sounds and
the blue LED flashes.
2.2. Turn off the Bluetooth
Press the Bluetooth knob and hold for 3 seconds until a beep sounds and
the red LED flashes.
Linking a cell-phone to the BT-Speaker via Bluetooth
1. With the speaker Bluetooth at Off condition , press its knob and hold for 7
seconds until 2 beeps sound while the red and blue LED flashes alternately.
2. Set the cell-phone to Bluetooth mode and search for the mode to be linked.
3. Select " mini BOX" when it appears in the cell-phone to link.
Enter 0000 to link in case a code is required by some cell-phones.
4. After being linked operation of the cell-phone will sound by the speaker.
You may stream music from the cell-phone to the device speaker now.
5. Turn of the speaker Bluetooth first and then Bluetooth of the cell-phone to
disconnect the link.
Note :
1. Refer to manuals of cell-phones or iPad for Bluetooth operation as it may
vary from model to model.
2. Do not plug in Audio jack when Bluetooth is in operation .
Receiving a call with the BT-speaker
1. Link your cell-phone to the speaker via Bluetooth.
2. Quick press Bluetooth knob to switch a phone-call call to the speaker.
A short beep sounds and you may talk via the built-in microphone of the speaker.
3. To end the talk just quick press the Bluetooth knob again .
A beep sounds and the speaker will automatically resume streaming music which
the cell-phone set prior to phone-call.
4. To reject an income-call, simply press the Bluetooth knob and hold for 2 seconds
until a long beep sounds.
Redial last number with the BT-speaker
The speaker will redial last number dialed at quick press of Bluetooth knob twice and
a long beep sounds.
Hang up with the BT-speaker
A phone-call can be ceased by a quick press of Bluetooth knob followed by a short
beep.
Re-linking to the cell-phone
Simply quick press the Bluetooth knob to re-link if both the previously paired
cell-phone and the speaker are in Bluetooth on but unlinked condition.
Bluetooth LED indication
Status LEDindication
Poweron, un-linked Blue LED 2 flashes/ sec
Paired Blue & red LED flash alternately
Linked Blue LED flashes every 4 seconds
In a phone-call Blue LED flashes every 4 seconds
AUXILIARYAUDIO INPUT
To play your audio device on the BT-speaker , turn on power of the BT-speaker and
connect your audio-paly device to Audio jack with the audio cable being supplied.
Alternatively just plug in Audio jack when in Bluetooth mode which will be
temporarily disconnected. UnpluggingAudio jack will resume Bluetooth function .
Adjust volume level to your desire with VOL+/VOL- knobs.
Audio device
Audio cable
BT-speaker
FCCID:Z8NMINIBOX
BRANDNAME
:
MINGDA
MODEL:
MiniBox
Operation
Frequency 2.402 GHz to 2.480GHz
Rated Output
Power 3.61dBm(max) for GFSK modulation
Bluetooth
Version V2.1 with EDR
Modulation GFSK, π/4-DQPSK, 8DPSK
Number of
channels 79
Antenna
Designation Integrated Antenna
Antenna Gain 0.83dBi
Hardware
Version BC57F687A05-IQF-E4
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
