OWNER’S MANUAL OM-231 313G

2008−11

Coolmate™3.5

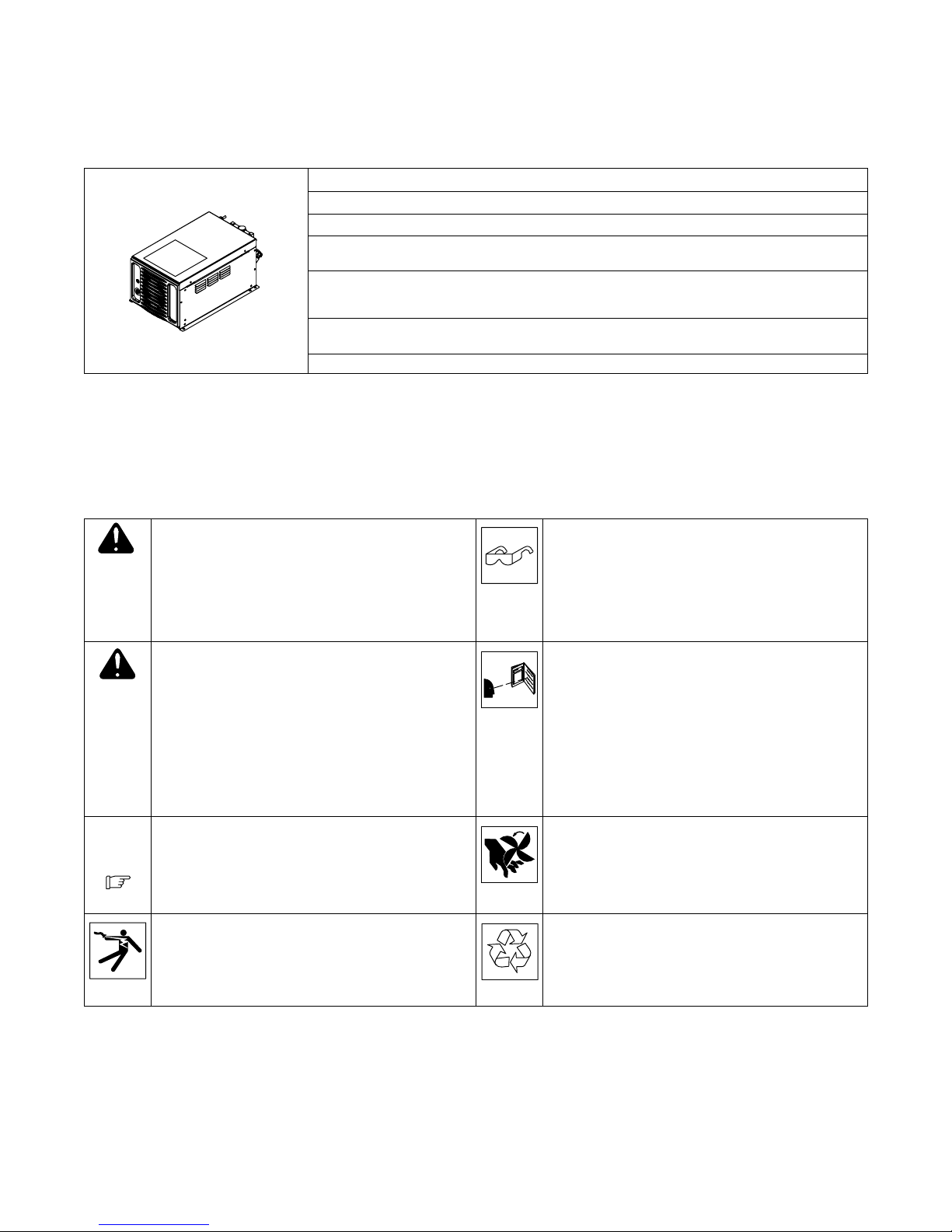

1. Specifications

804 839-A

Recirculating Coolant System For Water-Cooled GTAW Torches And GMAW Guns

Use With Guns/Torches Rated Up To 600 Amperes

IP Rating: 23 −Not Intended For Use In Heavy Rain, Or Near Splashing Water

3-1/2 gal (13.2 L) Coolant Tank Capacity;

Maximum Cooling Capacity: 4,140 W (14,000 BTU/hr) @ 5.0 qt/min (4.7 L/min)

IEC Cooling Capacity: 1,660 W (5,660 BTU/hr) @ 1.1 qt/min (1 L/min)

IEC Cooling Capacity States That The Water Inlet Temperature Can Not Exceed 40°C Above Ambient

Temperature At A 1l/ Min Flow Rate.

Dimensions: 26 in (660 mm) Long, 15-3/4 in (400 mm) Wide, 11-3/4 in (298 mm) High

Weight: 60 lb (27 kg)

115 Volt Models Use 5.9 Amperes, 60 Hertz, 4.7 Amperes 50 Hz, Single-Phase Input Power

2. Safety Symbol Definitions

DANGER! −Indicates a hazardous situation which, if not

avoided, will result in death or serious injury. The possible

hazards are shown in the adjoining symbols or explained

in the text.

DANGER! −Indique une situation dangereuse qui si on

l’évite pas peut donner la mort ou des blessures graves.

Les dangers possibles sont montrés par les symboles

joints ou sont expliqués dans le texte.

Wear safety glasses with side shields.

Porter des lunettes de sécurité avec des protections laté-

rales.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury. The possible ha-

zards are shown in the adjoining symbols or explained in

the text.

Indique une situation dangereuse qui si on l’évite pas peut

donner la mort ou des blessures graves. Les dangers possi-

bles sont montrés par les symboles joints ou sont expliqués

dans le texte.

Have only trained and qualified persons install, operate,

or service this unit. Call your distributor if you do not un-

derstand the directions. For WELDING SAFETY and

EMF information, read owner’s manual(s).

L’installation, l’exploitation et l’entretien de cet appareil

doivent être confiés uniquement à des personnes quali-

fiées et convenablement formées. S’adresser à un distri-

buteur si l’on ne comprend pas les directives. Pour les

renseignements ayant trait à la SECURITE lors du sou-

dage et aux champs électromagnétiques, consulter les

manuels traitant les dévidoirs et les sources de courant

pour le soudage.

NOTICE Indicates statements not related to personal injury.

Indique des déclarations pas en relation avec des blessu-

res personnelles.

Indicates special instructions.

Indique des instructions spécifiques.

Beware of moving parts. Keep guards and panels in

place, covers closed, and hands away from moving parts.

Attention aux pièces mobiles. Maintenir les dispositifs de

sécurité et les panneaux en place, les couvercles fermés

et garder les mains éloignées des pièces mobiles.

Beware of electric shock from wiring. Disconnect input

power before installing this kit. Reinstall all panels and

covers.

Prendre garde aux chocs électriques dus au câblage.

Avant d’installer cet ensemble, couper l’alimentation.

Réinstaller tous les panneaux et couvercles.

Recycle or dispose of used coolant in an environmentally

safe way.

Recycler ou éliminer tout liquide de refroidissement usé

conformément aux méthodes prescrites pour assurer la

protection de l’environnement.

3. Serial Number And Rating Label Location

The serial number and rating information for this product is located on the front panel. Use rating label to determine input power requirements and/or

rated output. For future reference, write serial number in space provided on cover of this manual.

−2 −

DECLARATION OF CONFORMITY

for European Community (CE marked) products.

MILLER Electric Mfg. Co., 1635 Spencer Street, Appleton, WI 54914 U.S.A. declares that

the product(s) identified in this declaration conform to the essential requirements and

provisions of the stated Council Directive(s) and Standard(s).

Product/Apparatus Identification:

Product Stock Number

COOLMATE 3.5 300245

Council Directives:

S2006/95/EC Low Voltage

S2004/108/EC Electromagnetic Compatibility

S2006/42/EEC Machinery Directive

Standards:

SIEC 609741 Arc Welding Equipment  Welding Power Sources: edition 3, 200507.

SIEC 609742 Arc Welding Equipment  Liquid Cooling Systems: edition 1, 200206.

SIEC 6097410 Arc Welding Equipment  Electromagnetic Compatibility Requirements: edition 1.1,

200410.

US Signatory:

December 5, 2008

__________________________________________________________________________

David A. Werba Date of Declaration

MANAGER, PRODUCT DESIGN COMPLIANCE

OM-231 313 Page 1

4. Warning Labels

OM-231 313 Page 2

5. Warning Labels Continued

S-180 663

1 2 3 4 5

67 8 9

1 Warning! Watch Out! There are

possible hazards as shown by the

symbols.

2 Electric shock from wiring can kill.

3 Disconnect input plug or power before

working on machine.

4 Moving parts, such as fans, can cut

fingers and hands and cause injury.

Keep away from moving parts.

5 Wear safety glasses with side shields.

6 Read the Owner’s Manual before

working on this machine.

7 Read the labels on the welding power

source, wire feeder, or other major

equipment for welding safety

information.

8 Recycle or dispose of used coolant in

an environmentally safe way.

9 Do not remove or paint over (cover)

the label.

S-178 910

043 810 (HF)

043 809 (AL)

100 h. std.

21 3

1 Warning! Watch Out! There are

possible hazards as shown by the

symbols.

2 Disconnect input plug or power before

working on machine.

3 Wear safety glasses with side shields.

4 Plugged filter or hoses cause

overheating and damage.

5 Read Owner’s Manual.

6 Check and clean filter every 100

hours; also check condition of hoses.

7 Use Low Conductivity Coolant No. 043

810 for High-Frequency assisted or

Gas Tungsten Arc Welding

applications. Use Aluminum Protecting

Coolant No. 043 809 where coolant

contacts aluminum parts or for Gas

Metal Arc Welding applications or

where High Frequency is not used.

OM-231 313 Page 3

6. Symbols And Definitions

Hz Hertz Input Power Power On Indicator Water (Coolant)

Output

Water (Coolant) In-

put Line Connection Single-Phase

Alternating

Current U1Primary Voltage

I1max Rated Maximum

Supply Current IP Degree Of

Protection Pmax Rated maximum

power Pl/min Power liters per

minute

7. WEEE Label (For Products Sold Within The EU)

Do not discard product (where ap-

plicable) with general waste.

Reuse or recycle Waste Electrical

and Electronic Equipment (WEEE)

by disposing at a designated collec-

tion facility.

Contact your local recycling office

or your local distributor for further

information.

8. Coolant Chart

Low Conductivity Coolant No. 043 810**; Distilled Or Deionized Water OK Above 32°F (0°C)

GTAW Or Where

HF* Is Used

Application

*HF: High Frequency Current

**Coolant 043 810, a 50/50 solution, protects to -37°F (-38°C) and resist algae growth.

Coolant

NOTICE −Use of any coolant other than that listed in the table voids the warranty on any parts that come in contact with the coolant (pump,

radiator, etc.).

OM-231 313 Page 4

9. GTAW Connections

804 846-A

Tools Needed:

5/8 in

!Do not move or operate unit where

it could tip.

To prevent overheating, make sure cooling

unit is positioned so airflow is not restricted.

NOTICE −If welding power source has a

water valve, do not connect hoses to water

valve. Connect hoses as shown.

1 Coolant Out Hose

2 Coolant In Hose

Fittings have 5/8-18 left-hand threads.

Connect hoses with proper fittings as

shown. Some power sources may require

a TIG block.

3 Coolant Tank Cap

4 115 Volt AC Grounded Receptacle

An individual branch circuit capable of car-

rying 15 amperes and protected by fuses

or circuit breakers is recommended. Rec-

ommended fuse or circuit breaker size is

15 amperes.

Operation:

Fill tank with proper coolant. Use table in

Section8 to select proper coolant. Maintain

coolant level at approximately 1 in (25 mm)

below top of filler neck. Connect hoses as

shown. Unit turns on when plugged in.

OM-231 313 Page 5

10. GMAW Connections

804 845-A

Tools Needed:

5/8 in

!Do not move or operate unit where

it could tip.

To prevent overheating, make sure cooling

unit is positioned so airflow is not restricted.

NOTICE −If welding power source has a

water valve, do not connect hoses to water

valve. Connect hoses as shown.

1 Coolant Out Hose

2 Coolant In Hose

Fittings have 5/8-18 left-hand threads.

Connect hoses with proper fittings as

shown.

3 Coolant Tank Cap

4 115 Volt AC Grounded Receptacle

An individual branch circuit capable of car-

rying 15 amperes and protected by fuses

or circuit breakers is recommended. Rec-

ommended fuse or circuit breaker size is

15 amperes.

Operation:

Fill tank with proper coolant. Use table in

Section8 to select proper coolant. Maintain

coolant level at approximately 1 in (25 mm)

below top of filler neck. Connect hoses as

shown. Unit turns on when plugged in.

OM-231 313 Page 6

11. Routine Maintenance

!Disconnect power

before maintaining.

n= Check Z= Change ~= Clean Δ = Repair l= Replace

* To be done by Factory Authorized Service Agent

Every

Months ~Coolant Strainer,

durning heavy service,

clean more frequently.

~Blow out heat exchanger fins.

nCheck coolant level. Top off with

distilled or deionized water if necessary.

Every

Months

nlHoses nl Labels ZReplace coolant.

m30 Torx

Tools Needed:

12. Coolant Maintenance

804 649-A / Ref. 801 194

!Disconnect input power be-

fore maintaining.

1 Coolant Filter

Unscrew housing to clean filter.

Changingcoolant: Drain coolant by

tipping unit to rear, or use suction

pump. Fill with clean water and run

for 10 minutes. Drain and refill with

coolant (see section 8).

.If replacing hoses, use hoses

compatible with ethylene gly-

col, such as Buna-n, Neo-

prene, or Hypalon. Oxy-acety-

lene hoses are not compatible

with any product containing

ethylene glycol.

Install cover if removed.

OM-231 313 Page 7

13. Troubleshooting

Trouble Remedy

Coolant system does not work. Be sure input power cord is plugged in to energized receptacle.

Check line fuses or circuit breaker, and replace or reset if necessary.

Motor overheated. Unit starts running when motor has cooled.

Have Factory Authorized Service Agent check Power switch S1 and motor (Mot).

Decreased or no coolant flow. Add coolant.

Check for clogged hoses or coolant filter. Clean filter or clean / replace hoses if necessary.

Disconnect pump, and check for sheared coupling. Replace coupling if necessary.

14. Circuit Diagram For Cooler

228 525-B

OM-231 313 Page 8

15. Parts List

804 838-C

510

711

13 14

23 15

Figure 14-1. Complete Assembly

Description

Part

No.

Dia.

Mkgs.

Item

No.

Figure 14-1. Main Assembly

Quantity

1 230 156 Cover, top 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 +192 449 Label, warning/caution 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 228 551 Plug, W/Leads Fan 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 226 965 Panel, Side Rh 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 228 519 Hose, nprn brd no 1 X .250 ID X .455 OD X 9.000 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 228 508 Pump, Coolant W/Fittings (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 5523 Ftg, Hose Brs Barbed Elbow M 3/8 TBG X 3/8 NPT 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 173 999 Pump, Coolant 100 Gph W/Clamps Cw Rotation 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9 134 795 Coupler, Drive Pump 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10 196 990 Ftg, Brs Barbed 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11 173 263 Motor, 1/4hp 115vac 50/60hz 1425/1725 Rpm Dual 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12 226 966 Bracket, Motor Mount 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13 166 608 Cap, Tank Screw−on W/Vent 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14 226 932 Tank, Coolant 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15 228 529 Hose, .375 ID X .650 OD X 19.500 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16 155 436 Label, Ground/Protective Earth 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17 163 562 Light, Ind Wht Lens 125vac Snap−in Neon Non−relampa 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18 231 308 Label, Rating Card CSA C US 300245 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19 213 053 Panel, Louver Cover 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20 230 151 Plate, Indicator Front Cooler 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21 226 940 Valve, Check Bidirectional Assy 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22 230 155 Backet, Valve Mounting 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23 226 964 Panel, Side Lh 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24 226 931 Base, Cooler 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25 232 424 Radiator, Heat Exchanger 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26 231 341 Plenum, Air 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table des matières

Autres manuels Miller Système de soudage

Miller

Miller RAD-400EF Manuel utilisateur

Miller

Miller S-44GL Manuel utilisateur

Miller

Miller Panther 307 Manuel utilisateur

Miller

Miller Spectrum 875 Auto-Line Manuel utilisateur

Miller

Miller XMT350 CC/CV Auto-Line CE Manuel utilisateur

Miller

Miller Millermatic 140 Auto-Set Manuel utilisateur

Miller

Miller TRAILBLAZER 275 DC Manuel utilisateur

Miller

Miller 14-Pin Insight Core CE Manuel utilisateur

Miller

Miller XMT 425 CC/CV Manuel utilisateur

Miller

Miller Gold Seal GS-250 Manuel utilisateur

Miller

Miller Gold Seal 422 Manuel utilisateur

Miller

Miller Spectrum 375 X-TREME Manuel utilisateur

Miller

Miller SRH-333 Manuel utilisateur

Miller

Miller INTEGRA 183 Manuel utilisateur

Miller

Miller AUTO ARC TIG 50A Manuel utilisateur

Miller

Miller ArcReach SuitCase 12 CE Manuel utilisateur

Miller

Miller Big Blue 300 D Manuel utilisateur

Miller

Miller Spectrum 700i Manuel utilisateur

Miller

Miller ArcReach Australia Dimension 650 Manuel utilisateur

Miller

Miller SQUAREWAVE 1000 Manuel utilisateur

Miller

Miller Millermatic 251 Manuel utilisateur

Miller

Miller XMT 425 CC/CV Manuel utilisateur

Miller

Miller XMT 425 MPa Auto-Line CE Manuel utilisateur

Miller

Miller XMT 300 CC Manuel utilisateur

Manuels Système de soudage populaires d'autres marques

Berner

Berner PLASMACUT 54 Manuel utilisateur

Pro Spot

Pro Spot PR-155 Manuel utilisateur

Forney

Forney 210 Manuel utilisateur

Thermal Arc

Thermal Arc 400S Manuel utilisateur

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuel utilisateur

GYS

GYS PROTIG 201 AC/DC Manuel utilisateur

TAFA

TAFA 30*8B35 Manuel utilisateur

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuel utilisateur

ESAB

ESAB Buddy Arc 145 Manuel utilisateur

CIGWELD

CIGWELD 636804 Guide rapide

Red-D-Arc

Red-D-Arc DC-400 Manuel utilisateur

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuel utilisateur

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuel utilisateur

WIA

WIA Weldmatic 270 CP132-2 Manuel utilisateur

Sonics

Sonics H520T Manuel utilisateur

NewArc

NewArc RT2000 Guide de démarrage rapide

Hypertherm

Hypertherm powermax1000 Manuel utilisateur

Lincoln Electric

Lincoln Electric POWER WAVE I400 Manuel utilisateur
