Miller Electric CST 280 Manuel utilisateur

Processes

Stick (SMAW)

TIG (GTAW) Lift-Arc

Input Power Requires 3- or 1-Phase Power

Amperage Range 5 – 280 A

Max. Open-Circuit Voltage 79 V

Weight 41 lb (18.6 kg)

Industrial Applications

Power Plant Construction

Petrochemical Construction

Maintenance and Repair

Shipbuilding

CST™280 Stick/TIG Welding

Power Source

Issued Feb. 2008 • Index No. DC/29.55

The Power of Blue®

Miller Electric Mfg. Co.

An Illinois Tool Works Company

1635 West Spencer Street

Appleton, WI 54914 USA

Web Site

www.MillerWelds.com

International Headquarters

Phone: 920-735-4505

USA FAX: 920-735-4134

Canadian FAX: 920-735-4169

International FAX: 920-735-4125

Portable in the shop or at

the job site — at 41 lb the

CST 280 is easily moved

from location to location.

Superior Stick arc performance

even on the difficult-to-run

electrodes like E6010.

Adaptive Hot Start™for Stick

arc starts automatically

increases the output amperage

at the start of a weld should

the start require it. Prevents

the electrode from sticking

and creating an inclusion.

Remote amperage control

provided through 14-pin

receptacle on front of the

machine. This permits use

of standard remote

amperage control devices.

Tweco®or Dinse-style

connectors are available

on the CST 280.

6 ft power cable included.

Easy To Install with a new

switch on the outside of the

package, the machine can be

changed between low and high

input voltage ranges. Also,

since the switch is on the

back, input voltages can be

changed without removal

from inverter racks.

Optional 4- or 8-pack racks

are available for multiple

operator applications.

These are commonly used

in construction and shipyard

applications. All CST controls

including the power switch

are located on front of the

machine for easy access.

Power source is warranted for 3 years, parts and labor.

Original main power rectified parts are warranted for 5 years.

Quick

Specs

Lift-Arc™start provides TIG

arc starting without the use of

high frequency.

Welding

Mode

Stick

(SMAW)

TIG

(GTAW)

Rated Output

280 A at 31.2 V,

35% Duty Cycle

200 A at 28 V,

100% Duty Cycle

200 A at 28 V,

50% Duty Cycle*

150 A at 26 V,

100% Duty Cycle*

Welding

Amperage

Range

5–280 A

5–200 A

Input

Power

3-Phase

1-Phase

Max. Open-

Circuit

Voltage

77 VDC

Net

Weight

41 lb

(18.6 kg)

Specifications (Subject to change without notice.)

Control Panel

Amps Input at Rated Load Output, 50/60 Hz,

208 V 220 V 230 V 400 V 440 V 460 V 575 V

— 35 34.2 — — 17.8 14.7

— 23.3 22.5 — — 11.7

9.7

— 43.9 43 — — — —

— 32.7 32 — — — —

Dimensions

H: 13-1/2 in

(343 mm)

W: 7-1/2 in

(191 mm)

D: 18 in

(457 mm)

Output ratings on 230 V single-phase are reduced to comply with CSA current limitation on input power cable.

MILLER ELECTRIC MFG. CO. APPLETON, WI

POWER PROCESS SELECT AMP ADJUST

OFF

125 150

100

175

225

250

280

200

CST 280

™

1. Output Light

2. On/Off Switch

3. Weld Process Selector Switch

4. Overtemp Light

5. Amperage Adjustment Control (5–280 Amps)

Performance Data

300

250

200

150

100

10 20 30 40 50 60 70 80 90 100

100

XX18

Setpoint

150 Amps

XX18

Soft

XX18 Stiff,

XX10 Soft XX10 Stiff

TIG

XX10

0 50 100 150 200 250 300

% DUTY CYCLE AMPERAGE

DUTY CYCLE CHART VOLT/AMP CURVE AT 150 AMPS

OUTPUT AMPERES

VOLTAGE

3-Phase Operation

1-Phase Operation

CSA approval. 1P23M approval.

Description

CST-280,

220-230/460-

575 Dinse

CST-280,

220-230/460-

575 Tweco

KVA

14.6

9.6

10.1

7.3

10.2

6.4

6.6

4.6

Stick

(SMAW)

TIG

(GTAW)

280 A at 31.2 V,

35% Duty Cycle

200 A at 28 V,

100% Duty Cycle

200 A at 28 V,

50% Duty Cycle*

150 A at 26 V,

100% Duty Cycle*

5–280 A

5–200 A

3-Phase

1-Phase

67 VDC 41 lb

(18.6 kg)

36 33 22.8 19.8 18 17.5 —

23.5 23 22.8 13.5 12 12.7 —

43.9 43.3 43 — — — —

35 — 32.9 — — — —

H: 13-1/2 in

(343 mm)

W: 7-1/2 in

(191 mm)

D: 18 in

(457 mm)

CST-280,

208-230/400-

460 Dinse

CST-280,

208-230/400-

460 Tweco

10.2

9.9

7.6

10.2

6.9

6.5

4.8

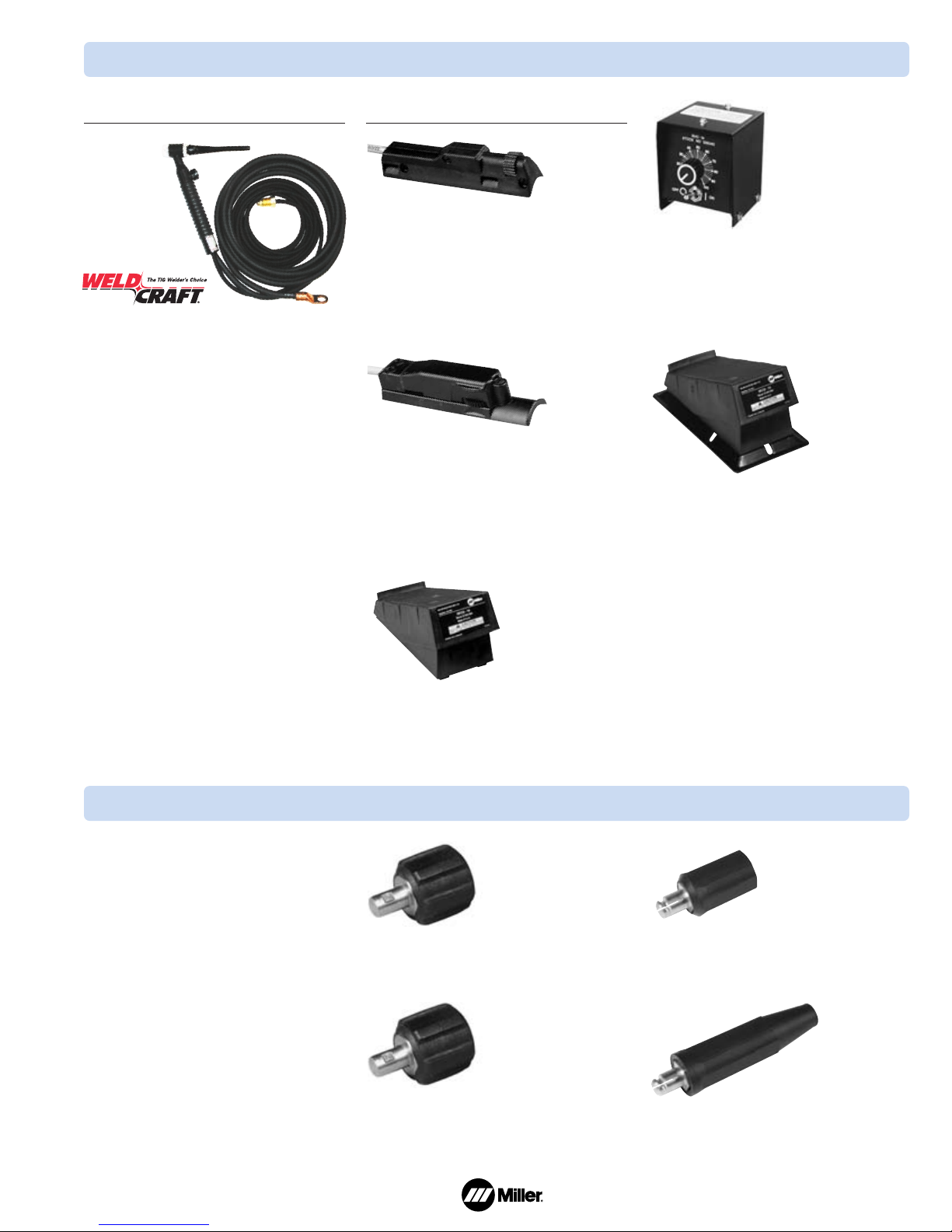

TIG (GTAW) Torches

Weldcraft®TIG Torches

The Weldcraft line of TIG torches complements

the most popular TIG power source line

available today. The Weldcraft torch line

includes both air-cooled and water-cooled

models. Available with genuine Weldcraft parts.

#WP-17V-12-2

150 A, 12 ft (3.7 m)

air-cooled torch with valve, two-piece cable.

#WP-17V-25-2

150 A, 25 ft (7.6 m)

torch with valve, two-piece cable.

#WP-26V-12-2

200 A, 12 ft (3.7 m)

air-cooled torch with valve

#WP-26V-25-2

200 A, 25 ft (7.6 m)

air-cooled torch with valve

These two-cable TIG torches require the installation of a

Dinse Connector (042418) or Tweco Style Connector

(195115) depending on the CST Model Connector Type.

Remote Controls

RCC-14 Remote Contactor and Current

Control* #151 086 14-pin plug

Side-to-side rotary-motion fingertip control

fastens to TIG torch using two Velcro®

straps. Includes 28 ft (8.5 m) control cord.

Great for production or contractors that

need quick ramp-up.

RCCS-14 Remote Contactor and Current

Control* #043 688

Up-and-down rotary-motion fingertip

control fastens to TIG torch using two

Velcro®straps. Includes 28 ft (8.5 m)

control cord. Great for applications that

require a finer amperage control.

RFCS-14 Foot Control* #043 554

Foot pedal provides remote current and

contactor control. Includes 20 ft (6 m) cord

and 14-pin plug.

RHC-14 Hand Control* #129 340

Miniature hand control for remote current

and contactor control. Dimensions: 4 x 4 x

3-1/4 in (102 x 102 x 82 mm). Includes

20 ft (6 m) cord and 14-pin plug.

RFCS-14 HD Foot Control* #194 744

For all Miller solid-state power sources

after serial number JK674521. This new

design increases stability with a larger

base, and durability with a heavier cord.

Maximum flexibility is accomplished with a

reconfigurable cord that can exit the front,

back or either side of the pedal. Foot pedal

provides remote current and contactor

control. Includes 20 ft (6 m) cord and

14-pin plug.

*Note: The remote controls provide amperage control

only on the CST 280, no remote contactor control.

Genuine Miller Accessories

Cable Connectors and Adapters

Note: The Dinse version of the CST 280 includes one

set of male connectors. The tweco version does not.

International-Style Connector

#042 418 50 mm

Accepts #1 or #2 AWG cable size. Required

if male plugs shipped with power source must

be replaced or if additional plugs are needed.

Kit includes one International-style male

plug which attaches to the work and/or

weld cables and plugs into the International-

style receptacles on the power source.

Extension Kit for International-Style

Cable Connectors #042 419 50 mm

Accepts #1 or #2 AWG size cable. Used to

adapt or extend weld and/or work cables.

Kit includes one male International-style

plug and one in-line female International-

style receptacle.

International/Tweco®

Adapter #042 465

A one-piece adapter

which has an

International-style male

plug (to power source)

on one end and a female Tweco receptacle

(for weld cable connection) on other end.

International/Cam-Lok

Adapter #042 466

A one-piece adapter

which has an

International-style

male plug (to power source) on one end

and a Cam-Lok receptacle (for weld cable

connection) on other end.

Tweco/Dinse Adapter

#195 116

A one-piece adapter

which has a Tweco-

style male plug (to

power source) on one end and a female

Dinse or International-style receptacle (for

weld cable connection) on other end.

Tweco-Style

Connector

50 mm

#195 115

Accepts #1 or

#2 AWG cable

size. Kit includes one Tweco-style male plug

which attaches to the work and/or weld

cables and plugs into the receptacle on

the power source.

Litho in USA

Distributed by:

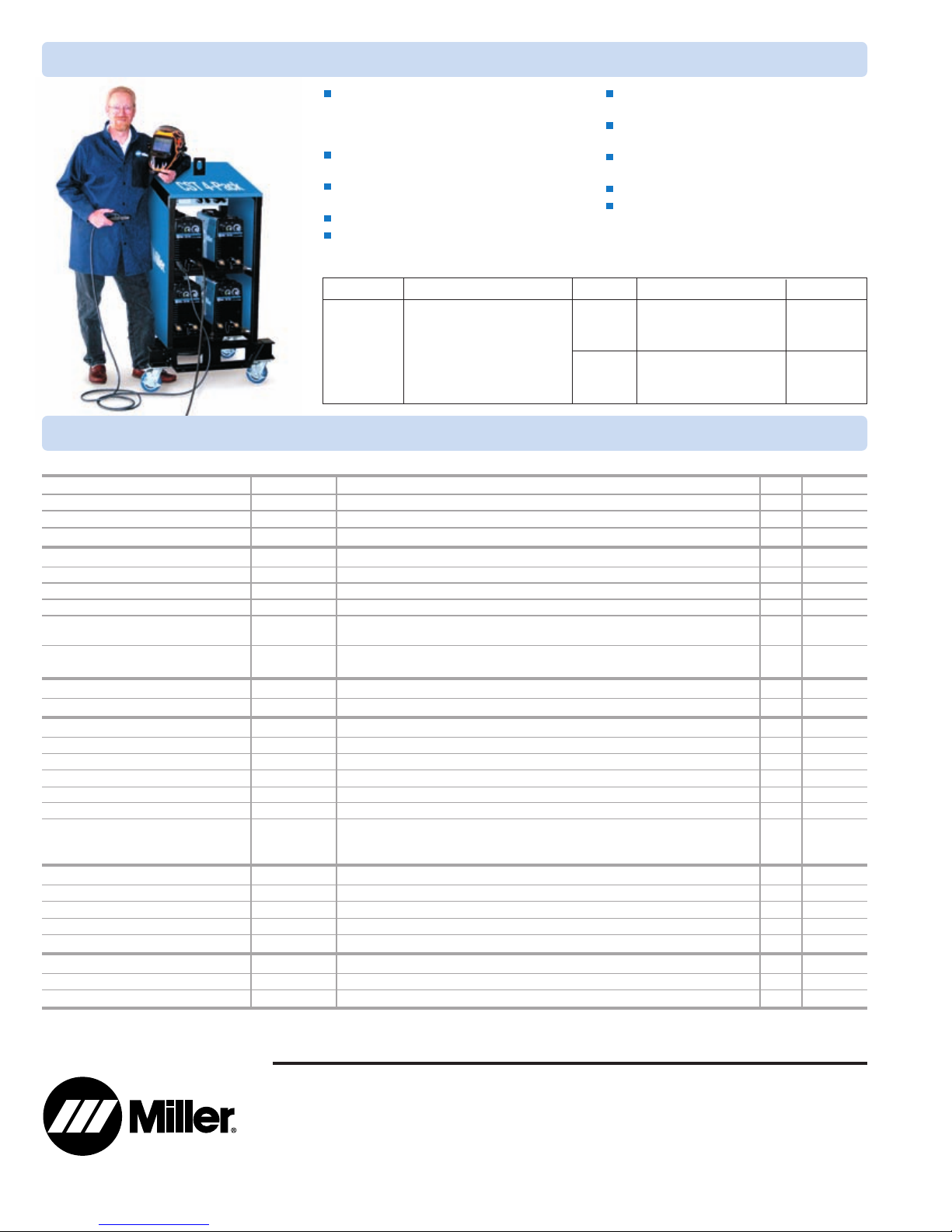

Power Source and Options Stock No. Description Qty. Price

CST™280 w/ Dinse-style connectors* #907 244 220-230/460–575 VAC, 50/60 Hz

CST™280 w/ Tweco-style connectors* #907 244-01-1 220-230/460–575 VAC, 50/60 Hz

CST™280 w/ Dinse-style connectors* #907 251 208-230/400–460 VAC, 50/60 Hz

CST™280 w/ Tweco-style connectors* #907 251-01-1 208-230/400–460 VAC, 50/60 Hz

Power Source Racks and Options

CST™280 Rack w/ Dinse-style connectors* #907 245 Rack with 4 CST 280, 220/230/460/575 VAC (Includes 25 A fuses for 460 V)

CST™280 Rack w/ Tweco-style connectors* #907 247 Rack with 4 CST 280, 220/230/460/575 VAC (Includes 25 A fuses for 460 V)

CST™280 Rack w/ Tweco-style connectors* #907 365 Rack with 8 CST 280, 220/230/460/575 VAC (Includes 25 A fuses for 460 V)

Running Gear for Rack #195 114 For 4-Pack Rack

#195 436 For 8-Pack Rack

Fuse #199 795 30 amp fuse for 220 or 230-volt input (Order 12 per 4-pack rack)

#212 541 20 amp fuse for 575-volt input (Order 12 per 4-pack rack)

TIG Accessories

Weldcraft®TIG Torches See page 3

Remote Controls

RHC-14 Remote Control #129 340 Remote current hand control

RCC-14 #151 086 Remote current side-to-side rotary control

RCCS-14 #043 688 Remote current up and down rotary control

RFCS-14 #043 554 Remote current foot pedal control

RFCS-14 HD #194 744 Remote current foot pedal control with 20 ft (6 m) cord and 14-pin plug

Extension Cord for Remote Controls #122 973 25 ft (7.6 m)

#122 974 50 ft (15.2 m)

#122 975 75 ft (22.8 m)

Cable Connectors and Adapters

International-Style Connector #042 418 50 mm

Extension Kit for International-Style #042 419 50 mm

International/Tweco®Adapter #042 465 A one-piece adapter with International-style male plug

International/Cam-Lok Adapter #042 466 A one-piece adapter with International-style male plug

Tweco-style Connectors

Tweco-style Connector #195 115 50 mm

Adapter, Tweco/International #195 116 One-piece adapter with Tweco-style male connector and international-style female connector

Date: Total Quoted Price:

*The Dinse version of the CST 280 includes one set of male connectors. The Tweco version does not.

Ordering Information

The rack provides a simple means of

protecting and transporting welding power

sources for construction, power plant turn-

arounds, and shipbuilding applications.

The CST™280 Rack’s low weight (340 lb fully

loaded) enables use of elevators to move the rack.

Top cover to protect the machines from

falling debris.

Meets NEC requirements with appropriate fuses.

Lift truck side and end fork pockets.

Lifting eye simplifies transportation using

crane or overhead lifting device.

One main disconnect box with fused circuit

breaker switches for each machine.

Common output ground connection

(for same polarity use only).

CSTs can be paralleled for Air Carbon Arc cutting.

Running gear (optional).

CST™280 Rack (See Index No. DC/18.82 for additional information.)

Power Source

CST 280

Input Power to Rack

220/230/460/575 VAC, 60 Hz,

3-Phase

Capacity

Net Weight

355 lb

(161 kg)

640 lb

(290 kg)

Dimensions

H: 50-3/4 in (1289 mm)

W: 25-1/2 in (648 mm)

D: 26-1/2 in (673 mm)

H: 50-3/4 in (1289 mm)

W: 46 in (1165 mm)

D: 26-1/2 in (673 mm)

CST Rack Specifications (Subject to change without notice.)

Shown with

optional

running gear.

Table des matières

Autres manuels Miller Electric Système de soudage

Miller Electric

Miller Electric S-21E Manuel utilisateur

Miller Electric

Miller Electric Coolmate Coolmate 4 Manuel utilisateur

Miller Electric

Miller Electric SuitCase X-TREME 8 HD Manuel utilisateur

Miller Electric

Miller Electric MILLERMATIC 35 SKP-35 Manuel utilisateur

Miller Electric

Miller Electric Big Blue 500D Manuel utilisateur

Miller Electric

Miller Electric AUTO ARC AATC-150 Manuel utilisateur

Miller Electric

Miller Electric PC-300 Manuel utilisateur

Miller Electric

Miller Electric Subarc DC 650 Manuel utilisateur

Miller Electric

Miller Electric DVI-2 R Manuel utilisateur

Miller Electric

Miller Electric Millermatic Vintage M-25 Gun Manuel utilisateur

Miller Electric

Miller Electric Voltage Interface Control Manuel utilisateur

Miller Electric

Miller Electric AUTO ARC MW 4230 Manuel utilisateur

Miller Electric

Miller Electric XMT 350 CC/CV Manuel utilisateur

Miller Electric

Miller Electric SQUAREWAVE 1000 Manuel utilisateur

Miller Electric

Miller Electric MILLERMATIC 30E CONTROL/FEEDER Manuel utilisateur

Miller Electric

Miller Electric UNITOR UWI 150 Auto-Line Manuel utilisateur

Miller Electric

Miller Electric SWINGARC SINGLE 12 Manuel utilisateur

Miller Electric

Miller Electric Legend 302 Manuel utilisateur

Miller Electric

Miller Electric BLUE STAR 6000 TM-499C Manuel utilisateur

Miller Electric

Miller Electric Millermatic 90 Manuel utilisateur

Miller Electric

Miller Electric M-10 Gun Manuel utilisateur

Miller Electric

Miller Electric MP-30E Manuel utilisateur

Miller Electric

Miller Electric CST 250 VRD International Manuel utilisateur

Miller Electric

Miller Electric Bobcat 225 Manuel utilisateur

Manuels Système de soudage populaires d'autres marques

Berner

Berner PLASMACUT 54 Manuel utilisateur

Pro Spot

Pro Spot PR-155 Manuel utilisateur

Forney

Forney 210 Manuel utilisateur

Thermal Arc

Thermal Arc 400S Manuel utilisateur

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuel utilisateur

GYS

GYS PROTIG 201 AC/DC Manuel utilisateur

TAFA

TAFA 30*8B35 Manuel utilisateur

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuel utilisateur

ESAB

ESAB Buddy Arc 145 Manuel utilisateur

CIGWELD

CIGWELD 636804 Guide rapide

Red-D-Arc

Red-D-Arc DC-400 Manuel utilisateur

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuel utilisateur

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuel utilisateur

WIA

WIA Weldmatic 270 CP132-2 Manuel utilisateur

Sonics

Sonics H520T Manuel utilisateur

Miller

Miller Big Blue 400D Manuel utilisateur

NewArc

NewArc RT2000 Guide de démarrage rapide

Hypertherm

Hypertherm powermax1000 Manuel utilisateur
