Miller Electric 750MPa Manuel utilisateur

Index No. AY/6.1

Issued January 2004

Miller Electric Mfg. Co.

An Illinois Tool Works Company

1635 West Spencer Street

Appleton, WI 54914 USA

Web Site

www.MillerWelds.com

International Headquarters

Phone: 920-735-4505

USA FAX: 920-735-4134

Canadian FAX: 920-735-4169

International FAX: 920-735-4125

Ordering Information

☞

See back page.

Specifications

(Subject to change without notice.)

Rated Capacity

at 100% Duty Cycle

300 Amperes at

30 VAC/VDC

Input Power Cord

With Plug

13 ft (3.9 m) long

Connection Terminals

1/2 in (12.7 mm)

Dimensions

H: 11-1/4 in (286 mm)

W:20-5/8 in (524 mm)

D: 19-1/4 in (489 mm)

Net Weight

46 lb (20.9 kg)

Model

LBP-350

Maximum Capacity at

30% Duty Cycle

350 Amperes at

35 VAC/VDC, 12.25 kW

Type of

Input Power

Single-Phase 115 VAC,

0.6 Amperes, 50/60 Hz

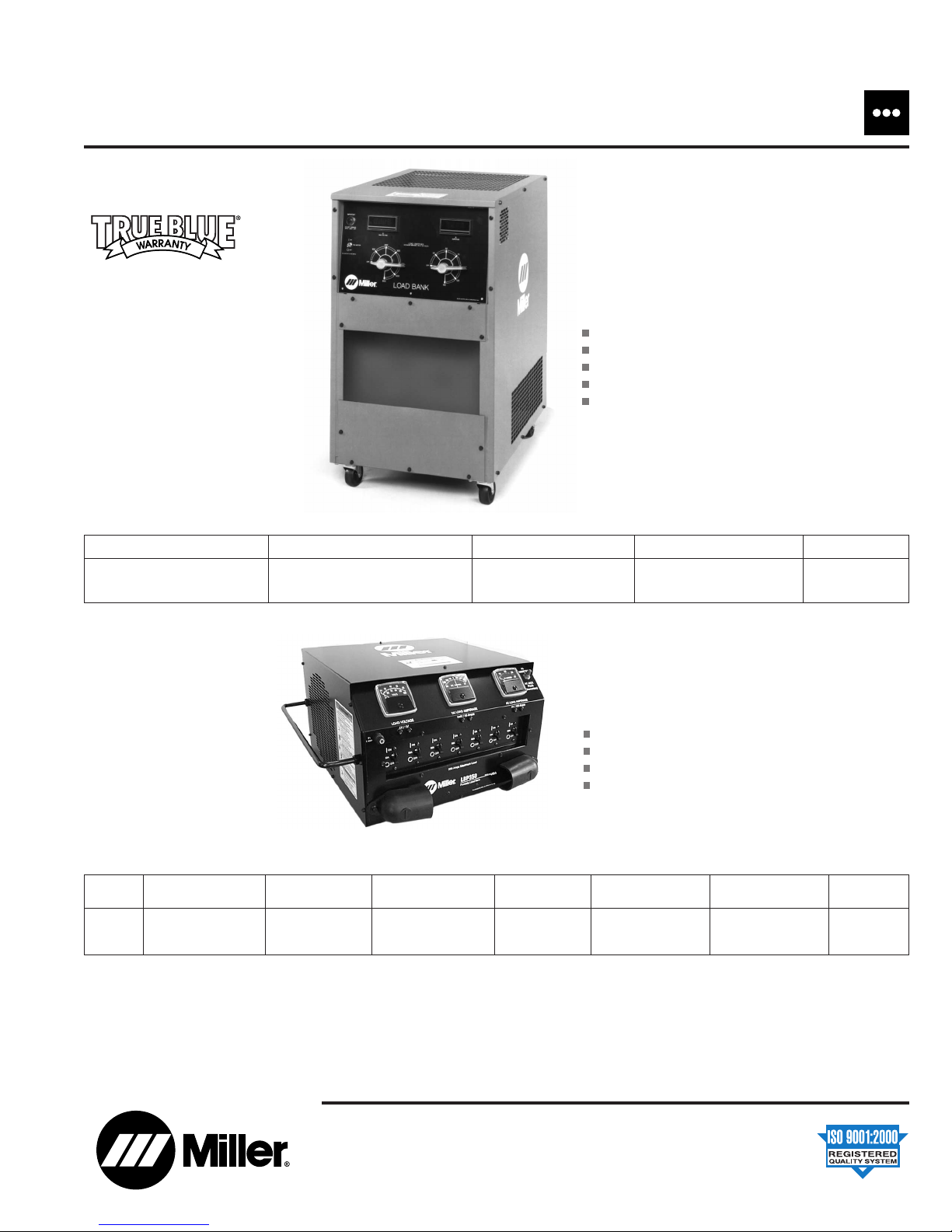

Miller’s LBP-350 portable load bank is designed to provide

an adjustable load for troubleshooting or demonstrating

welding power sources or generators.

LBP-350 Load Bank Features

46 lb total weight for ease of portability

Seven 50 amp load “circuit breaker” type switches

Analog meters for AC and DC output

Three sets of metering jacks to enable service technician

to utilize his own digital metering system

Welding Power

Load Bank

LBP-350

Load Banks

350 Amp and 750 Amp Portable

The welding power load bank is designed to load test the

output of transformer-type, engine- or motor-driven

generator welding power sources. This portable unit can be

used to test AC or DC welder outputs, and to demonstrate

welding equipment to prospective customers.

Welding Power Load Bank Features

Digital voltmeter and ammeter

Two rotary load switches in increments of 100 or 25 amps

37.5 kW capacity

Air-cooled with fan

Light on panel indicates if fan motor is on

Specifications

(Subject to change without notice.) Industrial

Model

Welding Power Load Bank

Dimensions

Height: 38 in (965 mm)

Width: 22 in (559 mm)

Depth: 30 in (762 mm)

Rated Load

750 A, 37.5 kW at 50 VAC/VDC

Power Requirements

115 VAC, 60 Hz

Net Weight

181 lb (82 kg)

Litho in USA

Distributed by:

Equipment and Options Stock No. Description Qty. Price

Welding Power Load Bank #902 804

Meter Calibration (Optional) #041 770 Factory. Meters will be calibrated

within 3% accuracy of meter reading.

(Consult the factory for further details).

LBP – 350 #043 329 Includes 13 ft (4 m) 115 V power cord

Date: Total Quoted Price:

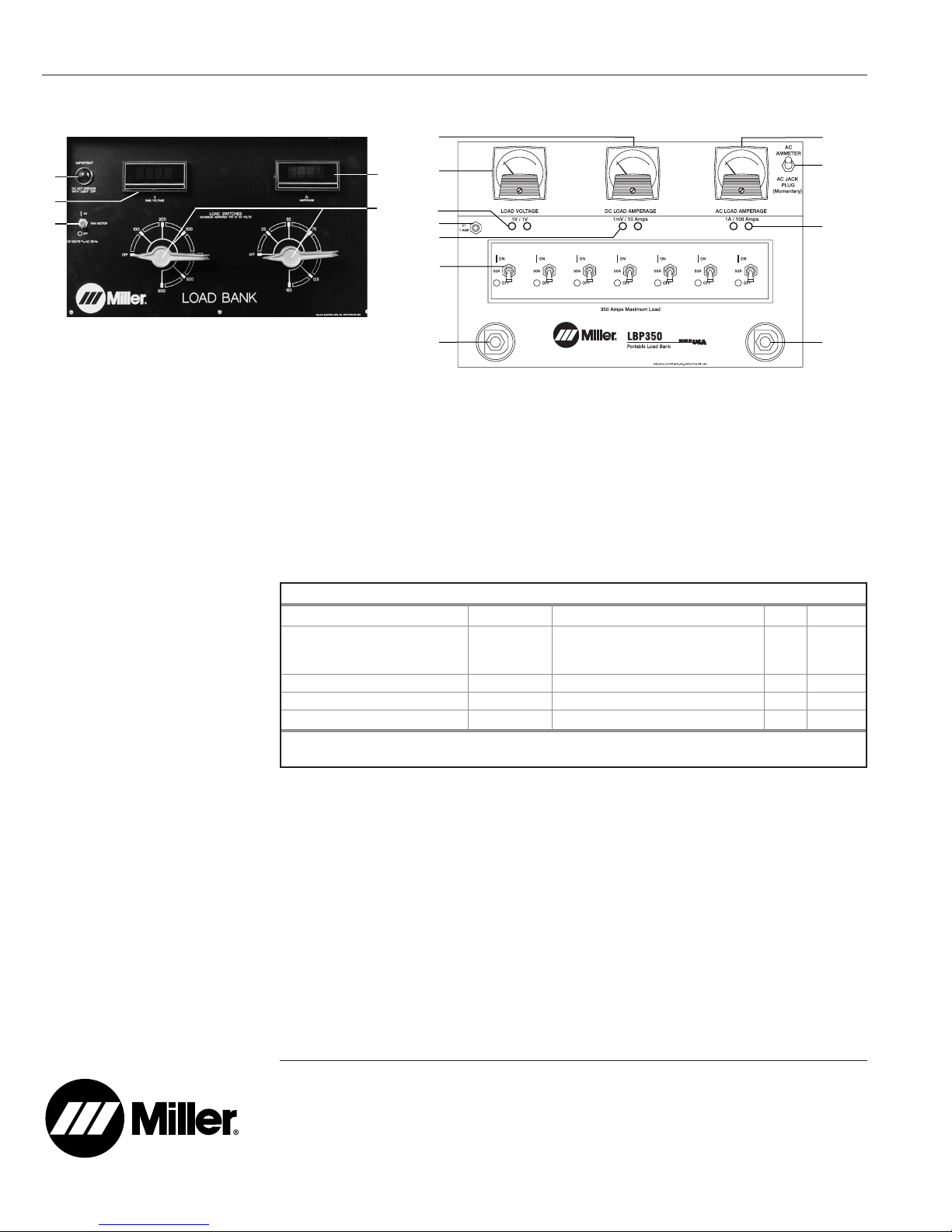

Ordering Information and System Checklist

Control Panels

1. Pilot Light

2. Voltmeter

3. Fan Motor Switch

4. Ammeter

5. Load Switches

Welding Power Load Bank

1. Analog AC/DC Voltmeter

2. Load Voltage Jack Plugs

3. Fuse (F1)

4. DC Load Amperage Jack Plugs

5. Load Switches

(50 A Circuit Breakers)

6. Input Terminal Stud

7. Analog DC Ammeter

8. Analog AC Ammeter

9. AC Jack Plug Switch

10. AC Load Amperage Jack Plugs

LBP-350 Load Bank
