MiLAN MIL-W2331G Manuel utilisateur
IEEE 802.11g
Wireless LAN Access Point
MIL-W2331G
USER GUIDE
Regulatory Approval
- FCC Class A
- UL 1950
- CSA C22.2 No. 950
- EN60950
- CE
- EN55022 Class A
- EN55024
Canadian EMI Notice
This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.
European Notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC)
issued by the Commission of the European Community Compliance with these directives imply conformity to the following
European Norms:
EN55022 (CISPR 22) - Radio Frequency Interference
EN61000-X - Electromagnetic Immunity
EN60950 (IEC950) - Product Safety
Five-Year Limited Warranty
MiLAN Technology warrants to the original consumer or purchaser that each of it's products,
and
all components thereof, will be free from defects in material and/or workmanship for a
period of five years from the original factory shipment date. Any warranty hereunder is
extended to the original consumer or purchaser and is not assignable.
MiLAN Technology makes no express or implied warranties including, but not limited to, any
implied warranty of merchantability or fitness for a particular purpose, except as expressly set
forth in this warranty. In no event shall MiLAN Technology be liable for incidental or
consequential damages, costs, or expenses arising out of or in connection with the
performance of the product delivered hereunder. MiLAN Technology will in no case cover
damages arising out of the product being used in a negligent fashion or manner.
Trademarks
The MiLAN logo and MiLAN Technology trademarks are registered trademarks of MiLAN Technology in the
United States and/or other countries.
To Contact MiLAN Technology
For prompt response when calling for service information, have the following information ready:
- Product serial number and revision
- Date of purchase
- Vendor or place of purchase
You can reach MiLAN Technology technical support at:
Telephone: +1.408.744.2751
Fax: +1.408.744.2771
MiLAN Technology
1329 Moffett Park Drive
Sunnyvale, CA 94089
United States of America
Telephone: +1.408.744.2775
Fax: +1.408.744.2793
http://www.milan.com
© Copyright 2004 MiLAN Technology P/N: 90000422 Rev. 1P
Table of Contents
1. Introduction
Package Contents
2. Hardware Installation
Desktop Installation
Power On
Side Panel
3. Web-based Configuration
Accessing the Web-based Configuration Utility
System configuration
3.1 Local Area Network (LAN) Settings
3.2 Wireless Settings
3.3 Wireless Distribution System (WDS) Links
3.4 Wireless Security
3.4.1 ACL
3.4.2 WEP
3.4.3 RADIUS
3.4.4 802.1x Security
3.4.5 WPA
3.5 Install Wizard
3.6 Status
Appendix A: FCC Information
1
1.
Introduction
The next-generation wireless LAN device – 54Mbps 802.11g Wireless Access
Point, brings an extremely high performance to the wireless realm. Fully
compliant with IEEE802.11g standard, the 54Mbps 802.11g Wireless Access Point
also provides powerful features such as the WDS, WPA security, SNMP and more.
Maximize network efficiency while minimizing your network investment and
maintenance costs.
Package Contents
Unpack the contents of the package and verify them against the checklist below.
MIL-W2331G Wireless LAN Access Point
DC Power Adapter
Users Guide
If any item is missing or damaged, please contact your local dealer for service.
2
2.
Hardware Installation
Desktop Installation
Connect the 54Mbps 802.11g Wireless Access Point to a hub (in Bridge mode) or
a PC with a UTP Ethernet cable. The cross-over cable must be used when
connecting the Access Point directly to a PC.
Power On
Connect the power adapter to the power socket on the 54Mbps 802.11g Wireless
Access Point. Connect the other end of the power pack into an appropriate
electrical outlet.
Note 1: Use of a power adapter other than the one supplied with the 54Mbps
802.11g Wireless Access Point may result in damage to the product.
Side Panel
The button on the Access Point side panel labeled “DEFAULT” enables the user
to restore the 54Mbps Wireless LAN Access Point to its default setting. This
may be used to reset the password to the default, as well as all other settings.
To restore the Access Point default settings, press the “DEFAULT” button on the
side panel of the Wireless Access Point for 10 seconds, then release the button
and wait for the system to reboot. The rebooting process will last approximately
30 seconds. Upon completion, the 54Mbps 802.11g Wireless Access Point
default settings will be restored and the Access Point can be configured again
with the Web-based Configuration Utility.
3
3.
Web-based Configuration
The 54Mbps 802.11g Wireless Access Point allows configuration through a
Web-based Configuration Utility. The following instructions will complete the
installation of the Wireless Access Point.
Accessing the Web-based Configuration Utility
1. Connect a computer to the Access Point either through wireless or wired
connection. Set a fixed IP address, within the range of 192.168.1.X to the
computer, where X cannot be 254. When attempting to use a wireless
connection, configure the computer advanced options as:
SSID: default
WEP: disable
2. Activate the web browser and enter in the IP address of the AP in the Address
or location field and press Enter. The default value of the Access Point is
192.168.1.254.
3. Follow the on-screen instructions to enter the system password then press
Enter. The default password is “private”.
4

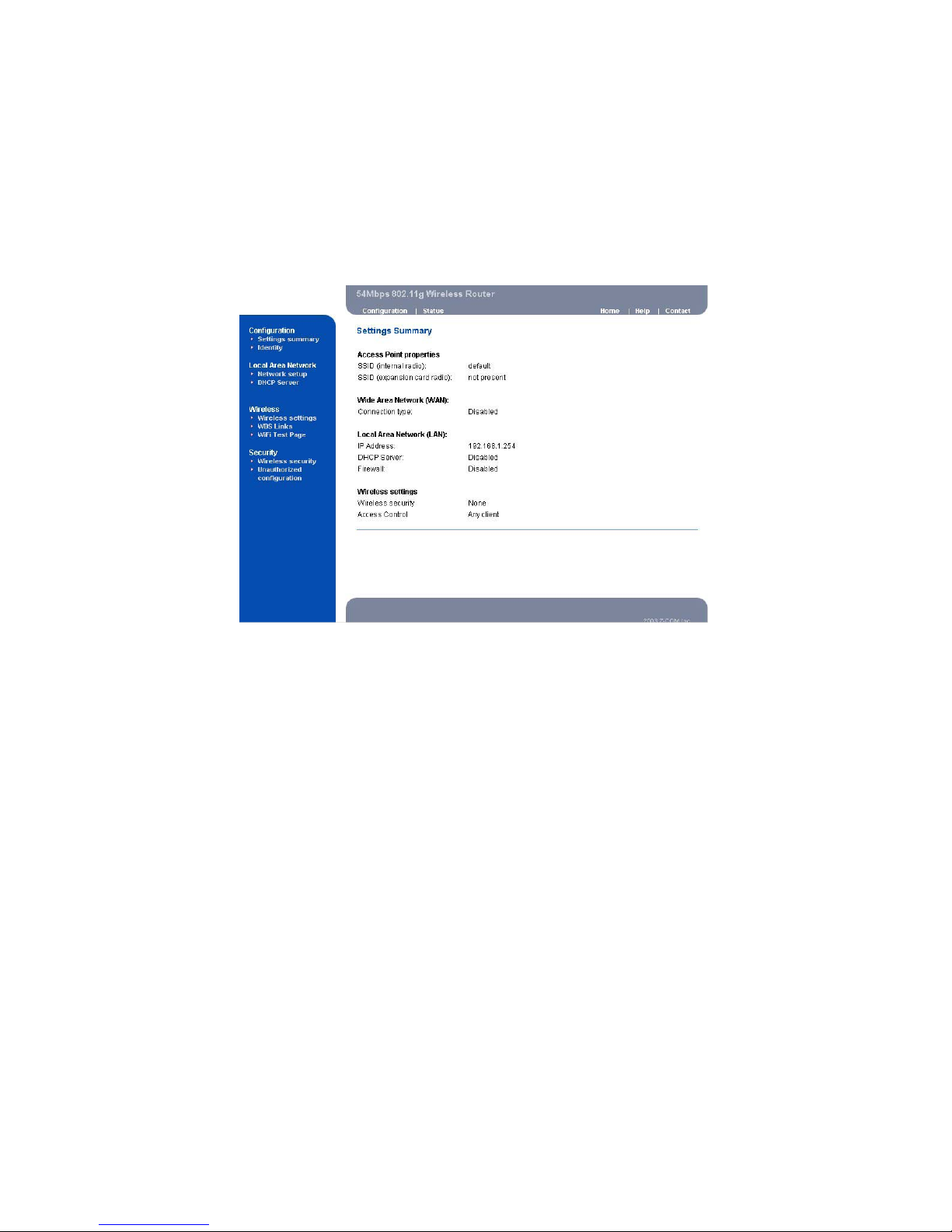

System Configuration
The Web-based Configuration Utility provides 3 items to monitor and configure
the Wireless Access Point: Configuration, Install Wizard and Status. These
core options are essential to enable the Access Point to work properly.
5

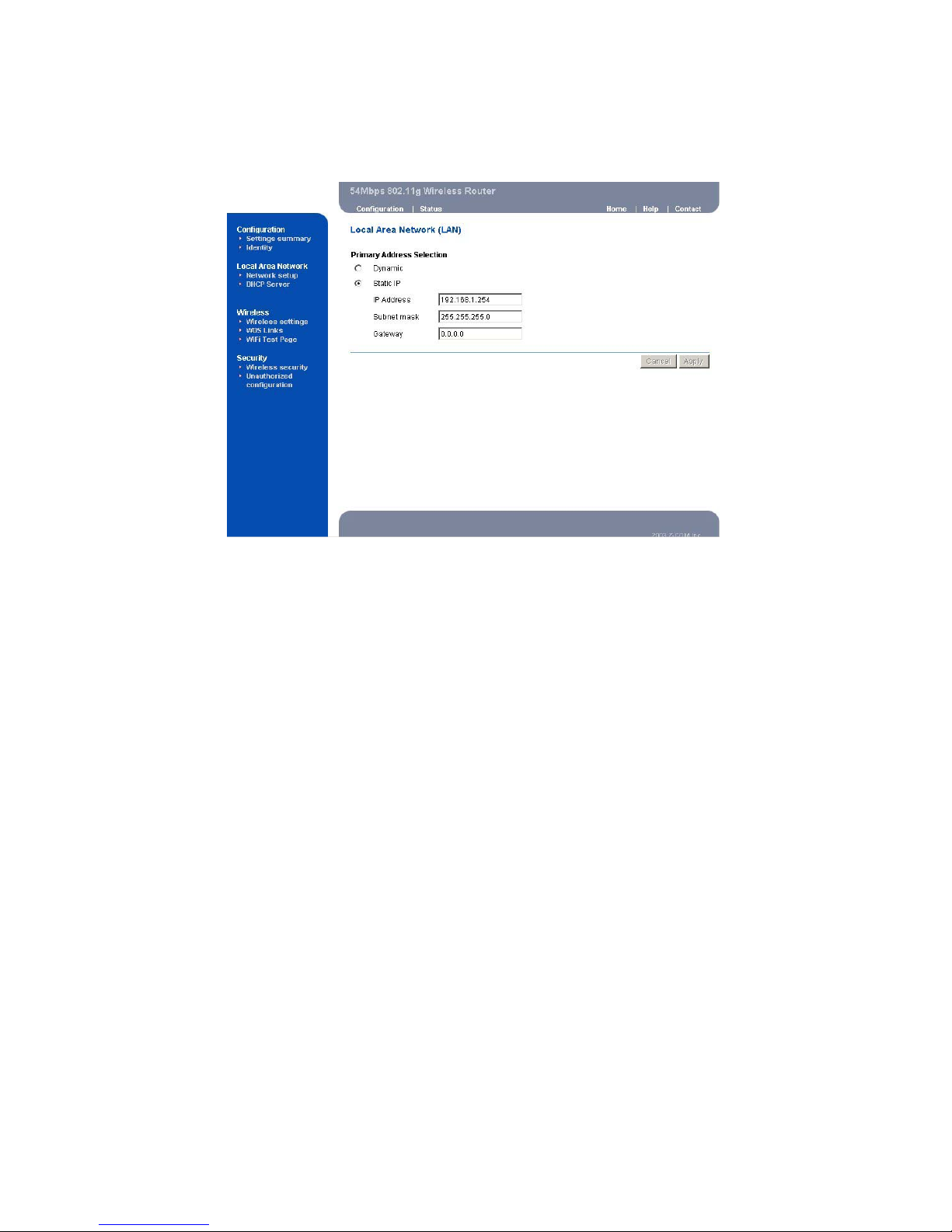

3.1 Local Area Network (LAN) Settings:
Three options are provided for the Local Area Network setup:
• Local Area Network
• External DHCP
• Internal DHCP
If an external DHCP server will be used, select Dynamic for the Primary Address
Selection. Otherwise, set the Primary Address Selection to Static IP.
The third choice, internal DHCP server, is available under the Static IP option.
Enter the setting on the DHCP server page and enable the default DHCP server.
Once DHCP is enabled, set the IP address for Static IP in the range of the DHCP
server where the default DHCP server is usually enabled. Click the Apply
button to save the new configuration.
6

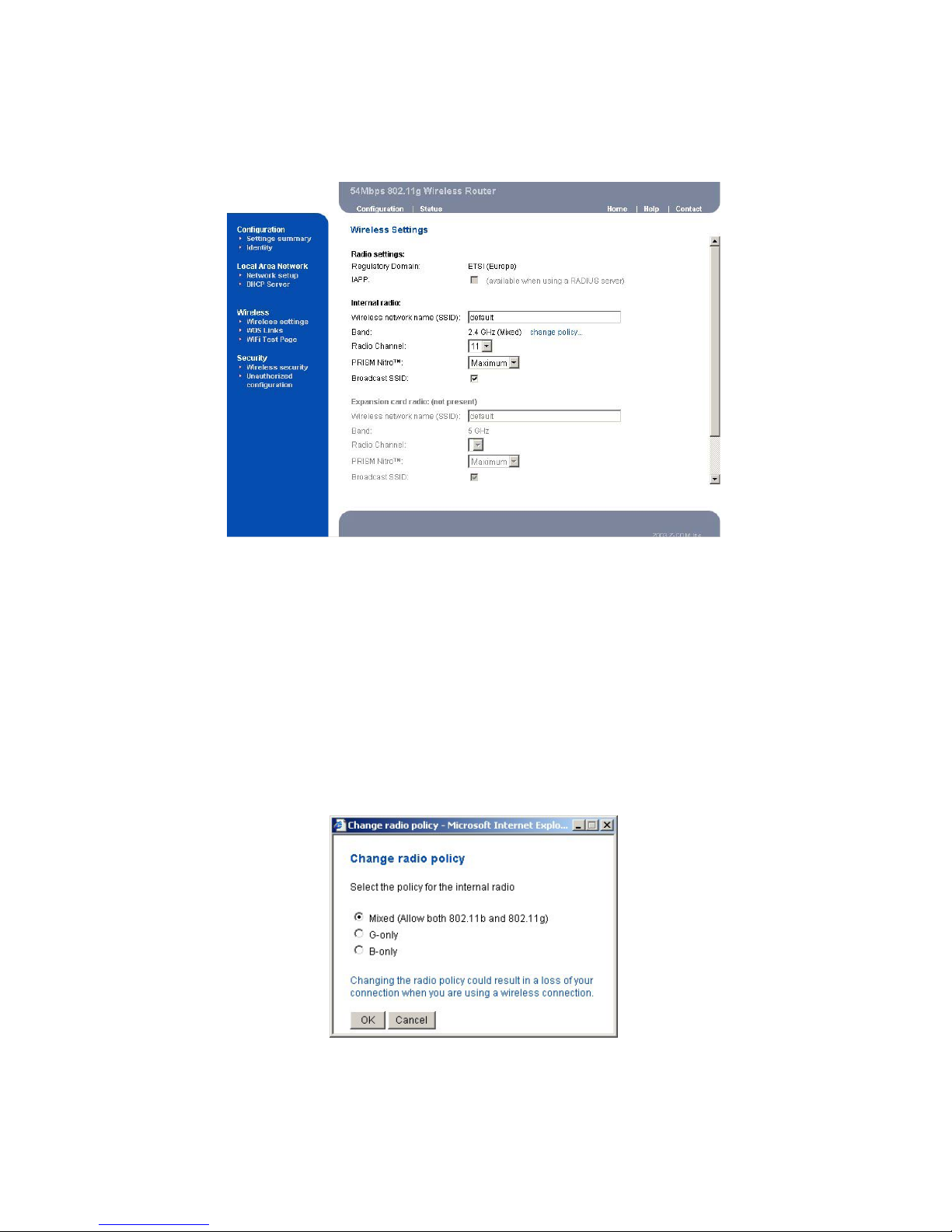

3.2 Wireless Settings
The wireless settings will impact the coverage and the performance of the
Wireless Access Point. The Access Point can be operated in three different
bandwidth scenarios:
• G-only (High rate 54Mbps)
• B-only (Low rate 11Mbps )
• Mixed (both below 54M and 11Mbps).
To change the bandwidth setting, click on the change policy… link and select
the appropriate radio policy. Click the OK button to save the new configuration.
Note: Changing the radio policy could result in a loss of connection when using a
wireless connection to the Web-based Configuration Utility.
7
To deliver the throughput enhancement in both mixed and g-only networks, Prism
NitroTM mode can be enabled by using Intersil’s packet bursting technology. The
burst size is adjustable and typically the bigger burst packet, the more 11g
transmission sharing will occur while a mixed network is in effect.
Deselect the Broadcast SSID option to logically hide the Access Point. The
Access Point will refuse any connection request from an unrecognized Network
ID.
