MIL-Solar Eclipse 5000-II Manuel utilisateur

Eclipse 5000-II Solar Inverter

Installation and Operation

Manual

Page 2of 52 MIL-Solar Eclipse series Installation and Operation Manual PNo 6569 Rev 5

TABLE OF CONTENTS

INSTALLATION

About this manual........................................................................................................................... 3

Features........................................................................................................................................... 5

Inverter Ratings.................................................................................................................................................5

Front view and Connections..............................................................................................................................6

Status LED Indicators .......................................................................................................................................6

Serial Number ...................................................................................................................................................6

Installing the Eclipse Inverter......................................................................................................... 7

Safety Considerations.......................................................................................................................................7

Selecting the Mounting Location.......................................................................................................................7

Mounting Location Dimension...........................................................................................................................8

Mounting............................................................................................................................................................9

Wiring............................................................................................................................................. 11

Overall System Wiring Diagram..................................................................................................................... 11

Mains Connection........................................................................................................................................... 12

Solar PV Input ................................................................................................................................................ 13

Data Connector.............................................................................................................................................. 14

Fault Tests and Alarm.................................................................................................................................... 14

DRED (optional)............................................................................................................................................. 15

Power Meter Installation (optional)................................................................................................................. 17

Commissioning............................................................................................................................. 21

Pre commissioning checks............................................................................................................................. 21

Power and Grid Connect................................................................................................................................ 21

Inverter Settings............................................................................................................................................. 22

Inverter Operation......................................................................................................................... 23

Turn ON and Grid Connection ....................................................................................................................... 23

AC Mains Grid Abnormal Conditions ............................................................................................................. 24

Eclipse LED Status Indicator Tables.............................................................................................................. 25

WiFi User Interface......................................................................................................................................... 27

Accessing the Inverter User Interface............................................................................................................ 27

Connecting to Inverter in Standalone Mode................................................................................................... 28

Connecting to a Home WiFi Network............................................................................................................. 30

Accessing the Inverter via your Network........................................................................................................ 30

Updating Inverter Firmware............................................................................................................................ 32

My Power....................................................................................................................................... 35

MyPower Display............................................................................................................................................ 35

Configuring the Inverter for MyPower ............................................................................................................ 37

Export Limit Operation ................................................................................................................................... 38

Fault Alarm .................................................................................................................................... 39

Eclipse Fault Indication .................................................................................................................................. 39

Alarm Conditions Asserted by the Eclipse Inverter........................................................................................ 41

Troubleshooting............................................................................................................................ 42

Installation...................................................................................................................................................... 42

LED Status Indicator Alerts............................................................................................................................ 43

Alarms ............................................................................................................................................................ 45

Maintenance.................................................................................................................................. 47

General routine............................................................................................................................................... 47

Build up from nesting insects and vegetation ................................................................................................ 47

Replacement Parts........................................................................................................................ 48

Inverter Specifications.................................................................................................................. 49

MIL-Solar Eclipse series Installation and Operation Manual PNo 6569 Rev 5 Page 3of 52

ABOUT THIS MANUAL

This manual provides information on how to install, commission and operate the MIL-Solar Eclipse Inverter.

Updates to this manual

MIL-Solar reserves the right to revise this document and to make changes to the content from time to time

without obligation to give prior notification of any such changes.

Please check with your Installation Company or the MIL-Solar website for the latest information.

Revision Table

Revision

Release Date

Changes

Applicable Serial

No.’s

July 2019

Includes updated PV connectors, merging bulletin no. 150719, 150720,

170305, 140701 and User Manual into a single document.

140100 - onwards

Jan 2020

Data-connector pins updated following SER5120-009.

140100 - onwards

Feb 2020

Terms and Power Meter installation updated. Full review for consistency

140100 - onwards

May 2020

Warranty details updated.

LED indicator table updated to support additional states for firmware

PNo 5887 v3.78, more information added to LED state description.

140100 - onwards

Applicable Models

This manual covers MIL-Solar Eclipse Inverters with the serial number range of 140100 onwards with MCU

firmware v3.78 or higher.

Definitions

Inverter For the purposes of this manual, Inverter specifically means MIL-Solar Eclipse

Inverter. The Inverter is a device used to convert DC power from photovoltaic solar

cells to AC power for injection into a power grid.

AC Mains or Grid The public AC Mains network of electricity lines or Grid to which all categories of

consumers are connected and as operated by a supply or distribution company.

When solar Inverters are installed on a domestic or commercial site, they are

connected to this AC Mains Grid for the purpose of supplying electrical energy back

into the Grid.

Page 4of 52 MIL-Solar Eclipse series Installation and Operation Manual PNo 6569 Rev 5

Symbols

Special symbols used throughout this manual.

NOTICE

Attention - notes and helpful hints on improving performance.

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or

moderate injury and/or damage or failure of the Inverter.

DANGER

Indicates a hazardous situation which, if not avoided, could result in death or

serious injury or potential fire risk.

HOT SURFACES

The top plate and upper surfaces of the Inverter can become hot when operating at

full power on days of high ambient temperature.

MIL-Solar Eclipse series Installation and Operation Manual PNo 6569 Rev 5 Page 5of 52

FEATURES

Inverter Ratings

Topology Transformerless. Not galvanically isolated.

Protective class Class I

Overvoltage category AC Output - Cat III, Solar PV inputs - Cat II

Operating temperature range -25oC to 50oC

Maximum humidity 100% non condensing.

Altitude (maximum operating) 2000 m

Environmental category Outdoor. To be sheltered from direct rain.

Pollution degree PD3

Degree of protection IP44

Weight 23 kg

See Inverter Specifications on page 49 for full Inverter specifications.

Solar PV DC Inputs

Solar photovoltaic inputs only.

The Solar PV inputs are considered Overvoltage Category II.

PV 1

PV 2

V max PV

750 V DC

V MPPT

90-600 V DC

I SC PV

15 A DC

I max continuous

12 A DC

Solar PV inputs are internally protected for over current. No external protective device is required for current

limiting or short circuit protection.

AC Output –Grid Connection

Single phase AC only.

The AC Mains connection is considered Overvoltage Category III.

For nominal specifications and maximum ratings refer to Inverter Specifications on page 49.

Solar PV arrays

CAUTION

When photovoltaic arrays are exposed to light, a DC voltage is supplied to the PV inputs.

CAUTION

Solar PV arrays connected to Eclipse Inverters must be FLOATING –not grounded.

Page 6of 52 MIL-Solar Eclipse series Installation and Operation Manual PNo 6569 Rev 5

Front view and Connections

Status LED Indicators

The MIL-Solar Eclipse Inverter has three LED indicators for displaying information about the current state of

operation. These indicators have different colours associated with their function.

For further details see Inverter Operation on page 23 for standard operation, communications, alerts and

alarms details.

Serial Number

Every Eclipse Inverter has a unique serial number displayed on its serial label located on the lower left hand

side of the Inverter. This serial number is required for registering your equipment for electrical installation

and for any warranty or service claims.

GREEN –AC Operation

RED –PV & Status

BLUE –Communications

AC Mains

connection

from AC

Isolator

WiFi aerial

PV 1

Serial Number

Status LED

Indicators

Data Connector

Power Meter

DRED

Alarm

(All Optional)

PV 2

MIL-Solar Eclipse series Installation and Operation Manual PNo 6569 Rev 5 Page 7of 52

INSTALLING THE ECLIPSE INVERTER

Safety Considerations

Selecting the Mounting Location

When selecting installation location of your Eclipse Inverter, you must consider and address all of the following

points:

Air circulation

The Inverter generates some heat when operating. It must only be installed in

an area with adequate natural free flowing ventilation.

Vertical orientation

The Inverter must be mounted in a vertical orientation to ensure proper cooling.

The end of the housing with the connection points must always point

downwards.

Do not mount tilted at an angle to the vertical. Do not mount horizontally.

Direct sunlight

To avoid power reduction due to excessive heating do not expose the Inverter to

direct sunlight. Optimal operating performance is achieved when the ambient

temperature is below 40o C.

Shielded location

The Inverter can be located on a building in an outdoor location but should be

mounted in a position that is sheltered from direct rain.

Wall mounting

requirements

The mounting method and location must be suitable for the Inverter's weight and

dimensions and it must be mounted on a solid surface.

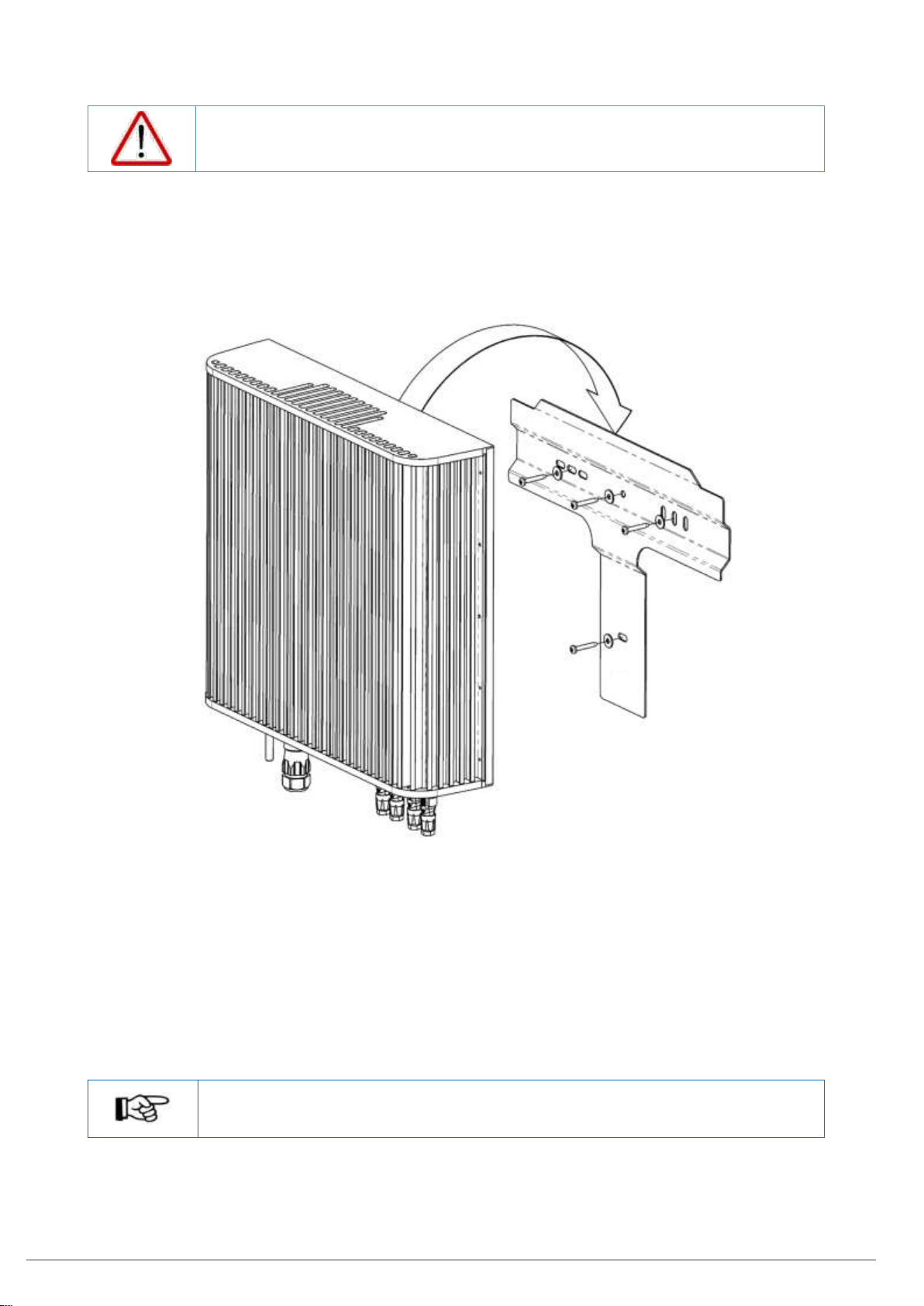

(Refer to section Mounting on page 9 for mounting instructions)

Access

Access to the Inverter, and especially any associated isolating switches, must

be in accordance with the specific requirements of the relevant AUS/NZ

standards.

The mounting location must at all times be clear and have safe access without

the use of additional aids such as ladders or lifting platforms.

User visibility

Mount the Inverter at a height, and in such a position that visibility cannot be

blocked to allow the operating status LEDs to be seen at all times.

Noise

The Inverter can make noises when in use, which may be perceived as a

nuisance in a living or sleeping area.

Do not mount the unit on plasterboard walls or similar to avoid audible

vibrations.

Location regards

other equipment

The minimum horizontal clearance distances to walls and other objects to

ensure sufficient air circulation for cooling is 100 mm.

Special consideration must be given where multiple Inverters are installed in the

same area. As a minimum, all clearance distances are additive.

DO NOT mount Inverters above each other or other heat generating equipment.

DANGER

Danger to life and property.

Breach of Government legislation.

Voiding of Warranty.

All electrical installation and commissioning work undertaken on the Inverter, and the

related connections to isolators, photovoltaic panels, optional accessories and house wiring

systems must only be carried out by suitably qualified and licensed personnel.

CAUTION

Failure to install or operate the Inverter in the manner as specified by these Installation

instructions may impair, or render inoperable, the protection systems provided by the

equipment.

HOT SURFACES

Parts of the enclosure can become hot in normal operation. In high ambient temperatures the

body and upper surface of the enclosure may become hot to touch.

CAUTION - Electromagnetic Radiation

Do not install the Inverter in a location where people may be closer than 20 cm distance for any

length of time.

Page 8of 52 MIL-Solar Eclipse series Installation and Operation Manual PNo 6569 Rev 5

Mounting Location Dimension

When selecting where to install your Eclipse Inverter, ensure the Inverter meets minimum clearances with

respect to the selected load bearing mounting points.

514mm

512mm

MIL-Solar Eclipse series Installation and Operation Manual PNo 6569 Rev 5 Page 9of 52

WiFi Access

If the Eclipse Inverter’s WiFi connection is to be used continually by the customer, then consideration must

be given to any metal structures near or around the Inverter which can affect the WiFi signal.

Mounting

The Eclipse Inverter must be attached to a flat surface such as timber, masonry or a dedicated pole

assembly. The mounting bracket contains eight pre-drilled 8mm holes for attaching it to the wall.

Mark and drill at least four mounting holes, using the bracket as a template and attach the mounting bracket

securely to the wall.

All cables must have sufficient length and bend radius before entry into conduit so that strain is not placed on

the plugs or sockets where they connect to the inverter.

Weight Bearing

The wall structure on which the Inverter is to be mounted must adequately support its weight of 23 kg.

A minimum of four M6 fasteners must be used to securely install the mounting bracket onto the supporting

structure. Always use correct fasteners for the structure being fixed to.

CAUTION –Wall mounting strength

DO NOT mount on plasterboard, thin sheet cladding or sheetmetal unless you can

absolutely ensure that all mounting points are fixed into suitably supporting structural

members such as timber or metal studs.

CAUTION –Dissimilar metals

DO NOT mount directly onto galvanised steel.

WARRANTY

Installing the Inverter incorrectly will invalidate the warranty.

Please see Eclipse Inverter Australian Warranty on page 52 for terms and conditions.

Page 10 of 52 MIL-Solar Eclipse series Installation and Operation Manual PNo 6569 Rev 5

Install Inverter on mounting bracket

Lift and place the top of the Eclipse Inverter over the mounting bracket and lower it until the Inverter weight is

borne by the bracket.

Slide slightly from side to side to ensure that it has dropped into its fully seated position.

Secure the Inverter to the bracket

Before undertaking any wiring or connections, the Inverter must be secured to the

mounting bracket using the M5 fastener provided.

CAUTION –Manual Handling

The Inverter weighs over 23 kg

Care must be taken when lifting and placing the Inverter on mounting bracket.

Autres manuels pour Eclipse 5000-II

Table des matières

Autres manuels MIL-Solar Onduleur

MIL-Solar

MIL-Solar Eclipse 5000-II Manuel utilisateur

MIL-Solar

MIL-Solar Eclipse 3000-II Manuel utilisateur

MIL-Solar

MIL-Solar Eclipse 5000-II Manuel utilisateur

Manuels Onduleur populaires d'autres marques

Fourgroup

Fourgroup Easy Manuel utilisateur

Velleman

Velleman PI300M Manuel utilisateur

Sungrow

Sungrow SG350HX-US Manuel utilisateur

WilTec

WilTec 61897 Manuel utilisateur

SMA

SMA SUNNY BOY STORAGE 2.5 Manuel utilisateur

Simplicity

Simplicity LANDLORD 316 Manuel utilisateur

Santak

Santak SMAX 3000 Manuel utilisateur

ATON

ATON RA.Store-3 Manuel utilisateur

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuel utilisateur

Tektronix

Tektronix CFG250 Manuel utilisateur

Champion

Champion 200989 Manuel utilisateur

Vanner

Vanner 20-500 Series Manuel utilisateur

GE GEP Manuel utilisateur

Astrel Group

Astrel Group Power Reducer Guide rapide

MULTIQUIP

MULTIQUIP GDP-5H Mode d’emploi

GoWISE

GoWISE PS1007 Manuel utilisateur

Promate

Promate PM13500D ES Manuel utilisateur

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuel utilisateur
