MiJET WASHSTATION Manuel utilisateur

For technical questions:

Phone: 585-637-3760

Email: technical@mijet.com or visit www.mijet.com

For sales questions contact:

Jeff Gagnon

VP of Sales

MiJET Division of Custom Service Solutions, Inc.

Phone: 585-472-6294

Fax: 207-345-3171

Email: je[email protected]m

MiJET™

www.mijet.com

U SE R G U I D E

Product of:

EASY TO GET STARTED

 Ready to use with one existing air line.

 All-in-one workstation powered by air

U S E R G U I D E

M I J E T

WA S HS TAT I O N

Date:

Page 2

MiJET User Guide

Description

MiJET®is designed to clean parts and capture residue with one easy touch,

keeping the work area and surrounding air clean.

The air nozzle is used to blow residue down into the inlet tube, while simul-

taneously creating suction. This will pull chips and lubricant into the contain-

er below.

The captured residue can be recycled ... saving money on expensive lubri-

cants and help to reclaim more chips instead of covering the floor.

Needed

A MiJET unit comes with a 1/4” FNPT

fitting for connecting to an existing shop

air line. A high–flow quick-connect

adaptor can be attached for ease of

use, however, to ensure a sufficient air

supply we recommend connecting into

the main air supply without any re-

strictions, such as a quick connect.

It is also recommended to utilize a 3/8”

diameter air hose from the main line to

supply the MiJET. A smaller diameter,

coiled air line, or a line that is too long

might not provide an optimum air sup-

ply.

Safety Instructions

Please read user guide carefully before

installing.

Disconnect the air supply if the unit is

taken apart for recycling of coolant,

retrieval of parts, or any other mainte-

nance.

Page 19

U S E R G U I D E

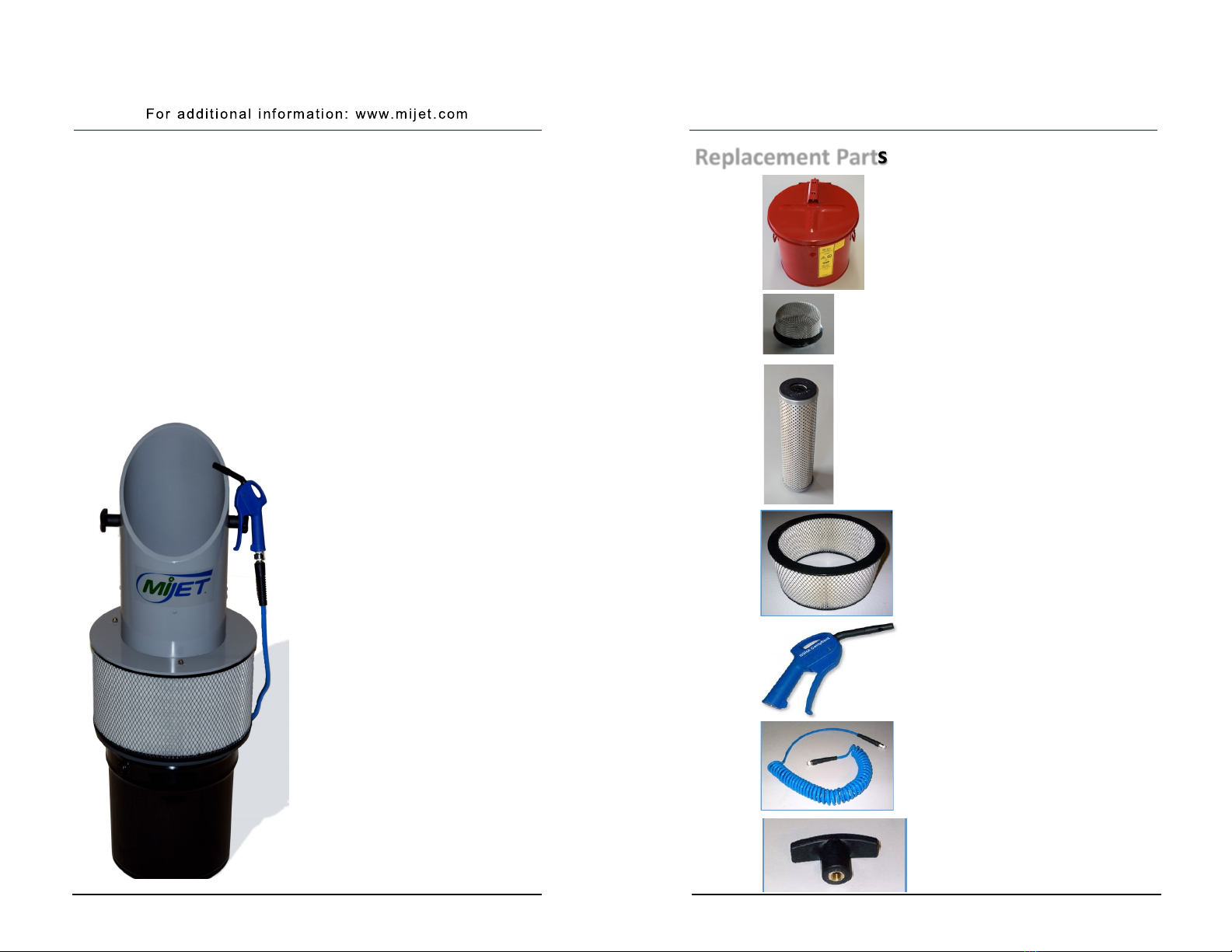

Replacement Parts

13-032 T-Handle Knob

Nylon with Aluminum insert

13-029

Spiral air hose with swivel end

ng

13 . x 1/4" MNPT, 5/16" ID

13-028

Air Nozzle by Prevost, OSHA Compliant

8.0" x 4.25" x 1.0"

15-100

Solvent Dip Container, 3.5 gallon with fusi-

ble link for re damping, 15” x 12.0”

13-006

Custom MiJET Filter, for 12” models only

6” H x 19.25” dia.

Fluid Filter Replacement for Washstaons only.

9.63“ H x 2.63” dia.

15-118

15-119 Basket strainer

Page 18

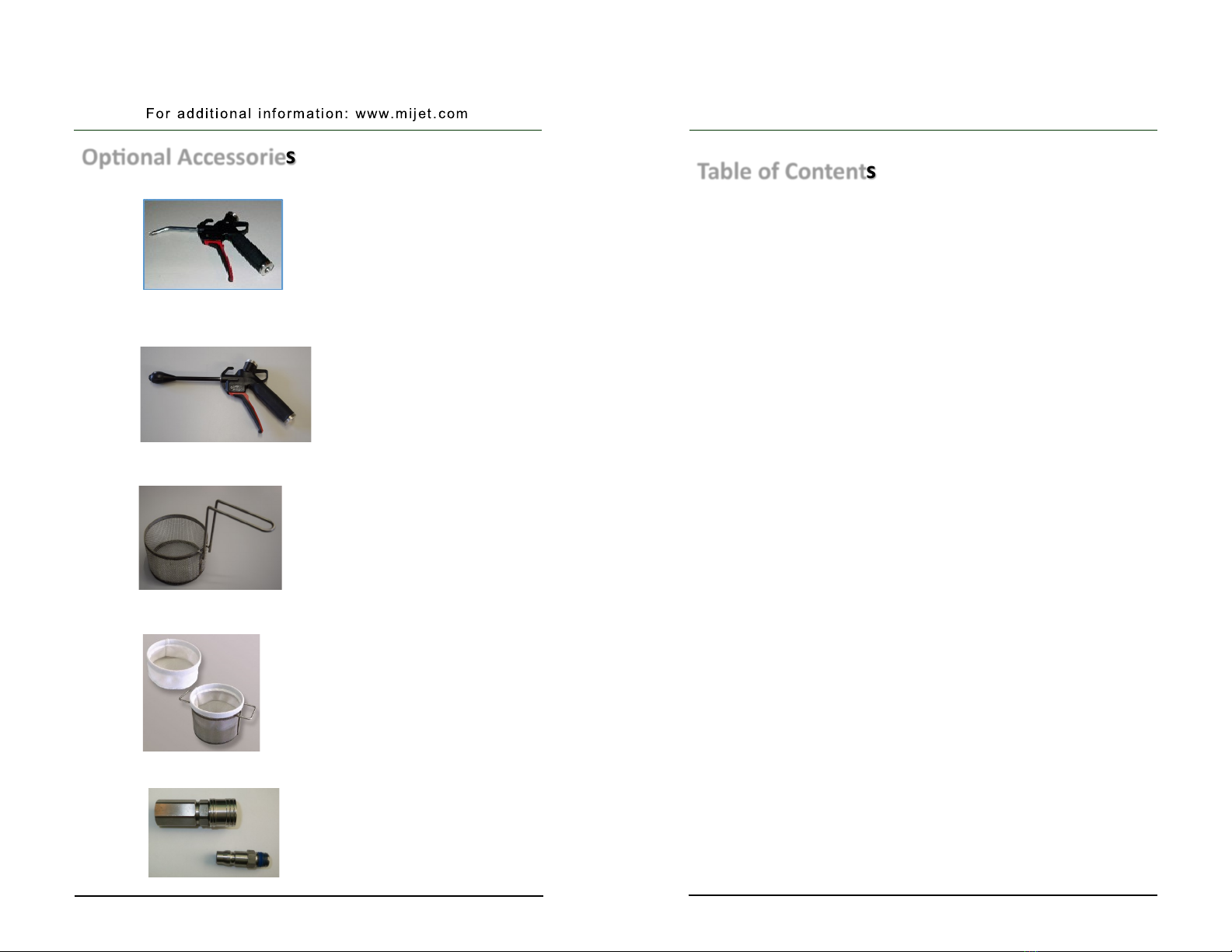

Oponal Accessories

13-035 Low-Noise Air Nozzle by Silvent

15-104

Non-metallic basket liner

For use inside SS basket to keep so parts

from geng damaged.

*Need to order both the body and the plug for correct connecon

Low-Noise Air Nozzle with Rubber

Tip by Silvent

OSHA compliant

13-071

15-107

Stainless Steel Parts Basket—

Fine Mesh, for 12” dia. MiJET angled top

workstaon and wash staon

13.5” x 7.25” x 9.75”

13-057*

13-058*

High-Flow Quick Disconnect - Body

High-Flow Quick Disconnect - Plug

Page 3

U S E R G U I D E

MiJET Diagram .………………….……........ Page 4

Air Supply Requirements …....…….……........ Page 6

Instructions ..………………………….……. Page 7

Using the Faucet …………..………….……. Page 9

Removing MiJET from Table ………….…..... Page 10

Maintenance ………………….…….……... Page 12

Installing the Air Deflector ………….……... Page 16

Troubleshooting …………………….……... Page 17

Optional Accessories ………….……………Page 18

Replacement Parts ….………………………Page 19

Table of Contents

**NOT FOR USE WITH HIGHLY

FLAMMABLE LIQUIDS**

Inlet

Page 4

MiJET Diagram

Loc-Line

Faucet

Dip Container

Air nozzle with

trigger handle

On/Off Ball

Valve

Flow Valve

Retainer hook

Troubleshoong

Q: The part is blown off and the air nozzle is not in use, but the

motor runs for an extended amount of time.

A: There are Viton O-rings that need to stay lubricated, try adding air

tool oil, refer to the maintenance steps on page 6.

B: Check for air leaks at air nozzle hose connections and air nozzle it-

self. Replace leaking components if needed. Contact us for replace-

ment air gun.

Q: The air motor sounds like it runs slower than when the unit

was brand new.

A: Try adding air tool oil, refer to the maintenance steps on page 6.

Q: The suction is reduced from when the unit was brand new.

A: Try adding air tool oil, refer to the maintenance steps on page 6.

B: Check filter and if oil-soaked or dirty, it is time to replace the filter.

Q: The blow off pressure has decreased while using the air noz-

zle.

A: Ensure all fittings and connections are correct, if so, try connecting the

MiJET to the air supply line without use of any quick-disconnect fitting.

B: Try connecting an airline from the main air supply to the MiJET with a

large enough diameter (3/8”) air hose to supply enough CFM to the

unit.

C: Try removing the blue air nozzle and replace with the operators’

usual air nozzle often creates familiarity with usual process of blow-

ing off parts.

Page 17

U S E R G U I D E

Page 16

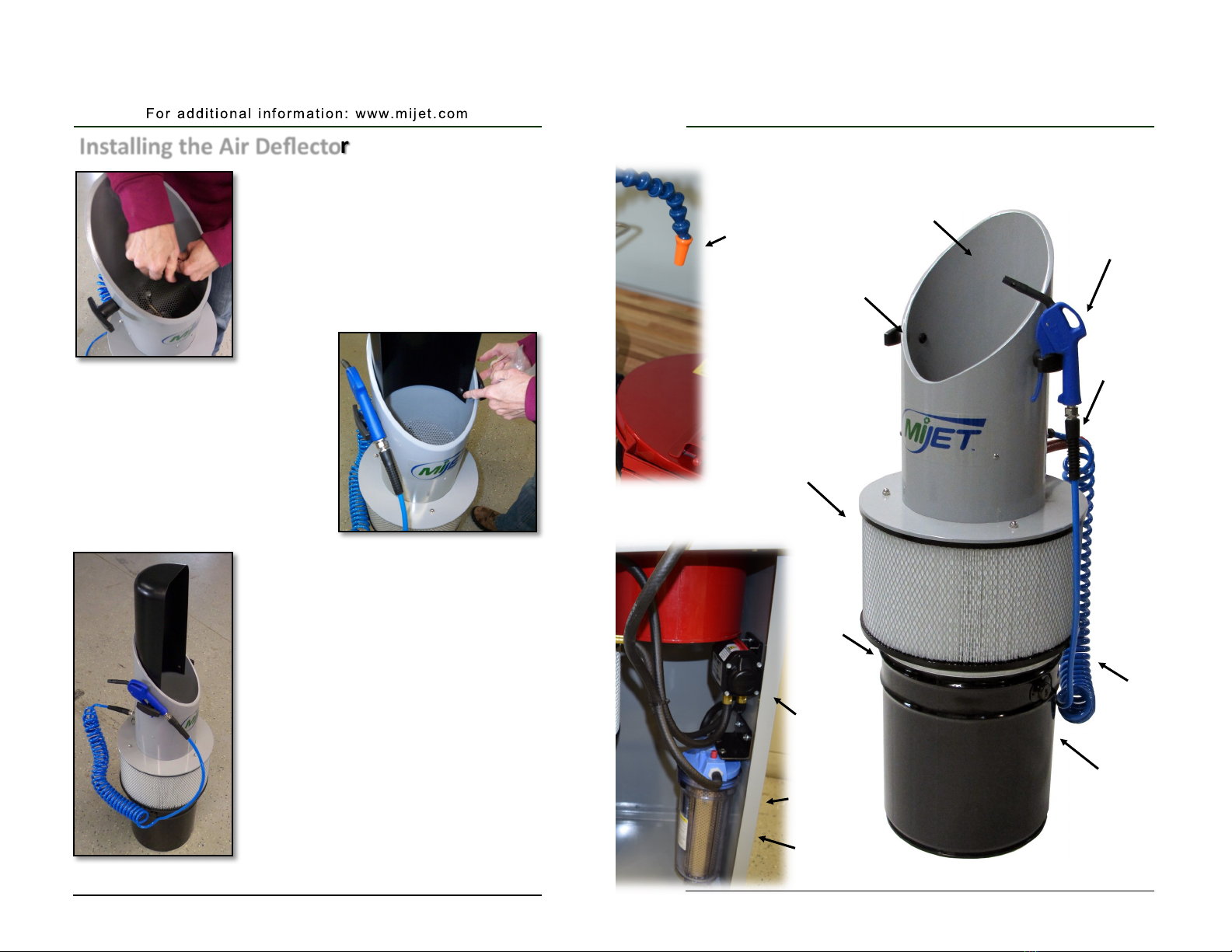

Installing the Air Deector

1. Using a 7/32 Allen key, unscrew

the black screws from each handle,

as seen in Figure 20.

2. Take each screw and handle off of

the unit.

3. Place the air deflector into the

MiJET. Try to line-up the hole

on the air deflector (Figure 21)

with the hole on the MiJET.

4. Insert the screw through the air de-

flector and then through the MiJET.

5. Tighten both screws with the 7/32

Allen key. Hold the black plastic

handle while tightening to ensure

the correct handle orientation of the

T-Handle.

6. Repeat the same procedure for the

second screw on the opposite side.

The final product should look like

the MiJET picture in Figure 22.

Figure 20

Figure 21

Figure 22

Page 5

U S E R G U I D E

Air nozzle with

trigger handle

Air hose

Air inlet—

connect

directly to

air supply

or use high-

flow quick

connect

Carrying

handles

Container

Air filter

Clamping

tabs (not

shown)

Inlet pipe

MiJET Diagram

Changeable

nozzle

Fluid pump

Fluid filter

housing

Air supply

In order to opmize the performance of the MiJET Washstaon,

consider the following:

The air hose to the MiJET should be as short as praccal and at least

3/8 inch diameter, (larger is beer).

 Low pressure at the air nozzle can be the result of too small diame-

ter or too long air hoses from main air supply.

 Coiled air hoses from the main air supply to the MiJET are not rec-

ommended.

Low pressure can also be the result of restricve quick connects.

 Having two common hardware store quick connects in line with the

MiJET can reduce the MiJET air nozzle pressure by 30%.

 If quick connects are needed, use high ow quick connect such as

MiJET accessory #13-057 Coupler body, and #13-058 Coupler plug.

See accessory page 15 for further descripon.

High-ow Quick

Disconnect

Straight hose supplies the MiJET

with compressed air.

Page 6

Page 15

U S E R G U I D E

Figure 18

Maintenance

5. Reassemble bucket lid adapter with three (3) nuts, taking

care not to over tighten and crush the filter shown in Figure 18.

6. Place the top assembly onto the container.

7. Center it and align the gray plastic ring seen in Figure 18

with the black container lip in Figure 19.

8. Close the two (2) tabs on each side of the bucket to

maintain the seal.

Figure 19

Page 14

Maintenance

Figure 16

3. Remove three (3) nuts seen in Figure 16 from bucket filter

adapter.

4. Lift up the bucket filter adapter (seen at bottom of picture,

the gray plastic ring) and remove filter seen on the left in Figure

17a. Replace with a new filter, re-assemble as shown, over the

three threaded rods in Figure 17b.

Figure 17a Figure 17b

Page 7

U S E R G U I D E

1. Remove MiJET from pallet.

2. Attach the Loc-Line Faucet as shown in Figures 1a and 1b.

3. Add desired amount of aqueous or oil based cleaning

solution to the Dip Container. (Do not use equipment

which causes sparks near any flammable liquid.)

4. Connect shop air hose to the MiJET, location shown in

Figure 2a. See page 6 for air supply recommendations.

Monthly oiling of

contained air

motor is required.

See Maintenance

section.

Instrucons

Figure 1a Figure 1b

Figure 2a

Page 8

6. Hold the part to be cleaned as far as possible into the

opening of the MiJET, see Figure 3.

7. Pull air nozzle trigger

and blow off air starts,

along with suction.



Air can be applied as

long as necessary to

clean coolant and

chips away.

8. Captured coolant can be returned to

machine reservoir as shown in

Figure 4.



Disconnect air supply before

removing container.



Filter as necessary per company

policy.

Figure 3

Figure 4

5. Air supply should be capable of 35 CFM at 90 PSI and be

filtered.

 MiJET can be installed down the line from an oiler.

Instrucons

Page 13

U S E R G U I D E

Maintenance

Bi-annually or as necessary:

Replace MiJET filter, P/N 13-041, per the following instructions.

1. Disconnect shop air supply and unlatch the two metal

tabs as seen in Figure 14.

Figure 14

2. Remove MiJET top assembly and place upside down as

shown in Figure 15.

Figure 15

1. Disconnect shop air supply.

 For wash stations—also disconnect the quick-connect at the back

of the dip station.

2. Lift up on the handles and

dispose of used cleaning solution

per company policy (Figure 13).

3. Clean out the Dip Container

4. Refill with new liquid.

Page 12

Maintenance

After 5000 parts cleaned or monthly:

1. To ensure proper performance of

the Wash Station, regular

maintenance is recommended.

Both the fluid filter and the MiJET

filter should be replaced

quarterly, depending on use.

2. A plastic wrench is provided to

untighten the fluid filter casing.

3. Replace cleaning solutions as

needed. ***Slug will build up in

both the Dip Container and the fluid

filter if not properly maintained**

Figure 12

Figure 13

Cleaning Procedure:

Page 9

U S E R G U I D E

Using the Faucet

1. Utilize the faucet by turning on the valves to allow flow.

Refer to the MiJET Diagram on Page 4 and 5 if necessary.

2. Turn the flow valve to the on

position, valve shown in Figure 5.

3. Next, turn the On/Off valve to

the on position, this is the ball

valve located above the Flow

valee and nearest to the Loc-

Line. See Figure 5.

4. Adjust flow valve to the desired

pressure (Figure 6).

5. Use the parts basket as

needed. The basket can be

submerged into the dip

tank with parts in it and

then moved over the

MiJET for use with the air

nozzle.

 Do not use the air

nozzle to blow air into the

dip container.

Figure 5

Flow

Valve

On/Off

Valve

Figure 6

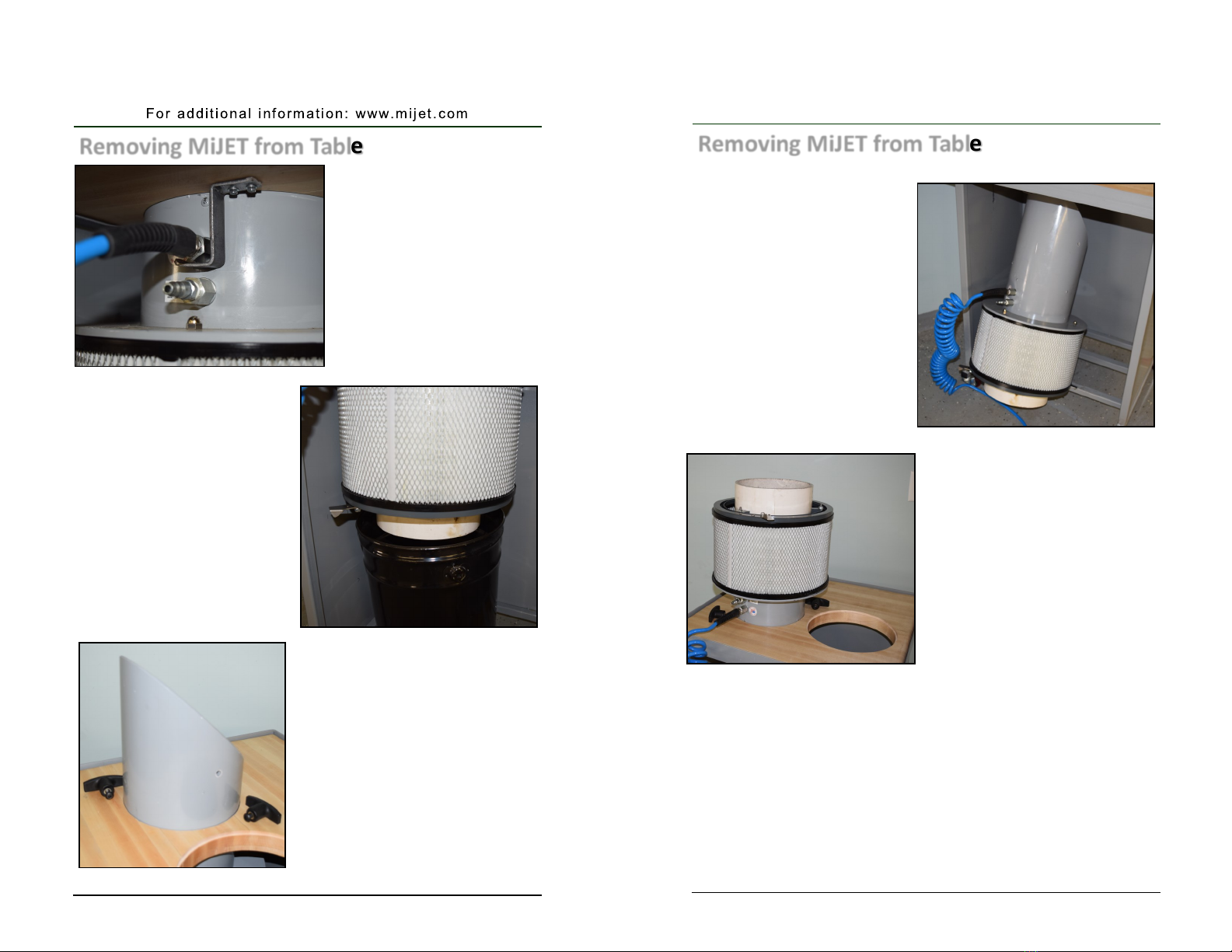

Removing MiJET from Table

1. Disconnect airline from

MiJET. Figure 7.

2. Disconnect the quick-

connect on the back of the

Dip Container.

3. Remove the entire Dip

Container by lifting up on

the handles, set aside.

6. Remove both handles, shown

in Figure 9.

4. Use the handles on the Mi-

JET to lift the unit up and

rest the unit on the latch as

shown in Figure 7.

5. Remove bucket from the

Washstation, set aside. Fig-

ure 8

Figure 7

Figure 8

Figure 9

Page 10

U S E R G U I D E

Removing MiJET from Table

8. With one hand on the top

of the unit and one hand one

the bottom of the unit, twist

to unlatch from the hook.

9. Lower the unit down and

out of the table, shown in

Figure 10.

10. To replace the filter: Turn

the MiJET unit upside

down and insert back into

the table for ease of use

(Figure 11).

11. Follow instructions found

on page 13 to change the

filter.

12. Reassemble after all maintenance is complete.

13. Remember to refill the cleaning solution before connecting

the MiJET up to the shop air. Reconnect airline and continue to

clean parts.

Figure 10

Figure 11

Page 11

Table des matières

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
