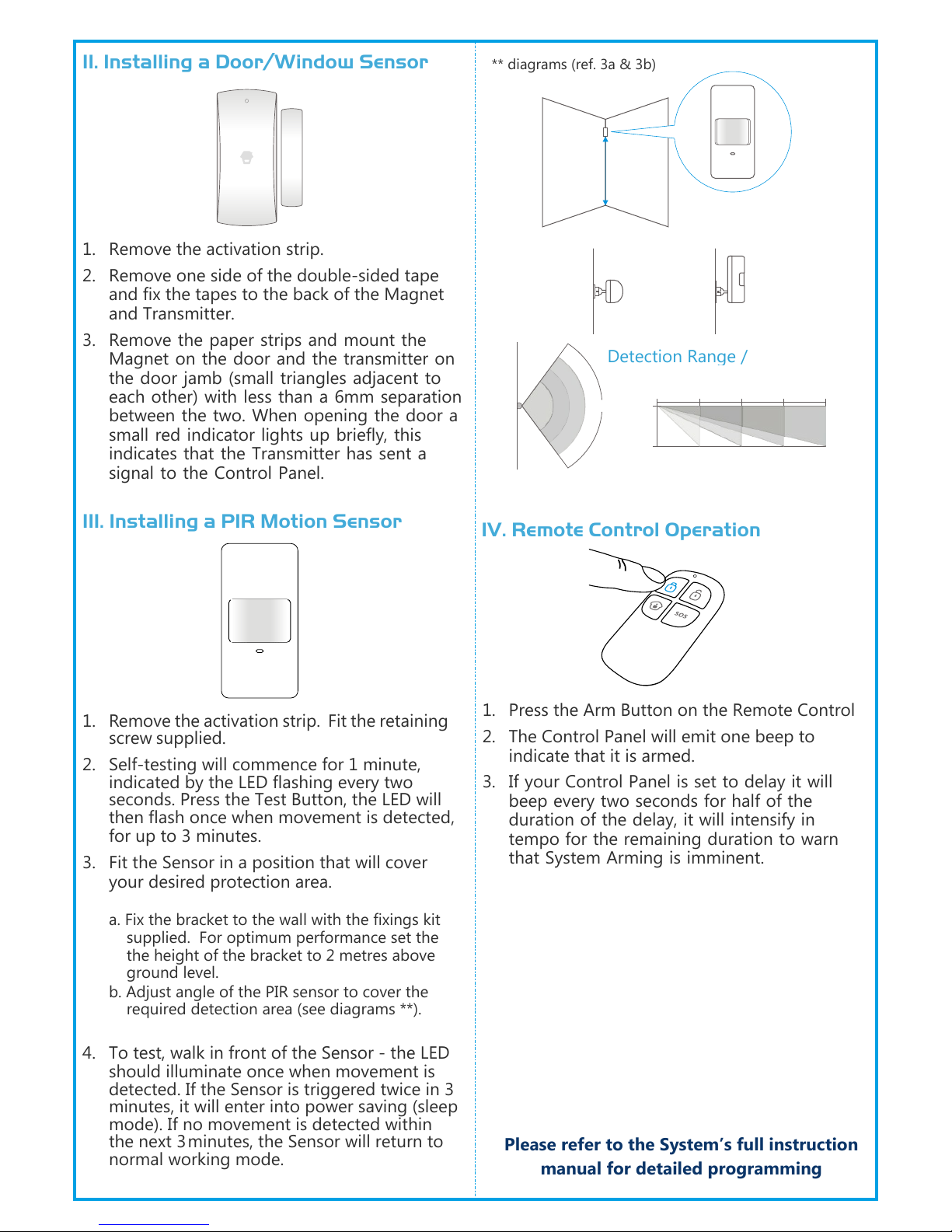

1. Remove the activation strip.
2. Remove one side of the double-sided tape
and fix the tapes to the back of the Magnet
and Transmitter.
3. Remove the paper strips and mount the
Magnet on the door and the transmitter on
the door jamb (small triangles adjacent to
each other) with less than a 6mm separation
between the two. When opening the door a
small red indicator lights up briefly, this
indicates that the Transmitter has sent a
signal to the Control Panel.
1. Remove the activation strip. Fit the retaining
screw supplied.
2. Self-testing will commence for 1 minute,
indicated by the LED flashing every two
seconds. Press the Test Button, the LED will
then flash once when movement is detected,
for up to 3 minutes.
3. Fit the Sensor in a position that will cover
your desired protection area.
a. Fix the bracket to the wall with the fixings kit
supplied. For optimum performance set the
the height of the bracket to 2 metres above
ground level.
b. Adjust angle of the PIR sensor to cover the
required detection area (see diagrams **).
4. To test, walk in front of the Sensor - the LED
should illuminate once when movement is
detected. If the Sensor is triggered twice in 3
minutes, it will enter into power saving (sleep
mode). If no movement is detected within
the next 3minutes, the Sensor will return to
normal working mode.
II. Installing a Door/Window Sensor
Please refer to the System’s full instruction
manual for detailed programming
III. Installing a PIR Motion Sensor
1. Press the Arm Button on the Remote Control
2. The Control Panel will emit one beep to
indicate that it is armed.
3. If your Control Panel is set to delay it will
beep every two seconds for half of the
duration of the delay, it will intensify in
tempo for the remaining duration to warn
that System Arming is imminent.
IV. Remote Control Operation
2
Top Side
Ground
2m 4m 6m0m
0m
2m
110°
Top view Side
