Installation

*INSTALLATION*

Installation

Fire risk and danger of damage

from appliances which give off heat.

Appliances which give off heat can

catch fire and set fire to the

refrigeration appliance.

Do not place appliances which give

off heat, such as mini-ovens, double

burner hobs or toasters on the

refrigeration appliance.

Fire risk and danger of damage

from open flames!

Open flames can set fire to the

refrigeration appliance.

Keep open flames (e.g. a candle)

away from the refrigeration

appliance.

Side-by-side installation

Risk of damage due to

condensation on the external

appliance panels.

In environments with high humidity,

condensation can build up on

external appliance panels, which can

cause corrosion.

Do not place different refrigeration

appliance models directly next to

one another.

If the model number for your

refrigeration appliance does have the

letter S in it, it can be installed side-by-

side. Your refrigeration appliance is

equipped with built-in heating units in

the side panels.

Please contact Miele for information on

which combinations are suitable for

your appliance.

Location

This appliance should be installed in a

dry, well-ventilated room.

When deciding where to install your

appliance please bear in mind that it will

use more energy if installed near a

heater, cooktop or other appliance that

gives off heat. Direct sunlight should

also be avoided.

The higher the room temperature, the

longer the compressor will run and the

higher the energy consumption will be.

When installing the appliance, please

note:

- The mains socket must not be

located directly behind the appliance

and must be easily accessible.

- The plug and cable must not touch

the rear of the appliance as they

could be damaged by vibrations from

the appliance.

- Nor should other appliances be

plugged into a socket located directly

behind this appliance.

11210790-04

Installation

*INSTALLATION*

Risk of damage due to

condensation on the external

appliance panels.

In environments with high humidity,

condensation can build up on

external appliance panels, which can

cause corrosion.

To prevent this, it is advisable to

install the appliance with sufficient

ventilation in a dry and/or air

conditioned room.

After installation, make sure that the

appliance door closes properly, that

the specified ventilation gaps are

adhered to, and that the appliance

has been installed in accordance

with these installation instructions.

Climate range

The appliance is designed for use within

a certain climate range (ambient

temperatures) and should not be used

outside this range. The climate range of

the appliance is stated on the data plate

inside the appliance.

Climate range Ambient room

temperature

SN +10 to +32°C

N +16 to +32°C

ST +16 to +38°C

T +16 to +43°C

Operating in a room which is too cold

will result in the compressor switching

off for too long, causing the internal

temperature in the appliance to rise with

the risk of food deteriorating and going

off.

Ventilation

Risk of fire and damage due to

insufficient ventilation!

If the refrigeration appliance is not

ventilated sufficiently, the

compressor will run more frequently

and for longer periods. This will

result in increased energy

consumption and a higher operating

temperature of the compressor. This,

in turn, can result in damage to the

compressor.

Please ensure that there is adequate

ventilation around the refrigeration

appliance.

It is essential to observe the required

ventilation gaps. The ventilation gaps

must not be covered or blocked in

any way.

Air at the back of the appliance gets

warm.

11210790-04

Installation

*INSTALLATION*

Fitting the supplied wall spacers

The wall spacers supplied must be

used in order to achieve the stated

energy consumption values and to

prevent the build-up of condensation

at high ambient temperatures.

Appliance depth is increased by

approx. 15mm with the wall spacers

fitted. If the wall spacers are not used,

the functionality of the appliance is not

affected. However, energy

consumption is slightly increased with

less distance between the appliance

and the wall.

Fit the wall spacers onto the back of

the refrigeration appliance on the

bottom left and right.

Limiting the opening angle of the

door

The door hinges are set at the factory to

enable the door to be opened up to

115°. If the appliance door hits an

adjacent wall when opened, for

example, the opening angle can be

limited toapprox. 90°:

The door opening angle limiter should

be fitted before the refrigeration

appliance is installed.

Fitting the door opening angle limiter

Disconnect the appliance from the

mains. Switch off at the wall and

withdraw the plug from the socket, or

switch off the mains circuit breaker.

–Removing the soft-close

mechanism

Open the appliance door.

Slide off the right outer cover.

11210790-04

Installation

*INSTALLATION*

Remove cover from the door hinge

and cover from the soft-close

mechanism.

Click the red safety device

(supplied with the appliance) into

place in the opening.

The safety device prevents the soft-

close mechanism and the hinge plate

from snapping shut.

Do not remove the red safety device

until instructed to do so.

Push the pin out of the door

hinge and remove it.

Move the hinged arm of the soft-

close mechanism away from the door

hinge.

Undo and remove the screw on

the soft-close mechanism and

insert a screwdriver behind the soft-

close mechanism.

Remove the soft-close

mechanism.

–Fitting the door opening angle

limiter

Press a door opening angle limiter

in from above and below as shown.

11210790-04

Installation

*INSTALLATION*

–Fitting the soft-close mechanism

Insert the soft-close mechanism

on the door hinge side (at an angle

initially) until it clicks into position.

Then press the other end of the soft-

close mechanism into the opening.

Secure the soft-close mechanism

with the screw.

Push the hinged arm into the

opening on the door hinge.

Insert the pin into the door hinge

from above. Turn this with a

screwdriver (by approx. ¼ turn) until

both lugs on the pin click into

position correctly in the grooves.

Pull out the red safety device.

Useful tip: Keep the red safety device

in case you want to change the door

hinging again at a later date.

Fit the cover on the door hinge.

Fit the panel so that it clicks into

position.

Slide on the outer cover.

Close the appliance door.

11210790-04

Installation

*INSTALLATION*

Installation

Two people are required for

installing the appliance.

The appliance must be empty to

be installed.

Move the appliance carefully on

floors that are sensitive to scratching

to prevent damage.

For easier installation there are

transport handles on the back at the

top and transport wheels underneath

the appliance.

Prepare the appliance for installation

as close as possible to its intended

installation location.

Connect the appliance to the

electricity supply as described in

“Electrical connection”.

Move the appliance carefully to its

intended installation location.

Position the appliance with the wall

spacers (if used) or the back close to

the wall.

Aligning the appliance

To align the appliance, adjust the

front feet using the spanner supplied.

11210790-04

Installation

*INSTALLATION*

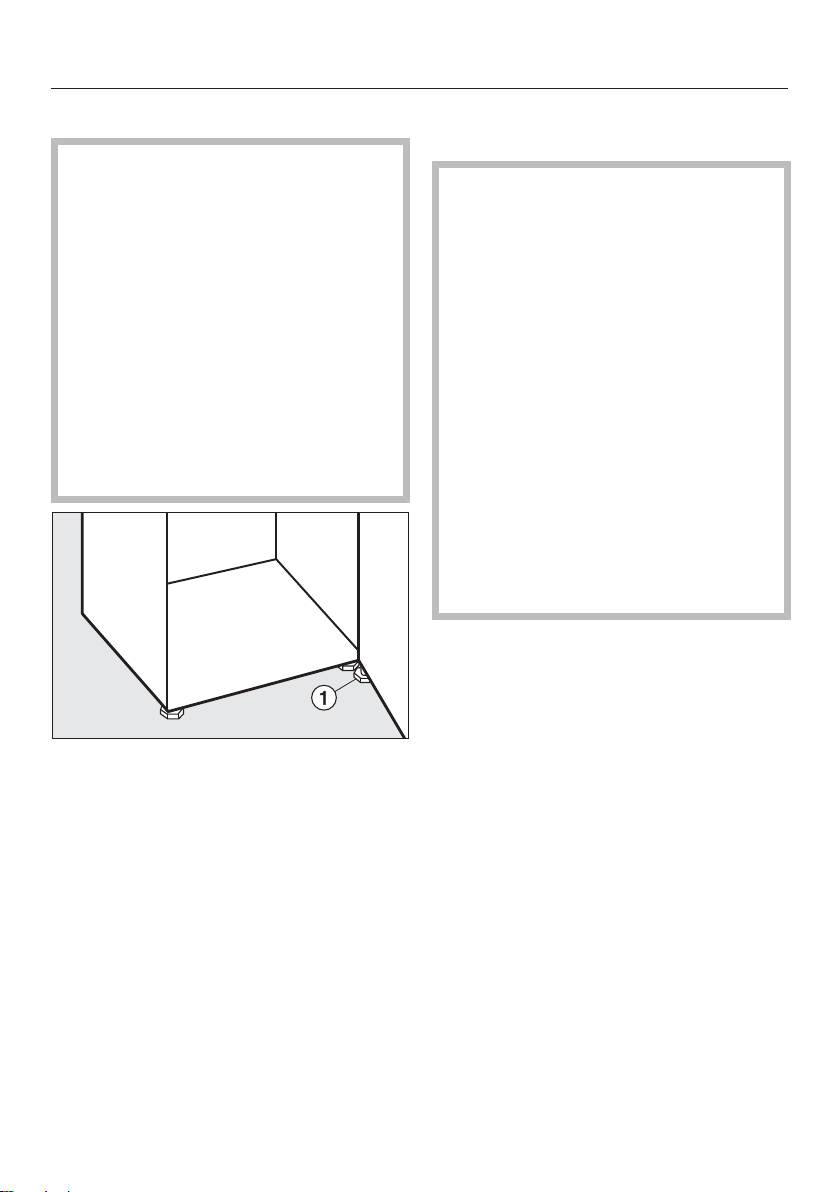

Supporting the appliance door

Risk of damage and danger of

injury due to the appliance door

swinging open or the refrigeration

appliance tipping over.

If the additional adjustable foot on

the lower hinge plate is not sitting

correctly on the floor, the appliance

door may swing open or the

refrigeration appliance may tip over.

Ensure that you unscrew the

adjustable foot with the supplied

spanner until it sits on the floor.

Then unscrew it by a further quarter

turn.

Installing the appliance in existing

kitchen units

Risk of fire and damage due to

insufficient ventilation!

If the refrigeration appliance is not

ventilated sufficiently, the

compressor will run more frequently

and for longer periods. This will

result in increased energy

consumption and a higher operating

temperature of the compressor. This,

in turn, can result in damage to the

compressor.

Please ensure that there is adequate

ventilation around the refrigeration

appliance.

It is essential to observe the required

ventilation gaps. The ventilation gaps

must not be covered or blocked in

any way.

11210790-04

Installation

*INSTALLATION*

Top box

Refrigeration appliance

Housing unit

Wall

* The appliance depth is increased by

approx. 15 mm for appliances with

wall spacers fitted.

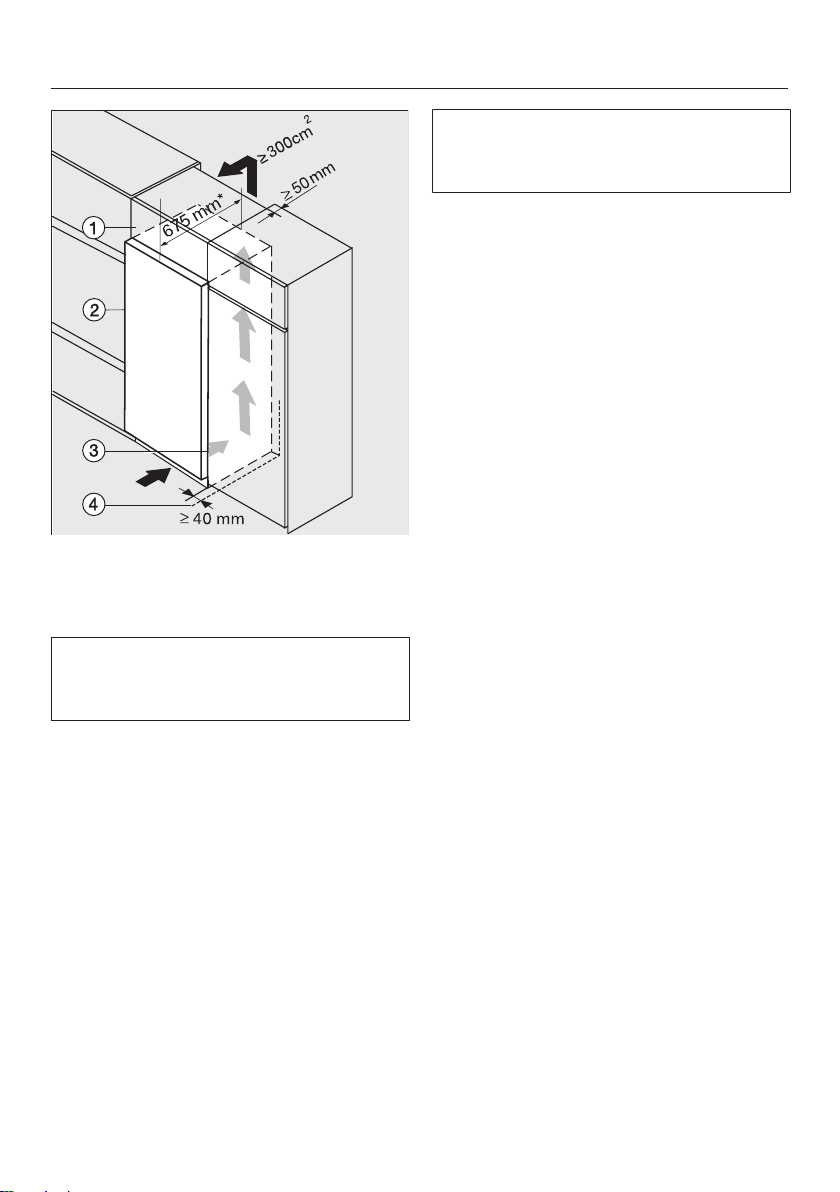

The appliance can be built into a run of

kitchen units and installed directly next

to a kitchen furniture unit. The

appliance front must protrude in front of

furniture fronts by at least 65mm. This

enables the doors to be opened and

shut without being obstructed. To

match the height of the kitchen units in

the run, the appliance can be fitted with

a suitable top box.

When installed next to a wall a

distance of at least 40mm must be

maintained on the hinge side between

the wall and the appliance.

The larger the ventilation gap, the

more economically the compressor

will work.

- A ventilation gap of at least 50mm

depth must be provided at the back

of the appliance behind the whole

width of the top box for air to

circulate.

- The ventilation gap under the ceiling

must be at least 300cm2 to ensure

that the warm air can escape

unhindered.

11210790-04

Installation

*INSTALLATION*

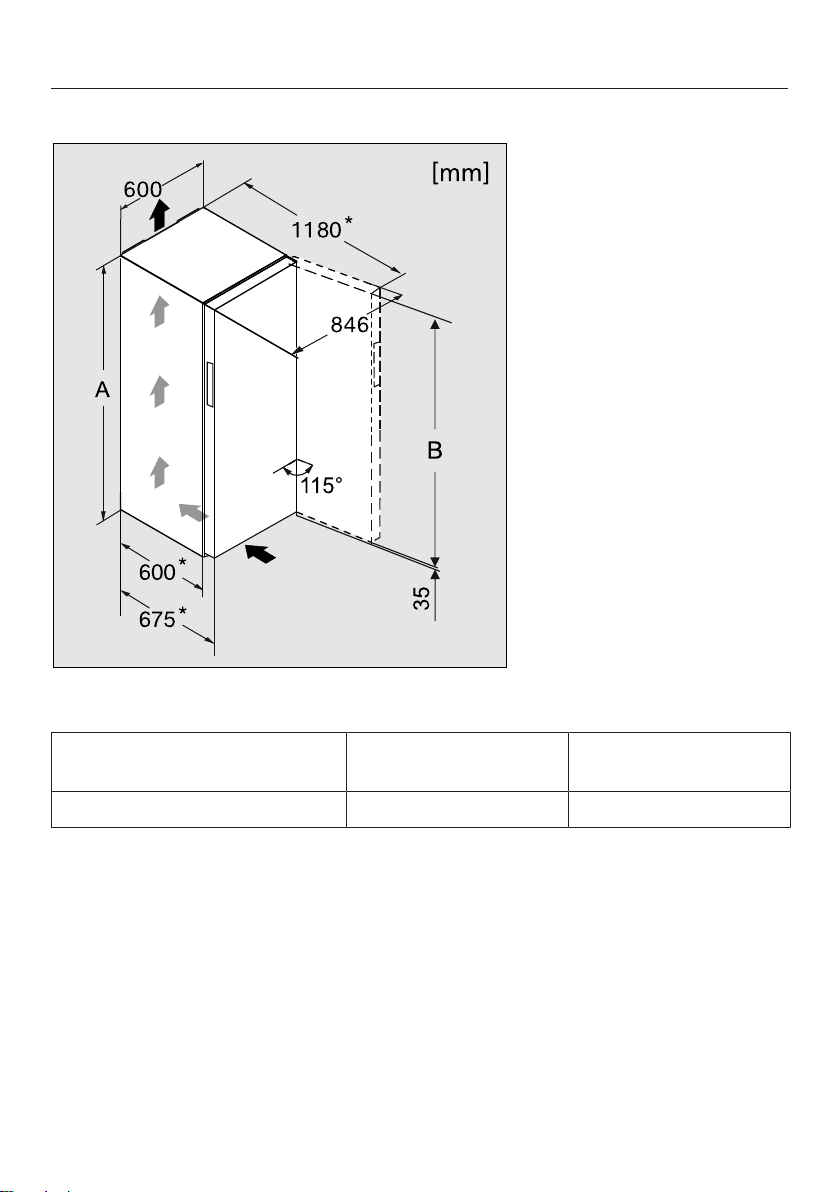

Appliance dimensions

* Dimensions without wall spacers fitted. Appliance depth is increased by 15mm with the

wall spacers supplied fitted.

[mm]

KS28463 D ed/cs 1,850 1,815

11210790-04

Installation

*INSTALLATION*

Changing the door hinging

The appliance is supplied with right-

hand hinging. If left-hand hinging is

required, the hinges must be changed.

Please note that the hinging must not

be changed if this appliance is going to

be installed side by side with another

refrigeration appliance.

Danger of injury and damage

when changing the door hinging!

There is an increased danger of

injury and damage if the refrigeration

appliance is installed by a single

person.

Always change the door hinging with

the help of a second person.

If a door seal is damaged or has

come out of the groove, the door will

not close properly and cooling

performance will be reduced.

Condensate will build up in the

interior and this can cause a build-up

of ice.

Do not damage the door seals and

ensure that they do not come out of

their groove.

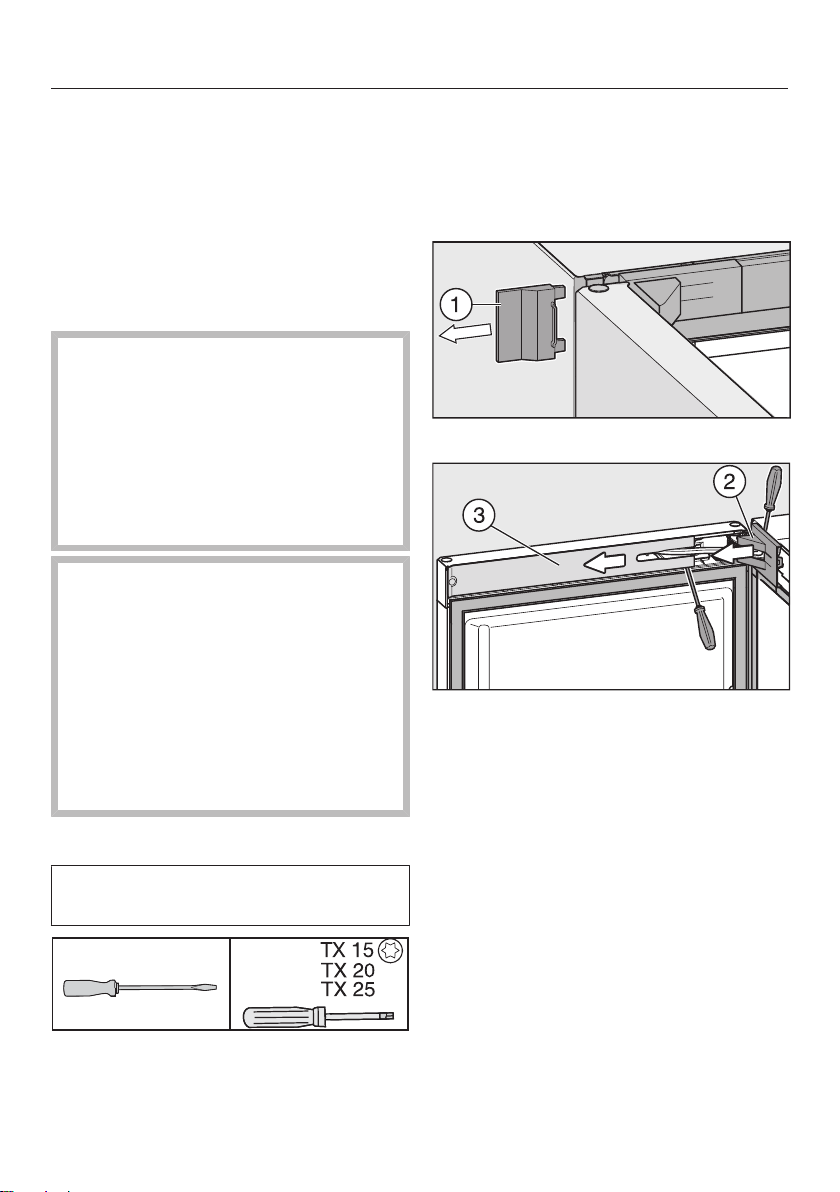

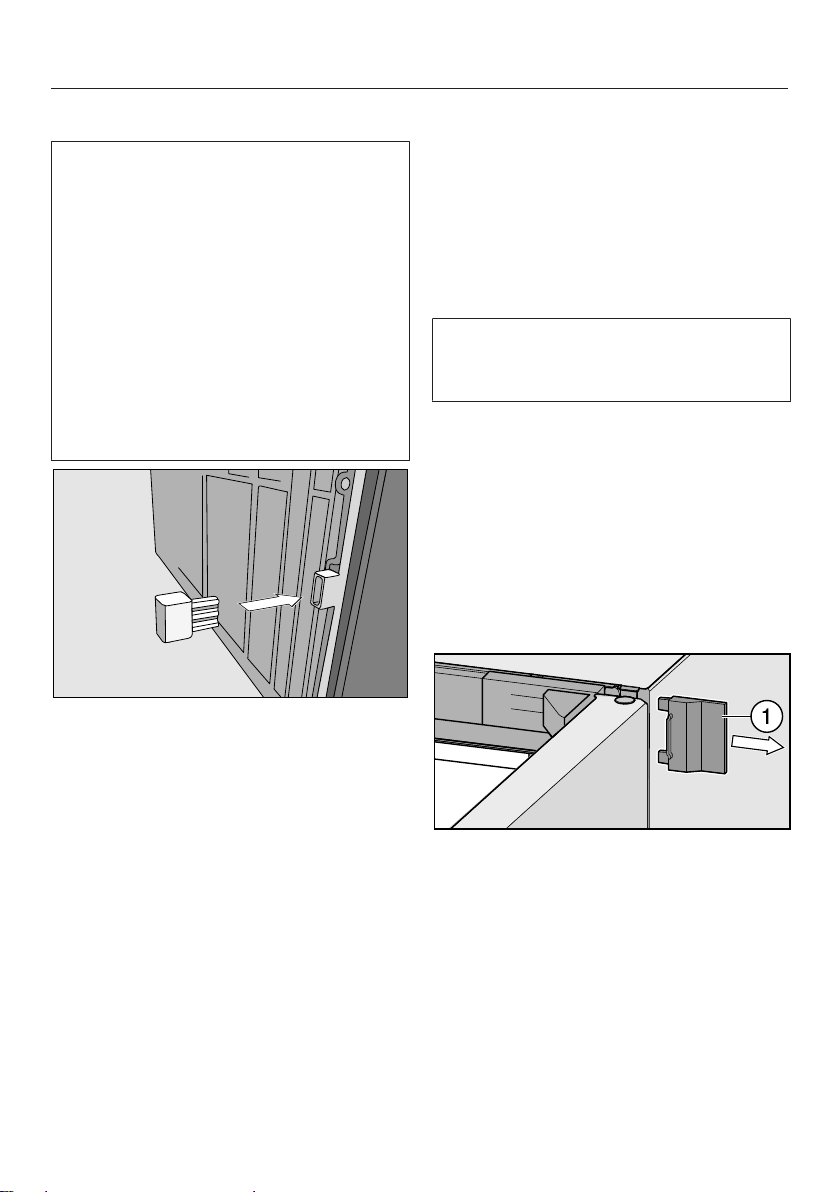

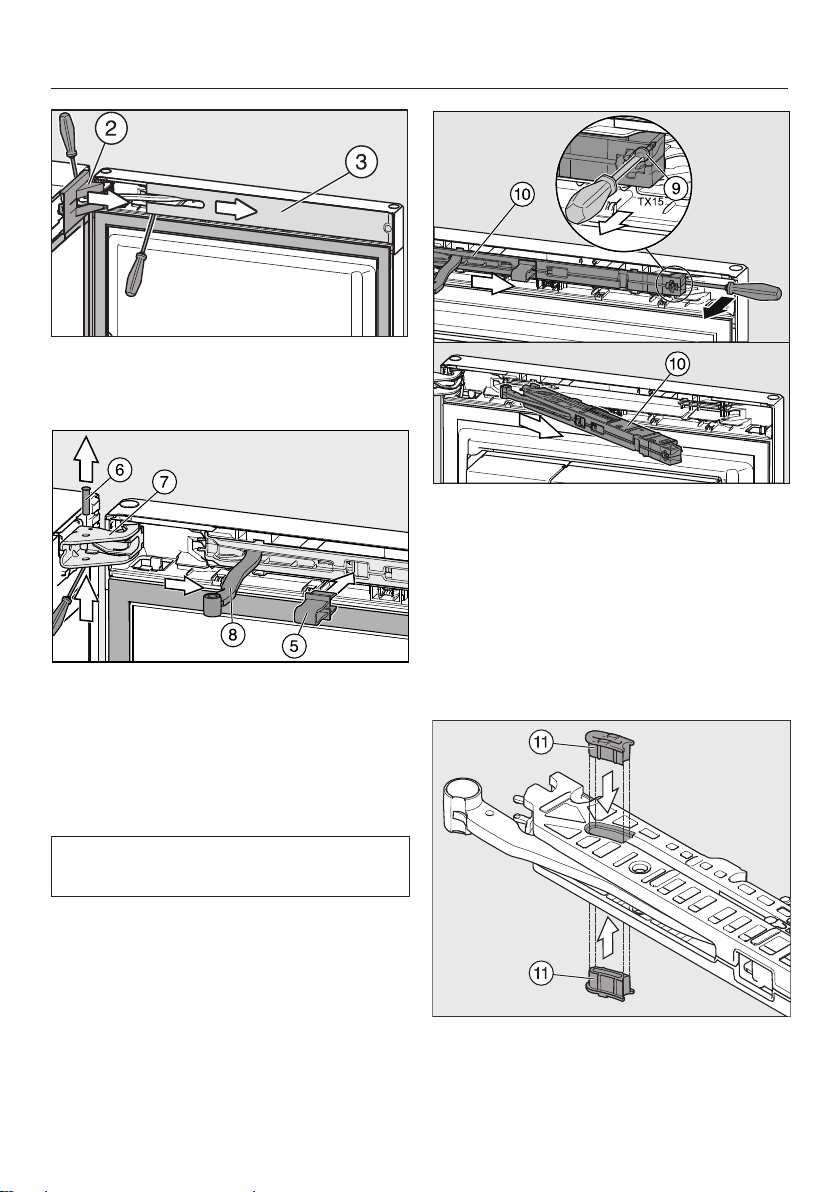

Preparing to change the door hinging

To change the door hinging, you will

need the following tools:

Place a suitable cover on the floor in

front of the appliance to protect the

appliance door and your floor from

damage.

Remove the shelves/bottle shelf from

the appliance door.

Removing the top covers

Open the appliance door.

Slide off the right outer cover.

Remove cover from the door hinge

and cover from the soft-close

mechanism.

Table des matières

Autres manuels Miele Réfrigérateur

Miele

Miele KFN 9755 IDE Manuel utilisateur

Miele

Miele K 12012 S-2 Manuel utilisateur

Miele

Miele K 622 Ui-1 Manuel utilisateur

Miele

Miele KFNS 37432 iD Manuel utilisateur

Miele

Miele K 8882 SD Fiche technique

Miele

Miele KFN 16947 D ed/cs Manuel utilisateur

Miele

Miele KD 683 i-3 Fiche technique

Miele

Miele KF 3855 S6 Fiche technique

Miele

Miele KFN 37452 iDE Manuel utilisateur

Miele

Miele MasterCool K 2611 Vi Manuel utilisateur

Miele

Miele K 8767 S ed Fiche technique

Miele

Miele K 31222 Ui Manuel utilisateur

Miele

Miele KF 9757 iD-3 Fiche technique

Miele

Miele KFN 8767 S ed-2 Fiche technique

Miele

Miele KFNS 37692 iDE Manuel utilisateur

Miele

Miele K 32222 i Manuel utilisateur

Miele

Miele KF 1911 Vi Manuel utilisateur

Miele

Miele K 854 i-1 Manuel utilisateur

Miele

Miele KFN 8996 SDE ED-1 Fiche technique

Miele

Miele KFN 37432 iD Manuel utilisateur

Miele

Miele KFNS 37432 iD Manuel utilisateur

Miele

Miele KF 7642 SN Fiche technique

Miele

Miele K 8452 S Instructions de montage

Miele

Miele KFN 14947 SDE ed Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
