Miele KM 403 Manuel utilisateur

Installation Instructions

KM 400 Electric Cooktop

KM 402 / KM 403 Fryer

KM 408-1 Contact Grill

KM 410 / KM 411 Electric Bar ecue

To prevent accidents and

machine damage,

read these instructions

before installation or use.

05 060 863

M.-Nr.

Contents

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety distance above the appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety distance between the KM 410 / KM 411 and a venting hood . . . . . . . . . 6

Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

KM 400 / KM 408-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

KM 402 / KM 403 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

KM 410 / KM 411 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Cutting out the countertop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Laying out the support bars and clamps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Securing the support bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Wood or Corian countertops. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Granite countertops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Securing the spring clamps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Wood or Corian countertops. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Granite countertops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Locking the appliance into place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Contents

Note to the installer

Please leave this instruction book

with the consumer for the local

electrical inspector’s use.

Installation

The minimum distances given in

these Installation Instructions must

be observed in order to ensure safe

operation. Failure to do so increases

the risk of fire.

To prevent appliance damage, the

cabinetry and venting hood should

be installed first.

The countertop must be bonded

with heat resistant (212 °F/100 °C)

adhesive to prevent distortion.

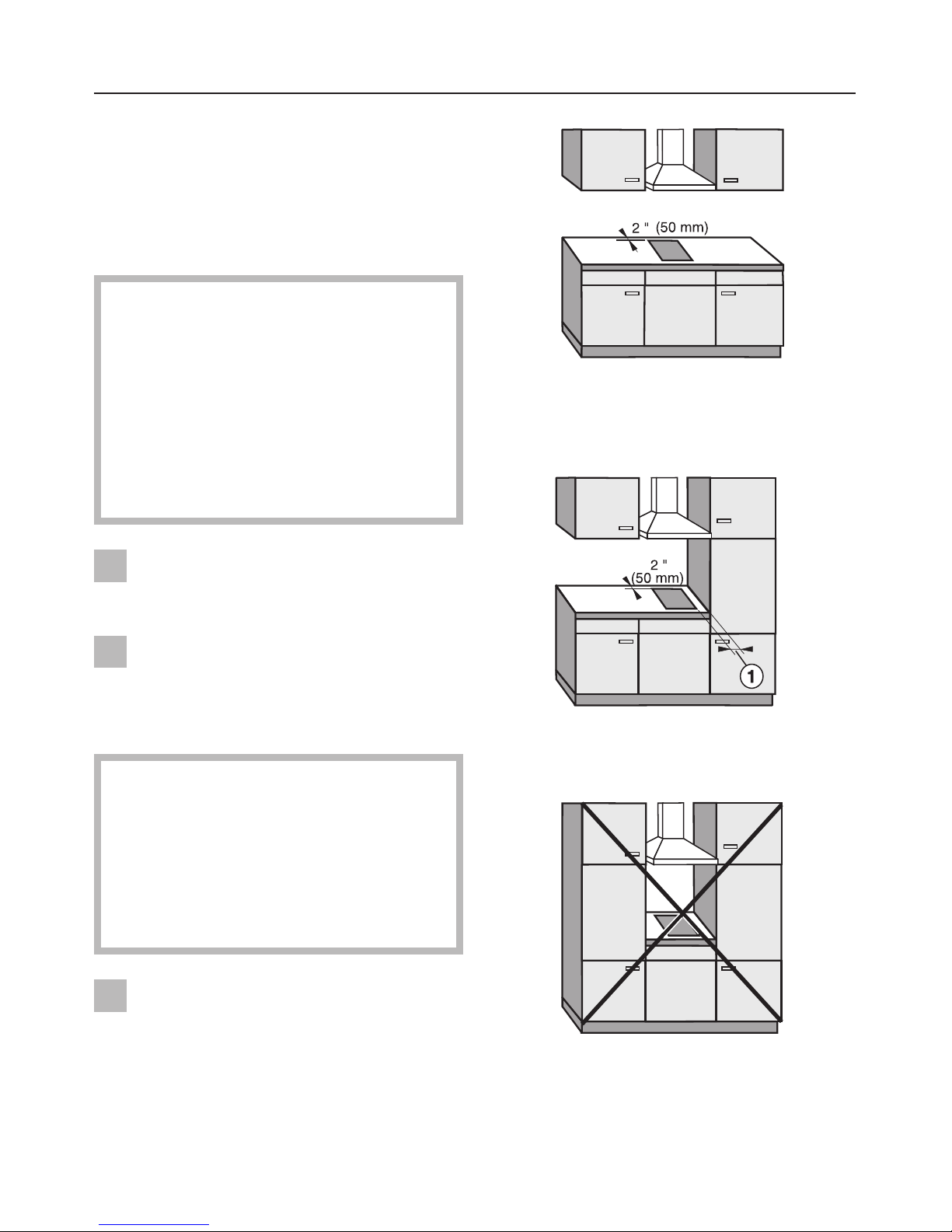

The cooktops should only be

installed with the required safety

distances shown. Do not install the

cooktop between 2 tall cabinets as this

is a fire hazard.

a= Minimum safety distances:

KM 400 = 2" (50 mm)

KM 402 / 403= 2" (50 mm)

KM 408-1 = 2" (50 mm)

KM 410 / 411 =10" (250 mm)

Deep fryers must not be installed

next to gas cooktops. Gas flames

can ignite splattering oil. A distance of

at least 12" (305 mm) should be main-

tained between these two appliances.

recommended

not recommended

not allowed

IMPORTANT SAFETY INSTRUCTIONS

Cooktops should not be installed

above a dishwasher, washer, dryer,

freezer or refrigerator. Heat generated

by cooktops could damage these

aplliances.

This equipment has not been

designed for maritime use or for

use in mobile installations such as

aircraft or recreational vehicles.

However, under certain circumstances

it may be possible for an installation in

these applications. Please contact the

nearest Miele Dealer or the Miele Tech-

nical Service Department with specific

requirements.

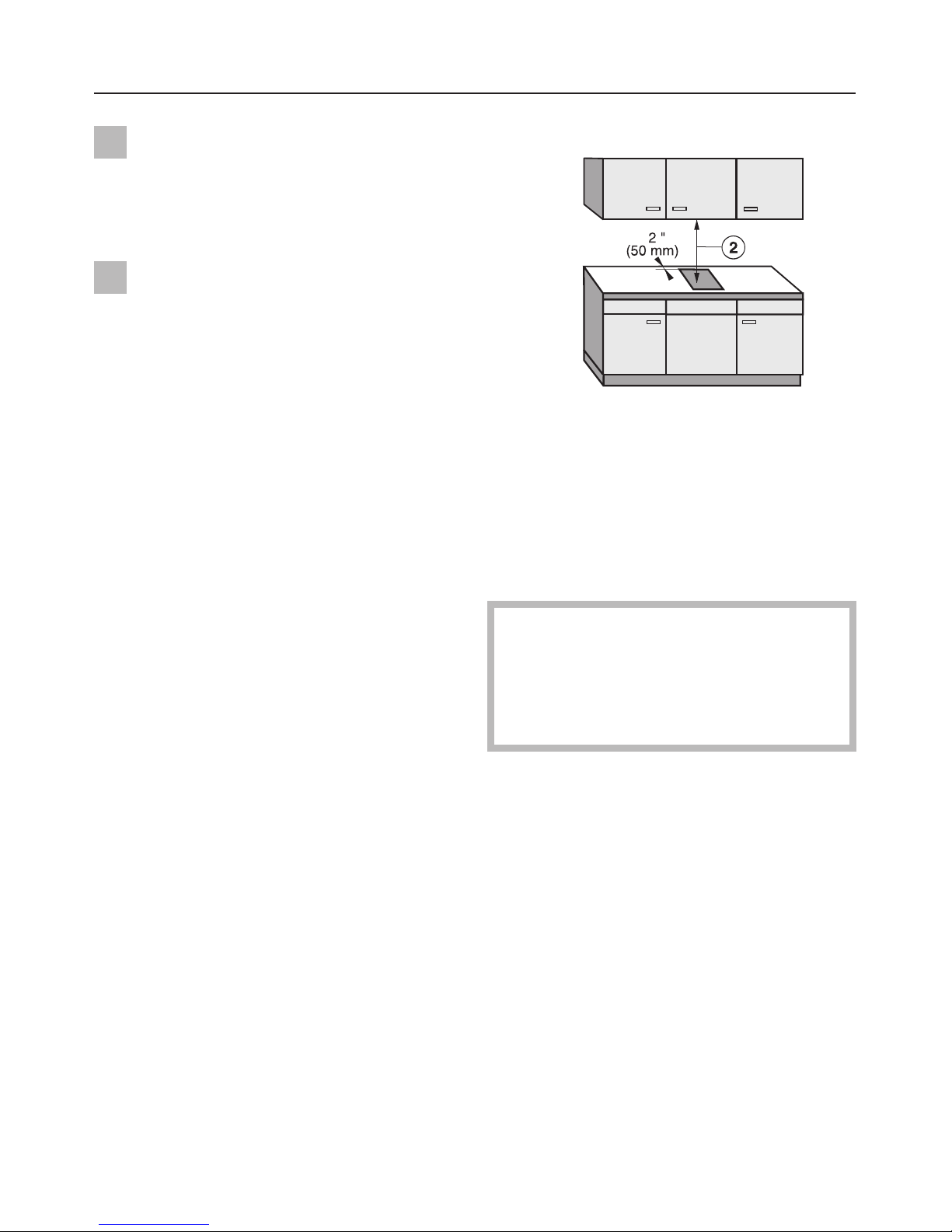

Safety distance above the appliances

There must be a minimum safety

distance of at least 30 inches (760 mm)

between the top of the appliance and

any cabinet above it, b. If the cabinet

manufacturer recommends a different

distance, follow that manufacturer’s

recommendation.

When installing the cooktops under

an exhaust hood, always observe

the minimum safety distances

recommended by the hood manu-

facturer.

IMPORTANT SAFETY INSTRUCTIONS

Safety distance between the KM 410 /

KM 411 and a venting hood

The minimum safety distance

between the KM 410 / KM 411 and

the bottom of a venting hood should

be no less than 26" (650 mm).

The filters of the venting hood should

be cleaned regularly.

Never leave the grill unattended when

in use.

If more than one appliance is

installed beneath a hood and they

have different mimimum safety

distances, the greater distance

should be followed.

Keep this instruction book in a

safe place and pass it on to

any future owner.

IMPORTANT SAFETY INSTRUCTIONS

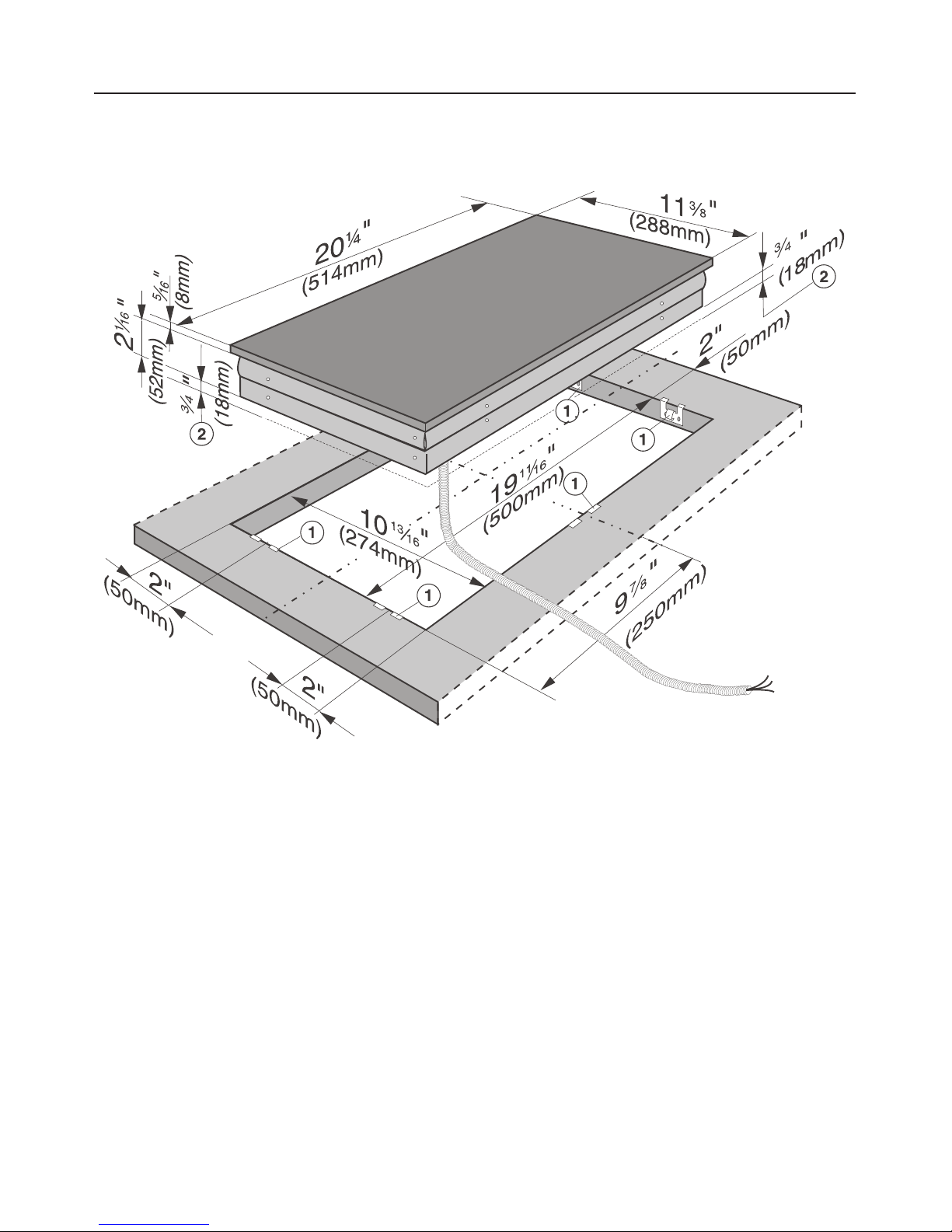

KM 400 / KM 408-1

aClamps

bPlease allow an additional 3/4"

(18 mm) depth below the cooktop for

clearance of the power cord.

Appliance dimensions

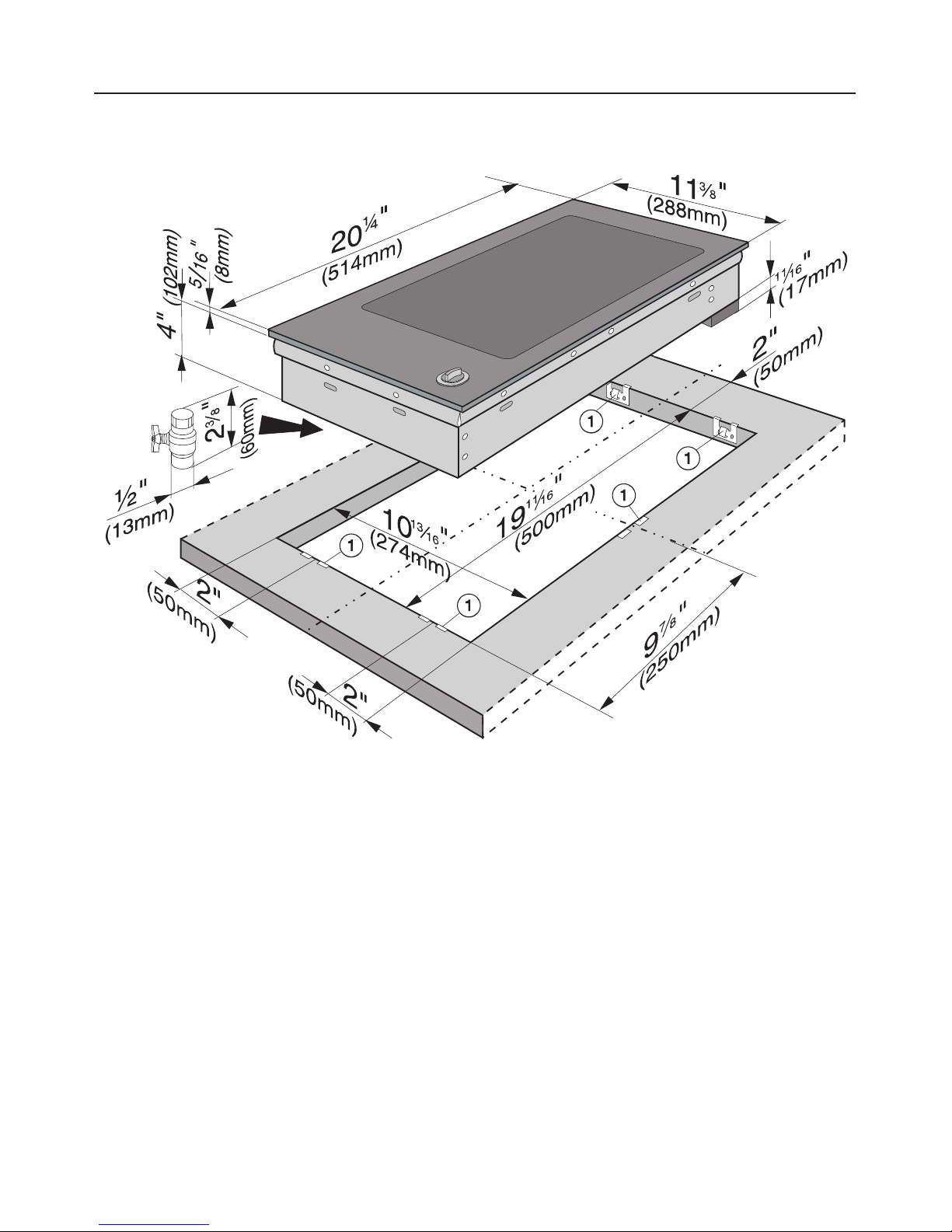

KM 402 / KM 403

aClamps

Appliance dimensions

KM 410 / KM 411

aClamps

Appliance dimensions

Cutting out the countertop

All Miele combisets have the same

length and width. Make sure that there

is enough room beneath the countertop

to allow for the depth of the various

appliances. When installing a KM 402 /

KM 403 or KM 410 / KM 411 remember

to allow clearance for the drain valve

that will be located in the cabinet

beneath the appliances.

The following safety distances must be

maintained:

–Between the cooktop and rear wall:

2" (50 mm).

–Between the cooktop and side wall

or cabinet:

KM 400 = 2" (50 mm)

KM 402 / 403= 2" (50 mm)

KM 408-1 = 2" (50 mm)

KM 410 / 411 =10" (250 mm

Refer to section "Important Safety

Instructions" for further information.

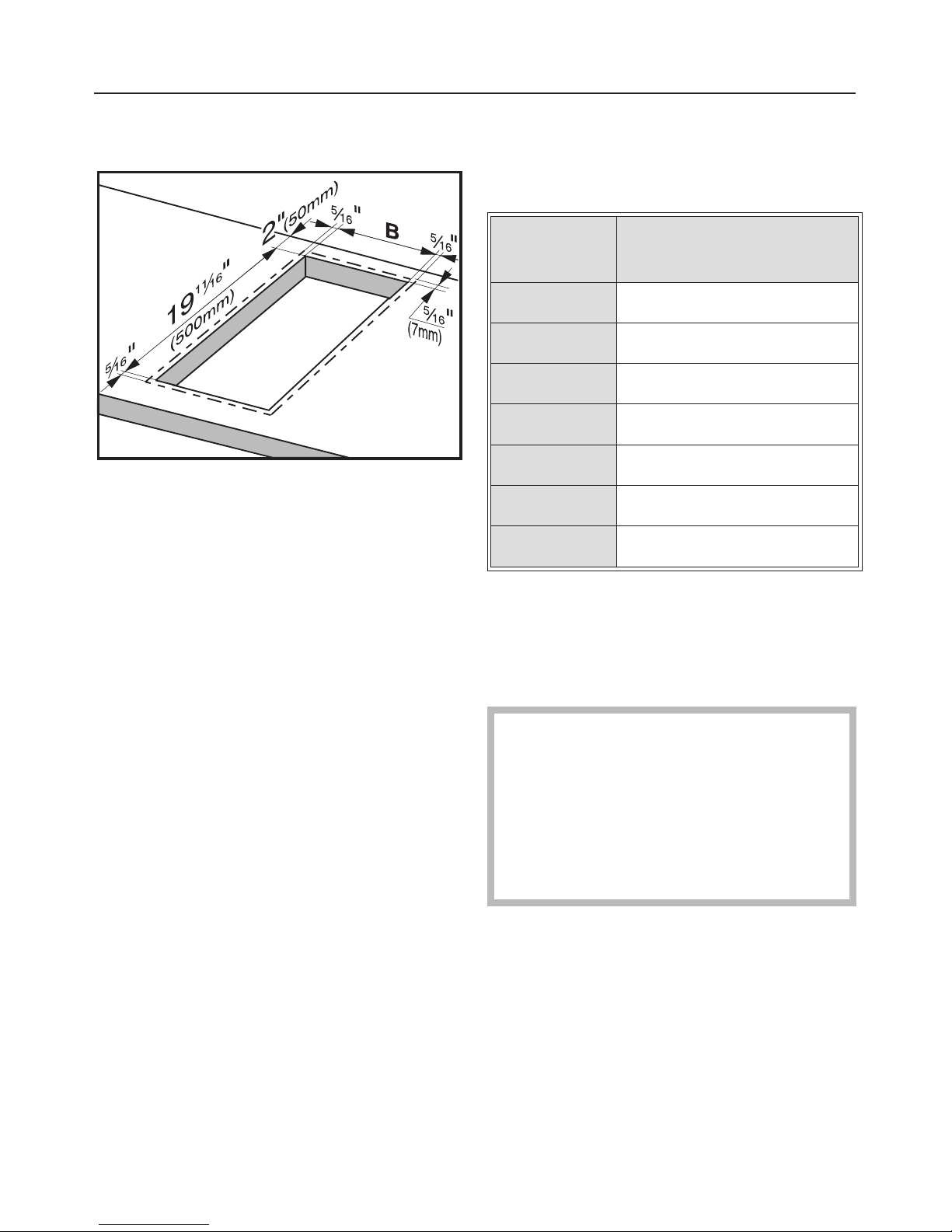

Installing one or multiple appliances

Cut out the countertop using the

dimensions listed in the following table.

Number of

cooktops

Cut out width

Dimension "B"

110 13/16" (274 mm)

222 1/8" (562 mm)

333 1/2" (850 mm)

444 13/16 (1138 mm)

556 1/8" (1426 mm)

667 1/2" (1714 mm)

778 13/16" (2002 mm)

The tolerance for each dimension is

1/16" (1 mm).

When installing more than one

combiset cooktop, a support bar

must be installed between the

appliances. Install the support bars

as shown on the following page

before setting the appliances into

the countertop.

Installation
