Operating and Installation instructions

Ceramic hobs

KM 5670

KM 5673

To avoid the risk of accidents or

damage to the appliance it is

essential to read these

instructions before it is installed

and used for the first time. M.-Nr. 06 681 280

en-GB

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

KM 5670..........................................................4

KM 5673..........................................................5

Cooking zone display ...............................................6

Timer/Memory display ...............................................7

Cooking zones .....................................................7

Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cleaning for the first time............................................15

Heating up for the first time ..........................................15

Calibrating the sensor switches.......................................16

How the cooking zones work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Sensor switches...................................................18

Switching on .....................................................18

Settings .........................................................19

Cooking with Auto heat-up ..........................................20

Cooking without Auto heat-up ........................................21

Switching on an extended area .......................................22

Switching off and residual heat indicators...............................23

Pans ............................................................24

Tips on saving energy .............................................25

Timer and Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Introduction ......................................................26

Setting the minute minder ...........................................26

Switching a cooking zone off automatically..............................27

Timer starting value ................................................27

Memory function ..................................................28

Combi mode .....................................................30

Contents

Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Safety lock .......................................................31

Stop and Go......................................................32

Safety switch-off...................................................33

Overheating protection .............................................34

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

To test the power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

After sales service, data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Safety instructions for installation .....................................47

Building-in dimensions .............................................51

Preparing the worktop ..............................................53

Fixing the spring clamps ............................................54

Installing the hob ..................................................55

Sealant .......................................................56

Electrical connection ...............................................57

Wiring diagram ...................................................59

Contents

KM 5670

Hob

Control panel

Cooking zones

ad Double circle zones

bSingle circle zone

cExtended cooking zone

Sensor switches for

fSetting the power level

gSwitching on an extended area

hSetting the timer, changing between

functions, selecting a cooking zone

jSafety lock

kSetting the time/

Selecting the memory programme

lHob ON/OFF

mMemory function

Indicator lamp for

iSafety lock

Guide to the appliance

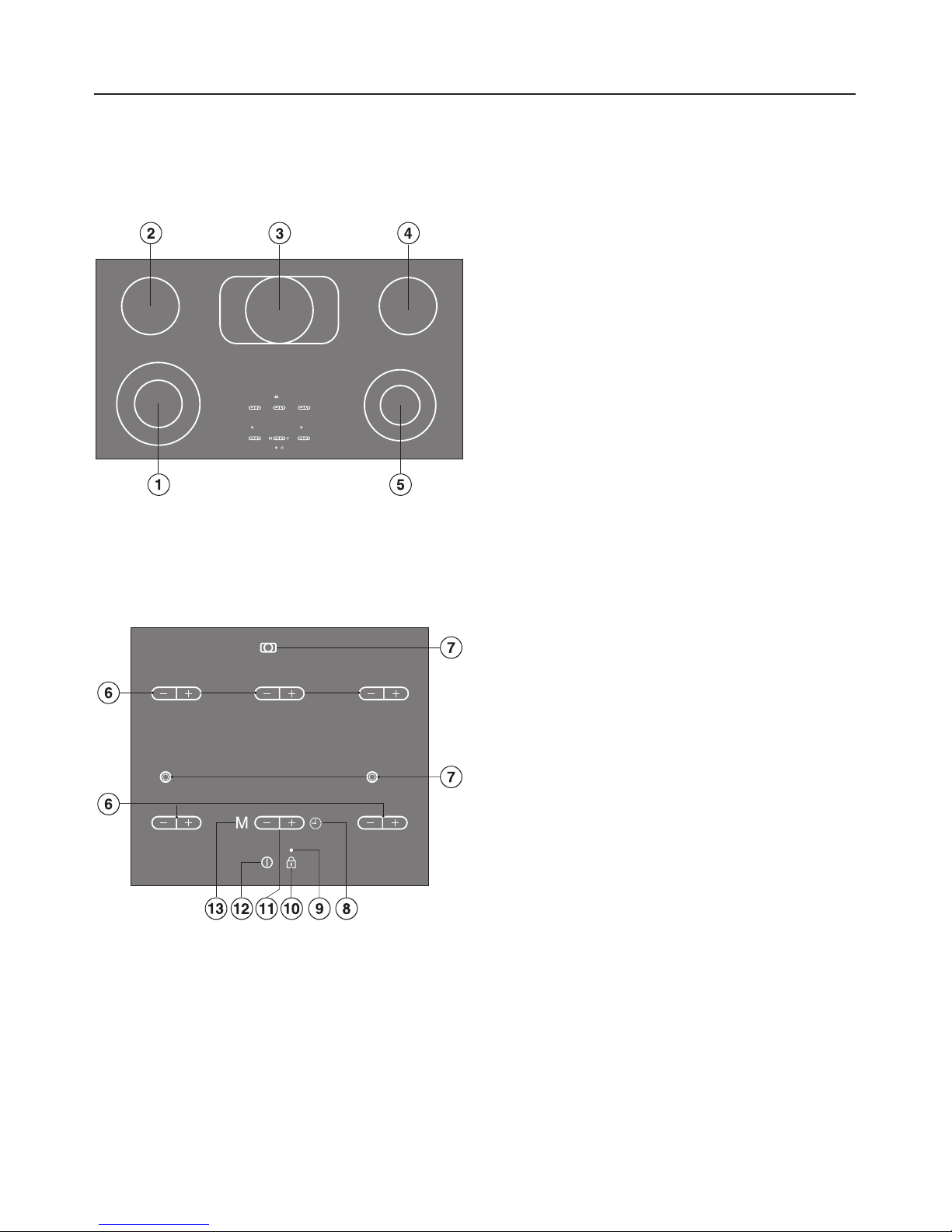

KM 5673

Hob

Control panel

Cooking zones

ae Double circle zones

bd Single circle zones

cExtended cooking zone

Sensor switches for

fSetting the power level

gSwitching on an extended area

hSetting the timer, changing between

functions, selecting a cooking zone

jSafety lock

kSetting the time/

Selecting the memory programme

lHob ON/OFF

mMemory function

Indicator lamp for

iSafety lock

Guide to the appliance

Cooking zone display

nDisplays:

0= Cooking zone ready for use

1to 12 = Power levels

#= Residual heat

F= Fault (see "Safety switch-off")

A= Auto heat-up when the power setting range has been extended

P0 etc. = Programme (see "Programming")

S0 etc. = Status (see "Programming")

oIndicator lamp for extending the power setting range (see "Programming")

pLight ring: The number of curved lines lit up matches the power setting chosen

(exception: see "Cooking with Auto heat-up")

qIndicator lamp for outer circle of double/extended cooking zones

Guide to the appliance

Timer/Memory display

(Example)

rIndicator lamp for relevant zone, e.g. of the rear right cooking zone

sDisplay for Time/Memory programme

00 to 99 = Time

P1 to P5 = Memory programme

tMemory programme indicator lamp

Cooking zones

Cooking

zone

KM 5670 KM 5673

Cin cm Rating in watts

for 230 V

Cin cm Rating in watts

for 230 V

y14.5 / 21.0 1000 / 2200 14.5 / 21.0 1000 / 2200

w14.5 1100 14.5 1100

b- - 17.0 /

17.0 x 29.0

1500 /

2600

x17.0 /

17.0 x 29.0

1500 /

2600

14.5 1100

z10.0 / 18.0 600 / 1800 10.0 / 18.0 600 / 1800

Total: 7700 Total: 8800

Guide to the appliance

To avoid the risk of accidents and

damage to the appliance, please

read these instructions carefully

before using it for the first time. They

contain important notes on its

installation, safety, use and

maintenance.

This appliance is not intended for

use by persons (including children)

with reduced physical, sensory or

mental capabilities, or lack of

experience and knowledge, unless

they have been given supervision or

instruction concerning its use by a

person responsible for their safety.

Keep these instructions in a safe

place for reference, and pass them

on to any future user.

Technical safety

~The appliance must be installed and

connected by a suitably qualified and

competent person in strict accordance

with current local and national safety

regulations. The manufacturer cannot

be held liable for damage caused by

incorrect installation or connection.

~The electrical safety of this

appliance can only be guaranteed

when continuity is complete between it

and an effective earthing system which

complies with current local and national

safety regulations. It is most important

that this basic safety requirement is

present and regularly tested, and

where there is any doubt, the

household wiring system should be

inspected by a qualified electrician.

The manufacturer cannot be held liable

for the consequences of an inadequate

earthing system (e.g. electric shock).

~Do not connect the appliance to the

mains electricity supply by an extension

lead. Extension leads do not guarantee

the required safety of the appliance

(e.g. danger of overheating).

~Never open the casing of the

appliance.

Tampering with electrical connections

or components is highly dangerous to

the user and can cause operational

faults.

Warning and safety instructions

Correct use

~For safety reasons this appliance

must only be operated after it has been

built in. This is necessary to ensure that

all electrical components are shielded.

~This appliance is intended for

domestic use only and is not to be used

for commercial purposes.

~Do not leave the appliance

unattended whilst it is in use.

Pans that have boiled dry can cause

damage to the ceramic surface for

which the manufacturer cannot be held

liable.

Boiling fat or oil could ignite and cause

a fire.

~Use this appliance for the

preparation of food only. Any other

usage is at the owner's risk and could

be dangerous. The manufacturer

cannot be held liable for damage

resulting from incorrect or improper use

or operation.

~Do not use the appliance to heat up

the room. Due to the high temperatures

radiated, objects near the appliance

could catch fire. The life of the

appliance could also be reduced.

~During prolonged or intensive use of

the appliance, the frame gets hot and

the control panel can also heat up. This

is quite normal and does not indicate a

fault.

Warning and safety instructions

Safety with children

~Use the safety lock to prevent

children operating the appliance or

altering the settings.

~The appliance is only intended for

use by adults who have read these

instructions.

~This appliance is not a toy! To avoid

the risk of injury, keep children well

away, and do not allow them to play

with it or use the controls. They will not

understand the potential dangers

posed by it. They should be supervised

whenever you are working in the

kitchen.

~Older children may use the

appliance only when its operation has

been clearly explained to them and

they are able to use it safely,

recognising the dangers of misuse.

~The appliance gets hot when in use

and remains hot for quite a while after

being switched off. To safeguard

against burning, keep children well

away from the appliance at all times.

~Do not store anything which might

arouse a child's interest in storage

areas above or next to the appliance.

Otherwise they could be tempted into

climbing onto the appliance with the

risk of burning themselves.

~Keep all pans out of reach of

children. Turn pan handles inwards

away from the edge of the hob. Danger

of burning or scalding. Special hob

guards are available from good retail

outlets.

~Packaging, e.g. cling film,

polystyrene and plastic wrappings,

must be kept out of the reach of babies

and young children. Danger of

suffocation. Dispose of or recycle all

packaging safely as soon as possible.

Warning and safety instructions

Table des matières

Autres manuels Miele Plaque

Miele

Miele KM 6367 Instructions de montage

Miele

Miele KM 6364 Manuel utilisateur

Miele

Miele CS 1212-1 Manuel utilisateur

Miele

Miele SmartLine Tepan Yaki Manuel utilisateur

Miele

Miele KM 6118 Fiche technique

Miele

Miele ProLine CS 1013-1 Manuel utilisateur

Miele

Miele KM 6112 Manuel utilisateur

Miele

Miele KM 406 Manuel utilisateur

Miele

Miele KM 7200 FR Manuel utilisateur

Miele

Miele KM 7404 FX Manuel utilisateur

Miele

Miele KM 417 Manuel utilisateur

Miele

Miele KM 400-3 Manuel utilisateur

Miele

Miele KM 498-1 Manuel utilisateur

Miele

Miele ProLine CS 1212-1 Manuel utilisateur

Miele

Miele KM 7678 FR Manuel utilisateur

Miele

Miele CS 1034-1 Manuel utilisateur

Miele

Miele KM 2054 Fiche technique

Miele

Miele KMR 1124-3 LP EDST/CLST Manuel utilisateur

Miele

Miele SmartLine CS 7101-1 Manuel utilisateur

Miele

Miele KM 6348 Instructions de montage

Miele

Miele KM 7678 FR Manuel utilisateur

Miele

Miele KM 423 Manuel utilisateur

Miele

Miele KM 3034-1 Manuel utilisateur

Miele

Miele SmartLine CS 7632 Manuel utilisateur

Manuels Plaque populaires d'autres marques

Siemens

Siemens EX875KYV1E Fiche technique

AEG

AEG CERAMIC HOB 6010 K Manuel utilisateur

VALERA

VALERA CT 70A Manuel utilisateur

Zanussi

Zanussi ZGF 6420 Manuel utilisateur

Gaggenau

Gaggenau CI 273 Manuel utilisateur

G3 Ferrari

G3 Ferrari Energy Manuel utilisateur

Pkm

Pkm IN4B Manuel utilisateur

Award

Award H903BG Manuel utilisateur

Zanussi

Zanussi VCH 5005 RZ Manuel utilisateur

Hotpoint

Hotpoint IS67V8CCXT/E Manuel utilisateur

AEG

AEG HK854870XB Manuel utilisateur

Cookology

Cookology SEP600BK Manuel utilisateur

Bauknecht

Bauknecht Hob Manuel utilisateur

Zanussi

Zanussi ZGM 782 Manuel utilisateur

dipo INDUCTION

dipo INDUCTION DIBK218S Manuel utilisateur

Blomberg

Blomberg MKN 24201 W Manuel utilisateur

Progress

Progress PAI3101F Manuel utilisateur

Hotpoint Ariston

Hotpoint Ariston PKL 641 IX/HA Manuel utilisateur
