Miele FNS 28463 E Manuel utilisateur

11210830-03

Installation

*INSTALLATION*

Installation

Fire risk and danger of damage

from appliances which give off heat.

Appliances which give off heat can

catch fire and set fire to the

refrigeration appliance.

Do not place appliances which give

off heat, such as mini-ovens, double

burner hobs or toasters on the

refrigeration appliance.

Fire risk and danger of damage

from open flames!

Open flames can set fire to the

refrigeration appliance.

Keep open flames (e.g. a candle)

away from the refrigeration

appliance.

Risk of damage due to

condensation on the external

appliance panels.

In environments with high humidity,

condensation can build up on

external appliance panels, which can

cause corrosion.

To prevent this, it is advisable to

install the appliance with sufficient

ventilation in a dry and/or air

conditioned room.

After installation, make sure that the

appliance door closes properly, that

the specified ventilation gaps are

adhered to, and that the appliance

has been installed in accordance

with these installation instructions.

Climate range

This refrigeration appliance is designed

for use within specific ambient

temperatures (climate range). Do not

use in ambient temperatures for which it

is not designed.

A lower room temperature leads to the

compressor switching off for longer

periods. This can cause the internal

temperature in the appliance to rise with

the risk of food deteriorating and going

off.

The climate range is stated on the data

plate inside the appliance.

Climate range Ambient room

temperature

SN +10 to +32°C

N +16 to +32°C

ST +16 to +38°C

T +16 to +43°C

11210830-03

Installation

*INSTALLATION*

Ventilation

Risk of fire and damage due to

insufficient ventilation!

If the refrigeration appliance is not

ventilated sufficiently, the

compressor will run more frequently

and for longer periods. This will

result in increased energy

consumption and a higher operating

temperature of the compressor. This,

in turn, can result in damage to the

compressor.

Please ensure that there is adequate

ventilation around the refrigeration

appliance.

It is essential to observe the required

ventilation gaps. The ventilation gaps

must not be covered or blocked in

any way.

Air at the back of the appliance gets

warm.

Fitting the supplied wall spacers

The wall spacers supplied must be

used in order to achieve the stated

energy consumption values and to

prevent the build-up of condensation

at high ambient temperatures.

Appliance depth is increased by

approx. 15mm with the wall spacers

fitted. If the wall spacers are not used,

the functionality of the appliance is not

affected. However, energy

consumption is slightly increased with

less distance between the appliance

and the wall.

Fit the wall spacers onto the back of

the refrigeration appliance on the

bottom left and right.

11210830-03

Installation

*INSTALLATION*

Limiting the opening angle of the

door

The door hinges are set at the factory to

enable the door to be opened up to

115°. If the appliance door hits an

adjacent wall when opened, for

example, the opening angle can be

limited toapprox. 90°:

The door opening angle limiter should

be fitted before the refrigeration

appliance is installed.

Fitting the door opening angle limiter

Disconnect the appliance from the

mains. Switch off at the wall and

withdraw the plug from the socket, or

switch off the mains circuit breaker.

–Removing the soft-close

mechanism

Open the appliance door.

Slide off the right outer cover.

Remove cover from the door hinge

and cover from the soft-close

mechanism.

Click the red safety device

(supplied with the appliance) into

place in the opening.

The safety device prevents the soft-

close mechanism and the hinge plate

from snapping shut.

Do not remove the red safety device

until instructed to do so.

Push the pin out of the door

hinge and remove it.

Move the hinged arm of the soft-

close mechanism away from the door

hinge.

11210830-03

Installation

*INSTALLATION*

Undo and remove the screw on

the soft-close mechanism and

insert a screwdriver behind the soft-

close mechanism.

Remove the soft-close

mechanism.

–Fitting the door opening angle

limiter

Press a door opening angle limiter

in from above and below as shown.

–Fitting the soft-close mechanism

Insert the soft-close mechanism

on the door hinge side (at an angle

initially) until it clicks into position.

Then press the other end of the soft-

close mechanism into the opening.

Secure the soft-close mechanism

with the screw.

Push the hinged arm into the

opening on the door hinge.

Insert the pin into the door hinge

from above. Turn this with a

screwdriver (by approx. ¼ turn) until

both lugs on the pin click into

position correctly in the grooves.

Pull out the red safety device.

Useful tip: Keep the red safety device

in case you want to change the door

hinging again at a later date.

11210830-03

Installation

*INSTALLATION*

Fit the cover on the door hinge.

Fit the panel so that it clicks into

position.

Slide on the outer cover.

Close the appliance door.

If you intend to install your appliance

side by side with another refrigeration

appliance, please ensure that you

observe the instructions in “Installation

in a side-by-side combination”. The

necessary installation parts are

supplied with your appliance.

11210830-03

Installation

*INSTALLATION*

Installation

Two people are required for

installing the appliance.

The appliance must be empty to

be installed.

Move the appliance carefully on

floors that are sensitive to scratching

to prevent damage.

For easier installation there are

transport handles on the back at the

top and transport wheels underneath

the appliance.

Prepare the appliance for installation

as close as possible to its intended

installation location.

Connect the appliance to the

electricity supply as described in

“Electrical connection”.

Move the appliance carefully to its

intended installation location.

Position the appliance with the wall

spacers (if used) or the back close to

the wall.

Aligning the appliance

To align the appliance, adjust the

front feet using the spanner supplied.

11210830-03

Installation

*INSTALLATION*

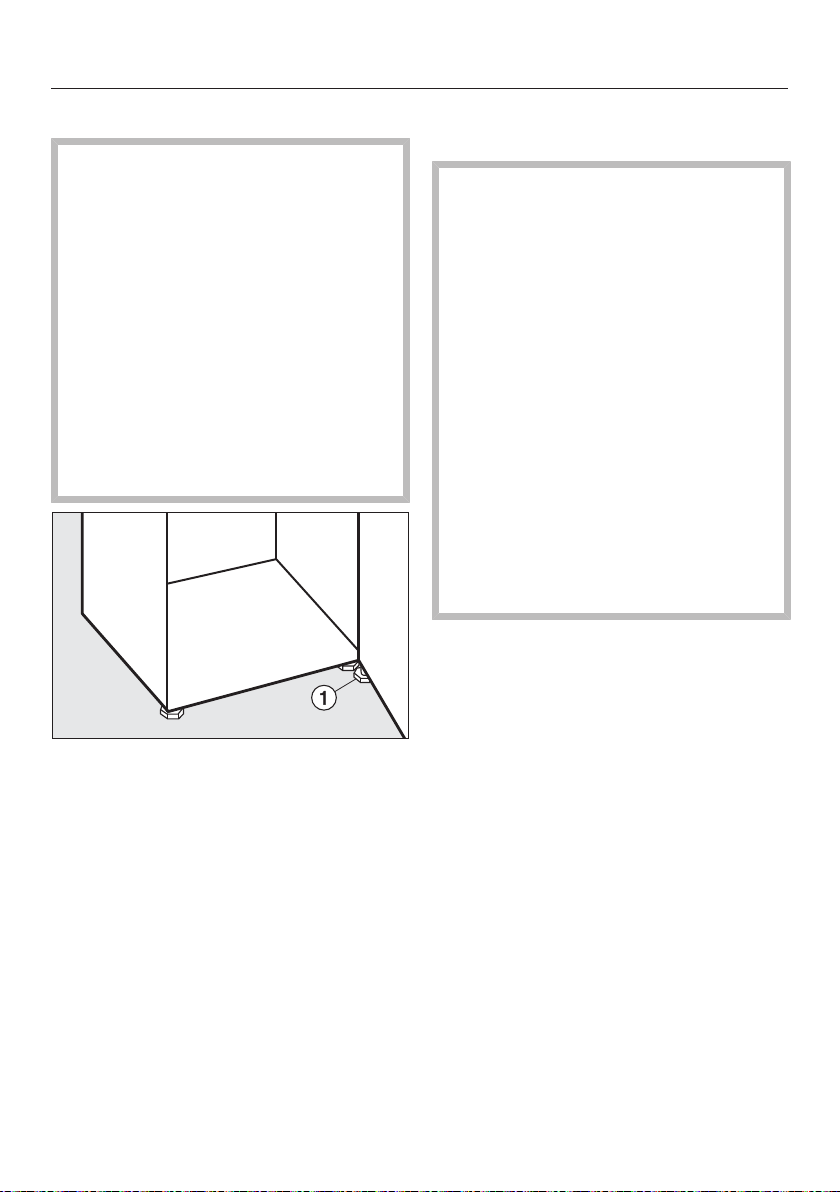

Supporting the appliance door

Risk of damage and danger of

injury due to the appliance door

swinging open or the refrigeration

appliance tipping over.

If the additional adjustable foot on

the lower hinge plate is not sitting

correctly on the floor, the appliance

door may swing open or the

refrigeration appliance may tip over.

Ensure that you unscrew the

adjustable foot with the supplied

spanner until it sits on the floor.

Then unscrew it by a further quarter

turn.

Installing the appliance in existing

kitchen units

Risk of fire and damage due to

insufficient ventilation!

If the refrigeration appliance is not

ventilated sufficiently, the

compressor will run more frequently

and for longer periods. This will

result in increased energy

consumption and a higher operating

temperature of the compressor. This,

in turn, can result in damage to the

compressor.

Please ensure that there is adequate

ventilation around the refrigeration

appliance.

It is essential to observe the required

ventilation gaps. The ventilation gaps

must not be covered or blocked in

any way.

11210830-03

Installation

*INSTALLATION*

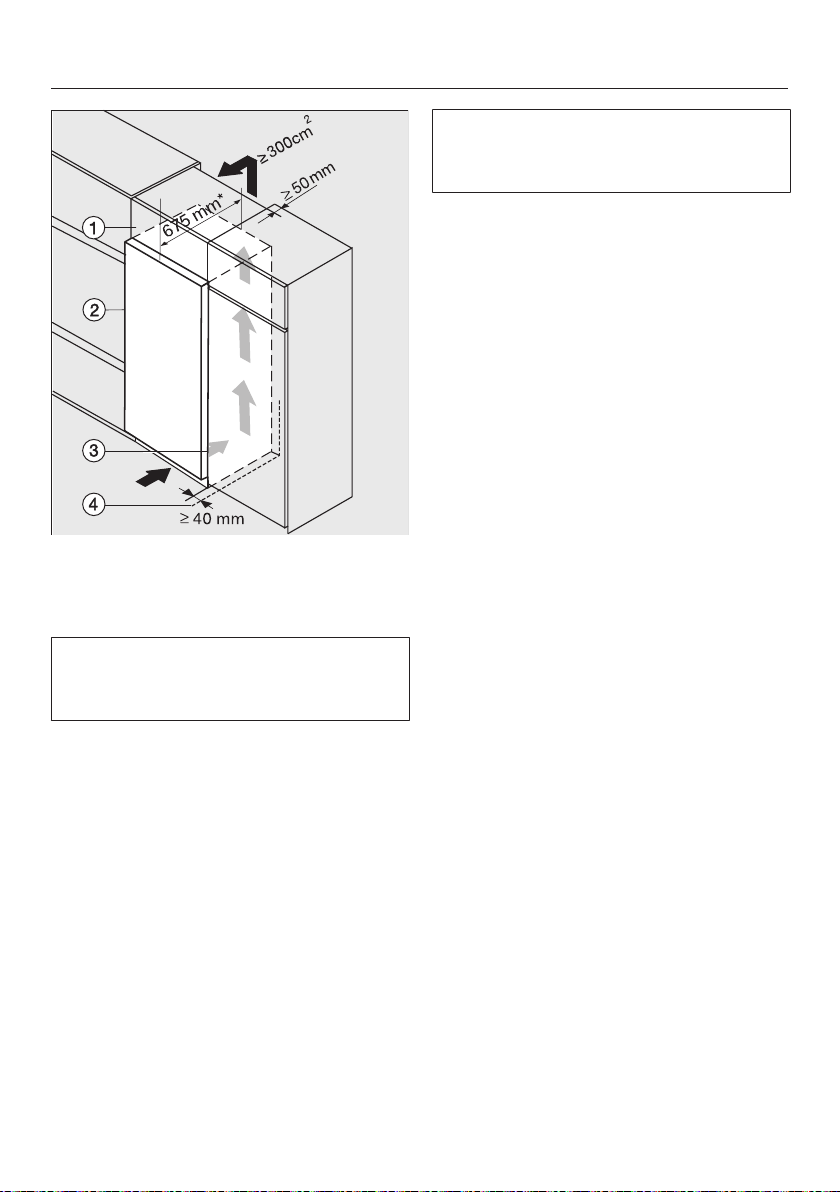

Top box

Refrigeration appliance

Housing unit

Wall

* The appliance depth is increased by

approx. 15 mm for appliances with

wall spacers fitted.

The appliance can be built into a run of

kitchen units and installed directly next

to a kitchen furniture unit. The

appliance front must protrude in front of

furniture fronts by at least 65mm. This

enables the doors to be opened and

shut without being obstructed. To

match the height of the kitchen units in

the run, the appliance can be fitted with

a suitable top box.

When installed next to a wall a

distance of at least 40mm must be

maintained on the hinge side between

the wall and the appliance.

The larger the ventilation gap, the

more economically the compressor

will work.

- A ventilation gap of at least 50mm

depth must be provided at the back

of the appliance behind the whole

width of the top box for air to

circulate.

- The ventilation gap under the ceiling

must be at least 300cm2 to ensure

that the warm air can escape

unhindered.

11210830-03

Installation

*INSTALLATION*

Appliance dimensions

* Dimensions without wall spacers fitted. Appliance depth is increased by 15mm with the

wall spacers supplied fitted.

[mm]

FNS 28463 E ed/cs 1,850 1,815

11210830-03

Installation

*INSTALLATION*

Installation in a side-by-side

combination

To avoid a build-up of condensation

and resulting damage, refrigerators

and freezers should not generally be

installed directly next to other such

appliances (side by side). Your

appliance has side wall heating and

can therefore be installed side by side

with another refrigeration appliance.

Risk of damage!

The assembled side-by-side

combination is very heavy. Incorrect

moving of the combination can

cause the appliances to become

dented.

Please observe the following notes

when moving a side-by-side

appliance combination.

It is essential that all installation work

is carried out by two people.

All fixings required for side-by-side

installation are supplied with the

appliance:

Table des matières

Autres manuels Miele Congélateur

Miele

Miele KFN 37452 iDE Manuel utilisateur

Miele

Miele F 12020 S-2 Manuel utilisateur

Miele

Miele F 9252 i-1 Fiche technique

Miele

Miele KFNS 7734 D Manuel utilisateur

Miele

Miele FN 22062 ws Manuel utilisateur

Miele

Miele FN 35402 i Manuel utilisateur

Miele

Miele F 5122 Ui Manuel utilisateur

Miele

Miele KFN 37692 iDE Manuel utilisateur

Miele

Miele F 456 i-3 Manuel utilisateur

Miele

Miele KFN 29683 D obsw Instructions de montage

Miele

Miele F 1471 Vi Fiche technique

Miele

Miele F 1903 Vi Manuel utilisateur

Miele

Miele F 1803 Vi Manuel utilisateur

Miele

Miele F 12011 S-1 Manuel utilisateur

Miele

Miele Independence F1801Vi Instructions d'utilisation

Miele

Miele F 9122 Ui Manuel utilisateur

Miele

Miele F1413Vi Manuel utilisateur

Miele

Miele FNS 28463 E BB Manuel utilisateur

Miele

Miele FN 14827 S ed/cs Fiche technique

Miele

Miele KFN 14943 SDE Manuel utilisateur

Miele

Miele KFN 12823 SD ed Manuel utilisateur

Miele

Miele F 9122 Ui-2 Manuel utilisateur

Miele

Miele F 7138 S Fiche technique

Miele

Miele FN 3x402 i AU Manuel utilisateur

Manuels Congélateur populaires d'autres marques

Siemens

Siemens GU..D SERIES Manuel utilisateur

Omcan

Omcan FR-CN-0155 Manuel utilisateur

Beko

Beko FNE290E24W Manuel utilisateur

Electrolux

Electrolux ARCTIS G 8 60 50-6I Manuel utilisateur

Electrolux

Electrolux EUF2042AOX Manuel utilisateur

Dometic

Dometic CoolFreeze CFX95DZ Manuel utilisateur

Electrolux

Electrolux EUF7000W1 Manuel utilisateur

Polar Electro

Polar Electro CT330 Manuel utilisateur

MPM

MPM MPM-145-SK Series Manuel utilisateur

SAF

SAF PRESTOTIG 200AC/DC Guide rapide

Zanussi

Zanussi ZFT11407WA Manuel utilisateur

AEG

AEG A63190GT Manuel utilisateur

AEG

AEG A81000TNW0 Manuel utilisateur

Matsui

Matsui MUC50S15E Manuel utilisateur

NEFF

NEFF G4344X8 Manuel utilisateur

Frigidaire

Frigidaire FV 1246 H Manuel utilisateur

Frigidaire

Frigidaire FFC13K1AW Manuel utilisateur

Electrolux

Electrolux EU 2400C Manuel utilisateur
