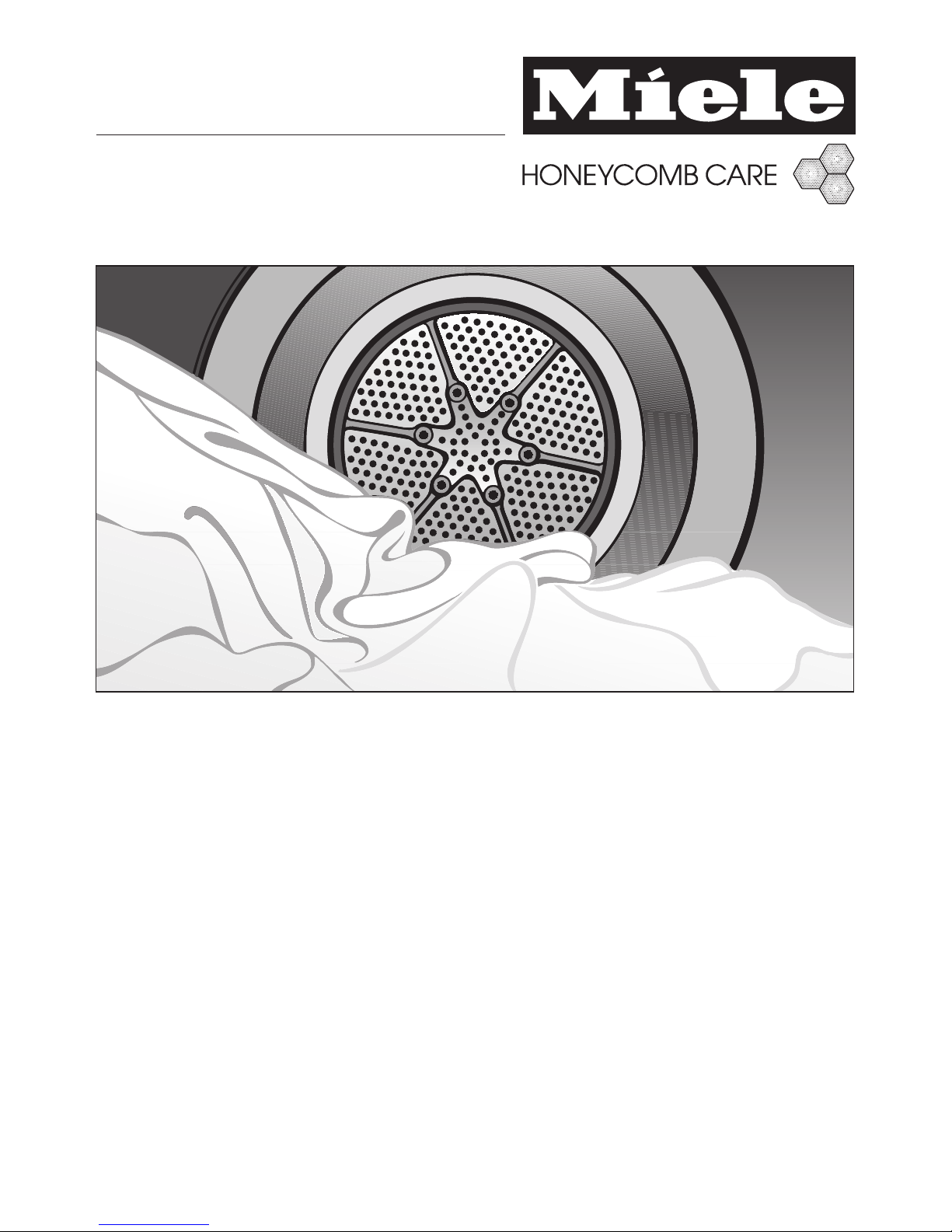

Operating instructions

for condenser tumble dryer

T 4262 C

To avoid the risk of accidents or

damage to the machine it is

essential to read these instructions

before it is installed and used for the first time.

M.-Nr. 06 465 730

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure they are

offered for recycling.

Disposal of your old appliance

Electrical and electronic appliances

often contain materials which, if

handled or disposed of incorrectly,

could be potentially hazardous to

human health and to the environment.

They are, however, essential for the

correct functioning of your appliance.

Please do not therefore dispose of your

appliance with your household waste.

Please dispose of it at your local

community waste collection / recycling

centre and ensure that it presents no

danger to children while being stored

for disposal.

It should be unplugged or disconnected

from the mains electricity supply by a

competent person. The plug must be

rendered useless and the cable cut off

directly behind it to prevent misuse.

See the "Warning and Safety" section of

this booklet for further details.

Energy saving tips

To avoid unnecessarily long drying

times and high consumption of energy:

–Make sure that your laundry is

thoroughly spun before drying.

The higher the spin, the greater the

savings that can be made in energy

and time during drying.

– Load according to the optimum

amount of laundry recommended for

the programme being used (see

Programme chart).

Underloading is uneconomical.

Overloading gives a poorer quality of

drying and may cause unnecessary

creasing.

–Make sure the room in which the

dryer is located is well ventilated.

–Make sure the fluff filters are clean

before using the dryer.

–Check the condenser unit from time

to time and clean it when necessary.

Caring for the environment

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Care symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Tips on drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Low temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing the programme sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Emptying the condensed

water container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning the fluff filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Cleaning them whilst dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Cleaning them with water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Cleaning the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Removing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Checking the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Cleaning the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Replacing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Check and fault indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Changing the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Contents

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Appliance guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 30

Building under a continous worktop / in a row of kitchen units . . . . . . . . . . . . 30

Replacing the lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Room in which the dryer is located . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Washer - dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Before moving the machine again (e.g. when moving house). . . . . . . . . . . . . 31

External condensed water outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Setting up the drain hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Connection to a sink drain outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

If you no longer wish to use an external condensed water outlet . . . . . . . . . . 33

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Altering the residual moisture level in the Cottons programmes . . . . . . . . . . . . . . 38

Altering the residual moisture level in the Minimum iron programmes . . . . . . . . . 39

Activating and deactivating the buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Extending the cooling down time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Changing the standard drying level in the Minimum iron - Normal programme . . 42

Changing the standard drying level in the Automatic programme . . . . . . . . . . . . 43

Contents

To avoid the risk of accidents and

damage to the machine please read

these instructions carefully before

using it for the first time. They

contain important information on its

safety, installation, use and

maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner of the

machine.

Correct use

The tumble dryer is only intended

for drying fabrics which have been

washed in a water solution, marked on

the manufacturer's care label as being

suitable for tumble drying.

"Dry cleaning kits" for freshening up

garments in a tumble dryer are

increasingly available on the market. If

using, do so at your own risk, and

follow the instructions provided on the

packaging.

Any other applications may be

dangerous. The manufacturer is not

liable for damage resulting from

improper use or operation.

Technical safety

Before setting up the machine,

check it for any externally visible

damage.

Do not install or use a damaged

machine.

Before connecting the machine,

ensure that the connection data on

the data plate (voltage and connected

load) match the mains electricity

supply. If in any doubt, consult a

qualified electrician.

The electrical safety of this

machine can only be guaranteed

when continuity is complete between it

and an effective earthing system which

complies with local and national

regulations. It is most important that this

basic safety requirement is present and

regularly tested, and where there is any

doubt the household wiring system

should be inspected by a qualified

electrician. The manufacturer cannot be

held liable for the consequences of an

inadequate earthing system (e.g.

electric shock).

Do not connect the appliance to

the mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

appliance (e.g. danger of overheating).

Warning and Safety instructions

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in

unforeseen dangers for the user, for

which the manufacturer cannot accept

liability. Repairs should only be

undertaken by a Miele approved

technician.

Ensure current is not supplied to the

machine until after maintenance or

repair work has been carried out.

Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

machine be guaranteed.

If the connection cable is faulty it

must only be replaced by a Miele

approved service technician to protect

the user from danger.

In countries where there are areas

which may be subject to infestation

by cockroaches or other vermin, pay

particular attention to keeping the

machine and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not be

covered by the machine guarantee.

Warning and Safety instructions

In the event of a fault or for

cleaning purposes, the machine is

only completely isolated from the

electiricty supply when:

–it is switched off at the wall socket

and the plug is withdrawn, or

–it is switched off at the mains, or

–the mains fuse is withdrawn.

Operation

This equipment may only be used

in mobile installations such as

ships, caravans, aircraft etc. if a risk

assessment of the installation has been

carried out by a suitably qualified

engineer.

The dryer must not be used without

the fluff filters in place or if the fluff

filters are damaged in any way.

The fluff filters must be thoroughly

dried after cleaning. If they are still

damp or wet when replaced there is a

risk of faults occurring when the

machine is used.

The dryer must not be used without

the condenser unit in place.

Do not install the machine in a

room where there is a risk of frost

occurring. At temperatures around

freezing point the machine may not be

able to operate properly.

There is a risk of damage if the

condensed water is allowed to freeze in

the pump, hoses and / or condensed

water container.

The ambient room temperature should

be between +2°C and +35°C.

If the water is drained externally

through the drain hose instead of

being collected in the condensed water

container, make sure the drain hose is

securely attached if you hang it in a

sink or basin to avoid the hose slipping

and the water causing damage.

Condensed water is not drinking

water. It can cause health

problems in both people and animals.

Always keep the area around the

machine free of dust and fluff. Dust

drawn into the machine can, over time,

cause blockages in the condenser unit.

Warning and Safety instructions

To prevent the risk of fire the

following textiles must not be

dried in this machine:

–fabrics which contain a large

proportion of rubber, foam rubber or

rubber like materials.

–items which contain padding or

fillings (e.g. pillows, jackets).

–items which have been treated with

inflammable cleaning agents.

–items which have been splashed with

hair lacquer, hair spray, nail varnish

remover or similar substances.

– items which have been soiled with

oils or residues containing grease

(kitchen oils, cosmetics etc.).

– items soiled with wax or other

chemicals (e.g. mops and floor

cloths).

– items which have not been

thoroughly cleaned and which are

still soiled with grease or oil, e.g.

workwear. Such clothing may require

a heavy duty detergent to get them

clean. If necessary consult the

detergent manufacturer for advice.

Do not let anyone sit or lean on the

door, as this can cause the

machine to tip up.

Always close the door after use.

This way you will avoid the danger

of:

–children climbing onto or into the

dryer or hiding things in it.

–pets or other small animals climbing

into it.

Safety with children

This machine is not a toy. To avoid

the risk of injury keep children

away from the machine at all times and

supervise them whilst you are using it.

Do not allow children to play on or near

it or to play with its controls. Supervise

its use by the elderly or infirm.

Using accessories

Accessory parts may only be fitted

when expressly approved by Miele.

If non-Miele parts are used with this

machine, guarantee, performance and

product liability claims may be

invalidated.

Disposal of your old machine

Before discarding an old machine,

switch it off at the wall socket and

unplug it. Render the plug useless and

cut off the cable directly behind the

machine. This should be done by a

competent person.

The manufacturer cannot be held

liable for damage caused by

non-compliance with these Warning

and Safety instructions.

Warning and Safety instructions

aProgramme selector

The programme selector can be

turned clockwise or anti-clockwise.

bProgramme sequence and check

lamps

cStart button

Press the

Start

button to start a

programme.

The

Start

indicator lamp will flash as

soon as a programme can be

started. It lights up constantly once

the programme has started.

dI-On/0-Off button

To switch the machine on or off / to

interrupt a programme.

The Anti-crease/Finish lamp will light

up as confirmation that the machine

has been switched on.

eDoor Button

To open the door / to cancel a

programme.

Pressing this button will open the

door even when the machine is

switched off at the mains.

If the machine is switched on at the

mains and the door is opened the

drum lighting will come on. It will go

out a few minutes later to save

energy.

PC indicator light

The indicator light marked PC is used

by Miele Service technicians as an

optical interface.

Control panel

Care symbols

Before drying check the drying symbol

on the care label. If there are no

symbols, dry at your own risk!

q. . . . . . . . . Dry at normal temperature

r. . . . . . . . . . Dry at a low temperature

s. . . . . . . . . . . . . . . Do not tumble dry

–For delicates and fabrics with the

following care label rselect

Low

temperature

Tips on drying

– Always observe the maximum

recommended loads given in the

"Programme chart". Never overload

the drum.

Overloading can cause unnecessary

wear and tear to the laundry, give a

disappointing drying result and

cause more creasing.

– Do not put soaking wet items into the

tumble dryer. Spin them thoroughly

after washing using the appropriate

spin speed.

–Use the

Automatic

programme for

drying mixed loads of cottons and

minimum iron fabrics.

–Open jackets so that they can dry

evenly.

–Woollens and wool blends tend to

become matted and shrink if dried in

a tumble dryer. They can, however,

be partially dried using the

Woollens

hand care

programme.

–Down-filled garments have linings

which have a tendency to shrink,

depending on the quality of the item.

They can be partially dried using the

Smoothing

programme.

–Pure linen should only be machine

dried if specified as suitable by the

manufacturer on the care label, as

the surface of the fabric may

otherwise become rough. They can

be partially dried using the

Smoothing

programme.

–Loopknit garments (e.g. T-shirts and

underwear) tend to shrink depending

on their quality. Do not over-dry these

textiles. When purchasing these

garments it is advisable to take their

shrinkage properties into account.

– Minimum iron fabrics and 100%

cotton shirts or blouses tend to

crease more, the greater the load.

This is especially true of very fine

weaves.

Reduce the load or use the

Minimum

iron - Hand iron

programme.

–Starched laundry can be dried in the

tumble dryer. To achieve the usual

finish, double the amount of starch

should be used.

–New dark coloured garments should

be washed and dried separately

from light coloured garments to avoid

the danger of colours running and

discolouring other garments or even

plastic components in the machine.

Dark coloured fibres can also settle

on light coloured garments and vice

versa.

Notes on laundry care

Table des matières

Autres manuels Miele Séchoir

Miele

Miele T 4622 C Manuel utilisateur

Miele

Miele PDR 511 SL HP Manuel utilisateur

Miele

Miele T 7644 C Manuel utilisateur

Miele

Miele Touchtronic T 9800 Manuel utilisateur

Miele

Miele Novotronic T 1520 Manuel utilisateur

Miele

Miele T 1526 VENT ED DRYER - OPERATING Manuel utilisateur

Miele

Miele T 4659 Ci Manuel utilisateur

Miele

Miele PT 7136 Vario OS Manuel utilisateur

Miele

Miele PT 7251 Manuel utilisateur

Miele

Miele PT 5186 XL Manuel utilisateur

Miele

Miele T 224 Manuel utilisateur

Miele

Miele PT 7135 C Manuel utilisateur

Miele

Miele T 430 Manuel utilisateur

Miele

Miele TOUCHTRONIC T 1312 Manuel utilisateur

Miele

Miele T 440 C Manuel utilisateur

Miele

Miele TWL 780 WP Manuel utilisateur

Miele

Miele T 7950 WP Manuel utilisateur

Miele

Miele Novotronic T 220 Manuel utilisateur

Miele

Miele TWB120WPT1 Manuel utilisateur

Miele

Miele TCH620 WP Eco XL Manuel utilisateur

Miele

Miele T 4462 C Manuel utilisateur

Miele

Miele T 8402 C Manuel utilisateur

Miele

Miele PT 5136 OS Manuel utilisateur

Miele

Miele Paragon sensor Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire
