Quick Start Guide

for dishwasher

These short instructions are not a substitute

for the Operating instructions supplied with the appliance!

Please read the Operating instructions supplied with

your dishwasher before using it for the first time and

take note of the Warning and Safety instructions as well

as the full descriptions on how to use your machine. M.-Nr. 09 523 280

en-AU

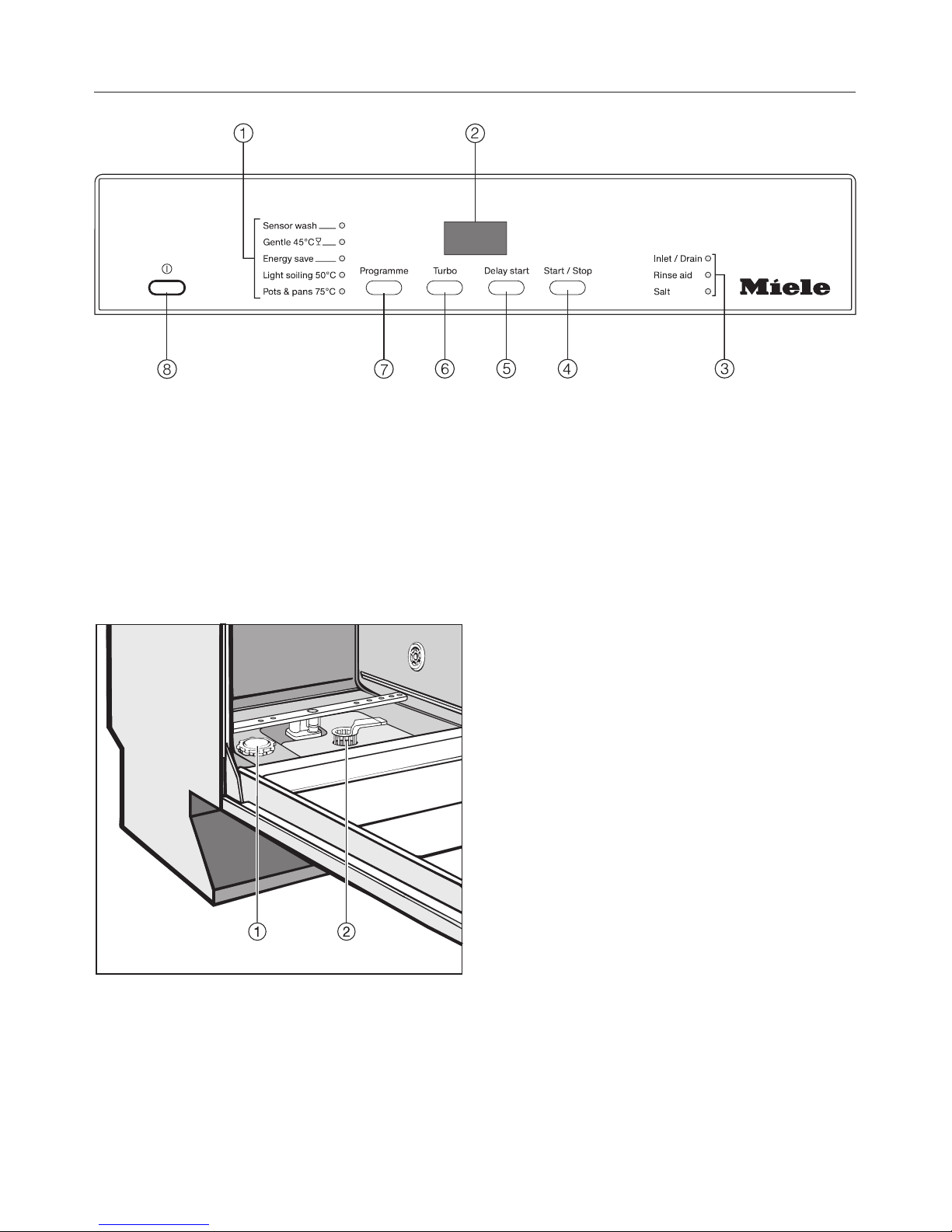

aProgramme selection

bTime display

cCheck/Refill indicators

dStart/Stop button with indicator light

aSalt reservoir

bFilter combination

eDelay start button with indicator light

fTurbo button with indicator light

gProgramme selector button

hOn/Off button K

Control panel

AFilling the salt reservoir F

^Remove the lower basket and

unscrew the salt reservoir cap.

Water or saline solution will run out

of the reservoir when the cap is

removed. It should therefore only be

removed in order to refill the salt

reservoir.

,Inadvertently filling the salt

reservoir with cooking salt, rinse aid,

powder or liquid dishwasher

detergent will damage the water

softener unit.

^Place the funnel provided over the

salt reservoir and carefully fill with

dishwasher salt until the reservoir is

full. The salt reservoir holds approx.

2 kg of salt.

^Clean any excess salt from around

the reservoir opening and then screw

the cap on again firmly.

^Run the "Gentle 45 °C" programme

with the "Turbo" function immediately

(without any crockery in the

dishwasher) to remove any traces of

salt from the cabinet.

BAdding rinse aid (

^Press the button on the lid of the

rinse aid reservoir in the direction of

the arrow until the flap springs open.

^Add rinse aid only until it is visible in

the opening.

^Close the flap firmly. It should click

into place.

^Wipe up any spilled rinse aid. This

prevents over-foaming occurring

during the next programme.

CLoad the dishwasher

DAdding detergent 8

^Follow the dosage recommended by

the manufacturer on the packaging.

^Press the button on the lid of the

detergent compartment in the

direction of the arrow until the flap

springs open.

The flap is always open at the end of a

programme.

^Add the required amount of

detergent and close the flap.

Brief instructions

ESwitching on the dishwasher

^Close the door.

^Turn on the tap if it is turned off.

^Press the Kbutton.

FSelecting a programme

^Select the programme required with

the Programme selector button.

GSelecting Turbo (if required)

The Turbo button is used for selecting

the Turbo option.

The option selected is active on all

programmes until the setting is

changed.

^Press the Turbo button.

The Turbo indicator light will come on.

HActivating Delay start (if required)

^Set the time required using the Delay

start button.

IStarting the programme

^Press the Start/Stop button.

JEnd of the programme - switching

off the dishwasher

The "End" indicator light will come on at

the end of the programme.

^Switch the dishwasher off using the

On/Off button K.

The dishwasher will continue to use

electricity until it is switched off with

the On/Off button K.

,To prevent the risk of steam

damage to the worktop edging

above the dishwasher, it is

advisable to leave the door closed

until you are ready to unload the

crockery. Alternatively, you can

open the door fully until the crockery

is cool enough to unload. Do not

leave the door only partially open.

KUnloading the dishwasher

Dishes tend to break and chip more

easily when they are hot.

Allow the dishes to cool until they are

comfortable enough to handle before

unloading them.

Cancelling a programme

If a programme has already started and

you wish to cancel it, proceed as

follows:

^Press the Start/Stop button for at

least one second.

The programme will be cancelled.

Cleaning the filters

Collection of coarse soil may cause the

filters to clog. The level of soiling and

time it takes before the filters need

cleaning will vary depending on use.

Check the condition of the filters

regularly and clean them if necessary.

,This dishwasher must not be

used without all the filters in place.

Take care when you are fitting the

filter combination that it is secured in

position correctly. Otherwise coarse

soil could get into the circulation

system and cause a blockage.

^Switch the dishwasher off.

^Turn the handle anti-clockwise to

release the filter combination a.

^Take the filter combination out b,

remove any coarse particles and

rinse the filter well under running

water. Use a nylon brush if

necessary.

,Ensure that course soil doesn't

get into the circulation system and

cause a blockage.

To clean the inside of the filter, the flap

must be opened:

^Press the catches atogether in the

direction of the arrows as shown, and

open the filter b.

^Rinse all the filters under running

water.

^Then close the flap so that the catch

engages.

^Replace the filter combination so that

it lies flat in the base of the wash

cabinet.

^Then turn the handle clockwise until

both arrows point towards each

other. The filter combination is locked

in place.

Cleaning and care

Cleaning the spray arms

Particles of food can get stuck in the

spray arm jets and bearings. The spray

arms should therefore be inspected

and cleaned regularly (approx. every

4 - 6 months).

^Switch the dishwasher off.

Remove the spray arms as follows:

^Take out the cutlery tray (if your

dishwasher is fitted with one).

^Push the top spray arm upwards to

engage the inner ratchet. Then

unscrew the spray arm.

^Push the middle spray arms upwards

ato engage the ratchet. Then

unscrew the spray arm b.

^Remove the lower basket.

^Pull the lower spray arm firmly

upwards to remove it.

^Use a pointed object to push food

particles into the spray arm jets.

^Rinse thoroughly under running

water.

^Replace the spray arms and check

that they rotate freely.

Crockery Soiling Programme

Mixed,

everyday crockery,

including pots and pans

Fresh to dried-on soiling

Variable,

sensor controlled wash

Shortened cycle

Glasses and plastic

containers, sensitive to

high temperatures Fresh,

easily removed

food deposits

Low temperature for a

gentle wash

Mixed crockery

Normal,

lightly dried-on

soiling

Standard programme

values

Shortened cycle

Pots

pans,

everyday

porecelain and

cutlery

Water and

energy-saving cycle

Stubborn,

dried-on food

deposits containing starch

or protein1)

Maximum wash power

Shortened cycle

1) Food such as potatoes, rice, pasta, stews or bakes can leave starchy deposits on crockery.

Deposits containing protein can be left by food such as meat, fish, eggs or casseroles.

Programme chart

Programme Detergent

Compartment I 2) Compartment II 2)

Sensor wash –

25 ml

1 Tab

+ Turbo

Gentle 45 °C –

20 ml

1 Tab

Light soiling 50 °C –

25 ml

1 Tab 3)

+ Turbo

Energy save –

25 ml

1 Tab

Pot & pans 75 °C 10 ml

25 ml

1 Tab

+ Turbo

2) see "Detergent"

3) In some cases, tabs may not dissolve completely.
