Midland C1179 Manuel

* Depending on terrain

10Km*

up to

XT·60

DUAL BAND (PMR446/LPD)WALKIE-TALKIE

›Instruction Guide

XT60 user’s manual | 1

Content of the package

• 2 transceivers with belt clip

• 1 USB cable

• 1 double fast desktop charger

• 2 rechargeable battery packs 700mAh

Coverage (referred to PMR frequency band)

The maximum range depends on terrain condition and is obtained during use

in an open space.

The only limitation to maximum possible range are environmental factors such

as blockage caused by trees, buildings, or other obstructions. Inside a car or a

metallic constructions, the range can be reduced. Normally the coverage in

the city, with buidings or other obstructions is about 1 or 2 Km. In open space

but with obstructions like trees, leafs or houses the maximum possible range is

about 4-6 Km. In open space, without obstructions and in sight, like for exam-

ple in mountain, the coverage can be 10 Km.

2 | XT60 user’s manual

Main functions

• Dual Band LPD/PMR transceiver

Channels: 24 PMR446 (8+16 pre-programmed) + 69 LPD

• Side Tone: end transmission noise muer

• LCD display with backlight

• Low battery indicator

• Auto power save: automatic current economy circuit

• 38 CTCSS and 83 DCS tones in TX and RX

• CALL button with 5 tones selectable

• Battery life up to 12 hours

• Automatic squelch adjustment

• Buttons for the channel selection

• SCAN function

• Keypad lock

• Hi/low power selection (PMR band)

• Roger Beep on/o

• VOX for hands-free communications with 9 selectable levels

• 2 Pin jack for ext. mike / ext. speaker

• USB port to recharge the radio

The manufacturer, with its eort to constantly improve product quality, reserves

the right to change characteristics and features without prior notice.

XT60 user’s manual | 3

Above all….Safety!

Warnings

! Do not open the radio for any reason! The radio’s precision mechanics and

electronics require experience and specialized equipment; for the same reason,

the radio should under no circumstances be realigned as it has already been

calibrated for maximum performance. Unauthorized opening of the transcei-

ver will void the warranty.

! Do not use detergents, alcohol, solvents, or abrasives to clean the equipment.

Just use a soft, clean cloth. If the radio is very dirty, slightly dampen the cloth

with a mixture of water and a neutral soap.

Batteries

! Do not try to charge alkaline batteries or non rechargeable batteries. Make

sure that when you charge the radio, only rechargeable NI-MH batteries

should be contained in the battery compartment! It is very dangerous at-

tempting to recharge other types of batteries (for example alkaline or man-

ganese batteries). Batteries which are not suitable to be recharged may leak,

explode or even burn and cause damage!

! Using a dierent battery charger other than the one speciﬁed can cause da-

mage to your device or may even cause explosions and personal injuries.

! Do not throw batteries into ﬁre or place them near heat as this may cause ex-

plosions or personal injuries. Dispose of the batteries according to procedures

set out by local regulations.

! Do not mix old and new batteries or batteries of dierent types or batteries

which have been used in dierent manners.

4 | XT60 user’s manual

XT60

CALL MENU

MON

SCAN

DCSCTCSS

H L

XT60

CALL MENU

MON

SCAN

DCSCTCSS

H L

XT60

CALL MENU

MON

SCAN

DCSCTCSS

H L

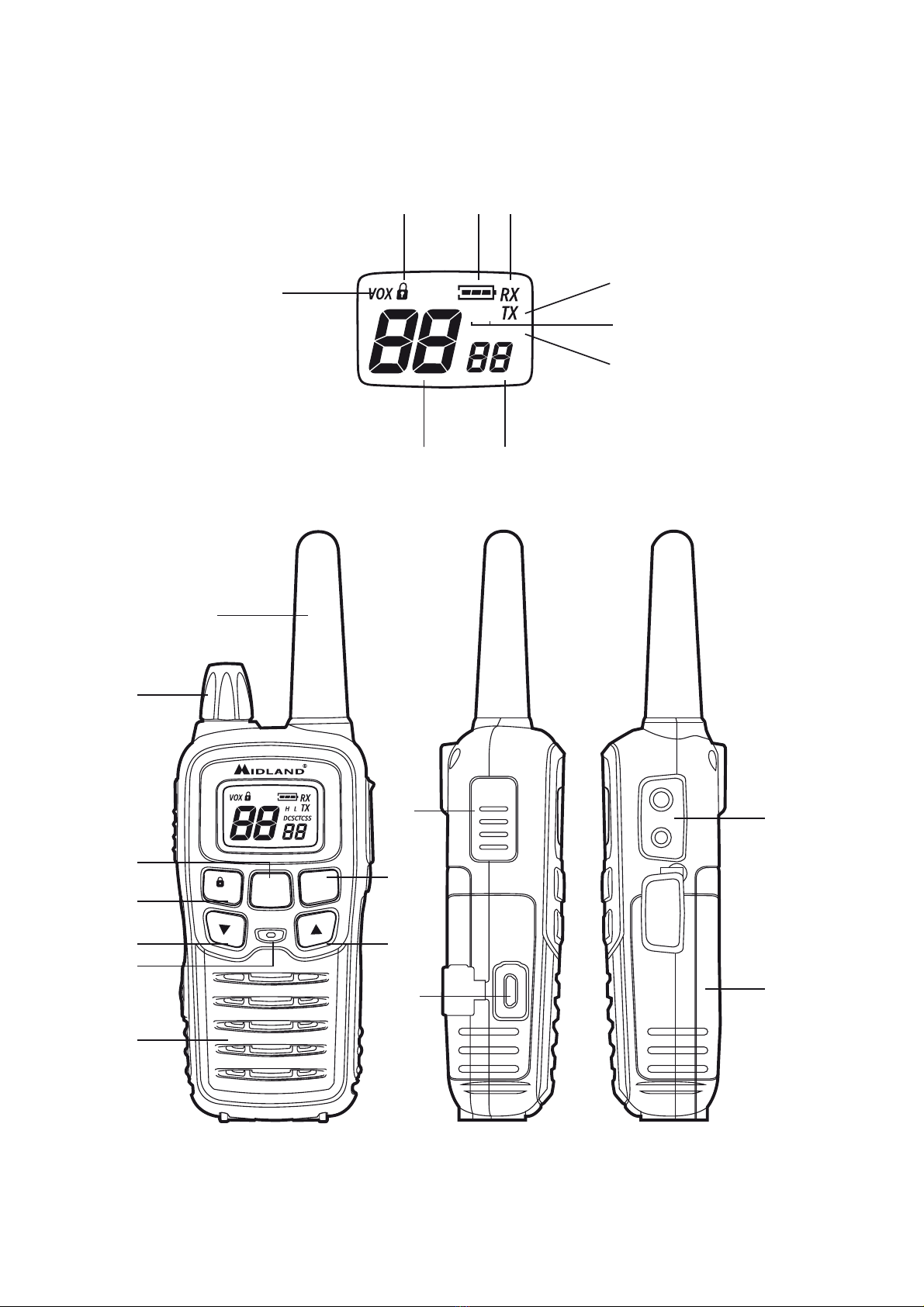

Identifying the parts

3 4 6

16 16

XT60 user’s manual | 5

LCD Display

1. Selected channel (P1-P8/9P-24P: PMR446 /1-69:LPD)

2. VOX - Function activated

3. - Keypad lock activated

4. - Battery status indicator

5. H/L - Indicates the high / low power selection in transmission

(only in PMR band)

6. RX - Radio in rx mode (busy channel)

7. TX - Radio in transmission (PTT pressed)

8. DCS/CTCSS - Type of sub-audio tone selected

9. Code of the selected CTCSS or DCS tone

(CTCSS: 1-38; DCS: 1-83)

Transceiver

10. Antenna

11. OFF/VOLUME knob - To switch on/othe radio and to adjust the vol-

ume.

12. PTT - Press to transmit.

13. CALL/ – to send a call to the selected channel. If you keep it pressed for

about 3 seconds, the keypad lock is activated.

14. MIC - Built-in microphone

15. Built-in Speaker.

16. ▲▼ controls - To change the settings in the MENU.

17. MENU - Press this control to enter the radios MENU

18. MON/SCAN - Press this button once to activate SCAN. Keep it pres-

sed for about 2 seconds to activate the Monitor function, that tempora-

rily cuts othe squelch (for weak signals)

19. SPK | MIC (under the protective cover) - To connect to external audio

devices such as microphones, headphones, etc

20. USB port for the recharge of the radio

21. Battery compartment: insert the rechargeable battery pack supplied in

the package or 3 x AAA batteries (alkaline or rechargeable).

6 | XT60 user’s manual

Preparing the transceiver

The radio can be recharged with dierent type of batteries: here below the

possibilities.

Note: To optimize the recharge process, we suggest you switch othe radio to

recharge it.

Recharging the NIMH batteries (3 x AAA)

Place your transceiver into the cradle of the desktop charger or connect the

USB cable to the proper jack of the radio.

This type of batteries is recharged with a constant current, either you use a

desktop charger or a USB cable; therefore the recharge time depends from

the recharge status and from the batteries capacity.

There’s no evidence when the recharge is ﬁnished, therefore we suggest you

detach the USB cable from the radio or remove XT60 from the desktop char-

ger cradle once the recharge is complete.

Recharging the NIMH battery pack PB-X6 700mAh

Place your transceiver into the cradle of the desktop charger or connect the

USB cable to the proper jack of the radio.

This type of batteries is recharged with a constant current, therefore a comple-

te recharge takes about 3 hours.

There’s no evidence when the recharge is ﬁnished, therefore we suggest you

detach the USB cable from the radio or remove XT60 from the desktop char-

ger cradle after 3 hours.

XT60 user’s manual | 7

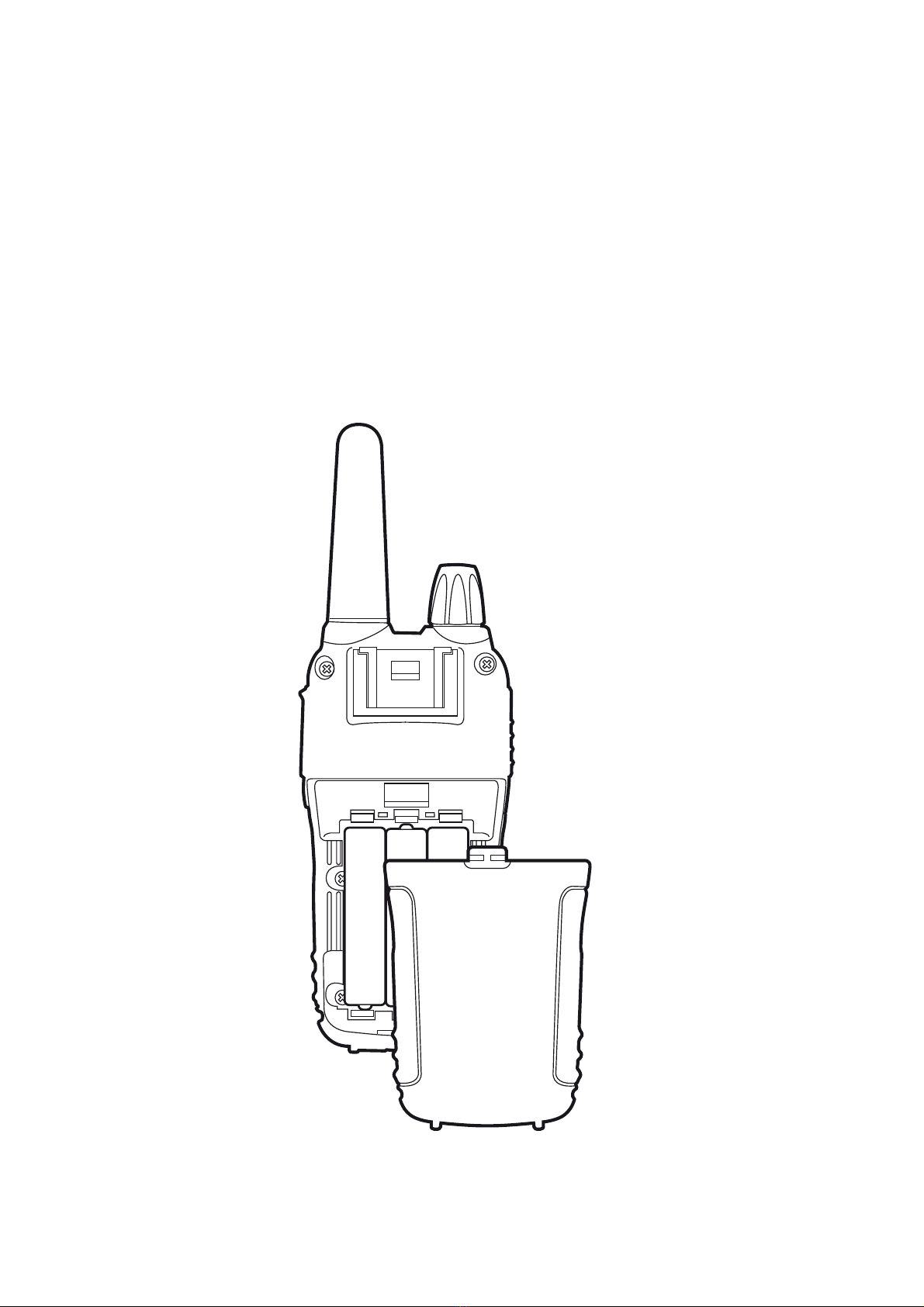

Installing/removing the battery pack

1. Remove the belt clip;

2. Open the battery compartment as shown in picture 1;

3. Remove or insert the battery pack;

4. Close the battery cover and ﬁx the belt clip.

PICTURE 1

8 | XT60 user’s manual

Basic operation

Turning on/o

To turn on the transceiver, turn the VOLUME knob clockwise until you hear it

clicks: the LCD display will light up and do an Auto-Test. Subsequently you will

hear 2 beeps of dierent tones.

To turn othe transceiver, turn the knob counter-clockwise until you hear

another click.

Volume control

Turn the knob VOLUME to about half way and adjust it to a comfortable level

as soon as you receive a signal. If you do not receive a signal you can use the

button MON/SCAN described in par. “MON button”.

Transmission and reception

When you press the PTT the transceiver transmits with high or low power (de-

pending on the setting of the MENU: Hor L).

To transmit:

1. Make sure that no one else is currently talking on the selected channel;

2. Keep button PTT ﬁrmly pressed: TX and To will appear on the display;

3. Before you start talking wait for a fraction of a second then speak normal-

ly, in the direction of the microphone.

4. When you have ﬁnished, release the PTT: TX and To will disappear from

the display;

5. When the radio is in reception mode (PTT not pressed) you will automa-

tically receive any communication (RX displayed).

During transmission and reception try, as far as possible, to keep the antenna in

vertical position and to avoid obstacles towards the direction of the other party.

XT60 user’s manual | 9

MON button (Monitor)

The Monitor button is for temporarily excluding (opening) the squelch, in order

to listen to signals that are too weak to keep the squelch permanently opened.

By excluding the squelch you will avoid listening the communication “chopped”

by the squelch. In order to activate the Monitor function, so as to listen to

all trac on the selected channel, keep pressed the MON/SCAN button for

about 3 seconds. Keep pressed the button MON/SCAN for about 3 seconds

to disable this function.

Scanning all channels

XT60 can automatically search for signals throughout the PMR/LPD bands

by scanning, i.e. selecting the channels in rapid sequence. When a signal is de-

tected, the scanning pauses on that channel and you can transmit by pushing

PTT . If you press PTT during scanning you can transmit on the channel from

which the scanning started. The scroll buttons / allow you to change the

direction of scanning (from lower channels to higher ones or vice versa) and

therefore to skip communications which are of no interest.

Press brieﬂy the button MON/SCAN to start scanning.

If you want to stop it, press again MON/SCAN. Your transceiver will go back

to the channel from which the scanning originally started.

Display backlight

If there is insucient light to read the display you can press the MENU button

to switch the display back light on for about 5 seconds.

Switching the backlight on the display adds an additional drain on the batteries.

Try to make a moderate use of this.

Keypad lock

Keep pressed CALL/ for about 5 seconds and will be displayed as conﬁr-

mation. Only PTT and CALL/ remain active. To disable this function, keep

pressed again CALL/ for 5 seconds approx.
