Miditech USB MIDI HOST Manuel utilisateur
miditech
USB MIDI HOST
USB MIDI HOST
USB HOST port
Powert USB MIDI Keyboards
Wandelt USB MIDI Daten in Standard MIDI Daten (DIN)
Zwei arbige LED ür Betriebsanzeige/ Power und MIDI Daten
DIN MIDI In-/ MIDI Output
USB Powered, mit optionalem USB Netzteil
Hochwertiges Aluminium Gehäuse
eMail: in [email protected] Internet: www.miditech.de
1
Bedienungsanleitung
Vielen Dank, das Sie sich für den Miditech USB MIDI Host Adapter entschieden haben. Mit dem USB MIDI Host
Adapter k nnen Sie ein Masterkeyboard, Trigger Pad, USB Controller oder ein anderes MIDI Device, das nur einen
MIDI USB port hat, ohne weitere Installation mit Strom versorgen und dessen USB MIDI Daten in herk mmliche
Standard MIDI Daten wandeln. Diese liegen dann auf dem Standard MIDI 5pol DIN Anschluss an und
verz gerungsfrei weitergegeben. .
Technische Daten des USB MIDI Host:
●Einfacher Anschluss an das USB MIDI Master-Keyboard über den USB Host Port
●LED Anzeige für die laufende Stromversorgung
●Stromversorgung über ein handelsübliches USB Netzteil mit Mini USB Kabel (Optional)
Anschluss und Bedienelemente
Das Gehäuse des USB MIDI Host ist eindeutig beschriftet!

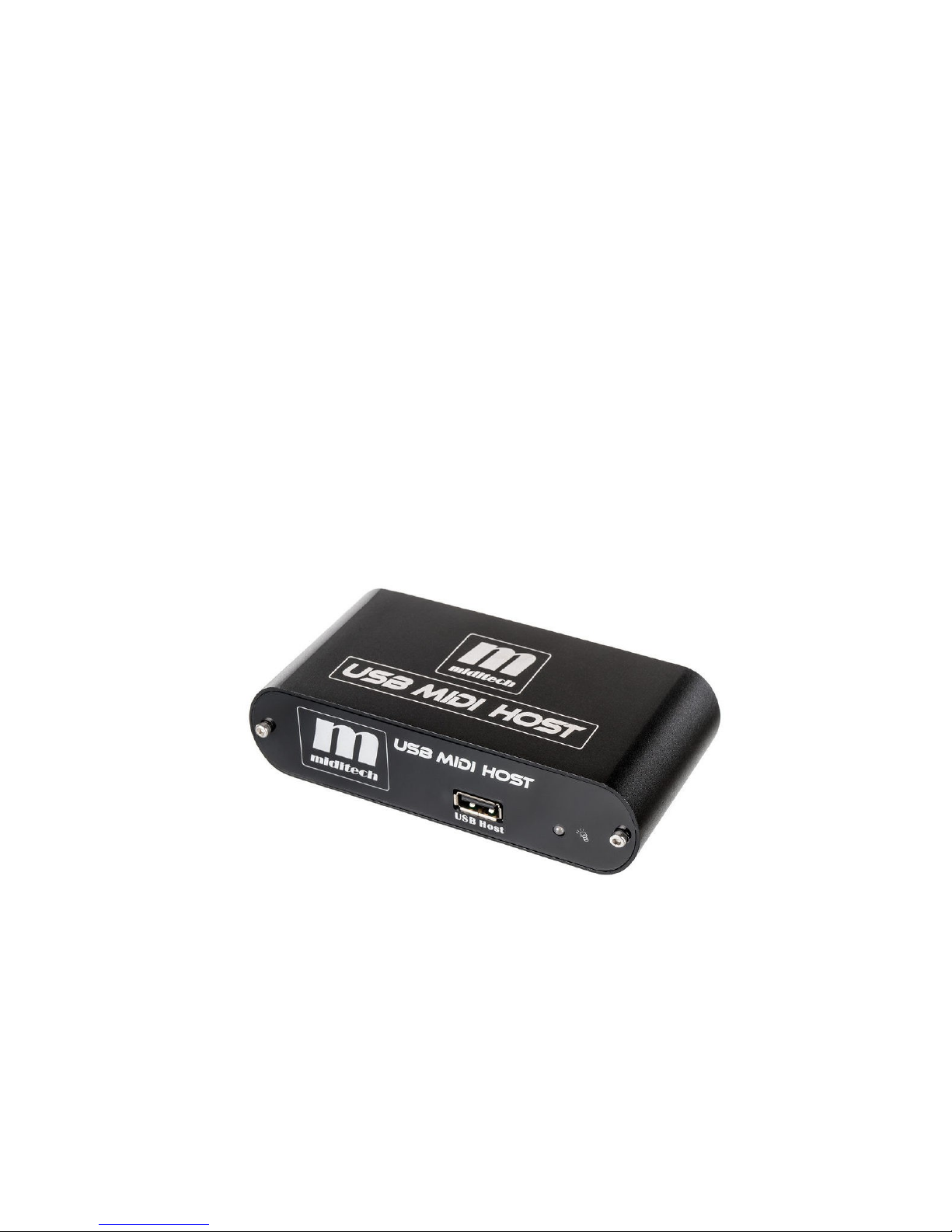

Sie finden an der Frontseite den USB MIDI Eingang, sowie die LED zur Anzeige der laufenden Stromversorgung.
2

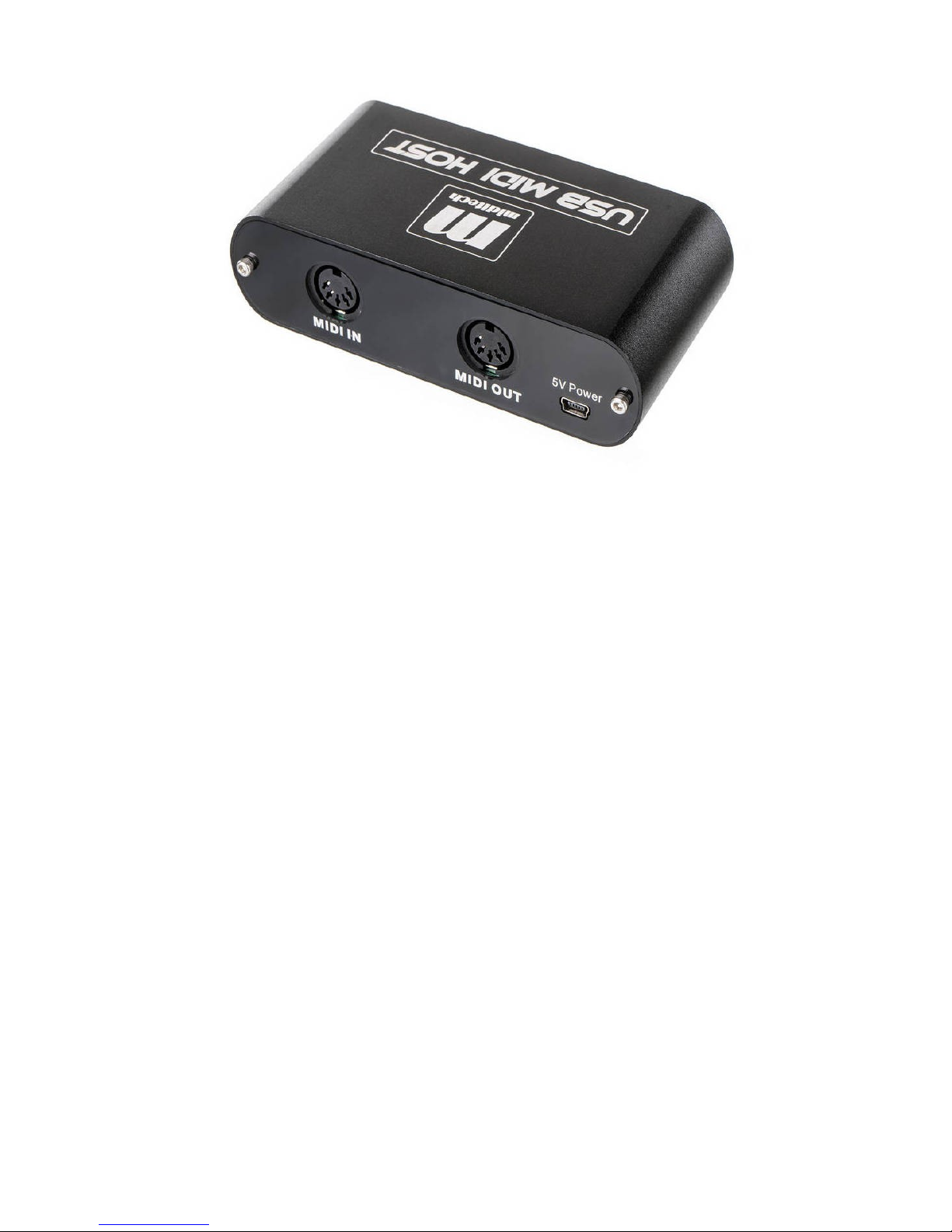

Auf der Rückseite des USB MIDI Host finden Sie die Standard MIDI Buchsen (5pol DIN Format), MIDI In und MIDI
Out. Der Mini USB Anschluß dient zur Stromversorgung mit einem handelsüblichen USB Netzteil, DC 5V. .
Schliessen Sie Ihr Masterkeyboard an den Front USB Input an, das USB MIDI Signal wird verz gerungfrei an die DIN
MIDI Out Buchse auf der Rückseite gewandelt und weitergegeben. Diese k nnen Sie mit einem herk mmlichen
5poligen DIN MIDI Kabel an z.B. Einen Soundexpander anschliessen.
Wir wünschen Ihnen viel Spass mit unserem Produkt!
Änderungen der technischen Daten und des Designs sind möglich- Für Druck ehler wird keine
Ha tung übernommen
3
miditech
USB MIDI Host
USB MIDI HOST
USB HOST port
Provides power to USB MIDI keyboards
Converts USB MIDI data to standard MIDI data (DIN)
2 colour indicator LED or power and MIDI data
DIN MIDI In-/ MIDI Output
USB Powered, with optional USB DC adaptor
High-class Aluminium cabinet
eMail: [email protected] Internet: www.miditech.de
4
PREFACE
Thanks for purchasing the USB MIDI HOST. Its compact design won’t cost any space in your
working desk or bag , you can bring it easily simply put in your pocket. It can be worked with all
MIDI devices with USB output function. Now, all you need to do is connecting your MIDI
equipment to your new USB MIDI HOST, then you can start your musical journey.
This manual is written to help you become familiar with the features of the Miditech USB MIDI
HOST. Please read the manual carefully to discover all the features of your USB MIDI HOST.
What’s in the Box:
Your USB MIDI HOST ackage contains the following:
● The USB MIDI HOST
● Two 3.5mm TS to MIDI cables
● Owner’s manual
● Mini-USB cable
Features:
● The USB MIDI HOST has a USB HOST unique design, you can discard tedious MIDI cable to
connect directly using a USB cable to the USB MIDI HOST connection with your MIDI devices ,
MIDI data transfer is complete.
● Either MIDI or USB connection, can be manifested no delay.
● Supports all MIDI devices MIDI OUT.
● Support USB HOST MIDI IN and simultaneously, a bomb piano accompaniment, a piano playing
the melody, wherever can form a small band.
●USB MIDI HOST is not only small and exquisite, powerful, and easy to operate.
● The USB MIDI HOST device's USB port (USB HOST) provides a standard USB 5V 500mA
current output.
● Power supply: Everywhere Mini-USB power supply, pick up your phone 5V charger can power
for our audio ; If you are using the iPhone do not worry, the annex with Mini-USB interface cable,
as long as this cable into your iPhone's charging head, you can power supply; You can also connect
to any USB port (PC using the Mini-USB interface cable, MAC, mobile power supply, etc.) on USB
MIDI HOST powering.
● Interface: MIDI input interface, MIDI output interface, USB HOST Interface (USB peripherals),
Mini-USB charging / power connector.
5
Panel:
Front:
● Interface: USB HOST Interface (USB peripherals)
Connect MIDI devices with USB output interface functions.( Any keyboard device)
● LED: Green and Red.
If don’t connect any USB devices to USB HOST interface , LED light up Red.
If connect any USB devices to USB HOST interface , LED light up Green.
Back:
● Interface: MIDI IN Interface , MIDI OUT Interface .
Connect to external midi device’s MIDI interfaces. Note: Use the MIDI IN connector to connect the
device, you need an external power supply keyboard.
● Interface: Mini-USB power Interface .
Mini-USB interface that provides 5V power
* If anything update, please received in kind prevail, latest information and please pay attention to
the official website.
Have much fun with this product!
6
Important Sa ety Instructions
1. Read Instructions – Be sure to read all of the safety and operating
instructions before operating this product.
2. Retain Instructions – The safety instructions and owner's manual
should be retained for future reference.
3. Heed Warnings – All warnings on your Miditech product and in the
Owner'sManual should be followed.
4. Follow Instructions – All operating and use instructions should be
followed.
5. Moisture – Water and moisture are detrimental to the continued
good health of your Miditech product. Do not install or operate your
Miditech product near sources of water or moisture such as sinks,
damp basements, leaky roofs, etc.
6. Heat – Your Miditech product should be situated away from sources
of heat such as heaters or radiators.
7. Grounding –Precautions should be taken so that the grounding
capabilities of the unit are not undermined. The Audiolink Pro 24/96
provided with a cord with an equipment grounding conductor and
grounding plug. This plug must be plugged into an outlet that is
properly installed and grounded in accordance with all local rules and
ordinances. Do not modify the plug provided with the equipment. If the
plug will not fit into your outlet, have a proper outlet installed by a
qualified electrician.
8. Power Cord Protection – Power supply cords should be routed so
that theyare unlikely to be walked on or pinched by items placed upon
or against them. Pay particular attention to protecting the plugs, outlets
and the point at which the cord exits your Miditech product.
9. Servicing–Do not attempt to service this unit yourself, as opening
the case will expose you to hazardous voltage or other dangers. All
servicing should be referred to qualified service persons.
*Design and specifications subject to change without notice
*No liability for printing mistakes
7
