Midea MCS1825WB Manuel utilisateur
INSTRUCTION MANUAL
Vacuum Cleaner
PLEASE READ THE
MANUAL CAREFULLY
BEFORE USING AND
KEEP IT PROPERLY
FOR FUTURE USE
Warning notices: Before
using this product, please
read this manual carefullly
and keep it for future
reference.
The design and
specifications are subject to
change without prior notice
for product improvement.
Consult with your dealer or
manufacturer for details.
MCS1825WB
EN
IMPORTANT SAFETY INSTRUCTIONS
This section contains safety instructions that will help protect from risk of
personal injury or property damage. Failure to follow these instructions
invalidates the given warranty.
• This appliance complies with international safety standards.
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• If the adapter or the appliance itself is damaged, do not use it. Contact
an authorised service centre.
• Prevent damage to the power cable by not squeezing, bending, or
rubbing it on sharp edges.
• Do not touch the appliance or its plug when it is plugged if your hands
are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ash,
make sure that it has cooled down.
• Do not vacuum water or other liquids.
• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near places where combustible or
flammable environments are present.
• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance in water for cleaning.
• Do not attempt to dismantle the appliance.
• Use the original parts or parts recommended by the manufacturer only.
• Do not attempt to vacuum particles such as cement, plaster and
compressed paper in order to prevent the filter from being clogged and
the motor being damaged.
• If the adapter is damaged, it must be replaced by the manufacturer or its
agent or similarly qualified person in order to avoid hazard.
IMPORTANT SAFETY INSTRUCTIONS
• Use the appliance only with the power adapter supplied.
• Do not use the appliance without filters fitted, otherwise it can get
damaged.
• If you keep the packaging materials, store them out of the reach of
children.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• The appliance is only to be used with the power supply unit provided
with the appliance.
• The adapter must be removed from the socket-outlet and the battery
pack must be removed from the appliance before cleaning or
maintaining the appliance
• Keep fingers, hair and loose clothing from moving parts and openings
whilst using the vacuum cleaner.
• The battery must be removed from the appliance before it is scrapped;
• Please dispose of used batteries according to local laws and regulations.
• This appliance contains batteries that are only replaceable by skilled
persons.
• The supply terminals are not to be short-circuited.
PRODUCT OVERVIEW
Floor head
Adaptor/charger
Wall fixings Crevice nozzle
Combination nozzle
Extension tube
wall bracket
Part identification
2
1
3
8
5
4
11 9
6 7
1012
1 Accessory attachment point
2 Collection container lid
3 Dust release button
4 Dust container release
button
5 Battery indicator light
6 Low/high mode button
7 Power on/off button
8 Handle
9 Filter cover
10 Motor filter
11 Mounting Recess
12 Dust container
Operation
Charging the Vacuum
This vacuum uses a rechargeable 25.2V Lithium battery. We recommend to
fully charge before using for the first time. It takes 3-5 hours.
1. Place the body of the cleaner onto a flat surface either a table or fit into
the wall bracket.
12
Fig. 1 Fig. 2
2. Insert the adaptor cord into the DC jack at the end of the cleaner handle
and plug the adaptor into the mains supply socket (fig.1).
3. The light indicator shows the status (Fig 2):
Charging: Light 1 flash, light 2 off
Half charged: Light 1 on, light 2 flash
Fully charged: Light 1 & 2 on, then off in 10 mins
Low battery: Light 1 flash, light 2 off
Notes
• Light indicator 1(Fig 2) will flash when the battery is running low and
needs to be recharged, If recharge is not commenced, the vacuum will
power off.
• Only charge or recharge the vacuum indoors.
• Do not recharge the battery when the air temperature is below 0°C or
above 37°C.
• Batteries become hot after heavy use and will become difficult to charge.
Allow to cool after use and wait about an hour between recharges.
Operation
Assembling your vacuum
Bringing it all together
Safety • Before drilling into wall surface, check for hidden cables or
pipes.
• Wear safety goggles and dust mask when drilling.
• The use of a residual current device (RCD) is recommended
when working with power tools.
Tools
required
• Drill fitted with a 6mm masonry drill bit
• Screwdriver
• Pencil
• Ruler
• Spirit level

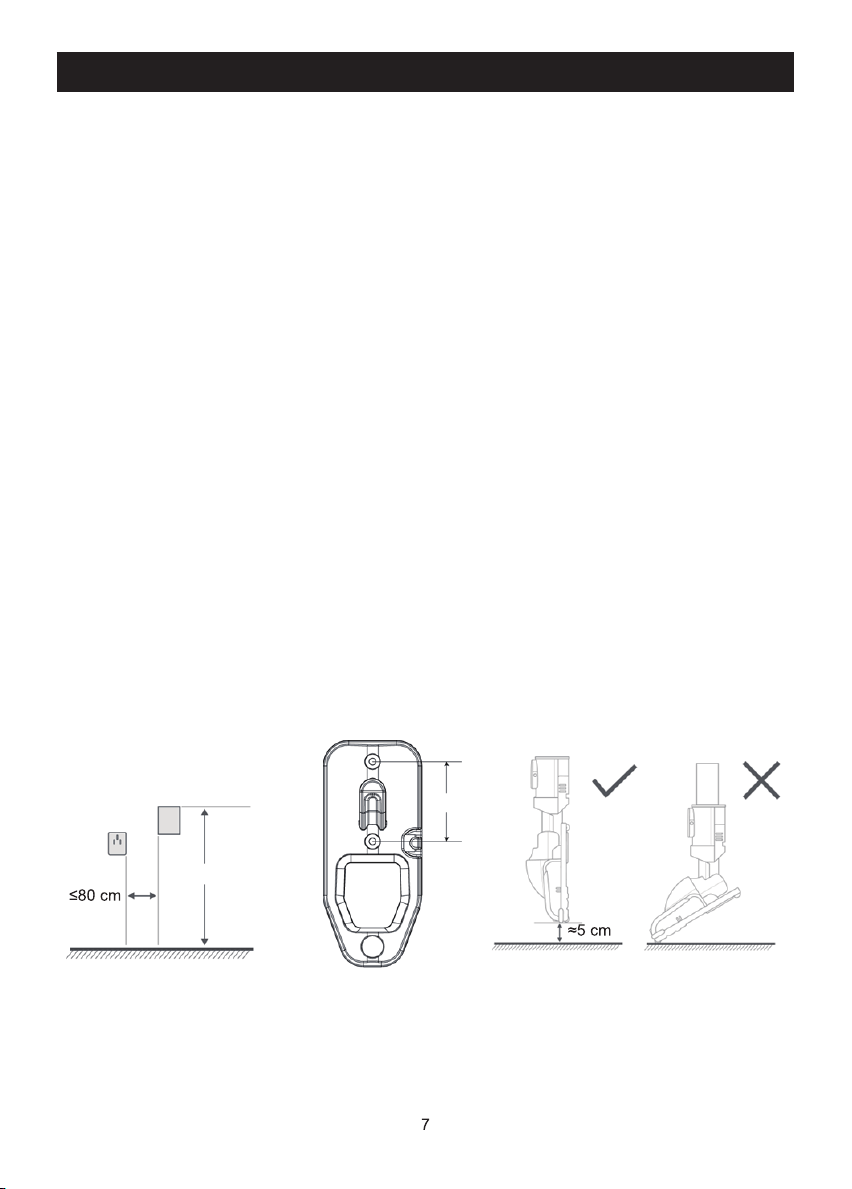

1. Choose a suitable location for the wall bracket away from areas where
it will get wet or knocked and close to a socket outlet. Check that the
charge cable will reach the mains socket (180cm distance max) and that
there is sufficient space above and below the bracket (approx.125cm
below) for the fully assembled vacuum cleaner to be inserted. No part of
the vacuum cleaner should touch the floor when fitted into the bracket
(fig 6).
Fig. 4
120~125 cm
48 cm
Floor Floor
Fig. 5 Fig. 6
2. Place the bracket in the desired position
and using a pencil, mark the position for the
two screw holes. Using a ruler, draw a line
joining the points marked for the two screws
and using a spirit level, check that it is on the
same level.
3. If fixing to a masonry wall, use a masonry drill
bit, drill holes to a depth of 30mm and insert
the wall plugs.
4. If fixing to ceramic tiles, use a tile and glass
drill bit to drill through the tile and then drill
holes to a depth of approximately 32 mm
using a masonry drill bit. Insert the wall plugs
beyond the depth of the tile.
5. Hold the bracket into position, align the fixing
holes in the bracket with the wall plugs and
insert the screws until the bracket is held
firmly into position.

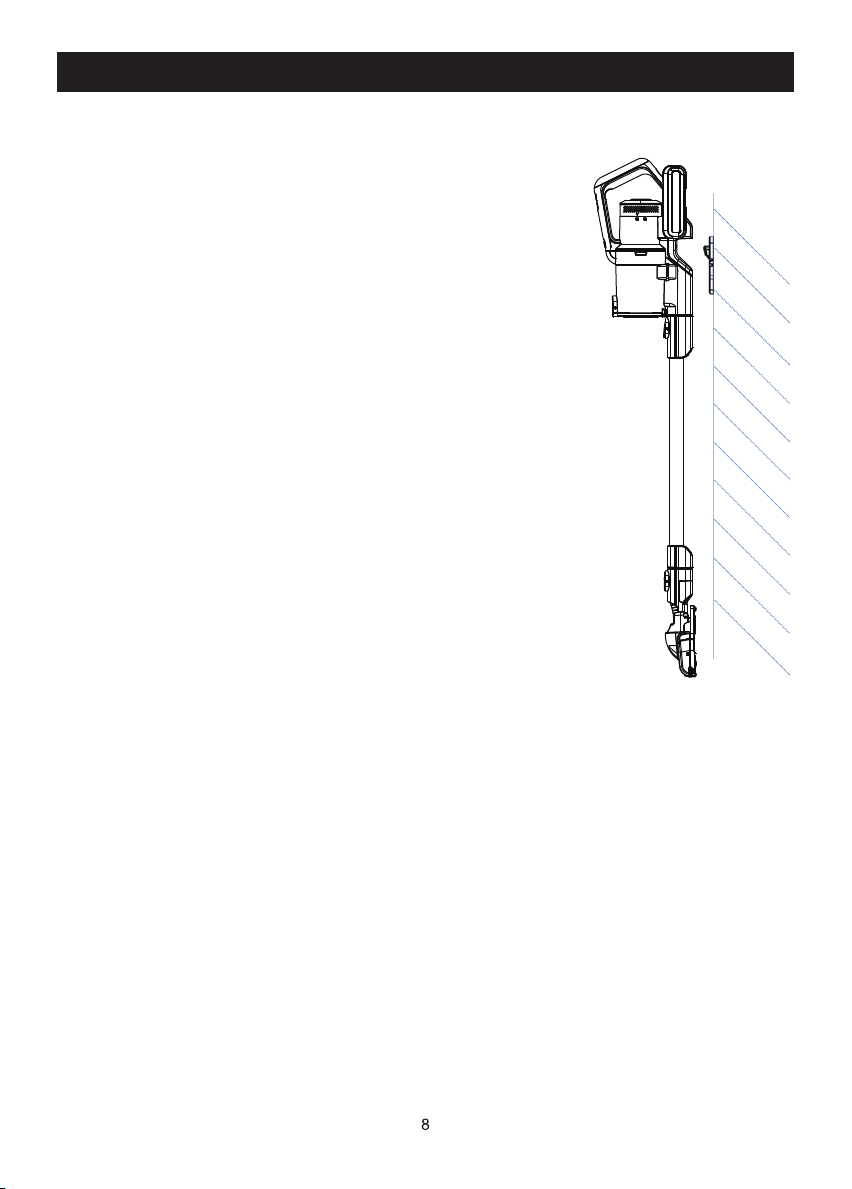

6. Fit the nozzles onto their storage posts, and
insert the assembled vacuum cleaner into the
bracket (fig.7).
Notes:
• If fixing the bracket to timber, follow the directions above, but only drill a
small pilot hole for each screw and do not use wall plugs. This fitting is
not suitable for mounting onto doors.
• If fixing to hollow plasterboard walls, use a drill bit suitable for wood and
use wall anchors suitable for cavity walls. For maximum strength locate
into wall studs and cross braces if possible.
Operation
Fig. 7
Assembly

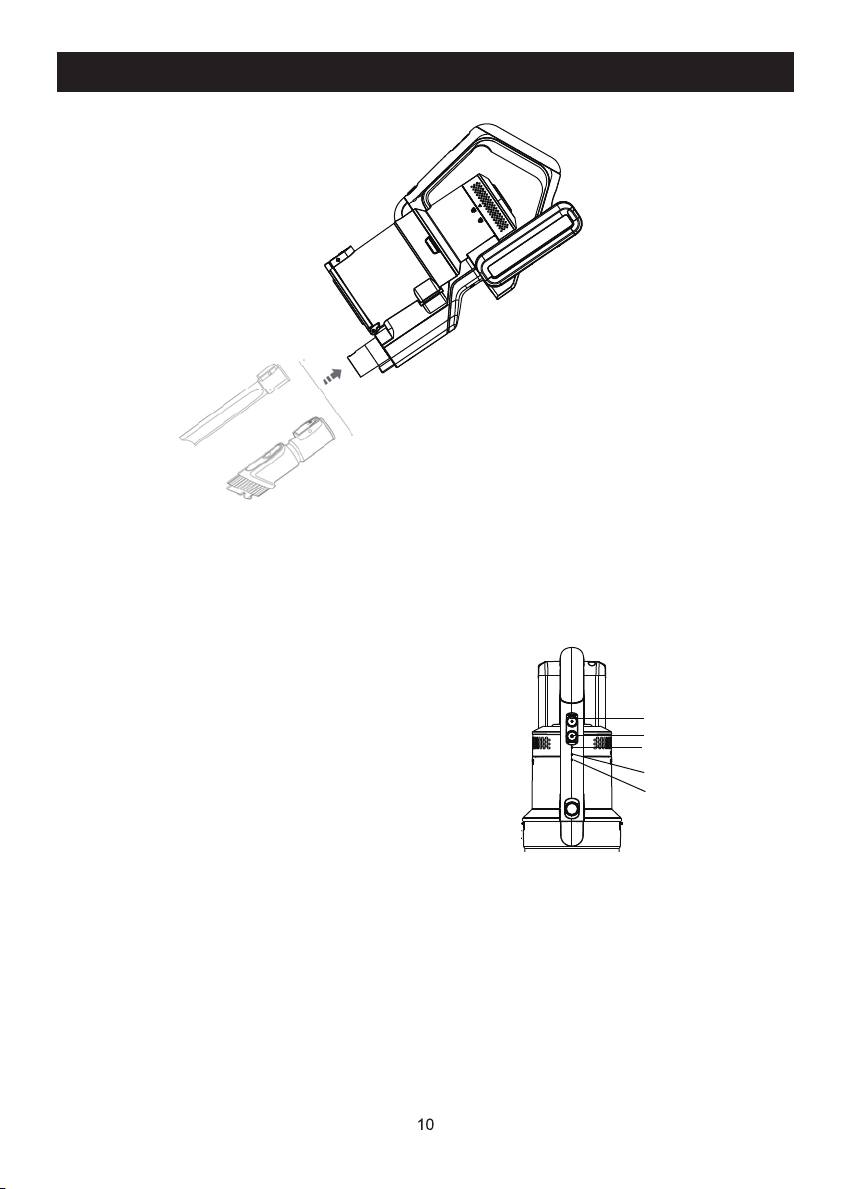

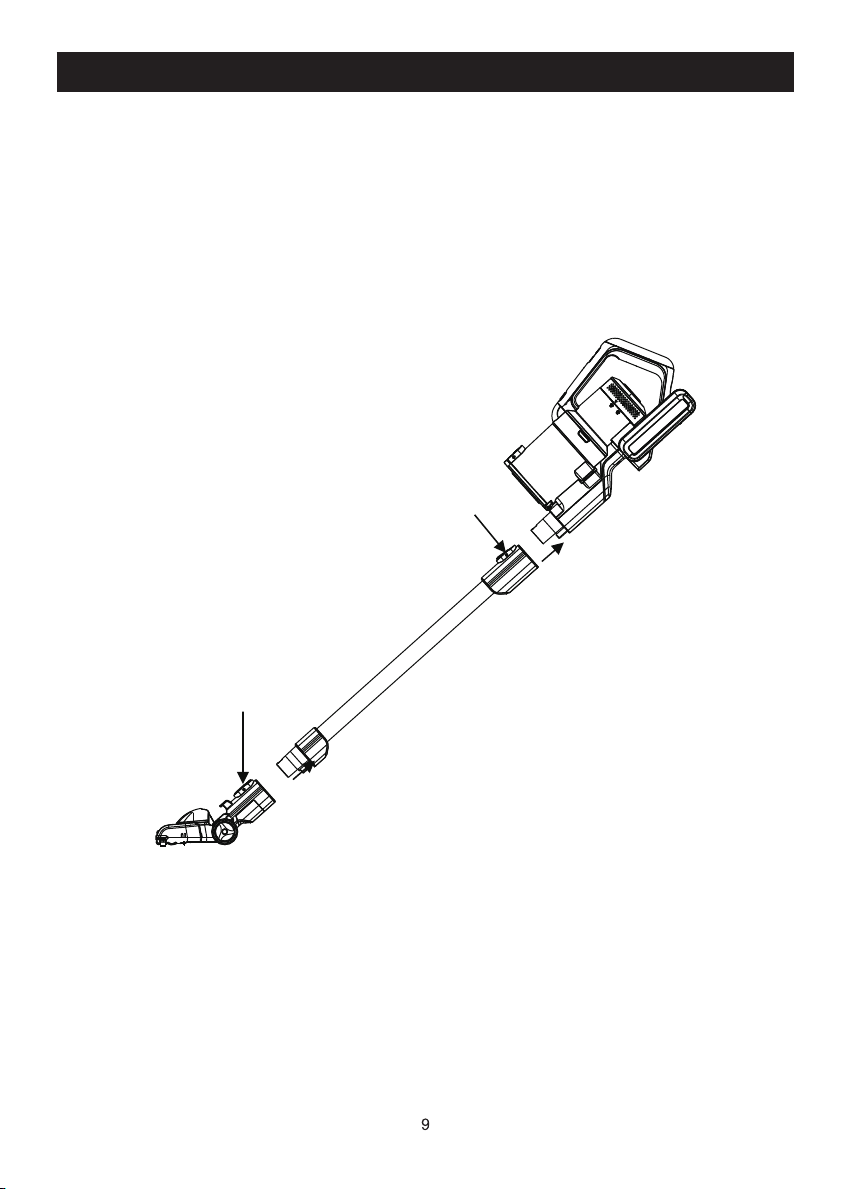

1. Insert the extension tube onto the body of the vacuum as shown (fig. 8)
and push to secure, a click will be heard.
2. Push fit the floor head onto the etexnsion tube (fig. 8), a click will be
heard. The crevice nozzle and combination nozzle can be fitted in place
of the floor head.
Fig. 8
Release button
Release button
3. Alternatively, do not use the extension tube and fit the crevice nozzle
or combination nozzle directly onto the body of the vacuum cleaner
(fig. 9). The floor head can be fitted in a similar manner, but if using in
this configuration ensure hands are kept away from the floor head
during operation – due to a potential entrapment hazard.
Operation
Fig. 9
4. To remove the all parts press the release button and accessories firmly
pull apart.
Getting started
1. Fit the correct nozzle for the cleaning
application, ensure that the battery has
sufficient charge.
2. Click power button once to start, the
LED lights on the floor head (if fitted)
will illuminate and the vacuum cleaner
will start with middle power mode. Use
Low/Mid/High button to switch between
modes. The vacuum cleaner may be
used for 20min with high power mode
and 45min with low power mode.
3. Click the power button again to stop the vacuum cleaner after use.
4. Store the vacuum in the wall bracket when not in use.
*Note: Low power mode is indicated with no indicator lights. Mid power
mode with the white indicator light and High power mode, with the Blue
indicator light.
2
1
Power button
Low/High button
Low/High indicator lights*
Operation
