Midea MRT14B3AWW Manuel utilisateur

Refrigerator

TOP MOUNTED FREEZER SERIES

USER MANUAL

MRT14B3AWW

Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

The design and speciﬁcations are subject to change without prior notice for product improvement.

Consult with your dealer or manufacturer for details.

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

LANGUAGES

EN English

FR French

ES Spanish

Free 3 months

extension of the

original limited warranty

period!*Simply text a

picture of your proof of

purchase to:

1-844-224-1614

*The warranty extension is for the three months

immediately following

the completion of the product’s original warranty

period. Individuals do not need to register the

product in order to get all the rights and remedies

of registered owners under the original limited

warranty.

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read

this manual thoroughly to ensure that you know how to operate the features and

functions that your new appliance oers in a safe way.

CONTENTS

THANK YOU LETTER ------------------------------------------- 01

SPECIFICATIONS------------------------------------------------- 02

PRODUCT OVERVIEW------------------------------------------ 03

PRODUCT INSTALLATION ------------------------------------ 04

OPERATION INSTRUCTIONS --------------------------------- 11

CLEANING AND MAINTENANCE---------------------------- 14

TROUBLESHOOTING ------------------------------------------- 16

SPECIFICATIONS

Product model MRT14B3AWW

Total Storage Volume 14.2 cu.ft.

Rated Voltage 115V~/60Hz

Rated Current 1.2A

Overall Dimension (H x W x D) 60.6 in x 27.6 in x 28.8 in

PRODUCT OVERVIEW

Names of components

1Freezer glass shelf 5Fruit and vegetable box

2Refrigerator glass shelf 1 6Freezer door trays

3Tray 7Refrigerator door tray 1

4Refrigerator glass shelf 2 8Refrigerator door tray 2

ATTENTION

The picture above is only for reference. The actual conﬁguration will depend on the physical

product or statement by the distributor.

When the refrigerator is powered on for the initial time, storing too much food may adversely

aect the cooling eect of the refrigerator.

Do not block the air outlet during food storage, which may adversely aect the cooling eect.

If the temperature in fridge compartment is cold, please adjust the switcher to the weaker

position. If the temperature in fridge compartment is not cold enough, please adjust the

switcher to the strong position.

PRODUCT INSTALLATION

Installation Instructions

Finding a suitable location

• This refrigerator is designed to be free standing only, and should not be

recessed or built-in.

• The refrigerator should be placed in a well-ventilated indoor place; the ground

shall be ﬂat and sturdy.

• Keep away from heat and avoid direct sunlight. Do not place the refrigerator in

moist or watery places to prevent rust or reduction of insulating eect.

Dimensions and Clearances

• Too small of a distance from adjacent items may result in the degradation

of freezing capability and increased electricity costs. Allow over 100 mm of

clearance from each adjacent wall when installing the appliance.

Required space for

air circulation

Top View

>100mm

Providing a proper power supply

• Check your local power source. This refrigerator requires a AC115 V, 60 Hz

power supply.

• Use a receptacle that accepts the grounding prong. The power cord is

equipped with a 3-prong (grounding) plug which mates with a standard 3-prong

(grounding) wall outlet to minimize the possibility of electric shock hazard

from this refrigerator.

CAUTION

The refrigerator should always be plugged into its own individual electrical outlet

which has a voltage rating that matches the rating plate.

Never unplug your refrigerator by pulling on the power cord. Always grip the plug

ﬁrmly and pull straight out from the outlet.

Start to use

• The refrigerator shall stay for 2 hours before connecting power when it is ﬁrstly

started.

• The refrigerator shall run 2 to 3 hours before loading fresh or frozen foods; the

refrigerator shall run for more than 4 hours in summer in advance considering

that the ambient temperature is high.

Space requirement diagram (when the door is open and when the door is closed)

135 °

Width Overall

Height Depth Depth Only

Cabinet

Door Open

135o Width

Doors Open

135o Depth

A B C C1 D E

700 1540 731 650 1085 1310

Notice: All dimensions in mm

Door right-left change

List of tools to be provided by the user

Cross screwdriver

Allen wrench

Putty knife Thin-blade screwdriver

5/16” socket and ratchet

Masking tape

Parts to be used for door reverse

SN Parts Quantity Notes

1 Upper hinge 1

Pre-installed on the box and still needs

to be used when changing the door

2 Upper hinge cover 1

3 Upper hinge axle sleeve 1

4 Upper hinge screw 3

5 Hole cover 1

6 Middle hinge screw 2

7 Middle hinge 1

8 Hole plug 2

9 Adjustable foot 1

10 Center sill screw 2

11 Center sill screw cap 1

12 Lower hinge screw 3

13 Lower hinge 1

14 Stopper 2

15 Stopper screw 2

16 Right door self-locking 2 Pre installed on the door body, removed

when changing the door, and retained

17 Left door self-locking 2 Put it in the accessory bag and use it

when changing the door

18 Screw self-locking 2 Pre-installed on the door and still needs

to be used when changing the door

19 Hole plug 1

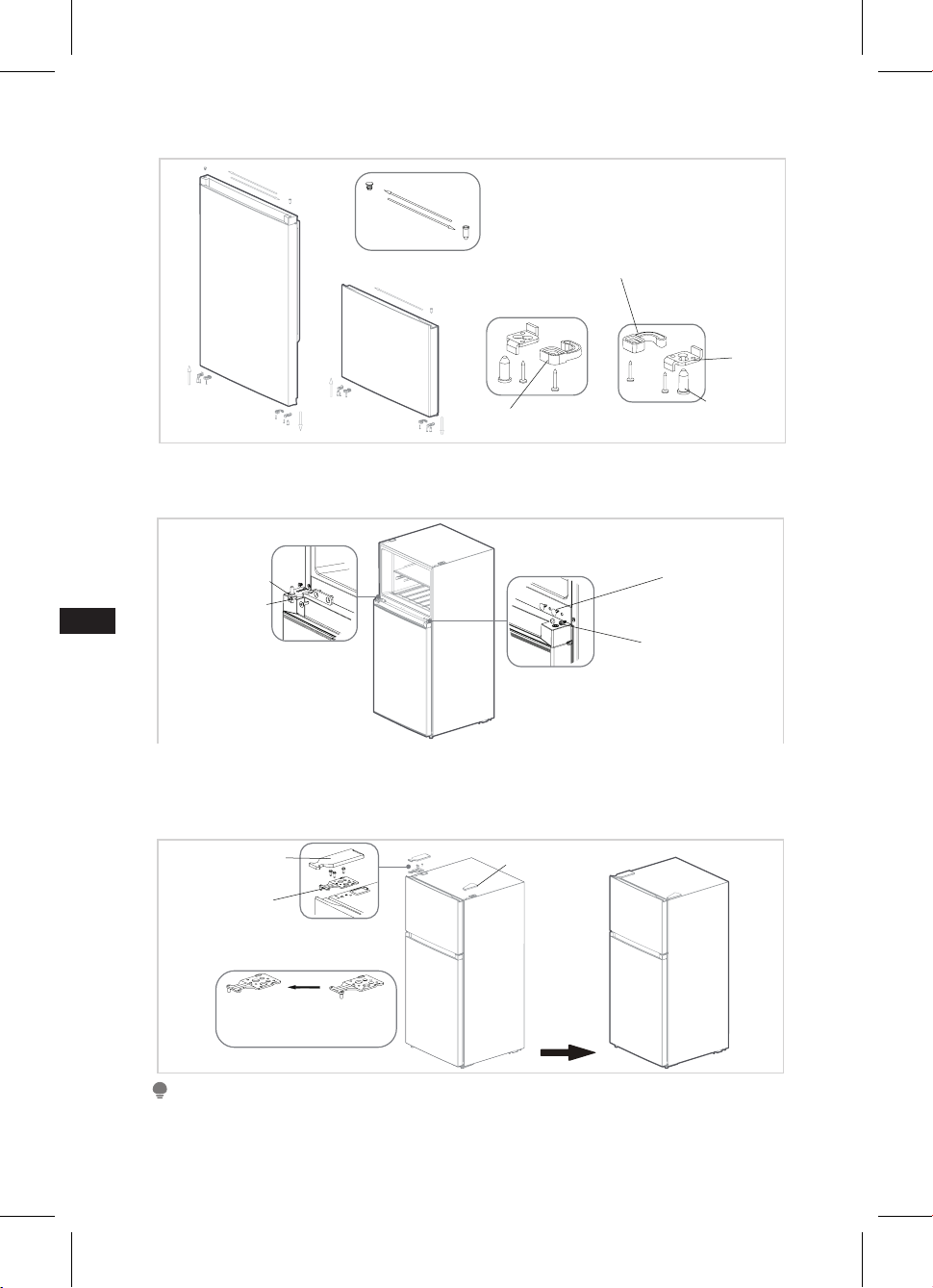

Step

1. Unplug your refrigerator and remove all food from refrigerator.

2. Remove the top hinge cover, screws and upper hinge on the top of the cabinet, and

the cover plate on the left; take out the freezing door upwards.

3. Unscrew the hinge screws, remove the middle hinge, remove the plug pins, and take

out the refrigeration door upwards.

Cover plate Top hinge cover

Plug pins Screw

Middle hinge

ATTENTION

Images show a refrigerator that opens on the left side. Your refrigerator may open on the

right side.

4. Put the refrigerator down, unscrew the lower hinge screw and adjusting foot, remove

the lower hinge, remove the lower hinge shaft and install it into the shaft hole on the

other side of the hinge.

5. Install the lower hinge and tighten the screws on the left side of the refrigerator,

install two adjusting feet, and erect the refrigerator.

Lower hinge

Adjusting foot

Screw

Remove the lower hinge, remove

the lower hinge shaft and install it

into the shaft hole on the other side

of the hinge

6. Unscrew and remove the shaft sleeves, stopper and right door self-locking screws

of the two door bodies, take out the left door self-locking from the accessory bag,

and install it to the left corner of the door body together with the stopper and shaft

sleeves. Take out the hole plug and shaft sleeve on the upper part of the refrigeration

door and adjust their positions before installing them into the door body. Take out

the shaft sleeve on the freezing door and install it on the other side.

Hole plug

Right door

self-locking

Left door

self-locking

Shaft sleeve

Stopper

Shaft sleeve

7. Install the refrigerated door on the lower hinge, install the center beam screws,

middle hinge and tighten the screws on the left side, and cover the plug pins, center

beam screws and screw caps on the right side.

Middle hinge Plug pins

Center beam screw

Screw cap

8. Install the freezing door on the middle hinge, remove the upper hinge shaft and

install it into the shaft hole on the other side of the hinge, install the upper hinge and

tighten the screws, and install the upper hinge cover and the right hole cover.

9. The door change is completed.

Hinge cover Hole cover

Remove the upper hinge shaft

and install it into the shaft hole

on the other side of the hinge.

Upper hinge

ATTENTION

The picture above is only for reference. The actual conﬁguration will depend on the physical

product or statement by the distributor.
