Midea AC200-W Instructions de montage
Version 1.0 2019
373004
INSTALLATION
INSTRUCTIONS
USER GUIDE
Warning notices: Before using this product,
please read this manual carefully and keep
it for future reference. The design and
specifications are subject to change without
prior notice for product improvement.
Consult with your dealer or manufacturer
for details.
Attention: Pictures in the IM are for reference only.
MIDEA
Air Cooler
1
1. Non-specialized personnel or unauthorized repair personnel shall
not to repair or modify the machine.
2. It is forbidden to operate with wet hands to avoid electric shock.
3. Any power cord, which suffers from aging and knotting and whose
plug is damaged, should be stopped its use immediately, and must
be repaired by a professional manufacturer or equally qualified
personnel.
4. No cleaning, maintenance or movement of the unit is allowed if it
does not switch off.
5. If the unit is not in use for a long time, unplug the power cord.
6. To prevent accidental injury or damage to the unit, please do not
insert any foreign matter into the air inlet and outlet, because the
unit incorporates a high-speed wind rotor,
7. It is prohibited to use this unit in environments with flammable and
explosive gases and direct sunlight for a long period shall be
avoided.
8. Do not place this unit in an inclined or other uneven place to
prevent the unit from falling and causing damage to the unit or
internal parts.
9. This machine is suitable for indoor use instead of outdoor use.
10. This machine has a safety switch. If the honeycomb filter support
has not been installed well, the unit will not work as usual; when
the machine is working, do not remove the honeycomb filter frame.
11. At any time the water level in the tank shall not exceed "MAX"
(maximum) scale, and during humidification, the total water level in
the tank shall be controlled, and shall not be below "MIN"
(minimum) scale.
12. After the water tank is filled with water, do not tilt or collide with the
unit when placing or moving it. To move the unit body, please drive
it slowly from the side to prevent water overflow.
13. In using the unit, prohibit overturning to avoid any accident. If the
unit topples over accidentally, and it contains water, unplug the
power cord immediately and take it to repair store.
14. Do not place items on the unit, and covering the outlet is strictly
prohibited.
SAFETY INSTRUCTION
15. When wash the unit appearance, apply a damp cloth (or add a
little cleaning agent) to wipe, and never use corrosive cleaning
agent or solvent for cleaning. Never rinse the unit with water.
16. Do not have the air inlet and outlet of the unit close to walls,
curtains and other objects, or they may block the airflow and affect
air supply.
17. When the unit is running, do not knock at or shock the unit body
forcibly or it may lead to automatic shutdown, in which case simply
restart the unit.
18. In summer, the water in the tank may easily deteriorate and
generate odor, please pay attention to regular change of water; if
the indoor temperature is below zero in winter humidification, it is
best to use warm water for humidification.
19. Do not place the unit directly below the power outlet.
20. Do not use the unit around the tub, sprinkler or swimming pool.
21. Product repair must be carried out in a designated agency.
22. If the supply cord is damaged, it must be replaced by manufacturer
or its service agent or a similarly qualified person in order to avoid a
hazard.
23. Indoor use only.
24. To protect against the risk of electrical shock, do not immerse the
unit, cord or plug in water or other liquid.
26. When the appliance is not in use and before cleaning, unplug the
appliance from the outlet.
27. Keep electrical appliances out of reach from Children or infirm
persons. Do not let them use the appliances without supervision.
28. Unplug the appliance during filling and cleaning.
29. Prior to cleaning or other maintenance, the appliance must be
disconnected from the supply mains.
30. Use a soft cloth moisten with mild soap, and then use a dry cloth
to wipe it again.
2
INSTALLATION INSTRUCTIONS
Name of components
Front Foot-wheel
Rear Foot-wheel
Foot-Wheel Installation
Ice box
Pre-filter
Honeycomb
filter frame
Water tank
Wheel
31.
Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Battery Installation
Locking latch
Pull Notch
3
INSTRUCTIONS FOR USE
Instructions for key of remote controller
Considerate Hint:
1. Install the battery with positive side facing up.
2. Effective Range of Remote Control: within 5m
distance and 30-degree deflection in front of
Product.
AUTO
4

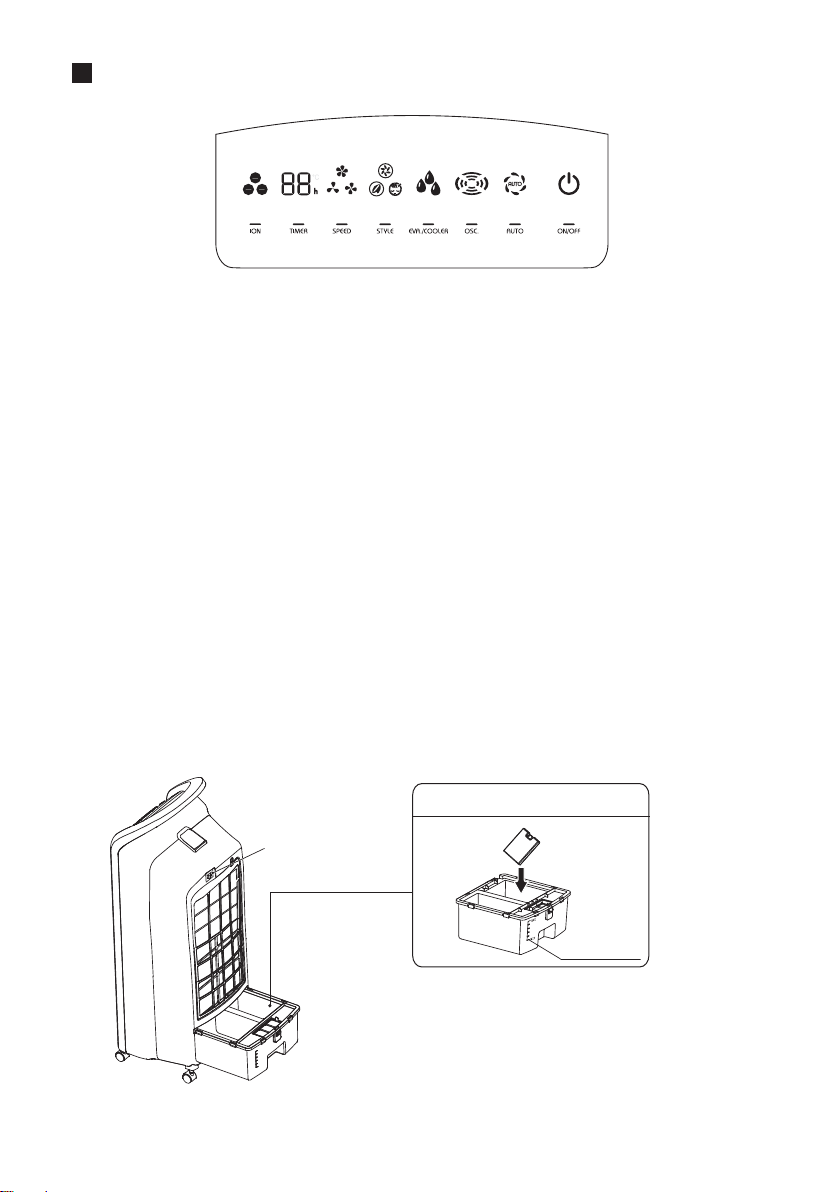

Press a key on the unit to activate a corresponding function.
For instance:
●Press [OCS.] Key to activate or deactivate Swing Function.
●Press [SPEED] Key to adjust 3 speeds of air flow.
●Press [STYLE] Key to switch between Normal, Natural and Sleep
Functions.
●Press [TIMER] Key to set 1-12 hour timer setting.
●Press [ION] Key to activate or deactivate Negative Ion Function.
●When [EVA./COOLER] Key is pressed, the indicator lights
up constantly if the operation is normal; when the indicator flashes, it
denotes a water shortage, please add water immediately.
Considerate Hint:
Push Buttons on the unit may differ based on the actual product model.
Instructions for operation of body
POWER
Using the Ice Box
Water + Ice
Water Level
Considerate Hint:
When humidifying, water level in the Water Tank must
remain under MAX indication; replenish water if level
gets lower than MIN indication.
Fig.2
5
MAINTENANCE
Never clean the product with
any abrasive tool or solvent.
Clean with detergent and wipe
dry with cloth immediately.
Never dismantle the product
or attempt to make any
modification. Regular check
and cleaning of the product is
recommended for prolonging
its lifespan.
Make sure power supply is
disconnected before cleaning
the product.
Never wash the unit in water.
For cleaning, remove
components (water tank,
honeycomb filter, etc.) and
clean them with water and soft
brush. Allow them to air-dry
before re-assembling.
TROUBLESHOOTING
In case the product cannot be operated normally after installation, checks shall be
made for items described bellow:
1. Power cable unplugged or faulty contact.
2. Honeycomb filter assembly not properly installed.
3. Power Switch on the back of product or in the display panel not switched on.
If product remains dysfunctional after checking, a local dealer shall be sought for
assistance.
Per fig.2 fig.3 fig.4 and fig.5: Unplug the unit for two minutes, take out filter,
filter frame, honey comb filter and water tank seperately, wash them with
detergent and soft brush, then put them back to the unit. Cleaning once a
month is recommended.
Fig.3 Fig.4 Fig.5
Take out the honey comb filter
Take out the
filter frame
Take out the dust filter
CLEAN
