Microtech Xpress Manuel utilisateur

Document # 003-0075-04 Revised April 2004

Revision 4

Xpress

Disc Production System

Hardware Manual

Microtech Systems, Inc.

2 Davis Drive

Belmont, CA 94002 USA

Phone 650/596-1900

Fax 650/596-1915

Web microtech.com

email [email protected]

Regulatory Compliance

Statements

Notice for USA

Federal Communications

Commissions (FCC) Statement

This equipment has been tested and found to comply with

the radiated energy limits for a Class A digital device, in

accordance with FCC CFR 47 Part 15 Rules and Regulations.

(1) This device may not cause harmful

interference, and (2) this device must accept any

interference received, including interference that

may cause undesired operation.

Notice for Europe

European Standards

This equipment conforms to the EMC Directive

(89/336/EEC) by compliance with the following European

standards:

EN 55022:1998 + A1:2000, CISPR 22:1997 + A1:2000 (Emissions):

EN 50024:1998 + A1:2001, CISPR 24:1997 + A1:2001 (Immunity):

EN 60950:2001 First Edition (Safety)

Contents

Introduction ....................................................................................................................................... 1

Introducing Xpress........................................................................................................................................2

Xpress’s Parts .............................................................................................................................................................2

Xpress Specifications................................................................................................................................................4

Setting Up Xpress.............................................................................................................................. 5

Disc Production Workspace....................................................................................................................................6

Checking In Your Shipment ...................................................................................................................................7

Unpacking Xpress .....................................................................................................................................................7

Xpress Contents.........................................................................................................................................................8

Xpress Assembly Procedures ..................................................................................................................................9

Xpress Basics .................................................................................................................................... 13

Powering Up Xpress ...............................................................................................................................................14

The Xpress Desktop................................................................................................................................................15

Checking the Xpress Software Configuration..................................................................................................16

Initial System Calibration.....................................................................................................................................17

Testing Xpress .........................................................................................................................................................19

Placing Discs on Spindles.....................................................................................................................................20

Shutting Down Xpress ...........................................................................................................................................21

Calibrating Xpress........................................................................................................................... 23

Calibrating Xpress ..................................................................................................................................................24

Microtech Support..................................................................................................................................................25

Index .................................................................................................................................................. 27

Introduction

2 Introduction

Introducing Xpress

This section will provide all the information you need to unpack, install,

configure and use this system.

Xpress’s Parts

The following section shows and identifies all the important parts of

your Xpress. These components will be referred to later in the manual;

take a few moments to become familiar with them.

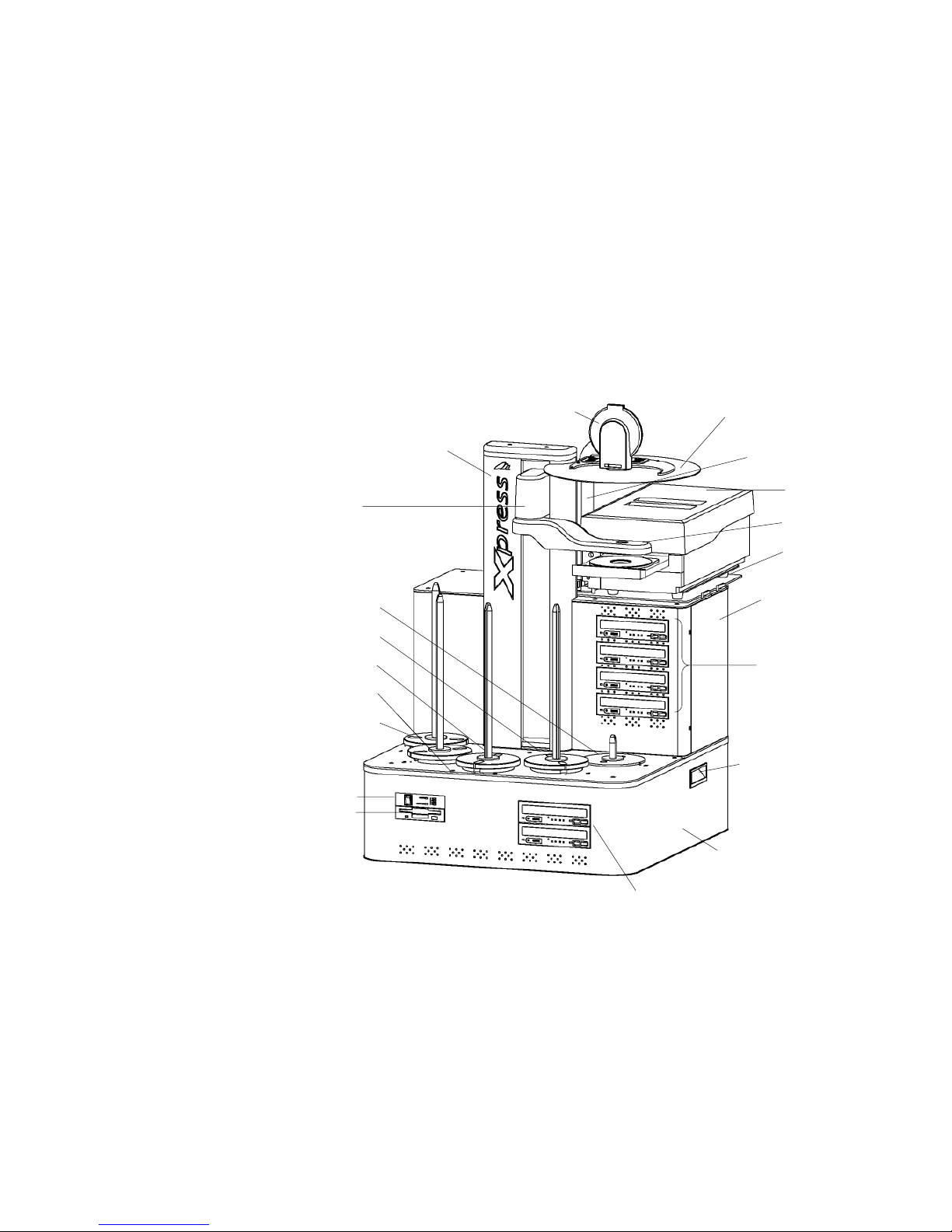

The main parts of the Xpress production system are indicated below

(front view).

Hoist

Printer Plate

Digital Camera for

(ImageAligner) option

Control Panel

Floppy Disc Drive

Elevato

Disc Printer

Reject Spindle

Spindle #4

Spindle #3

Spindle #2

Spindle #1

Light Shield/

Camera Mount Disk

Camera Support Boom

Handhold

Disc Readers

Drive Enclosure

Base Unit (PC Enclosed)

Disc Writers

Introduction 3

The elevator contains all automation elements including the hoist and

the disc transport arm.

The hoist is part of the elevator and raises/lowers the arm.

The arm contains a disc gripper mechanism which holds discs during

transport. The arm can rotate to reach all disc positions (spindles, disc

writer drives and printer).

The drive enclosure holds the disc writers and acts as a platform for the

printer.

The disc writers are the drives that write to blank discs. The exact

number of writers installed (from 1 to 4) depends on your particular

system. Writers can be CD-R, DVD-R, or a mix.

The PC module contains the entire PC including disc readers, hard disk

and power supply.

The disc readers read master discs to be duplicated and other tasks.

Typically, one reader will be a CD-ROM reader and the other will be a

DVD-ROM drive.

The disc spindles hold discs in various stages of processing. There are

four full height spindles for holding blank and completed discs, and one

shorter reject spindle. All spindles can be lifed off and on for easy disc

handling.

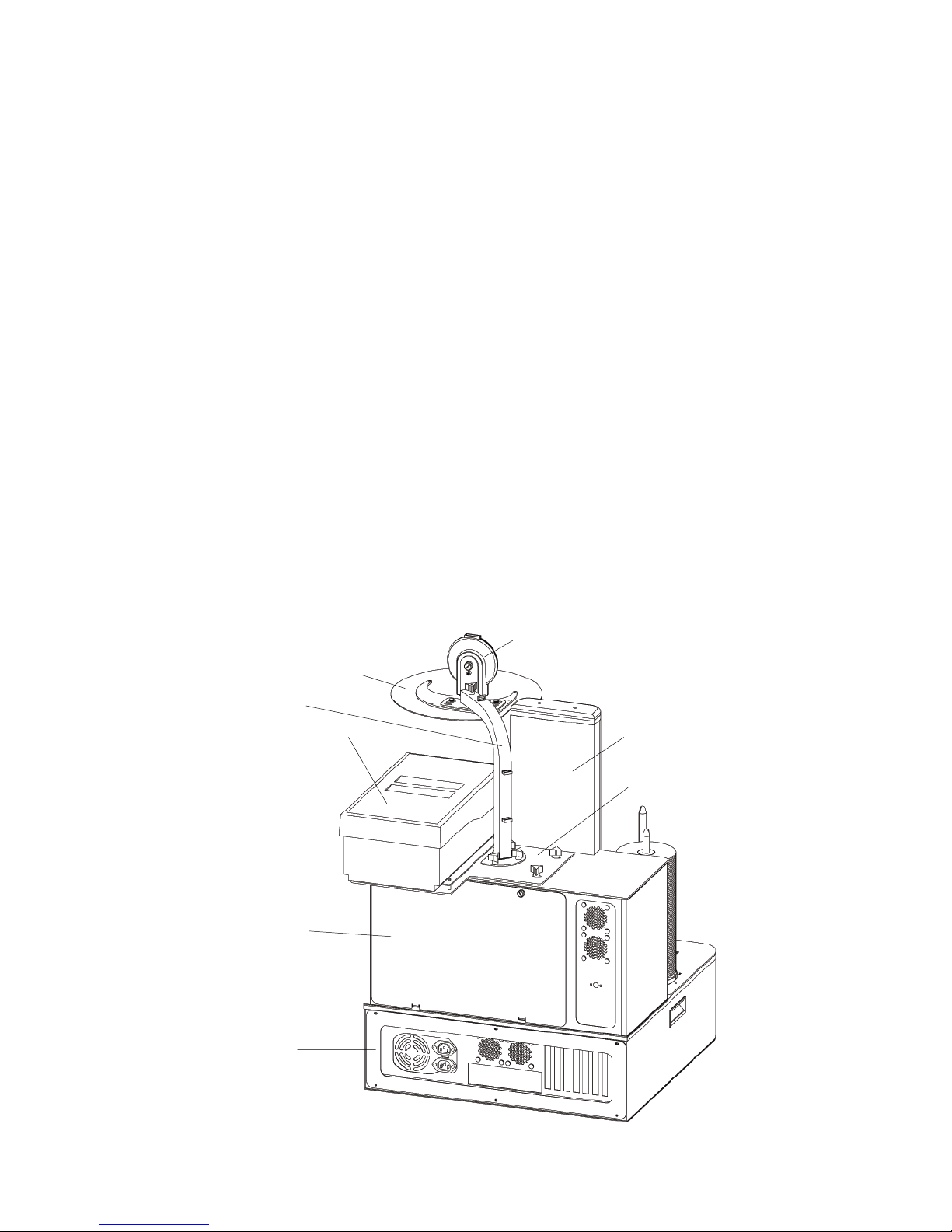

Xpress Back View

Printe

Drive Enclosure

Base Unit

Light Shield/Camera Mount Disc

Camera

Elevato

Printer Base Plate

Camera Support Boom

4 Introduction

Xpress’s Control Panel

The control panel on the front of Xpress’s base unit contains the power

switch and several indicator lights.

Besides the labeled indicator lights for power and the hard drive, there

are four lights in a column, these lights are used to indicate the activity

on drives or buses.

Xpress Specifications

• Dimensions:

23” w X 23” d X 31” h [58mm x 58mm x 79mm]

• Weight:

System without printer: 135 lb. [61 kg]

System with printer: 155 lb. [70 kg]

Power Switch

Disc Drive

ctivity Lights

Flo

ppy

Drive
