Microsoft BK600 Manuel utilisateur

BK600 User Manual

User Manual

For

Windows Mobile 2003-Based Smartphones

Support:

Microsoft Smartphones 2003

Orange SPV C500

SPV E200

O2 Xphone

T-Mobile SDA MUSIC

Dopod 565

575

585

Audiovox SMT 5600

Page 1 of 17

BK600 User Manual

Page 2 of 17

Manufacturer's Disclaimer Statement

The information in this document is subject to change without notice and does not

represent a commitment on the part of the vendor. No warranty or representation,

either expressed or implied, is made with respect to the quality, accuracy or fitness for

any particular purpose of this document. The manufacturer reserves the right to make

changes to the content of this document and/or the products associated with it at any

time without obligation to notify any person or organization of such changes. In no

event will the manufacturer be liable for direct, indirect, special, incidental or

consequential damages arising out of the use or inability to use this product or

documentation, even if advised of the possibility of such damages. This document

contains materials protected by copyright. All rights are reserved. No part of this

manual may be reproduced or transmitted in any form, by any means or for any

purpose without expressed written consent of its authors. Product names appearing in

this document are mentioned for identification purchases only. All trademarks,

product names or brand names appearing in this document are registered property of

their respective owner.

BK600 User Manual

Page 3 of 17

TableofContents

Introduction of Bluetooth Keyboard …………………………. 4

¾Keyboard Features ………………………………………………………………………………. 4

¾Keyboard Setting Up ………………………………………………….……………………….. 5

Driver Installation / Upgrading / Removing ………………. 6

¾System Requirements ……………………….……………………………………………..... 6

¾Before to Use …………………………….………………………………………………………... 6

¾How to Install/Upgrade/ Remove the Bluetooth keyboard Driver …...... 6

Configuring Bluetooth Keyboard ……………………………...

The Illustration of “ Config ” Page …………………………….

¾Active Keyboard …………………………………………………..............................

¾Reconnection ………………………………………………………………………………......... 9

¾Typing Repeat Rate …………………………………………………….………................

¾Typing Repeat Delay …………………………………………………..………............... 10

¾Keyboard Test ……..…………………………………………………..………................. 10

The Illustration of “ Function ” Page ………………………….

The Illustration of “ About ” Page ……………………………..

Function key and the Combination keys …………………….

¾Launching Applications ……………………………………………......................... 12

¾Other Function Key ……………………………………………………………………………... 12

¾Symbol Characters ………………………………………………............................ 13

¾Latin Characters …………………………………………..……………………………………….

¾Calculator Functions …………………………………………….............................

Bluetooth Keyboard Status LED ……………………………….. 16

Product Specifications ……………………………………………. 16

Appendix A : Troubleshooting ………………………………….

BK600 User Manual

Introduction of Bluetooth KeyboardIntroduction of Bluetooth Keyboard

¾Keyboard Features

Page 4 of 1717

BK600 User Manual

¾Keyboard Setting Up¾Keyboard Setting Up

Notes :

＊Please turn the keyboard on first.

＊Once the LED flash orange light or no

light, change the battery.

Page 5 of 1717

＊Before folding the keyboard, make

sure the keyboard is unlock and the

cradle is inserted back into the

keyboard.

BK600 User Manual

Driver Installation/Upgrading/Remove

¾System Requirements

Windows Mobile 2003-Based Smartphone with built-in Bluetooth.

At least 60 KB of free memory on your Smartphone.

A computer with the Microsoft Windows 2000/XP operating system.

A synchronizing program on your computer, such as Microsoft ActiveSync

3.6 or higher, for copying files to your Smartphone.

¾Before to Use

Check the batteries status of Bluetooth keyboard.

(Open the switch to check the green light on the keyboard.)

Disable other previously installed keyboard application which will use

Bluetooth on your Smartphone.

¾How to Install / Upgrade / Remove the Bluetooth keyboard

Driver?

Installation

＊ Connect your Microsoft Smartphone through infrared/cable for ActiveSync

with the computer.

＊ Insert Bluetooth Universal Keyboard CD into computer’s CD-ROM drive.

＊ Follow the instruction on screen to complete the installation.

Page 6 of 17

Figure 1

＊ After the Bluetooth keyboard driver is installed successfully and the

Microsoft Smartphone is reset, you can find this

Bluetooth keyboard icon is showed on the Home

Menu of the mobile device. (Figure 1)

Upgrading

Please check the Agent’s website from time to time

to check if any new driver is released.

(Note: Please remove the old driver out first, and

then install the last one into your device.)

BK600 User Manual

Removing

Step 1：Turn the driver off

Step 2：Tap Start -> Settings -> Remove Programs, (Figure 2) choose the

“Bluetooth BTKeybd” and click the Yes button. (Figure 3)

To find the Remove

Programs from the

list.

Figure 2

Clicking Yes button to

remove Bluetooth

keyboard driver.

Figure 3

Page 7 of 17

BK600 User Manual

ConfiguringBluetoothKeyboard

¾When you click the “BTkeybd” icon, you will see three pages “Config”,

“Function”, “About”. (Figure 4)

Page 8 of 17

Figure 4

¾“Config” Page：

There are including:

“Active keyboard”, “Reconnection”, “Typing Repeat Rate”, “Typing Repeat

Delay”, “Keyboard Test”.

¾“Function” Page：

This page provides ten user-definable function keys as Hot Keys.

¾“About” Page：

Provides the version of the driver installed in your handheld device.

BK600 User Manual

The Illustration of “ Config ” Page

¾Active Keyboard

Page 9 of 17

How to connect the Bluetooth keyboard with your device??

Step 1:

Turn the Bluetooth keyboard on, the LED will

flash orange for 1 second, then turn to flash

green once every other second, the Bluetooth

keyboard is in Discovery mode.

Step 2:

Click “BTkeybd” icon in Home Menu of the

Smartphone. (Figure 5)

Figure 5

Step3:

Click “Active Keyboard”.

Smartphone will search and connect

the Bluetooth Keyboard automatically

(Figure 6)

Figure 6

¾Reconnection

After the connection established successfully,

then you can turn “Reconnection” to “On”.

This function allows the Bluetooth keyboard

memorizes the last connected device, and

they will pair automatically in next

connection without further search. (Figure 7)

Note: Please do not turn “Reconnection” on

before the first connection established

Figure 7

BK600 User Manual

¾Typing Repeat Rate

This option allows you to set the speed at

which a letter, number or other character

repeats when you press and hold a key. Use

your stylus to drag the marker arrow toward

Fast (to increase) or Slow (to decrease) the

repeat rate. (Figure 8)

Figure 8

¾Typing Repeat Delay

This option allows you to set the length of

time before a letter, number or other

character begins to repeat when you press

and hold a key. Use your stylus to drag the

marker arrow toward Long (to increase) or

Short (to decrease) the length of the delay.

(Figure 9)

Figure 9

¾Keyboard Test

Test the repeat rate and delay by holding

down a letter or number key on the

Bluetooth keyboard. The character appears

according to the setting you have chosen.

Change and test these settings until you

achieve the desired outcome. (Figure 10)

Figure 10

Page 10 of 17

Table des matières

Autres manuels Microsoft Clavier

Microsoft

Microsoft Wireless Media Desktop 1000 Manuel utilisateur

Microsoft

Microsoft SideWinder X6 Manuel utilisateur

Microsoft

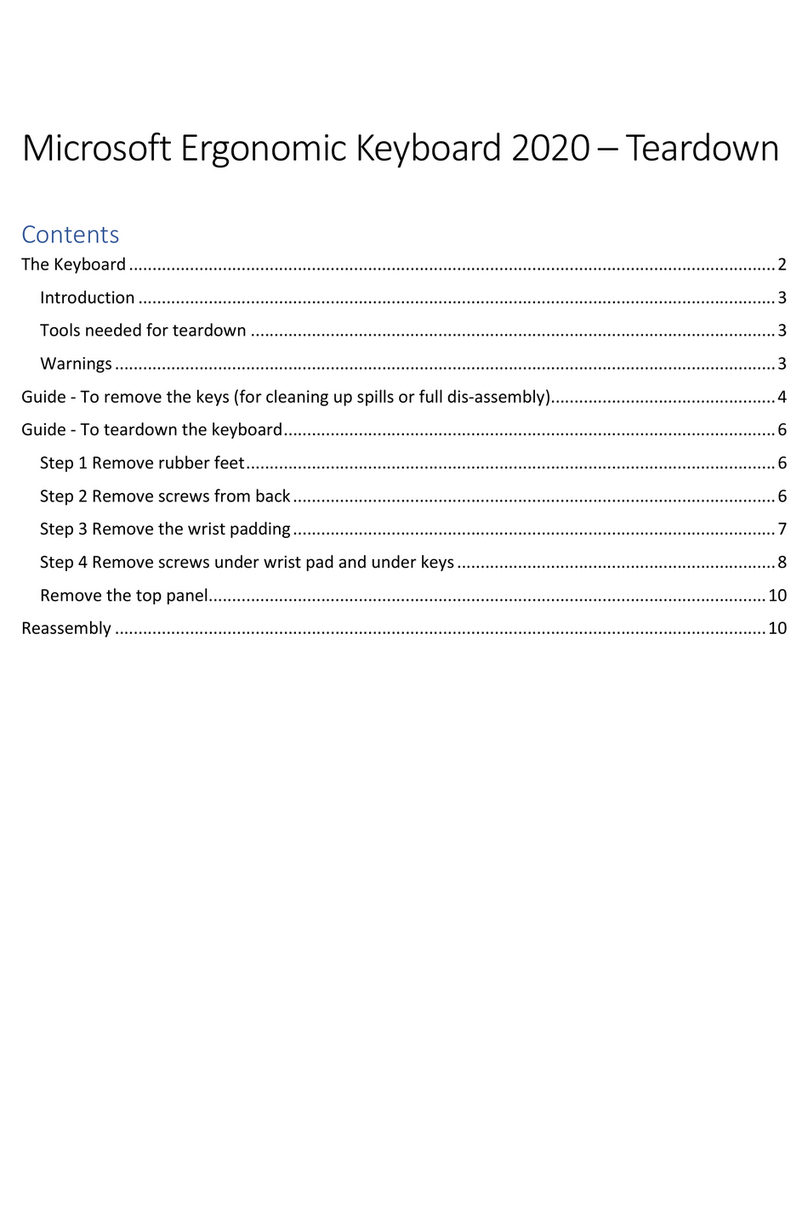

Microsoft 2020 Manuel utilisateur
