Microscan MINI Hawk Manuel utilisateur

Copyright ©2015Microscan Systems, Inc. P/N 83-216300 Rev D

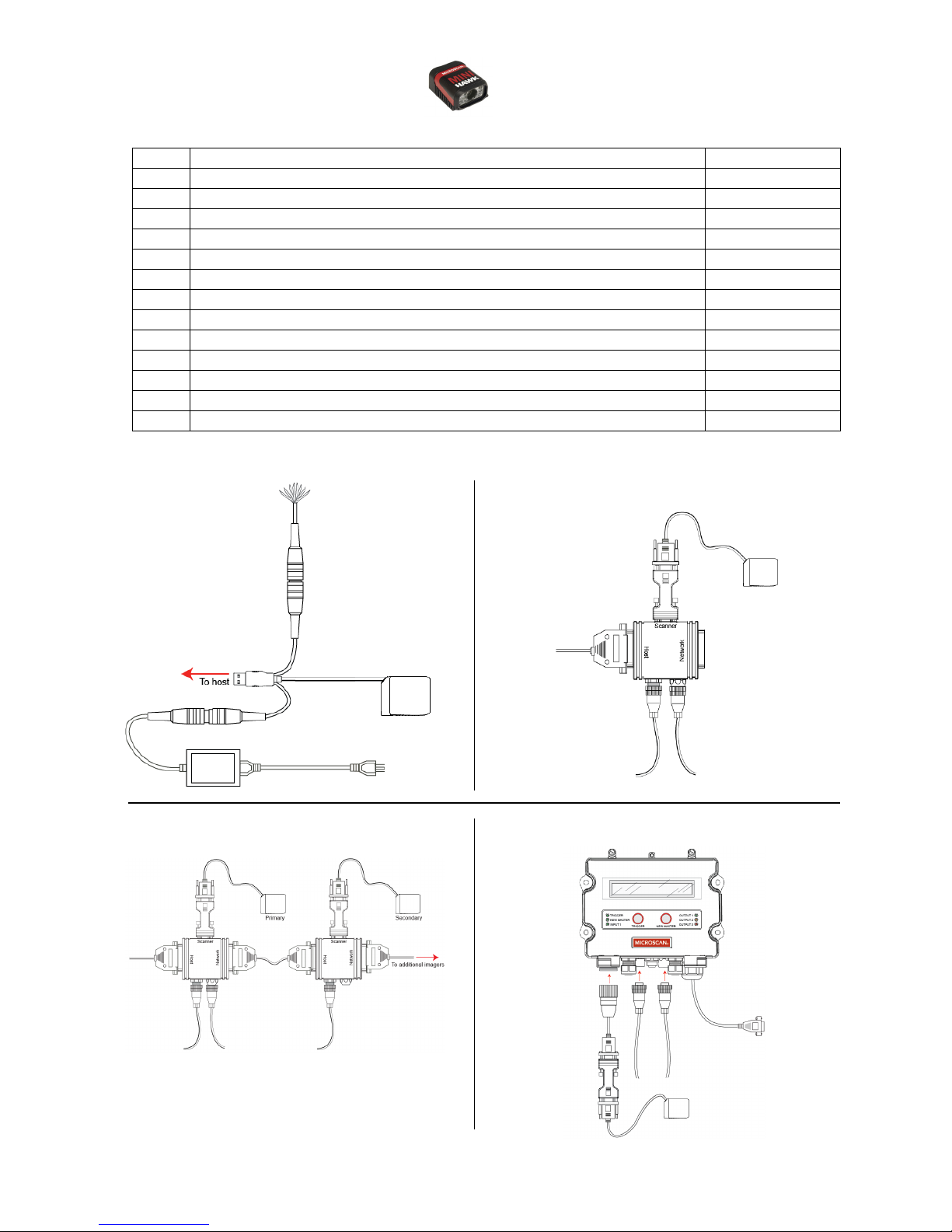

Hardware Required

Configurations

Item Description Part Number

1MINI Hawk High Performance Imager FIS-6300-XXXXG

2MS-Connect 210 Connectivity Box FIS-0210-000XG

3IC-332 Voltage Converter (to 10-28V) FIS-0001-0035G

4IB-131 Interface Box 99-000018-01

5Object Detector (Photo Sensor, Visible, NPN, Dark On) 99-000017-01

6Object Detector (Photo Sensor, Visible, NPN, Light On) 99-000017-02

7Power Supply (90-264 VAC, 24VDC, USA/Euro plug) 97-000012-02

8Power Supply (90-264 VAC, +5VDC) 97-000011-02

9Breakout Cable (USB, Flying Leads, 3’) 61-000151-01

10 Host Cable (MS-Connect 210 to Host, User-stripped to 9-pin) 61-000105-01

11 Reader Cable (Reader to MS-Connect 210, 6’) 61-000127-01

12 Daisy Chain Cable (IB-131 to IB-131, 1’) 61-100029-03

13 Communication Cable (IB-131 to Host, 6’) 61-300026-03

USB (5V) Standalone (10-28V)

Daisy Chain (10-28V) Standalone with MS-Connect 210 (10-28V)

9

1

1

11

1

2

3

33

3

44

4

5

56

7

7

7

8

10

11

12

13

13

7

MINI Hawk

Configuration Guide

Copyright ©2015Microscan Systems, Inc.

MINI Hawk Accessories

MINI Hawk Accessories

Communication and I/O Devices and Cables

IB-3PC Interface FIS-0001-0030G Keyboard wedge

MS-Connect 5100 FIS-5100-0001G Multidrop concentrator

DN120 Protocol Box 20-500013-01 Functions as a serial gateway that converts the RS-232

signal to DeviceNet protocol.

Object Detector (USB configuration) 99-000019-01 Photo Sensor, Visible, NPN, Light On

Communication Cable 61-000010-02 DB9 Socket to DB9 Socket, 6’ (1,829 mm)

Host Cable 61-000108-01 9-pin to RJ12, 6’ (1,829 mm)

MS-Connect 5100 Programming Cable

61-000112-01 USB, Standard Type A to Type B, 6’ (1,829 mm)

MS-Connect 5100 Concentrator Cable

61-000113-01 25-pin to RJ45, 10’ (3,048 mm), gender changer

Multidrop Cable 61-100030-03 IB-131 to IB-131, 10’ (3,048 mm)

Mounting Options

Mounting Arm Kit 98-000048-01

An adjustable mounting arm with ball and socket connections

that allow the arm to be positioned in almost any orientation.

Extension Joint Kit 98-000053-01 (4”)

98-000053-02 (3”)

Allows the mounting arm to be extended. Kits include

extension joint and mounting arm.

Base Plate Kit 98-000054-01

Plate for desktop presentation, 6” x 6” (152.4 mm x 152.4 mm).

Through-Hole Mount Bracket 98-000057-01 Allows the reader to be mounted to various surfaces.

Side Mount Bracket 98-000060-01 Allows the reader to be mounted at a 90° angle.

Right-Angle Mirror Kit 98-000088-01 Changes field of view direction by 90°.

Diffuser Accessory Kit 98-000098-01 Improves readability of direct part marks.

Documentation

Microscan Tools Drive 37-000010-01 User Manuals, Quick Start Guides, Configuration Guides,

links to other documents on Microscan website

Note: Additional accessories are available in the Microscan Product Pricing Catalog.

www.microscan.com

Autres manuels pour MINI Hawk

2

Ce manuel convient aux modèles suivants

1

Autres manuels Microscan Équipement de laboratoire

Microscan

Microscan Mobile Hawk Manuel utilisateur

Microscan

Microscan MINI Series Manuel utilisateur

Microscan

Microscan MINI Hawk Series Manuel utilisateur

Microscan

Microscan EZ Match Imager Manuel utilisateur

Microscan

Microscan QX Hawk C-Mount Manuel utilisateur

Microscan

Microscan QX Hawk Manuel utilisateur

Microscan

Microscan MS-4X Manuel utilisateur

Microscan

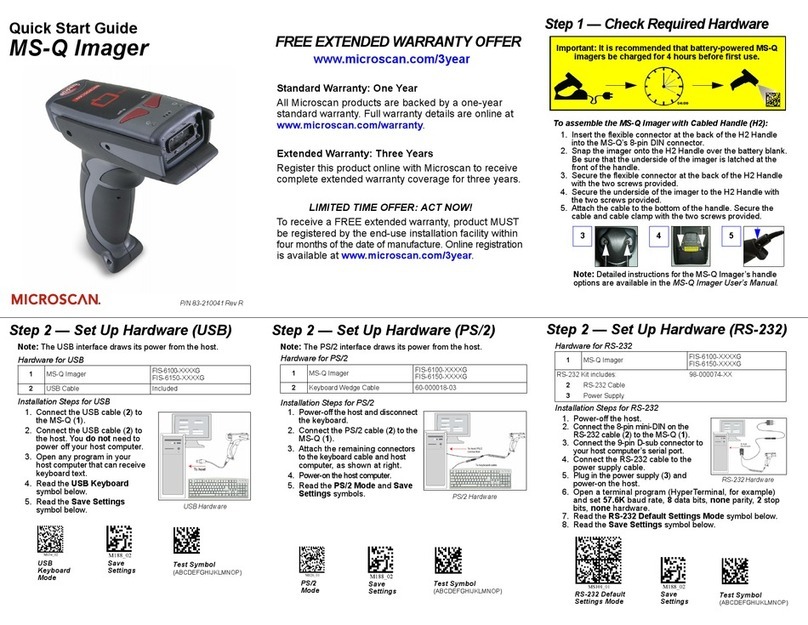

Microscan MS-Q Manuel utilisateur
