Microscan LVS-9580 Manuel utilisateur

M-9580-4.0.0-E-En-0 P/N 84-9310011-02 Rev A

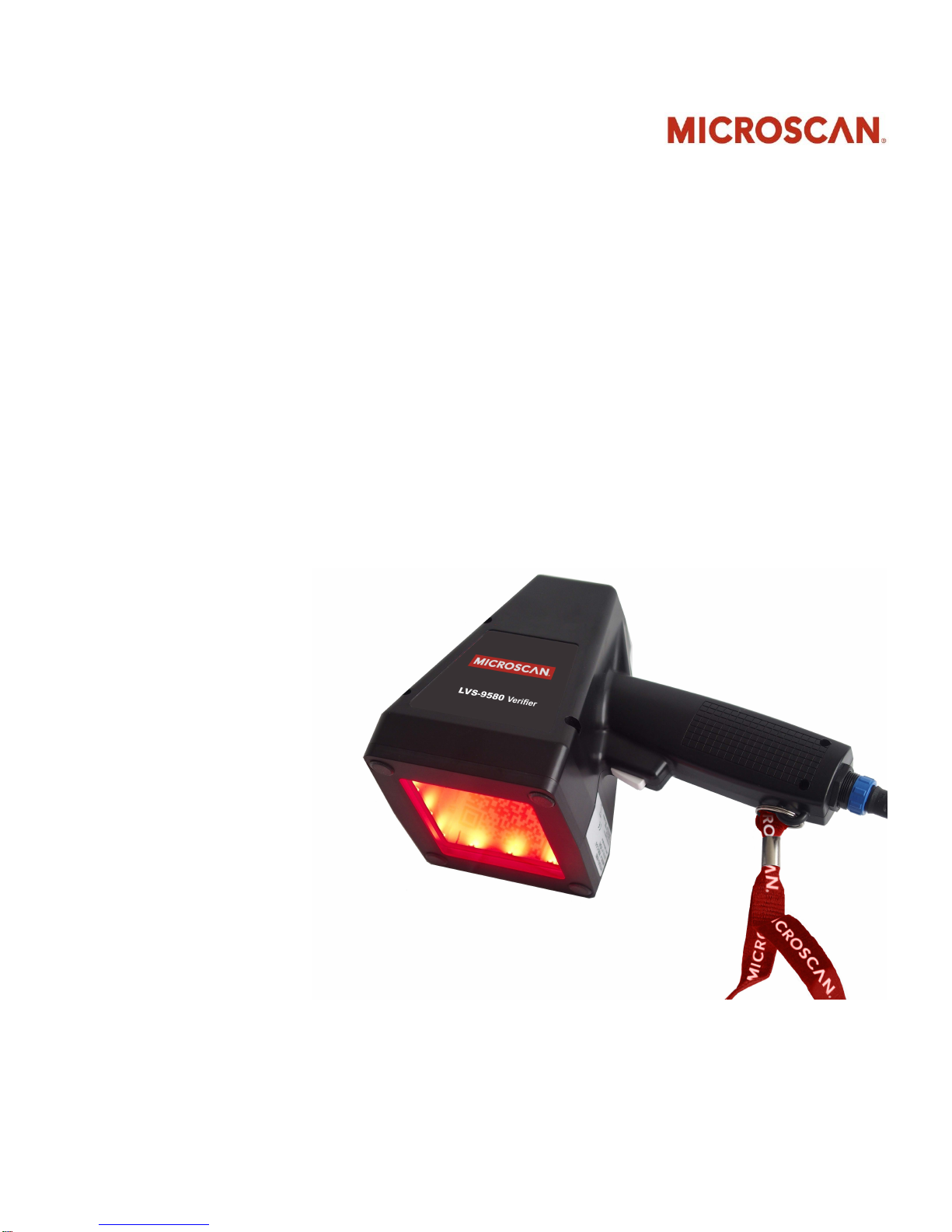

LVS® 9580 Operating Instructions

English

LVS-9580 Operating Instructions - English

LVS-9580 Operating Instructions - English Page 2 of 17

Microscan Systems, Inc.

Tel: +1.425.226.5700 / 800.762.1149

Fax: +1.425.226.8250

allowing customers to operate and/or service Microscan manufactured equipment and is not to be released,

reproduced, or used for any other purpose without written permission of Microscan.

Throughout this manual, trademarked names might be used. We state herein that we are using the names to the

benefit of the trademark owner, with no intention of infringement.

GS1 Solution Partner

Disclaimer

The information and specifications described in this manual are subject to change without notice.

Latest Manual Version

For the latest version of this manual, see the Download Center on our web site at:

www.microscan.com.

Technical Support

For technical support, e-mail: helpdesk@microscan.com.

Warranty

For current warranty information, see: www.microscan.com/warranty.

Microscan Systems, Inc.

United States Corporate Headquarters

+1.425.226.5700 / 800.762.1149

United States Northeast Technology Center

+1.603.598.8400 / 800.468.9503

European Headquarters

+31.172.423360

Asia Pacific Headquarters

+65.6846.1214

LVS-9580 Operating Instructions - English

LVS-9580 Operating Instructions - English Page 3 of 17

Table of Contents

IMPORTANT INFORMATION.........................................................................................4

SAFETY INSTRUCTIONS ..............................................................................................4

ABOUT THE LVS-9580 ..................................................................................................5

Quiet Zone..................................................................................................................5

HARDWARE OVERVIEW...............................................................................................6

LVS-95XX SOFTWARE STEPS .....................................................................................7

Log On to the LVS-95XX Software..............................................................................7

Turn on the LVS-9580 Camera....................................................................................9

Calibrate the LVS-9580.............................................................................................10

GRADING BARCODES................................................................................................13

CLEANING INSTRUCTIONS........................................................................................14

ENGINEERING SPECIFICATIONS ..............................................................................15

Supported Symbologies and Standards ....................................................................16

Supported Symbologies.........................................................................................16

Supported Standards.............................................................................................17

LVS-9580 Operating Instructions - English

LVS-9580 Operating Instructions - English Page 4 of 17

Important Information

The LVS-9580 arrives to your site packaged in a specially designed shipping carton. DO NOT

discard this shipping carton in case you must ship or store the system for any reason. Failure

to use this carton when returning your product to Microscan will void warranty.

This guide is intended to help you understand the features and functionality of the LVS-9580.

Be sure to reference the following additional resources:

oRefer to the “LVS-95XX Series Software Installation Guide” for steps on installing the

LVS-95XX software. A hard copy version of the “LVS-95XX Series Software Installation

Guide” is packaged with your system and an electronic version is located on the

installation media.

oRefer to the “LVS-95XX Series Barcode Quality Station Operations Manual” for

comprehensive steps on operating the LVS-95XX software. This manual is located on the

installation media packaged with your system.

If you have any questions or concerns about the performance of the LVS-9580, please call

your local Microscan Distributor or Microscan technical support:

Microscan Technical Support:

+1-425-203-4841 | +1-800-762-1149 | [email protected]

Safety Instructions

The LVS-9580 has been carefully designed to provide years of safe, reliable performance.

However, as with all electrical equipment, there are some basic precautions you should follow to

avoid personal injury or damage to the system:

Before using the system, carefully read all the installation and operating instructions.

Observe all warning instruction labels on the system.

Never insert anything into the openings of the system.

Do not use the system near water or spill liquid into it.

All components used to create your system are CE approved. All circuits were designed to

incorporate maximum safety. However, any equipment using electrical voltages may cause

personal injury if improperly handled.

Do not attempt to work on the system with the USB cable connected.

To avoid damaging the system, unplug the USB cable before cleaning.

If the system ever needs repair, consult Microscan or your Microscan Distributor.

LVS-9580 Operating Instructions - English

LVS-9580 Operating Instructions - English Page 5 of 17

About the LVS-9580

The LVS-9580 is a portable, handheld barcode verifier designed for off-line verification of

barcodes to ISO/IEC standards. The LVS-9580 is a 5.0 megapixel camera-based system that

grades linear (1D) and two-dimensional (2D) codes up to 3 inches (76 mm) wide and up to 2

inches (51 mm) tall (including the quiet zone). See the “Quiet Zone” section below for more

information on quiet zones.

The LVS-9580 verifies barcode labels located on a variety of surfaces including corrugated

cardboard boxes, shipping containers, and on a static (non-moving) web. The LVS-9580 grades

barcodes in either picket fence or ladder orientation.

Picket Fence Orientation

Ladder Orientation

The LVS-9580 is 21 CFR Part 11 Compliant-Ready.

Quiet Zone

The Quite Zone is a clear space preceding the start character of a barcode symbol and follows

the stop character. When reading/grading a barcode symbol, you must allow enough space for

the Quiet Zone. The required Quiet Zone space for each barcode varies by symbology. An error

message appears on the computer screen if not enough space has been allowed for the Quiet

Zone.

1D Barcode Quiet Zone

2D Barcode Quiet Zone

Quiet

Zone

Quiet

Zone

Quiet

Zone

Start

Character

Stop

Character

LVS-9580 Operating Instructions - English

LVS-9580 Operating Instructions - English Page 6 of 17

Hardware Overview

The LVS-9580 is comprised of the following hardware components:

USB cable input

connector

Trigger

Enclosure containing

camera and LEDs

Verifier window

Four rubber feet surrounding

verifier window to hold

substrate in place and

prevent slippage

LVS-9580 Operating Instructions - English

LVS-9580 Operating Instructions - English Page 7 of 17

LVS-95XX Software Steps

Refer to the sections below for steps on:

Logging on to the LVS-95XX software

Turning on the LVS-9580 camera

Calibrating the LVS-9580

Note: Refer to the “LVS-95XX Series Software Installation Guide” for step-by-

step instructions on installing the LVS-95XX software; a hard copy version of this

guide is packaged with your system and an electronic version is located on the

installation media.

Log On to the LVS-95XX Software

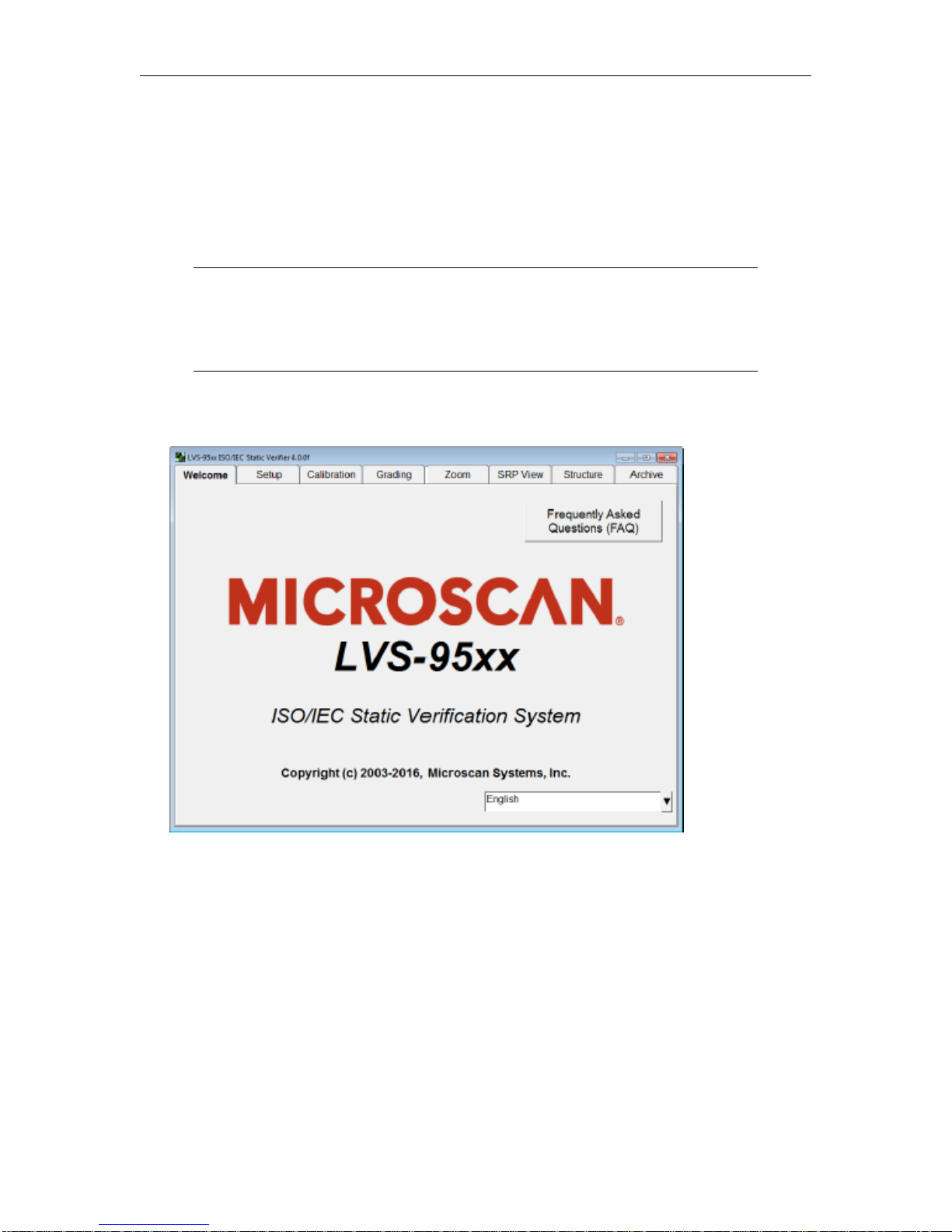

1. Start the LVS-95XX software. The “Welcome” screen appears (see below).

LVS-9580 Operating Instructions - English

LVS-9580 Operating Instructions - English Page 8 of 17

2. Click the “Setup” tab. The “Login” box appears.

3. Enter admin (not case sensitive) in the Operator ID field and in the Password field.

4. Click “OK.” You are logged in to the LVS-95XX software.

5. Turn on the LVS-9580 camera by following the steps in the next section entitled “Turn on the

LVS-9580 Camera.”

LVS-9580 Operating Instructions - English

LVS-9580 Operating Instructions - English Page 9 of 17

Turn on the LVS-9580 Camera

1. Click the “Setup” tab and select “9580” in the “Camera” section (see below).

Note: If you are using only an LVS-9580 (with no other LVS-95XX barcode

verifier, such as an LVS-9510), then “9580” will be the only camera listed in the

“Camera” section. If you are using an LVS-9580 with an LVS-9510 (1.3 mp or 5.5

mp cameras) or LVS-9505 (1.3 mp or 2.1 mp cameras), then all system cameras

appear in the “Camera” section. Select “9580.”

2. Select “Auto-sector” in the “Grading mode” section (see screenshot above). This allows the

LVS-95XX software to locate a barcode within the field of view and automatically draw a

sector around the barcode.

3. Next, you need to calibrate the LVS-9580 (if using the LVS-9580 for the first time). See the

next section for calibration steps.

Additional camera

9580 camera

Select the “Auto-

sector” option

LVS-9580 Operating Instructions - English

LVS-9580 Operating Instructions - English Page 10 of 17

Calibrate the LVS-9580

IMPORTANT:

The LVS-9580 should be calibrated regularly. The entire calibration process

takes less than 30 seconds to complete and ensures the LVS-9580 is certified

according to industry standards.

The Calibrated Conformance Standard Test Card should be replaced every two

years.

It is recommended to clean the LVS-9580 window prior to calibration. See the

“Cleaning Instructions” section for more information.

1. To calibrate the LVS-9580, click the “Calibration” tab.

2. Locate the Calibrated Conformance Standard Test Card (“test card”) that was packaged with

your system and place the test card on a flat surface.

Below is an example of an “EAN/UPC” test card.

Master Grade

barcodes
