Micronfilter ECOTECH Manuel utilisateur

1
MICRONFILTER S.r.l Corso Europa 607, 10088 Volpiano (TO) Italy
P.IVA 09719130016 TEL +39 011 9702 830 FAX +39 011 982 2020
[email protected] www.micronfilter.it
SUMMARY
1. INTRODUCTION 2
2. DESCRIPTION OF THE FUNCTIONS 2
3. PRELIMINARY INSPECTION AND ASSEMBLY 4
3.1. Assembling the cartridge 4
4. DIRECTIONS FOR USE AND LIMITS OF USE 6
5. TECHNICAL DATA 8
5.1 Cartridge filter 11
6. INSTALLATION 14
7. ADJUSTMENTS 14
7.1 System 14
8. MAINTENANCE 14
8.1 Oil discharge 16
9. ELECTRICAL CIRCUIT DIAGRAMS 18
10. MARKING AND CERTIFICATION 19
11. SYMBOLS 19
12. TROUBLESHOOTING 21
13. WARRANTY 22

2
MICRONFILTER S.r.l Corso Europa 607, 10088 Volpiano (TO) Italy
P.IVA 09719130016 TEL +39 011 9702 830 FAX +39 011 982 2020
[email protected] www.micronfilter.it
1. INTRODUCTION
This manual contains all the information necessary in order to use the machine correctly. The user
is requested to read it thoroughly and follow the directions it contains carefully. It is also
important to keep the booklet in a suitable place out of harm’s way. The content of this manual
may be changed without notice in order to include variations and improvements to units which
have already been sent out.
2. DESCRIPTION OF THE FUNCTIONS

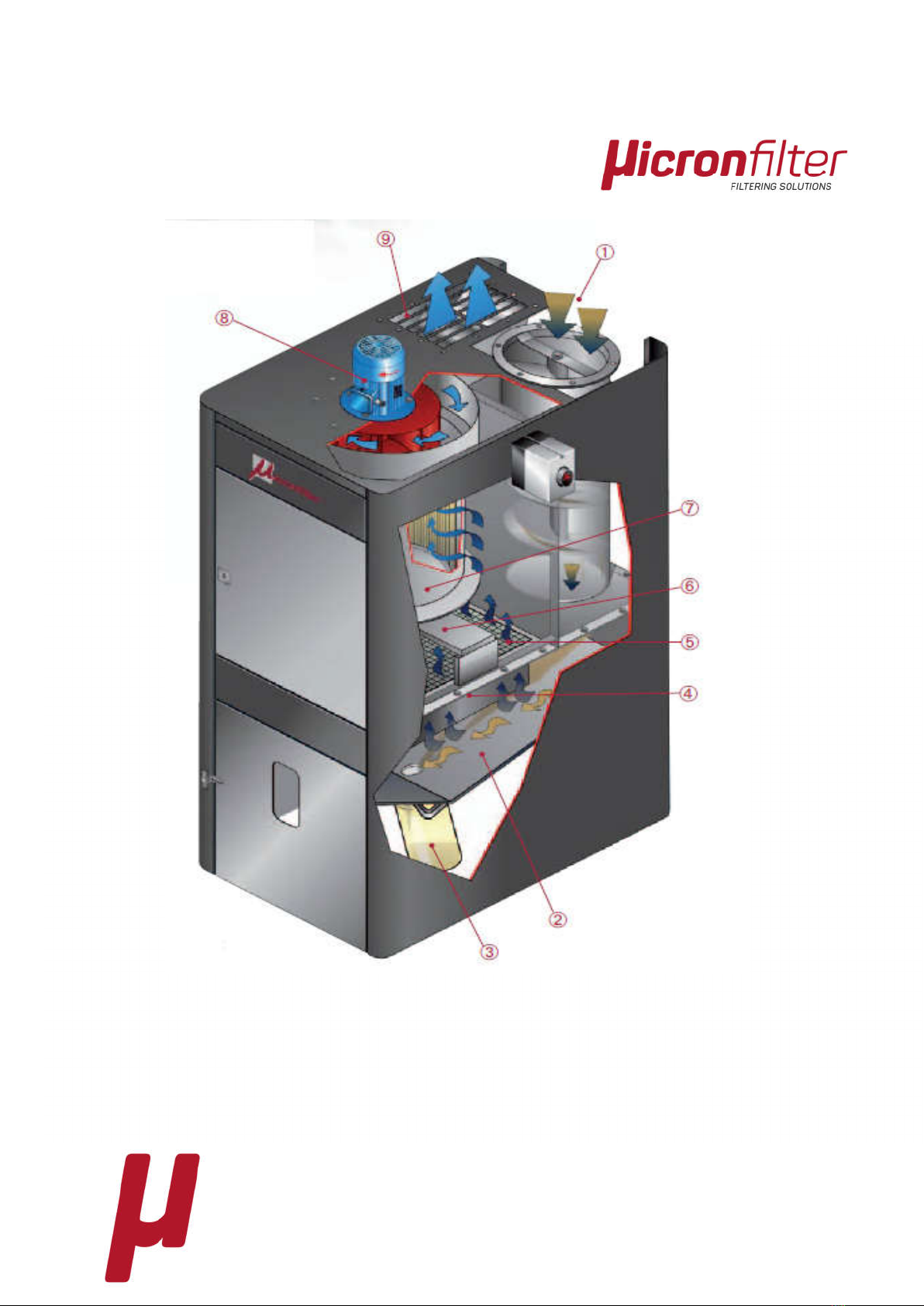

The polluted air from the oil particle is extracted through the air intake (1) due to the negative
pressure created inside the centrifugal aspirator casing. It passes through the vertical duct, where
mechanical separation of the particles suspended in the air takes place because of the centrifugal
effect due to the rotation of the air imparted by the helical element.
The oil particles separated in this way come together on the wall of the pipe, held back by a wire
mesh. They drip into the collection hopper (2) and from here to the removable PVC drum (3).
The air leaving the duct is filtered again when it passes through a drop separator (4) and the metal
filter (5), and then passes through the cartridge, composed of a coalescing cloth and a paper filter
(7), and is sent through the centrifugal aspirator (8) to the expulsion opening (9) where it is sent
back into the environment.
The combined effect of the mechanical separation of the oil particles that takes place in the duct
and filtering through the drop separator, the metal filter and the cartridge ensures highly effective
air purification.

3
MICRONFILTER S.r.l Corso Europa 607, 10088 Volpiano (TO) Italy
P.IVA 09719130016 TEL +39 011 9702 830 FAX +39 011 982 2020
[email protected] www.micronfilter.it

4
MICRONFILTER S.r.l Corso Europa 607, 10088 Volpiano (TO) Italy
P.IVA 09719130016 TEL +39 011 9702 830 FAX +39 011 982 2020
[email protected] www.micronfilter.it
Drawing 1
THE UNIT IS DESIGNED TO WORK WITH NEGATIVE PRESSURE.
3. PRELIMINARY INSPECTION AND ASSEMBLY
The ECOTECH filter reaches the customer fully assembled. The unit is protected by suitable
packaging and can be transported on pallets. For the weights, refer to the information shown in
the technical table.
In order to move the material, use appropriate lifting equipment and take all the
safety precautions envisaged on the construction site.
After removing the material from the packaging, make a visual check that it has not been damaged
during transportation and use the checklist to check that all the components have been supplied. If
this is not the case, inform your dealer as soon as possible and nevertheless no later than 10 days
from delivery.
For movement over short distances in the workplace, it is necessary to disconnect the source of
electrical energy and the utilities. It is then possible to move the machine with ease.
3.1. Assembling the cartridge
The cartridge is fixed to the platform by pressure exerted by the support plate (A): after placing the
cartridge on the plate, rotate it clockwise, positioning the seal of the cartridge a few millimetres
from the roof. Using the box spanner supplied, turn the bolt (B) clockwise until fully blocked.

5
MICRONFILTER S.r.l Corso Europa 607, 10088 Volpiano (TO) Italy
P.IVA 09719130016 TEL +39 011 9702 830 FAX +39 011 982 2020
[email protected] www.micronfilter.it
This operation must be carried out carefully in order to prevent any leakage.
For a clearer picture of assembly, see Drawings 2 and 3.
Drawing 2
“The cartridge is fixed to the platform by pressure exerted by the
support plate...”
A
B

6
MICRONFILTER S.r.l Corso Europa 607, 10088 Volpiano (TO) Italy
P.IVA 09719130016 TEL +39 011 9702 830 FAX +39 011 982 2020
[email protected] www.micronfilter.it
“...after placing the cartridge on the plate...”
“...rotate it clockwise, positioning the seal of the cartridge a few
millimetres from the roof.”
“Using the box spanner supplied...”
“..turn the bolt clockwise until fully blocked.”

7
MICRONFILTER S.r.l Corso Europa 607, 10088 Volpiano (TO) Italy
P.IVA 09719130016 TEL +39 011 9702 830 FAX +39 011 982 2020
[email protected] www.micronfilter.it
4. DIRECTIONS FOR USE AND LIMITS OF USE
The filter has been designed for separating oil particles and oil emulsions from the air taken from
machine tools such as lathes, gear cutters, grinders and cold printing machines. It is also possible to
use it whenever there are oily mists, even in the food, pasta industries etc. on the condition that
operating temperatures do not exceed 40°C.
The filter is not designed to treat flammable or explosive vapours by nature or by reaction. For these uses, always consult the
MICRONFILTER Technical Office.
It is forbidden to smoke while the filter is operating.
The incorrect cleaning or replacement of the filter media leads to the risk of allowing
the polluting agent to be released into the outdoor and working environments.
It is compulsory to earth the filter by connecting the contact points to a copper plait
with a suitable cross section (a cross section of 2.5 mm² is recommended), secured to
the article, taking care to maintain continuity.
Drawing 3

8
MICRONFILTER S.r.l Corso Europa 607, 10088 Volpiano (TO) Italy
P.IVA 09719130016 TEL +39 011 9702 830 FAX +39 011 982 2020
[email protected] www.micronfilter.it
Any act which compromises the functionality, integrity and/or safety of the machine structure, the
internal equipment, both electrical and mechanical, and any control and connection component is
considered improper use. The MICRONFILTER Technical Office is always available for any further
information about using the product.
5. TECHNICAL DATA

9
MICRONFILTER S.r.l Corso Europa 607, 10088 Volpiano (TO) Italy
P.IVA 09719130016 TEL +39 011 9702 830 FAX +39 011 982 2020
[email protected] www.micronfilter.it

10
MICRONFILTER S.r.l Corso Europa 607, 10088 Volpiano (TO) Italy
P.IVA 09719130016 TEL +39 011 9702 830 FAX +39 011 982 2020
[email protected] www.micronfilter.it
