SERVICING OF
PremiumPLUS
PremiumPLUS
2
Micro Matic A/S |Holkebjergvej 48 |DK-5250 Odense SV |Tel.: +45 66 17 11 22 |www.micro-matic.com
Fig. 1
Fig. 2
Fig. 3

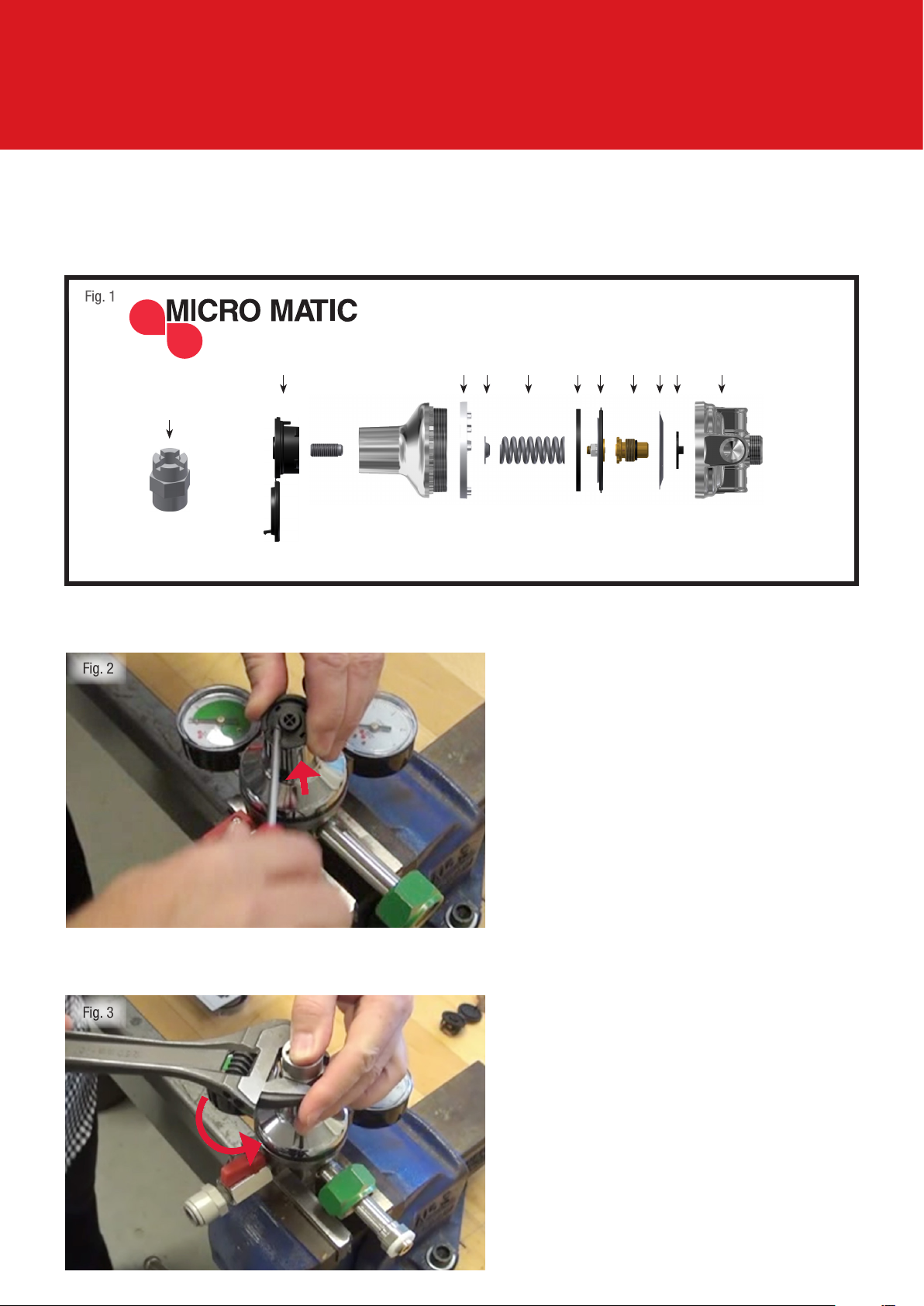

Disassemble of PremiumPLUS
Remove the lid [1].
Unscrew the bonnet by using the tool [5]
from the Service Kit.
PremiumPLUS
Service Kit - Part No. 122-170
Service Kit for PremiumPlus Reducer www.micro-matic.com
1
5
2 1011 9 6 4 8 3 7
3
Micro Matic A/S |Holkebjergvej 48 |DK-5250 Odense SV |Tel.: +45 66 17 11 22 |www.micro-matic.com

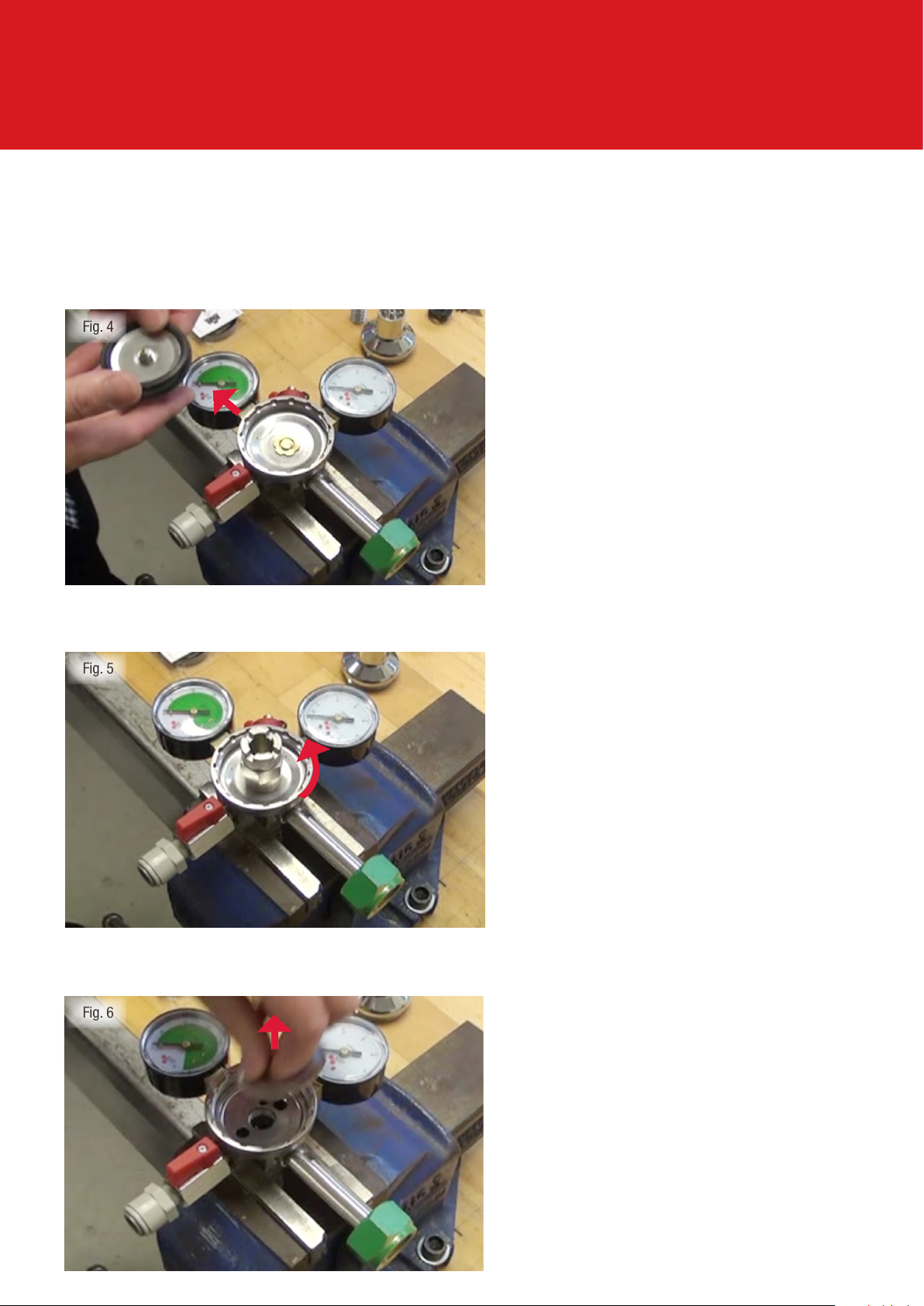

Disassemble of PremiumPLUS
Use the tool [5] to unscrew and remove
the cartridge [4].
Remove the bafe plate [8]
Fig. 4
Fig. 5
Fig. 6
PremiumPLUS
Remove the diaphragm [6] as shown on
the photo.
4
Micro Matic A/S |Holkebjergvej 48 |DK-5250 Odense SV |Tel.: +45 66 17 11 22 |www.micro-matic.com

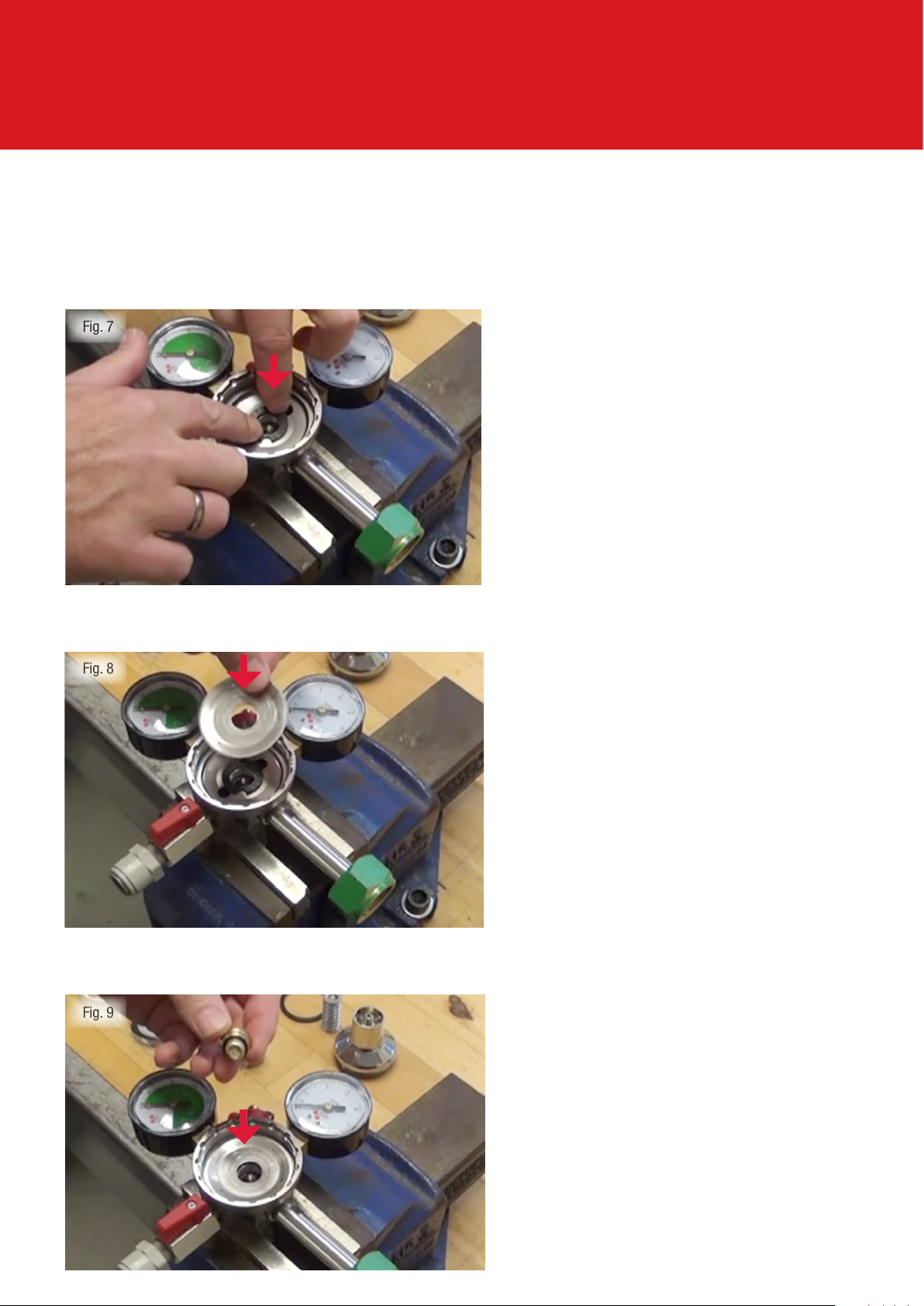

Mounting of PremiumPLUS
Mount the new ow washer [3] from the
Service Kit.
Mount the re-used bafe plate [8].
Mount the new cartridge [4] from the
Service Kit.
Fig. 7
Fig. 8
Fig. 9
PremiumPLUS
5
Micro Matic A/S |Holkebjergvej 48 |DK-5250 Odense SV |Tel.: +45 66 17 11 22 |www.micro-matic.com
Mounting of PremiumPLUS
Use the tool [5] and a torque wrench
(tightening torque 4.5 Nm) to tighten the
new cartridge [4].
Mount the new diaphragm [6] from the
Service Kit. Pay attention that the small
O-ring is present.
Make sure that the diaphragm is mounted
correct under the thread in the main
body.
Fig. 10
Fig. 11
Fig. 12
PremiumPLUS
6
Micro Matic A/S |Holkebjergvej 48 |DK-5250 Odense SV |Tel.: +45 66 17 11 22 |www.micro-matic.com
Mounting of PremiumPLUS
Mount the re-used washer [9] and make
sure the groove is in direction of the
diaphragm.
Mount the new lock ring [2] from the
service kit.
Mount the re-used spring [10] , and the
re-used cap [11].
Fig. 13
Fig. 14
Fig. 15
PremiumPLUS
7
Micro Matic A/S |Holkebjergvej 48 |DK-5250 Odense SV |Tel.: +45 66 17 11 22 |www.micro-matic.com

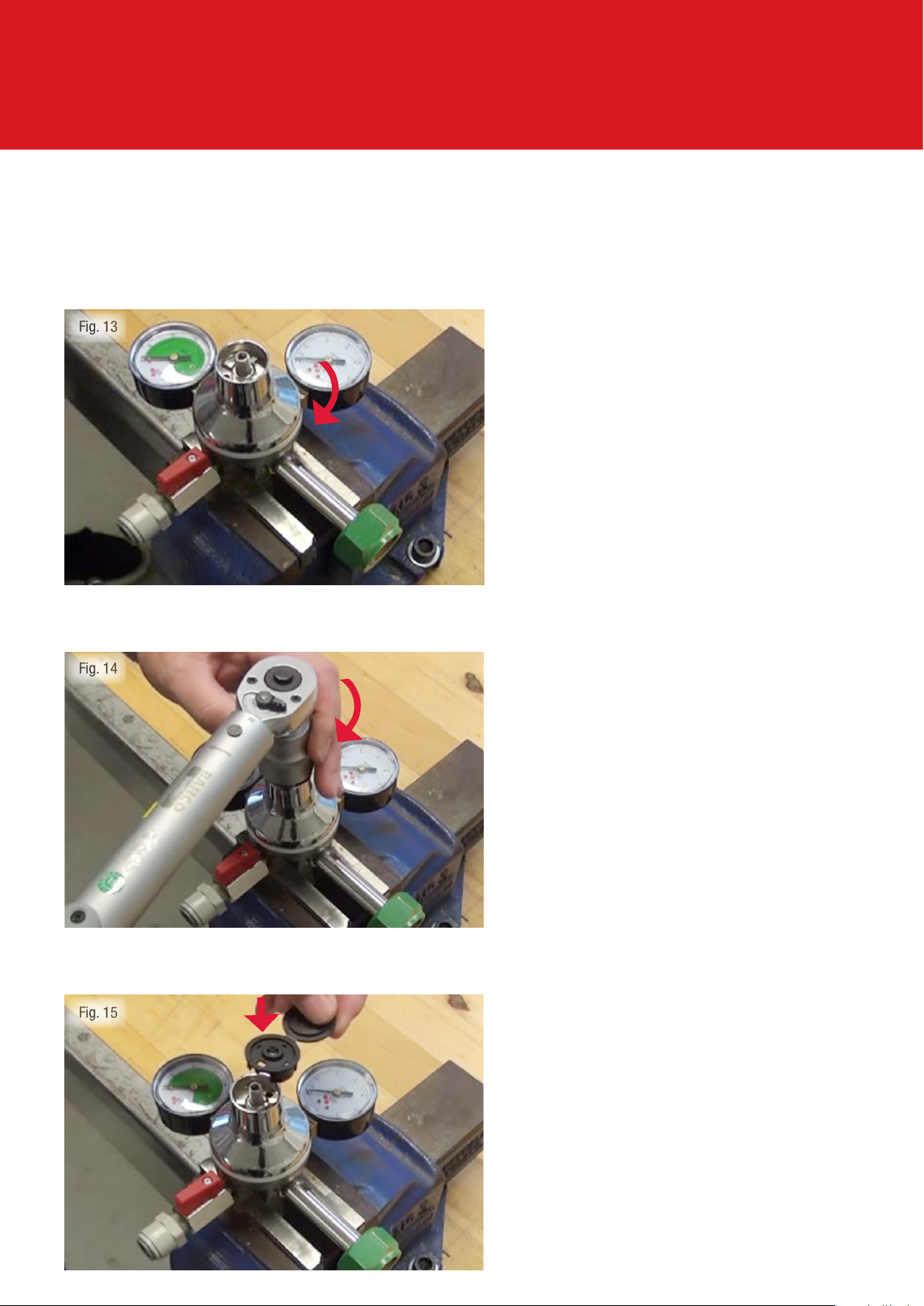

Mounting of PremiumPLUS
Mount the bonnet by hand, to make sure
the thread has the correct alignment.
Tighten the bonnet by using the tool [5].
and a torque wrench (tightening torque
30 Nm).
Adjust the work-pressure and mount the
new lid [1].
Fig. 13
Fig. 14
Fig. 15
PremiumPLUS
