Microgate WITTY Manuel utilisateur
User Manual
Manual version 1.0
Firmware version 1.06.12
Microgate Srl P. 2 / 89
Contents
1Device Functions and Major Features.........................................................................................................................5
1.1 Contents of the Kit................................................................................................................................ 6
2Main Functions .....................................................................................................................................................................7
2.1 Witty Timer........................................................................................................................................... 7
2.1.1 Switching On.............................................................................................................................. 8
2.1.2 Switching Off.............................................................................................................................. 8
2.1.3 Reset .......................................................................................................................................... 8
2.2 Photocells ............................................................................................................................................. 9
2.2.1 Mounting Photocells and Reflectors on Tripods ..................................................................... 10
2.2.2 LED Statuses and Colors .......................................................................................................... 11
2.2.3 Paired Photocells ..................................................................................................................... 12
2.3 Radio Transmission............................................................................................................................. 14
2.4 Elements of the Graphical User Interface .......................................................................................... 15
2.4.1 Virtual Keyboard...................................................................................................................... 19
2.4.2 The Start (STA) and Stop (STO) Keys........................................................................................ 20
2.4.3 The Lock Key (LCK)................................................................................................................... 20
2.4.4 Icons on the Header Bar .......................................................................................................... 21
2.5 Power Supply and Charging................................................................................................................ 22
3Quick Setup: how to quickly carry out your first test........................................................................................ 23
4Test Types:........................................................................................................................................................................... 28
4.1 Basic.................................................................................................................................................... 28
4.1.1 In Line ...................................................................................................................................... 29
4.1.2 Go & Back ................................................................................................................................ 33
4.1.3 Shuttle with Recovery.............................................................................................................. 34
4.2 Multistart............................................................................................................................................ 35
4.2.1 Configuring the Photocells ...................................................................................................... 35
4.3 Counter............................................................................................................................................... 39
5Functions of the Witty Timer....................................................................................................................................... 42
5.1 Test ..................................................................................................................................................... 43
5.1.1 Simple Test .............................................................................................................................. 44
5.1.1.1 New.................................................................................................................................. 47
5.1.1.2 Delete Event .................................................................................................................... 47
5.1.1.3 Ranking ............................................................................................................................ 48
Microgate Srl P. 3 / 89
5.1.1.4 Options ............................................................................................................................ 49
5.1.2 Preconfigured Test .................................................................................................................. 55
5.1.2.1 Load ................................................................................................................................. 56
5.1.2.2 Sprint Start-Stop: timing of a BASIC In-Line Test............................................................. 56
5.1.2.3 Go & Back: timing of a BASIC Go & Back Test ................................................................. 56
5.1.2.4 Shuttle 5x + 30": timing of a BASIC Shuttle Test.............................................................. 56
5.1.2.5 MultiStart Start-Stop: timing of a MULTISTART Test....................................................... 57
5.1.2.6 Counter 10x: timing of a COUNTER Test ......................................................................... 61
5.1.3 My Tests................................................................................................................................... 62
5.1.3.1 Load ................................................................................................................................. 62
5.1.3.2 Edit................................................................................................................................... 62
5.1.3.3 Delete .............................................................................................................................. 62
5.1.3.4 Cancel .............................................................................................................................. 62
5.1.4 Define New Test ...................................................................................................................... 63
5.2 Results ................................................................................................................................................ 66
5.2.1 Show ........................................................................................................................................ 66
5.2.2 Continue .................................................................................................................................. 66
5.2.3 Sort/Filter................................................................................................................................. 66
5.2.3.1 Sort .................................................................................................................................. 66
5.2.3.2 Filter................................................................................................................................. 67
5.2.3.3 Reset Filter....................................................................................................................... 68
5.2.4 Delete ...................................................................................................................................... 69
5.3 Athletes .............................................................................................................................................. 70
5.3.1 Show ........................................................................................................................................ 70
5.3.2 Sort .......................................................................................................................................... 71
5.3.3 Delete ...................................................................................................................................... 71
5.3.4 Cancel ...................................................................................................................................... 71
5.4 Settings ............................................................................................................................................... 72
5.4.1 Radio........................................................................................................................................ 73
5.4.1.1 Verify Signal ..................................................................................................................... 73
5.4.1.2 Frequency ........................................................................................................................ 74
5.4.1.3 Photocell Mode ............................................................................................................... 75
5.4.2 Display ..................................................................................................................................... 77
5.4.2.1 Brightness ........................................................................................................................ 77
Microgate Srl P. 4 / 89
5.4.2.2 Screen Time-Out.............................................................................................................. 78
5.4.3 Sound....................................................................................................................................... 79
5.4.4 Date & Clock ............................................................................................................................ 80
5.4.4.1 Set Date ........................................................................................................................... 80
5.4.4.2 Set Time ........................................................................................................................... 81
5.4.4.3 Date/Time Format ........................................................................................................... 81
5.4.5 Units......................................................................................................................................... 83
5.4.5.1 Measurement Unit: ......................................................................................................... 83
5.4.5.2 Precision .......................................................................................................................... 84
5.4.5.3 Speed ............................................................................................................................... 84
5.4.6 Language.................................................................................................................................. 85
6Connecting to a PC via Witty Manager ..................................................................................................................... 86
7Technical Data.................................................................................................................................................................... 87
7.1 Witty Timer......................................................................................................................................... 87
7.2 Photocell............................................................................................................................................. 88
Microgate Srl P. 5 / 89
1DEVICE FUNCTIONS AND MAJOR FEATURES
WITTY is a training timing system ideal for all sports where assessing athletic performance through sprint,
speed, endurance, reaction, shuttle tests, etc. is essential.
Thanks to the timer and photocell-integrated radio system (which do not require special official
authorization), the large color display, the modern user interface featuring icons, and the practical padded
backpack, setup and use is extremely easy and fast.
The system is largely expandable with the possibility to add (single or double) photocells for intermediate
times, accessories such as starting pads, time displaying LED boards, direction indicators, etc.
The kit comes with a free Windows software (which can be downloaded from our website) called Witty
Manager for importing data of performed tests and viewing it in numerical tables and graphs, managing a
complete athlete personal data base (transferring the athlete's picture to the timer for fast identification),
creating customized test types and updating the timer and photocell firmware.
Microgate Srl P. 6 / 89
1.1 CONTENTS OF THE KIT
Basic kit (art. £WIT001):
1 Witty timer
2 photocells
2 reflectors
4 tripods
1 backpack
1 wall power supply (with 4 different plugs for all world standards ) + 3 USB cables for charging the
timer and 2 photocells simultaneously
1 USB-PC cable
1 USB memory stick containing Witty manuals and Witty manager software
1 cord
The kit can be expanded purchasing more photocell and reflector pairs with tripod ('Lap Time Kit', art.
£WIT002) for managing more lap times.
Both kits (Basic and Lap Time) are available with a 'Double Photocell' option (see chapter 2.4; the relevant
article codes are £WIT003 and £WIT004)
Microgate Srl P. 7 / 89
2MAIN FUNCTIONS
2.1 WITTY TIMER

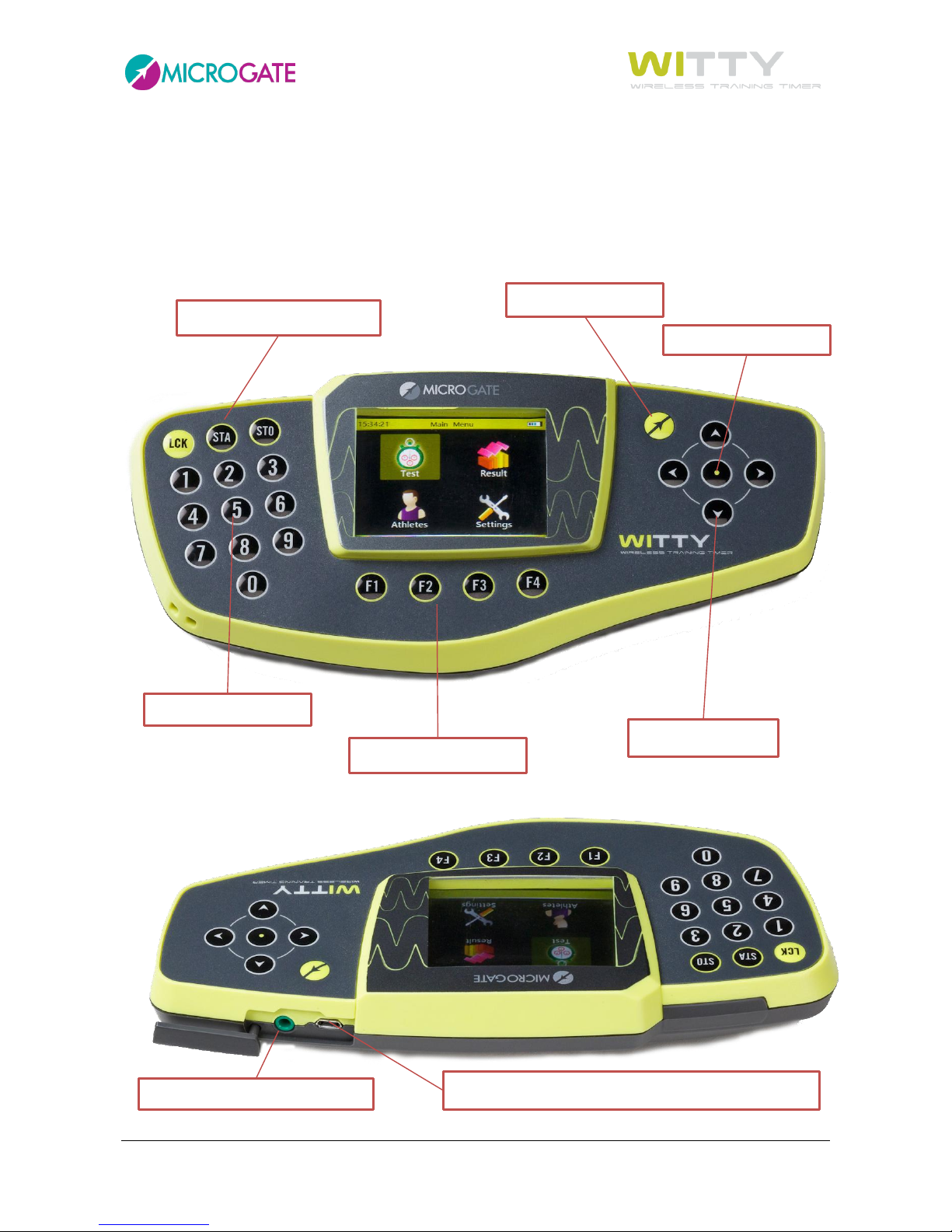

The figure below shows the main parts of the Witty timer, which will be explained hereafter.
Confirmation key
MICROGATE key
LOCK, START and STOP
keys
Numeric keypad
Function keys F1 to F4
Keypad navigator
USB connector for charging and connecting to a PC
3.5mm jack for external inputs
Microgate Srl P. 8 / 89
2.1.1 SWITCHING ON
To switch on the Witty timer press the <Microgate> key. After a few seconds required by the boot loader,
a screen is displayed showing the installed firmware version. Press any key to go to the Main Menu.
2.1.2 SWITCHING OFF
From any screen press the <Microgate> key and hold it for 5 seconds.
Another screen prompts to confirm switching off the timer. Press <F1> to confirm or <F4> to cancel.
2.1.3 RESET
If the timer does not respond to any command, press the <Microgate> key and hold it for at least 10
seconds. When the key is released, the device will be reset and switched off. Press the key again to switch
on.
Microgate Srl P. 9 / 89
2.2 PHOTOCELLS
To switch on the photocell press the ON button for one second; the status LED blinks with a green light (if
the battery status is sufficient) or with an orange light (if the battery status is low). A continuous beeping
sound is produced until the correct alignment with the reflector (or a similar reflecting surface) is found.
To switch off the photocell press the button until the LED turns red, then release it.
ON/OFF button
USB connector for charging
and updating the firmware
3.5mm jack for photocell
pair and external inputs
Status Led
Microgate Srl P. 10 / 89
2.2.1 MOUNTING PHOTOCELLS AND REFLECTORS ON TRIPODS
To mount the photocells and the reflectors on the tripods supplied with the kit, proceed as follows: remove
the little platform from the top of the tripod and screw it onto the photocells and under the reflectors (the
platform is square-shaped and therefore allows 4 mounting directions with respect to the tripod). Mount
the devices onto the top of the tripod inserting the front of the platform, and then the rear until the tab
clicks into place.
