3
2 x rubber tyres
1 x vacuum formed ABS spinner
1 x prole pilot gure
1 x ~4m rigging wire
10 x rigging crimps
2 x piano wire control rods
2 x 150mm carbon bre tube
1 x 100mm x 1.5mm carbon bre rod
2 x 500mm x 1.0mm x 0.4mm carbon bre strip
10 x 4mm x 1mm neodymium magnets
1 x 5mm x 5mm magnetic sheet
2 x 140mm x 4mm clear plastic tube
1 x 20mm x 4mm clear plastic tube
1 x 100mm x 3mm clear plastic tube
2 x 3D printed engine parts
1 x 3mm x 1mm neodymium magnet

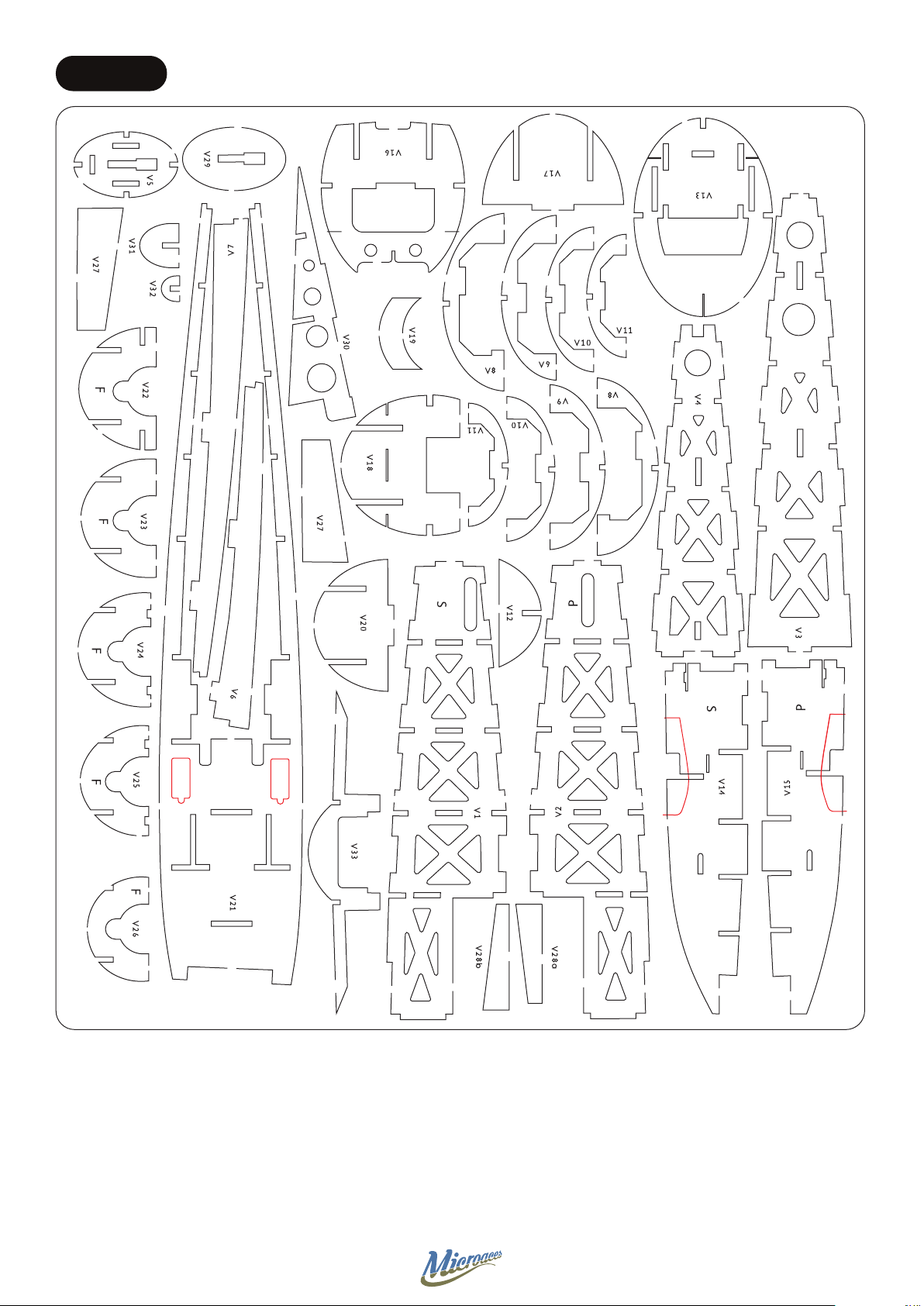

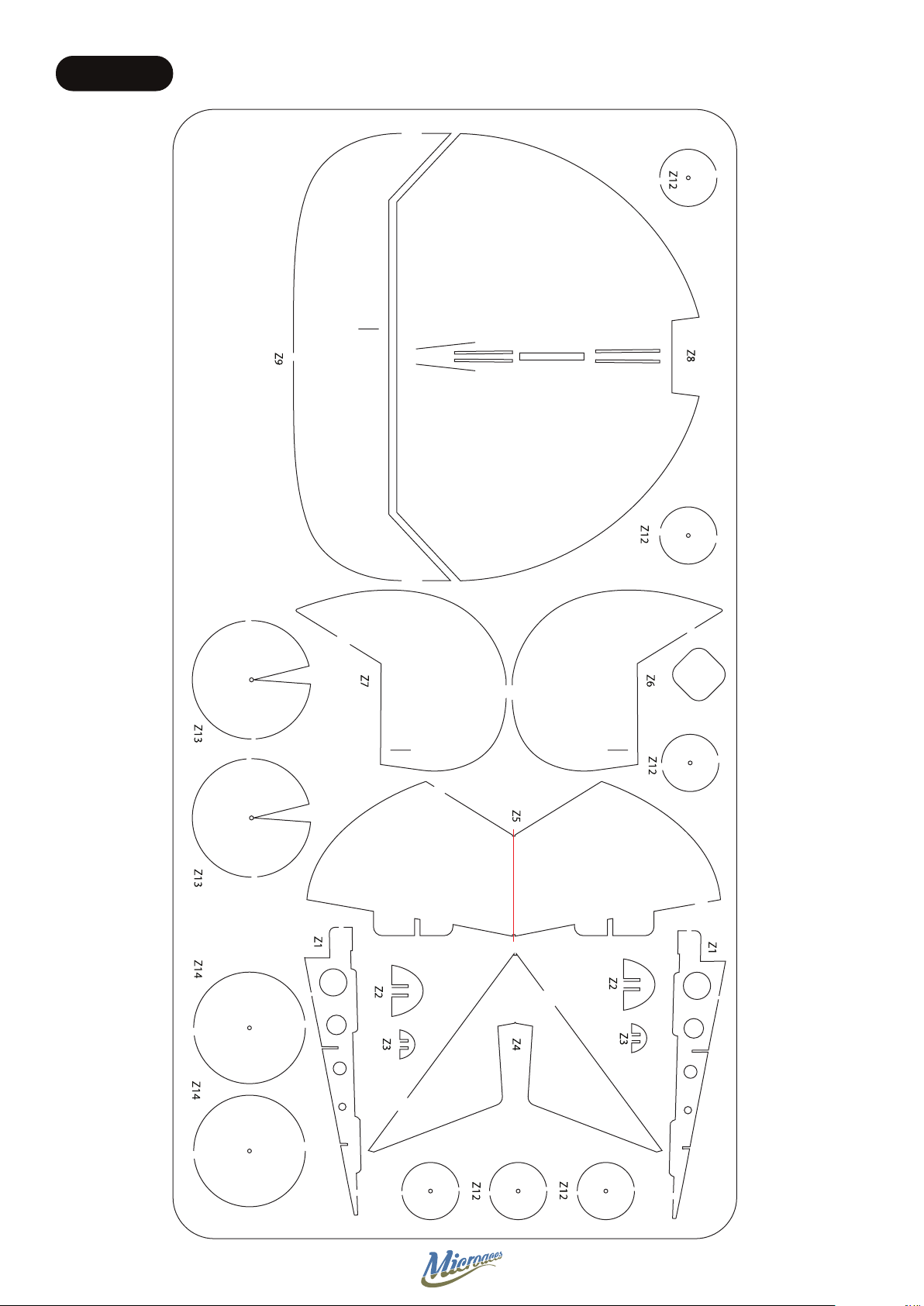

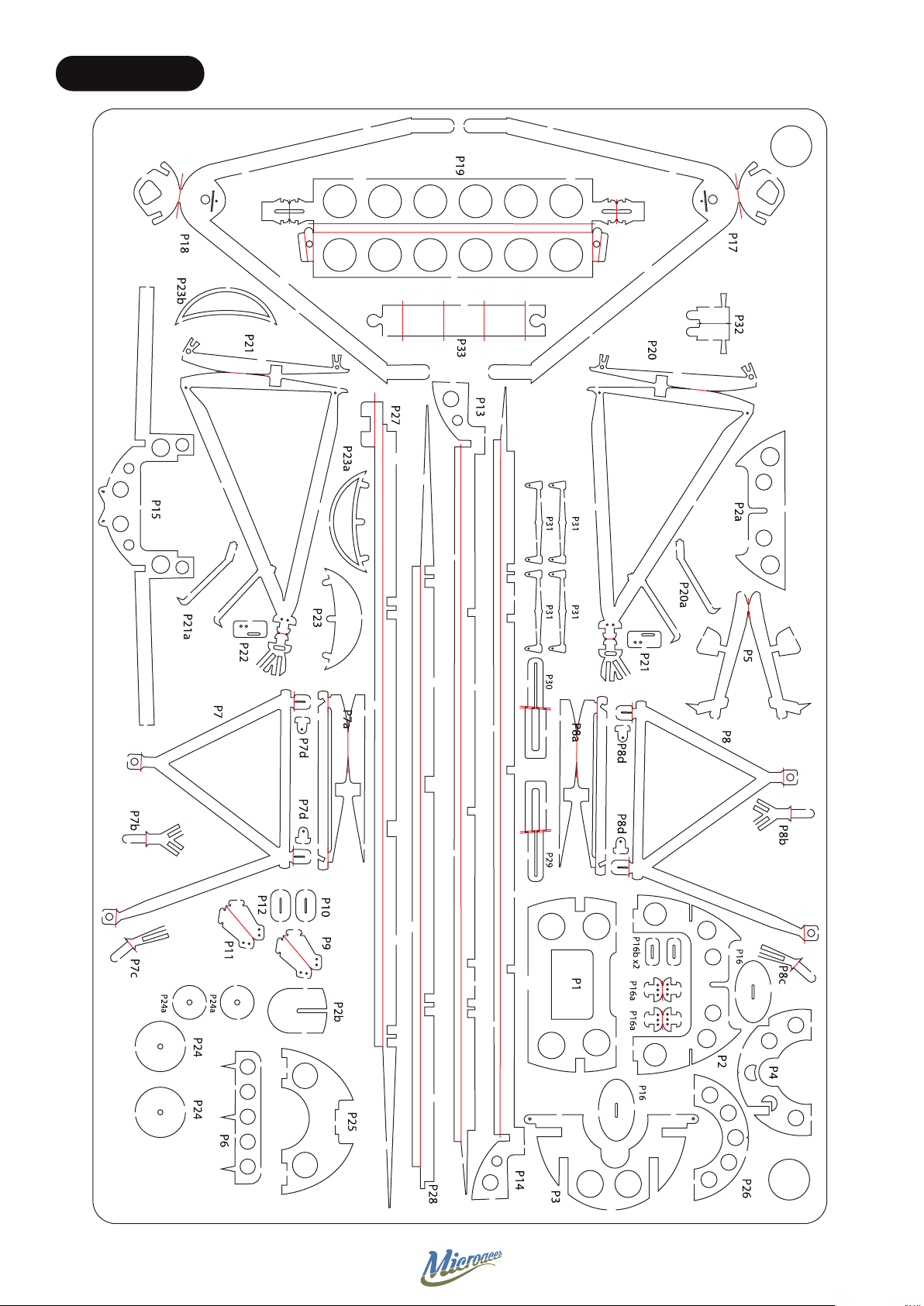

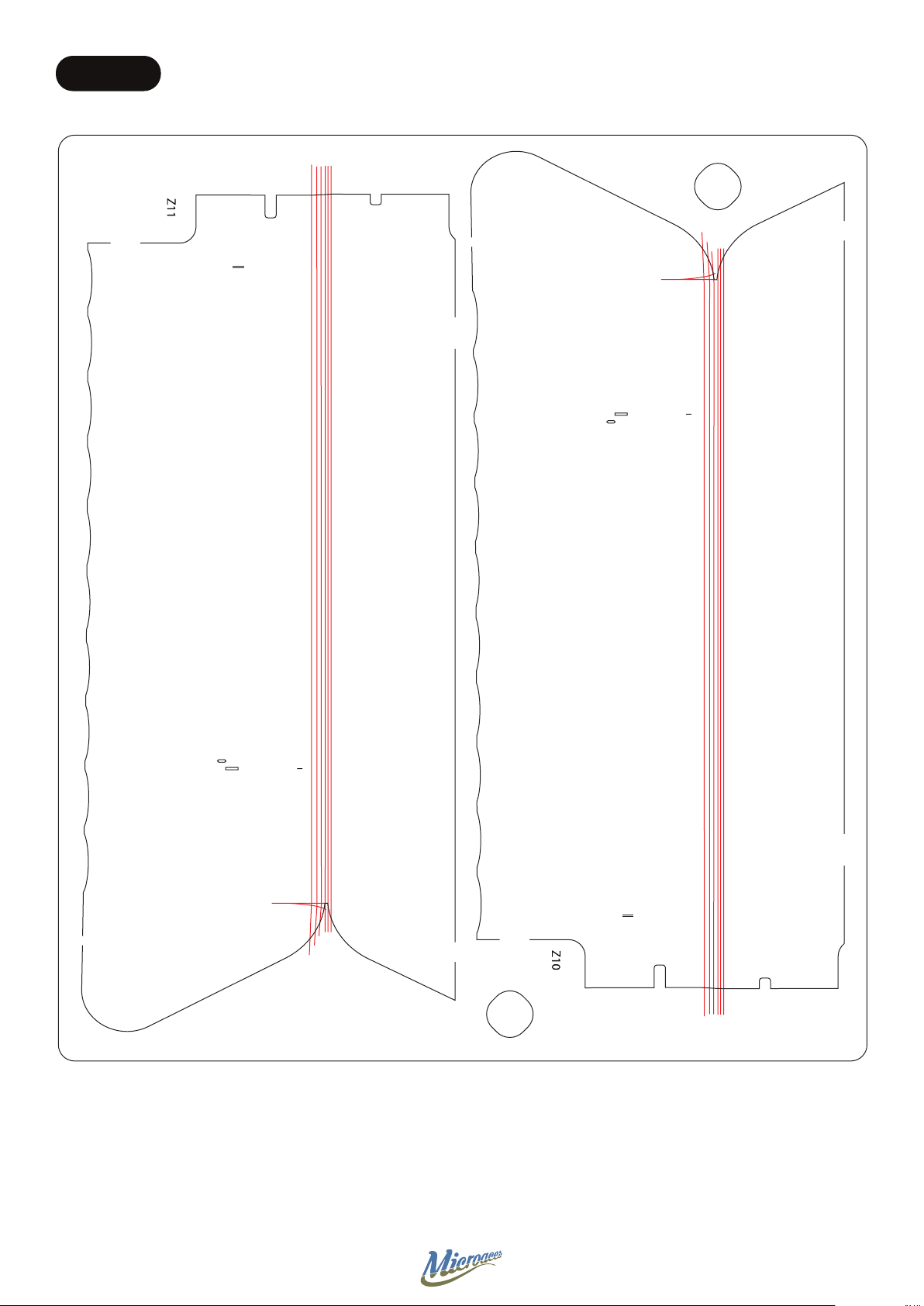

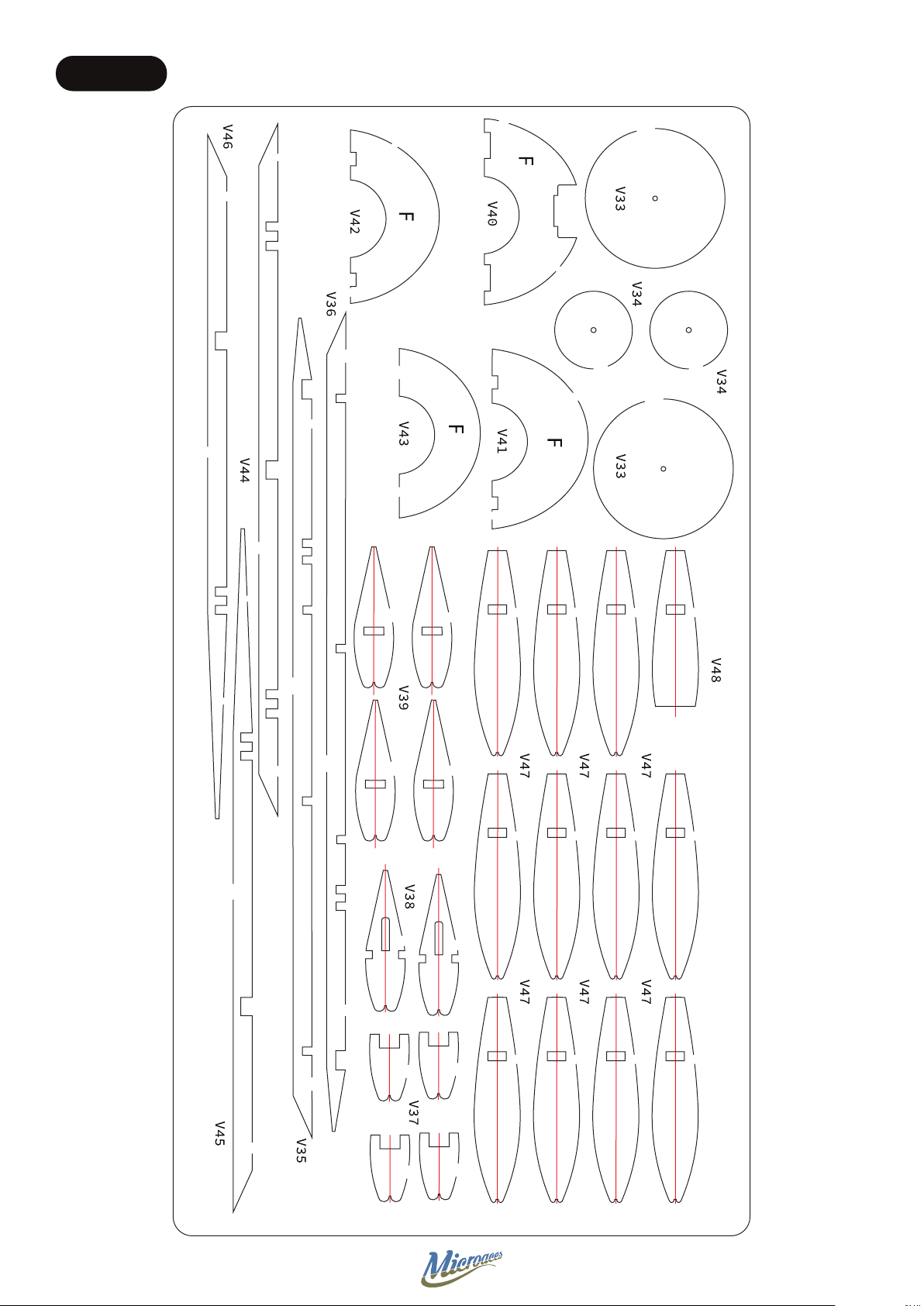

Sheet Parts 2 x 2mm laser cut foam airframe

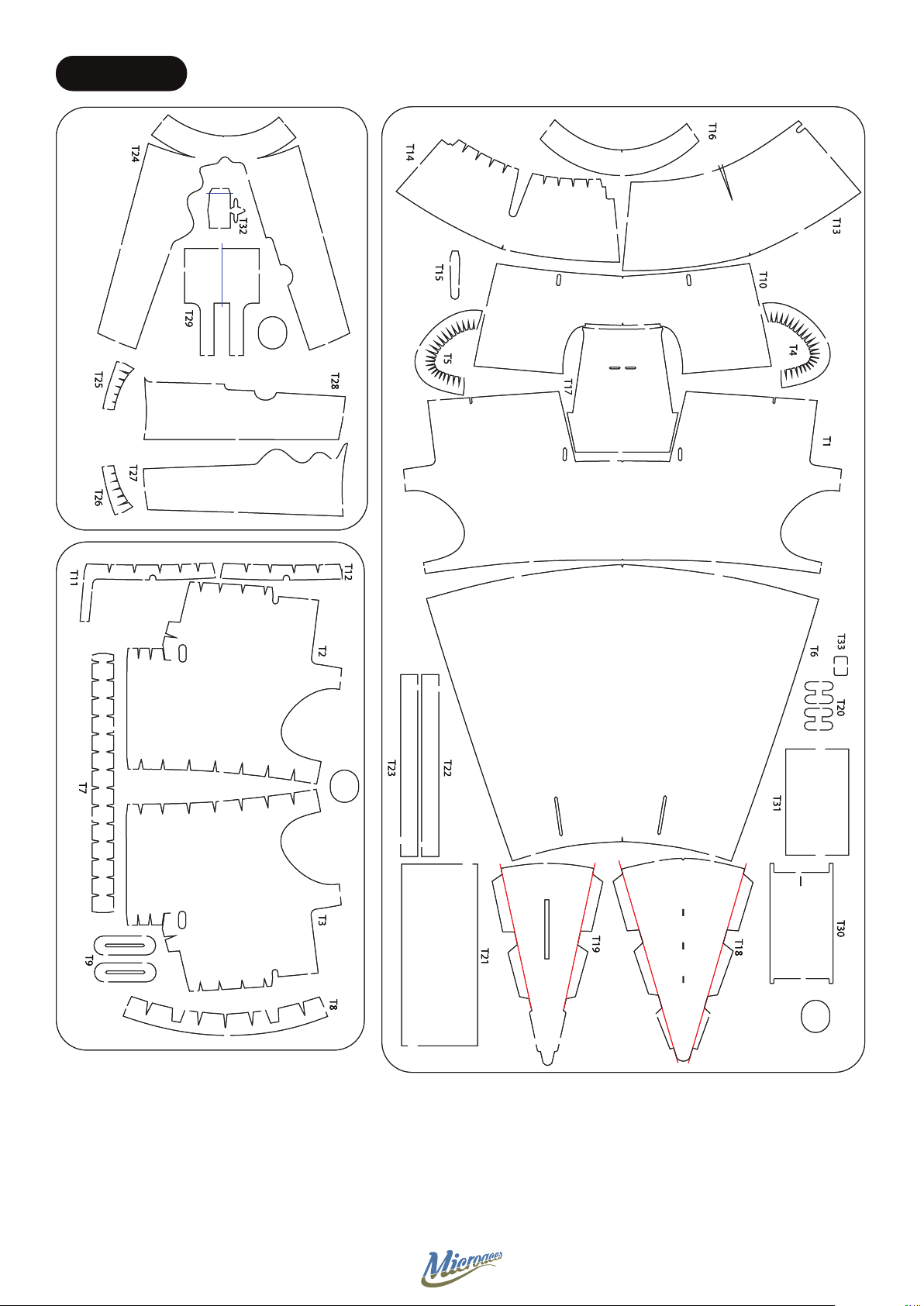

3 x printed & laser cut Tyvek fuselage parts
3 x printed & laser cut wing & tail parts
1 x 200 micron printed & laser cut polypropylene parts
1 x printed & cut polyester sticker parts
1 x 0.8mm laser cut plywood parts
Loose Parts
Knife or Scalpel with fresh blade
Steel Rule or straight edge
Sanding Stick or sand paper (180 grit recommended)
Tweezers
Needle threader or Microaces Rigging Tool
Needle nose pliers & wire cutters
Deluxe Materials Foam 2 Foam adhesive
Aliphatic Resin or Foam safe cyano glue (for rigging & re-inforcement)
Paintbrush handle or dowel (for shaping Tyvek)
RECOMMENDED TOOLS/GLUES
KIT PARTS
At the beginning of each STAGE within this guide there is a QR code. If you scan using a smart
device (printed copy) or click (digital copy) this code, you will be able to view the build video that
relates to the stage of the assembly. The videos contain important information, hints and tips that
are designed to assist with the building process.
Try scanning or clicking on the QR code here to view the Video Introduction.
INTRODUCTION
Click here to view
build video
