Micro Wireless Link
User Manual
Before using this device, please read these instructions carefully.
2
Important Tips Before Using
Regarding Infrared (IR) Transmittal
Your new keyboard communicates with your PDA through IR technology (Infrared).
To function properly, the two devices need to see each other. For most PDAs,
the IR receiver is located at the top and cannot be seen by the keyboard.
For this situation use the PDA Stand included in your package. See Setting up the
PDA Stand — Page 9.
Beaming While Typing
You cannot beam or Hotsync“ while the keyboard is enabled. See Enabling the
PDA Keyboard under User Setup Procedures —Page 7.
Switch Off Your PDA Before Closing the Keyboard
You should turn the PDA off or remove the keyboard from the line of sight of the
IR before closing the keyboard. Not doing so may cause the PDA to freeze as
transmissions may occur as the keys are depressed while closing. Should the
PDA freeze while closing simply open the keyboard, position it for line of sight and
tap the Function key.
Use of Trademarks
Pocketop is a trademark of Pocketop Computer Corporation.˚Palm OS and Palm are
registered trademarks of Palm, Inc. PocketPC is a trademark of Microsoft
Corporation. Other products or service names mentioned herein are the trademarks
of their respective owners.˚
3
Table of Contents
Welcome ... 4
Keyboard Layout ... ... 5
User Setup Procedures .. 6
Enabling The PDA Keyboard 7
Setting up the PDA Stand.. . 9
Storing The PDA Stand 10
Pocket Computer System Setup (Palm V and m500 series only) 11
Using The Stand As A Protective Cover (Palm V Or 500 Series) 15
Quick Setup ... 16
Keyboard Shortcuts .. 17
Calculator functions (Palm OS)... .. . 18
Keyboard Functions for Palm Users
Palm General Settings. 19
User Programmable Shortcuts. .. 20
Inserting Accents . . 21
Adding Characters, symbols and punctuation marks ... 22
Keyboard Functions for PocketPC Users
Extended Character Set ... 23
Calculator functions and Other Combination keys 24
Customizing your keyboard . 25
Function Keys or Quick Launch Keys 26
Customizing the Quick Launch Keys, Text Macros and Date and Time 27
Keyboard Maintenance, Battery Life and Technical Support 28
Warranty Information . . 29
FCC Statement . . . . 30
4
Welcome
Congratulations on your purchase of The Micro Wireless Link Keyboard. Your new
keyboard allows you to enter into and retrieve data from your PDA more quickly and
with less effort than with a stylus.
Product Features and Benefits:
Quickly and efficiently enter data.
Access important applications directly from your keyboard.
Utilize function keys to enter commands.
Create your own shortcut keys.
Compatible with the Following PDAs
PDAs with Palm OS version 3.x to 4.0:
Palm III, IIIx, IIIe, IIIc, V, Vx, VII, VIIx, m100, m105, m125, m500, m505, i705
HandSpring Visor, Deluxe, Edge, Prism, Platinum*
IBM WorkPad Companion, IBM WorkPad C3 PC Companion
Sony Clie **
Symbol 1700
PocketPC 2000 and PocketPC 2002 handheld devices (screen rotation not available):
Compaq iPaq (All Models)
HP Jornada (All Models)
*(Retractable reflector not required — see Setting up thePDA Stand — Page 9)
**(all models, however screen rotation is not available)
5
Keyboard Layout
Numbers, Punctuation and PDA Functions
In order to make your keyboard as small as possible, the number and punctuation
row has been removed. To type a number, punctuation or to call up a PDA function,
hold down one of the matching function keys on the bottom row.
Key Color Function
Num & Numlock Red Number Keys
Function Blue PDA Stylus Commands
Punct Green Punctuation Keys
Stylus
Holder
Release
Buttons
Battery
Infra Red
Punct FunctionNum & Numlock
6
User Setup Procedures
Opening the PDA Keyboard
Hold the folded PDA keyboard and press the release buttons located on both sides of
the PDA keyboard. The keyboard will open like a book.
Installing the Battery
1. Open the battery compartment located on top of the keyboard.
2. Insert the AAA battery as per the diagram in the upper right of the battery
compartment.
3. Close the battery compartment.
Important: Use only AAA alkaline battery. Do not use manganese batteries. The
battery is not rechargeable.
Installing the Software
Palm OS
1. HotSync your PDA to back-up your information and insert the software
installation CD into the CD-ROM drive.
2. Closing the CD tray will automatically run the installation software on your PC.
3. Follow the instructions displayed on your screen.
PocketPC
1. ActiveSync your PDA to back-up your information and insert the software
installation CD into your CD-ROM drive.
2. Closing the CD tray will automatically run the installation software on your PC.
3. Follow the instructions displayed on your screen.
Important: If the Installer does not start after inserting the CD, do the following:
1. Go to the Start Menu and choose Run.
2. Find the setup.exe file on the CD and choose Open.
7
Enabling the PDA Keyboard
Important: To successfully HotSync or ActiveSync your PDA, you must disable
the PDA keyboard driver.
Palm OS Devices
1. Call up the Applications menu and tap the W-Link Software Icon.

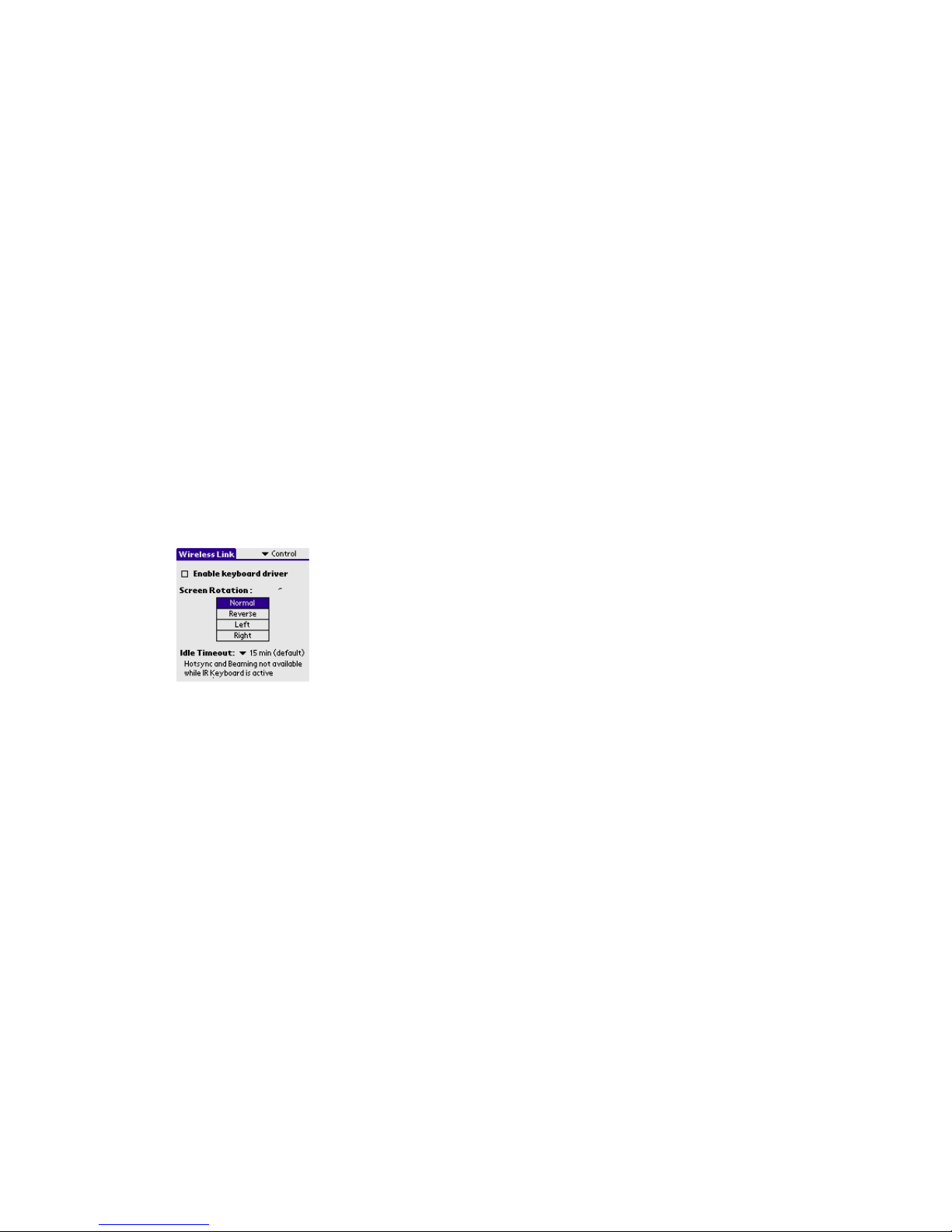

2. The Control screen will appear. See Fig. 1.
3. Click the Enable keyboard driver checkbox. (To disable, uncheck the box)
4. Tap the upper right corner and select Settings from the drop down menu
5. Choose settings to suit your typing style (See General Settings Page 19).
Important Tip: Holding the stylus on the graffiti screen area for 3- 5 seconds,
then lifting, enables and disables the keyboard driver.
Fig. 1
8
PocketPC
1. Tap Start and select Programs .
2. Tap the Wireless-Link Icon.
3. The Main Set-up screen will appear. See Fig. 2
4. Click the Enable Keyboard Driver checkbox. (To disable, uncheck the box)
5. Tap Date and Time and choose the correct settings.
Fig. 2
9
Setting Up the PDA Stand
1. Snap out the PDA support wire at the bottom of the PDA Stand.
2. Pull out the support leg on the back of the PDA Stand and place it on a flat
surface.
3. Place your handheld on the PDA support wire.
4. Pull the retractable reflector out and position it as shown below (Fig. 3).
Congratulations, you are ready to start typing!
Fig. 3
10
Storing the PDA Stand
1. Fold the support leg flat and snap the PDA support wire back onto bottom
of the PDA Stand.
2. Snap the Custom Hinge labeled Keyboard / Stand onto the PDA Stand.
This process is the same as for Stand/Palm connector (See Fig. 15 — Page
15).
3. Slide the other half of the Custom Hinge into the slot of the PDA keyboard
(Figs. 4 & 5).
Fig. 4 Fig. 5
