Assembly Manual
CloudMesh
To ensure your safety, please read the instructions carefully before you begin.
Failure to follow instructions may result in serious
injury or damage to product.
Please note, this product is designed for seating only. Do not
stand on it or use it as a ladder.
Please ensure all bolts and parts are firmly tightened during
installation.
If there is damage to parts please contact your supplier for
repair or replacement.
Do not sit on the armrest.
This chair is designed for single person use with maximimum
130kg load.

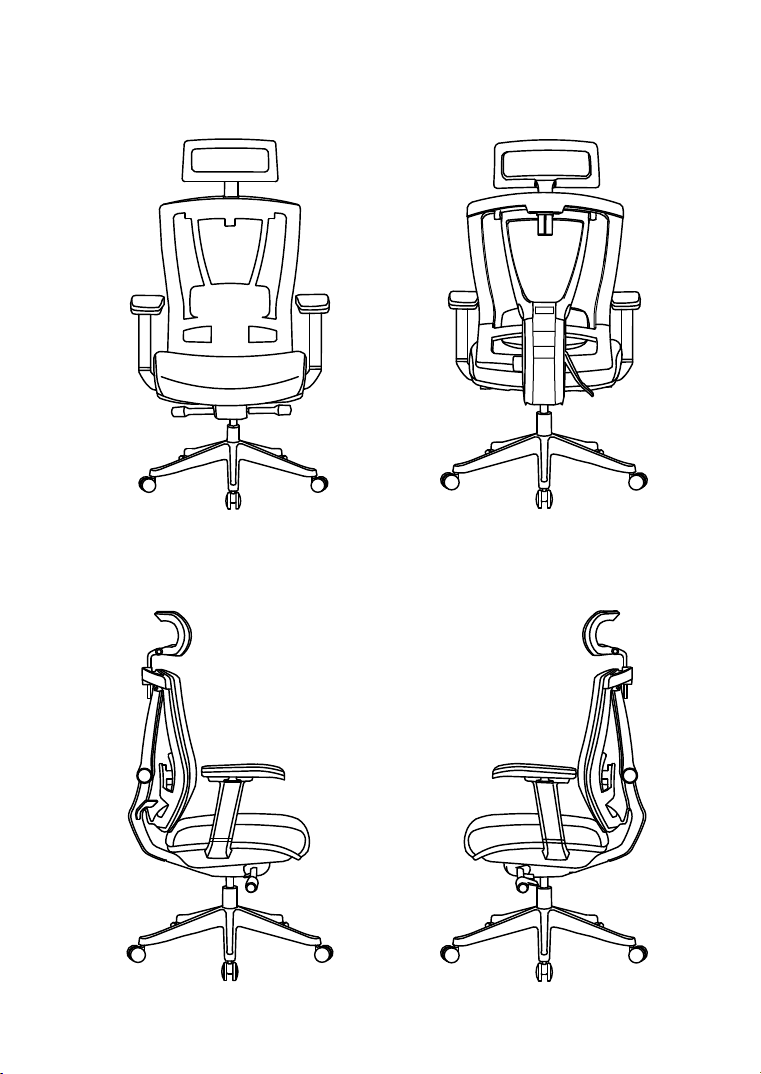

FRONT VIEW BACK VIEW
SIDE VIEW

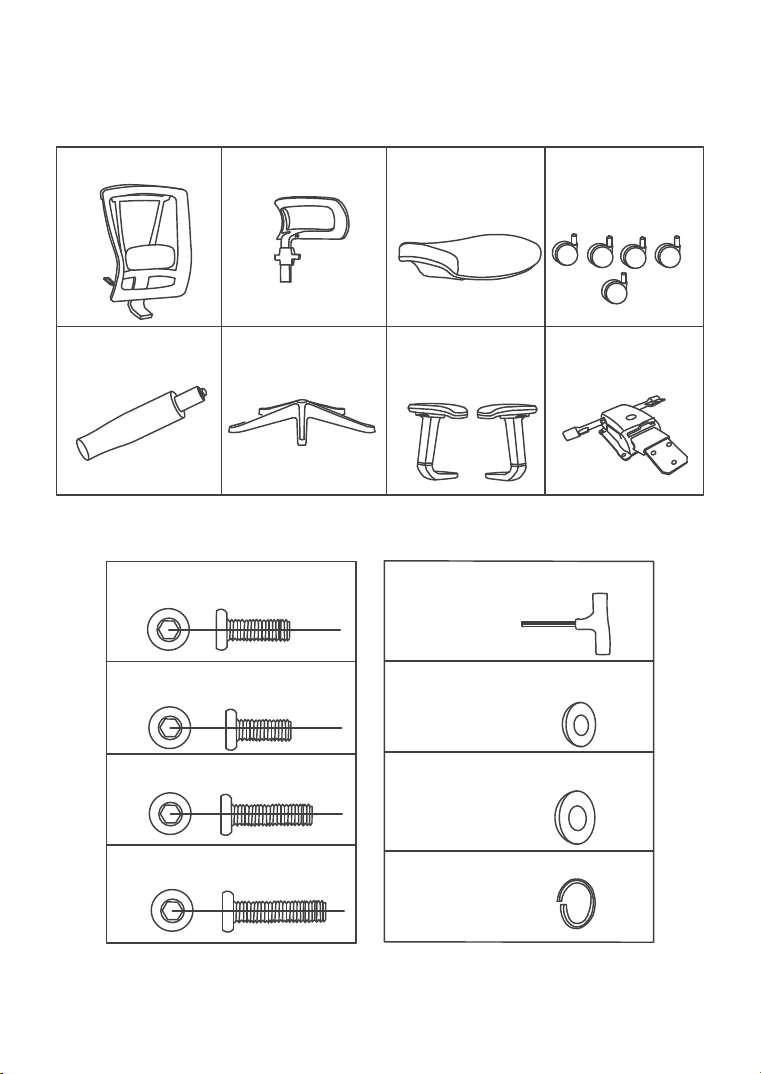

PARTS LIST
(A) Backrest (B) Headrest (C) Seat
(D) Castorsx5
(E) Gas Lift (F) Base (G) Armrest
(H) Control
Mechanism
RL
IX4 Bolt (M8*25mm)
KX7 Bolt(M6*35mm)
LX5 Bolt (M8*60mm)
MX1 Screwdriver
NX7 (Ø6*14*1.5mm)
Washer
OX8 (Ø8*17*1.5mm)
Washer
PX8 (M8)
Spring lock
Washer
JX3 Bolt (M6*22mm)

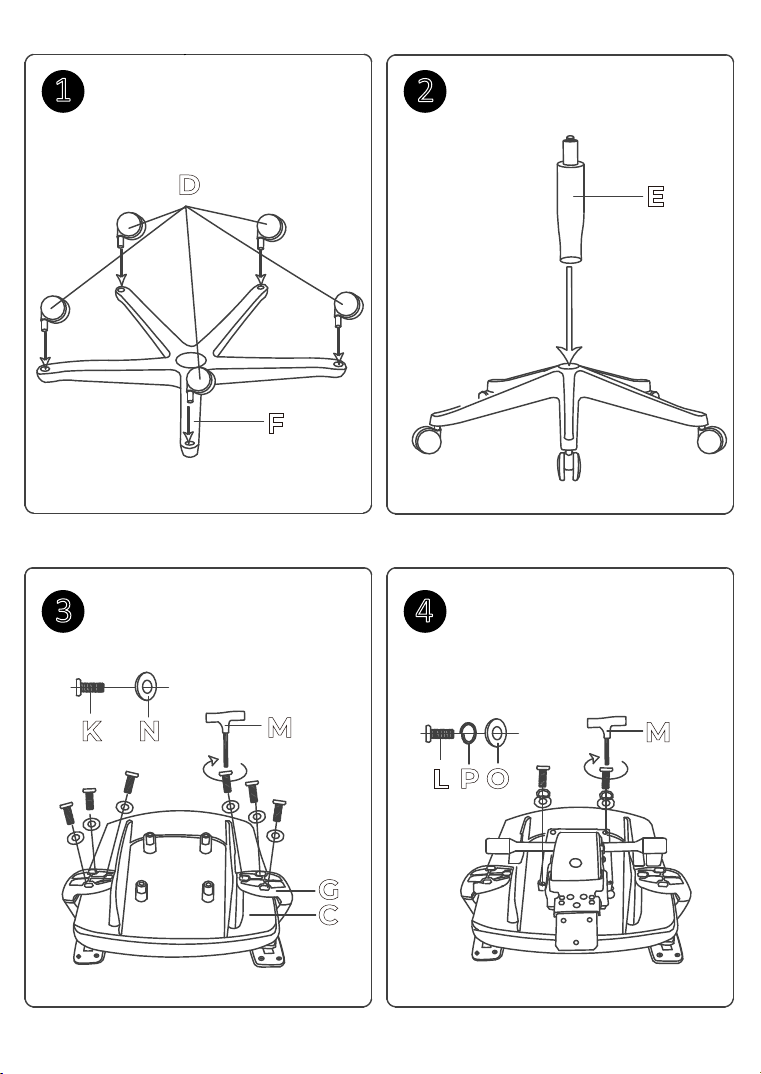

Attach castors to the base Attach gas lift to the base
Tighten the aligned bolts
and washers into holes on
the base using a screwdriver
12
3 4
D
F
E
KNM
G
C
Align and tighten the bolts,
spring lock washers and
washers into holes on the
base using a screwdriver
M
L P O
ow
56

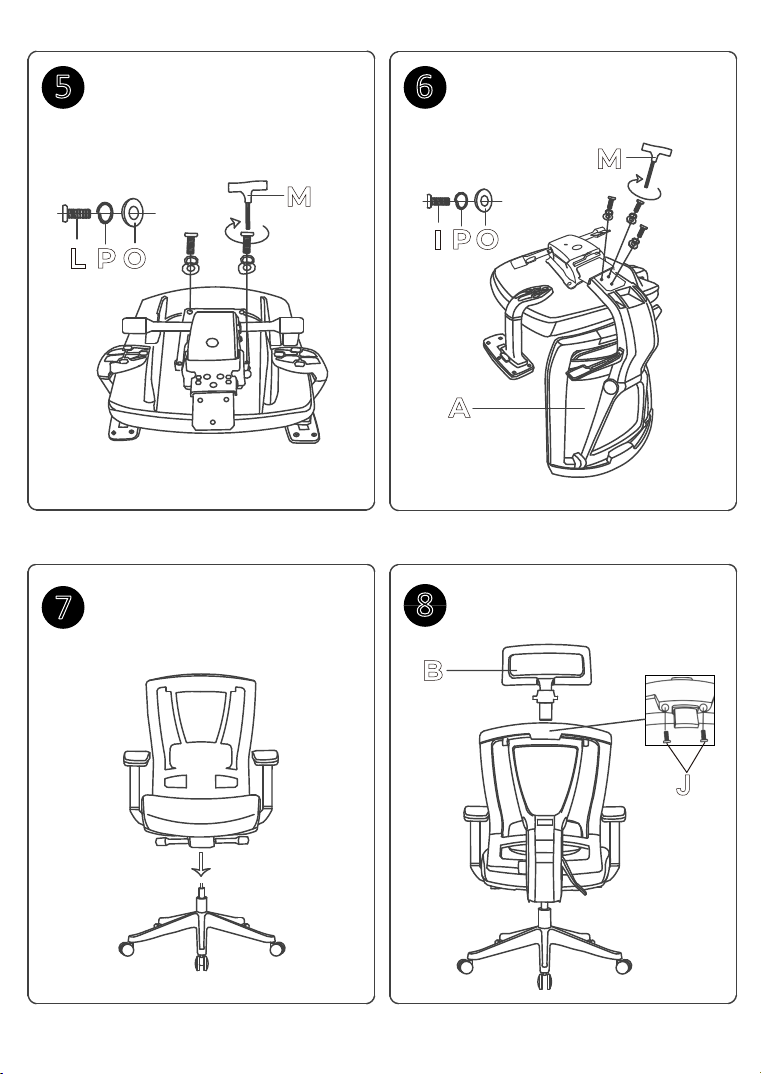

Place two bolts and washers
in to the chair and tighten
Place three screws and
washers at the points shown
below to bind the chair back
to the seat
7
IP O
M
A
8
Attach the seat to the gas lift Attach the headrest to
backrest
B
J
M
L P O
Rotate the handle clock-
wise to increase the back
tilt tension. To decrease the
back tilt tension, rotate the
handle counterclockwise.

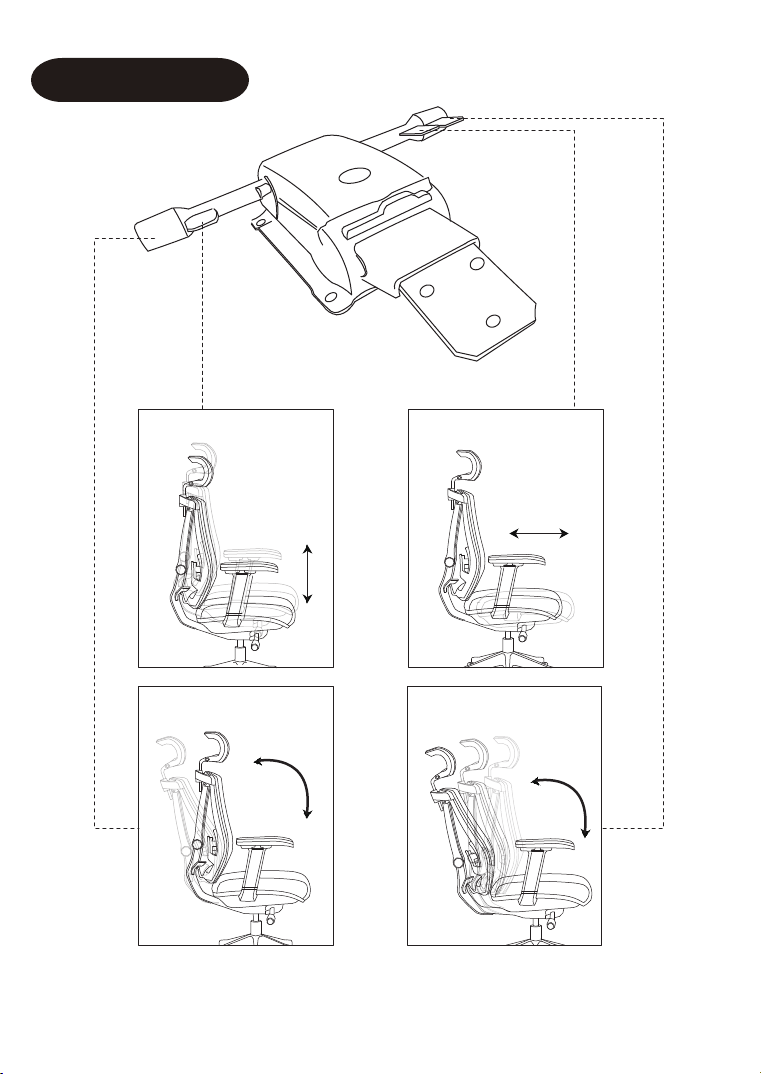

Function Guide

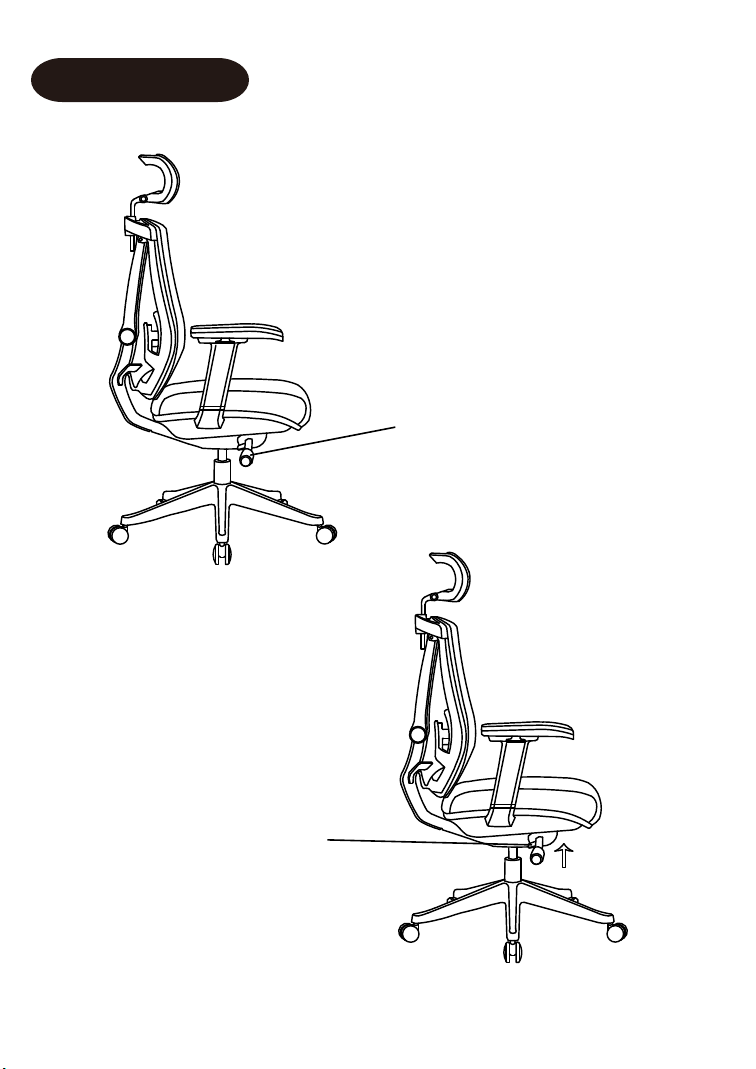

Pull the handle up to
adjust seat height
This handle controls
backtilt angle.
Rotate the handle to
lock or unlock backtilt 60mm adjustable seat depth
Pulling the handle up allows
the seat cushion to move
forward up to 60mm
Release the handle, the seat
will be locked
B
A

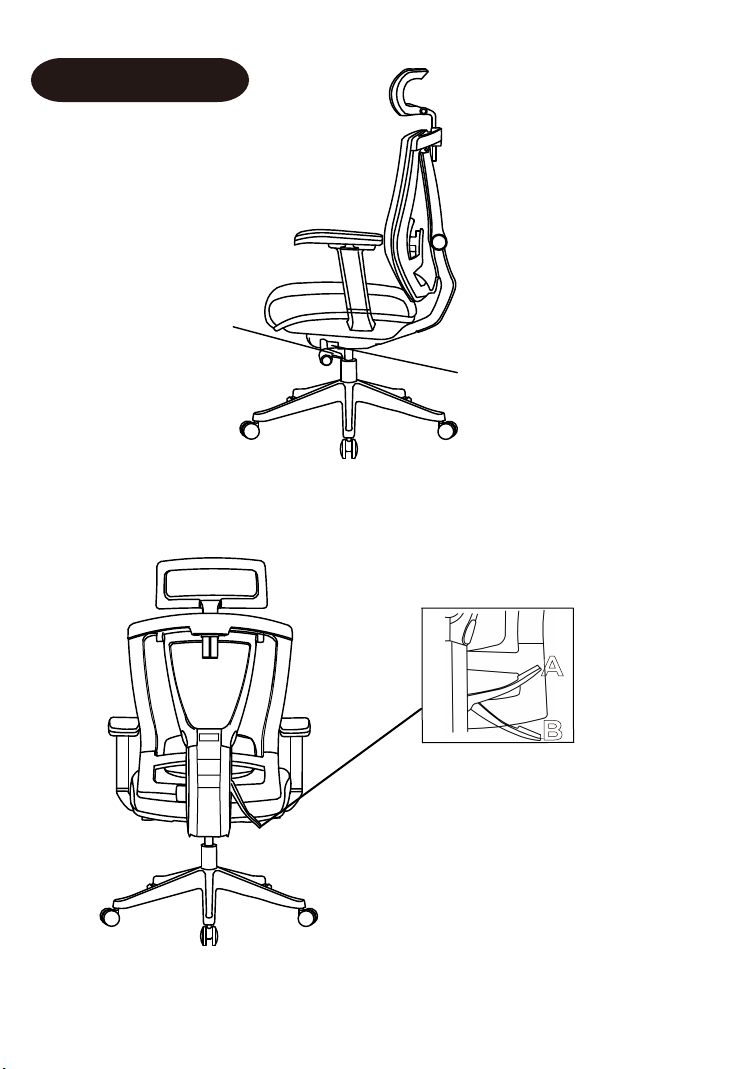

A is locked position
B is unlocked position
This lever act as an additional backrest
adjustment when reclining back. It
enable user to have additional control
to lay lower without compromising
the ergonomic back support
Function Guide

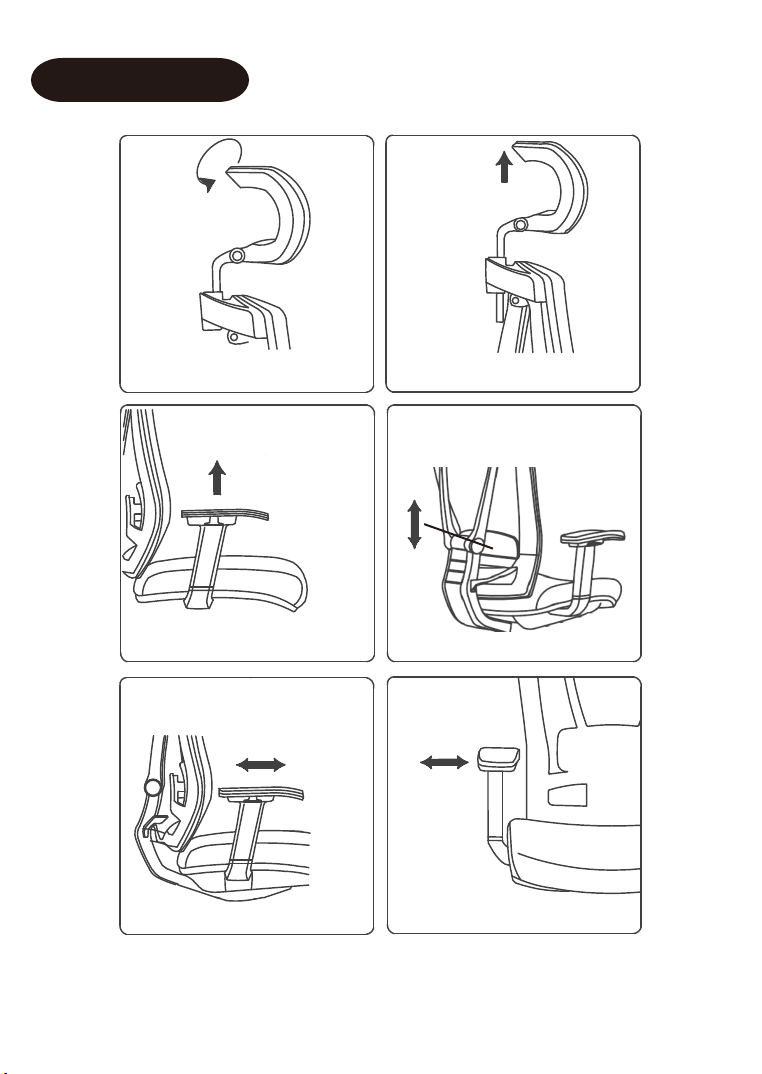

Adjust the headrest
angle up to 45 degrees
Adjust the headrest
height within a 70mm
range
The armrest can be
moved in and out
Press the tabs under the
armrests to adjust them
up and down
The armrest can be
moved back and forth
Lumbar support can
be moved up and down
Function Guide
Seat height
adjustment
Seat depth
adjustment
Backrest tilt tension
adjustment
Backrest tilt angle
lock
Function Guide
