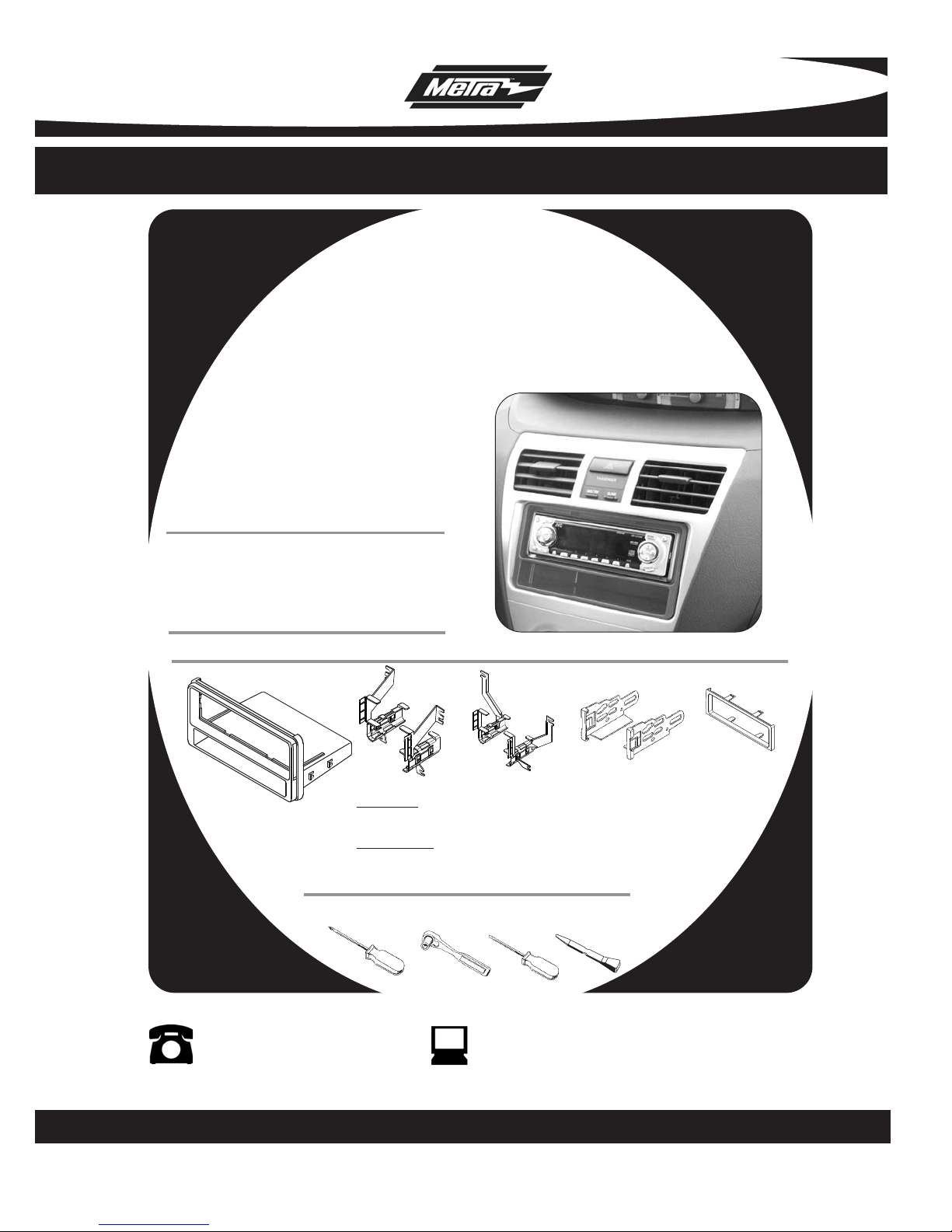

INSTALLATION INSTRUCTIONS FOR PART 99-8216

1-800-221-0932 www.metraonline.com

KIT FEATURES

• DIN Radio Provision with pocket

• ISO Radio Provision with pocket

A) Radio Housing B) Housing Brackets-3 Door C) Housing Brackets-4 Door D) ISO Snap In Brackets E) Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

99-8216

APPLICATIONS

Phillips Screwdriver • Socket Wrench •

Small Flat Blade Screwdriver or

Panel Removal Tool

Toyota

Yaris

2007-2010

(Excludes models equipped with power package)

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Wire harness:

• 70-1761 Toyota 1987-up

• TYTO-01 Toyota amp interface harness 2003-up

Antenna adapter:

• Not required

TABLE OF CONTENTS

99-8216

Dash Disassembly

Yaris 2007-2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Kit Assembly

Din Mount Radio Provision with pocket. . . . . . . . . . . . . . . . . . 2

ISO Mount Radio Provision with pocket. . . . . . . . . . . . . . . . . . 3

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

NOWLEDGE IS

OWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take

steps toward a better tomorrow.

99-8216

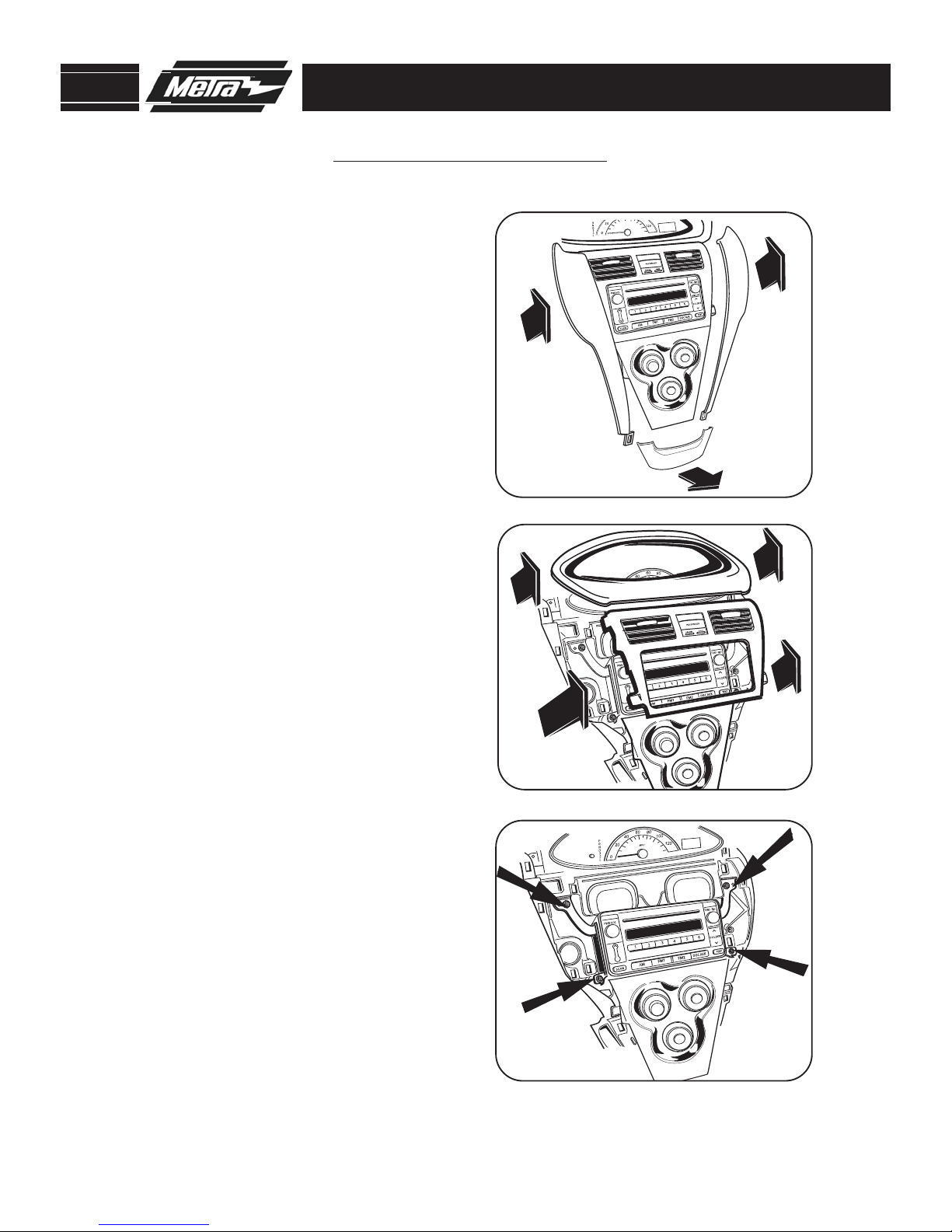

DASH DISASSEMBLY

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip the bottom trim panel located

underneath the A/C Controls.

Figure A)

YARIS 2007-2010

Unclip the two side trim panels that

surround the A/C Controls and Radio.

(Figure A)

Unclip the Instrument trim Panel

surrounding the Speedometer and

gauges.

(Figure B)

Unclip the Radio/AC Vents trim

Panel.

(Figure B)

Remove (4) Phillips screws securing

radio. (Figure C)

Continue to kit assembly.

Unplug and remove radio.

99-8216

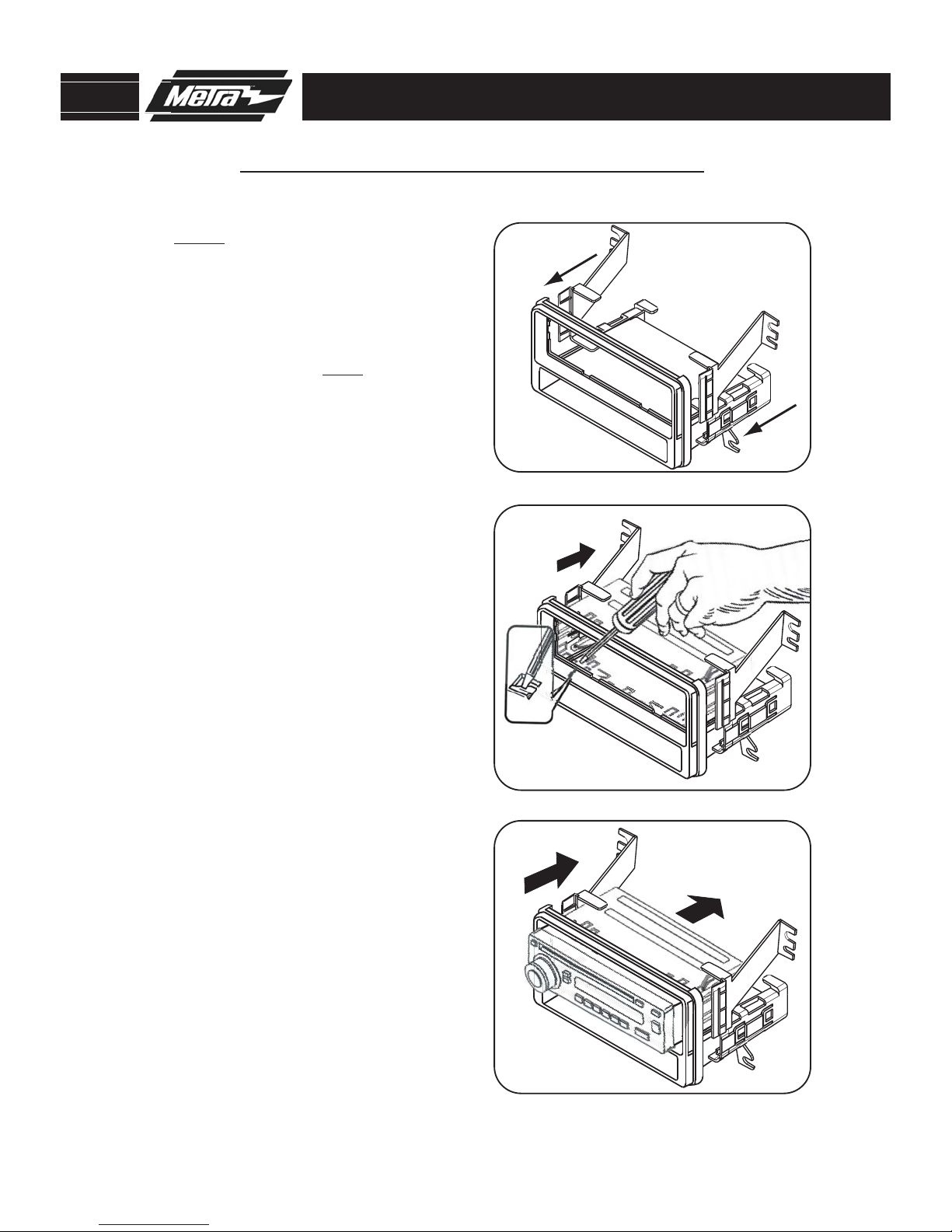

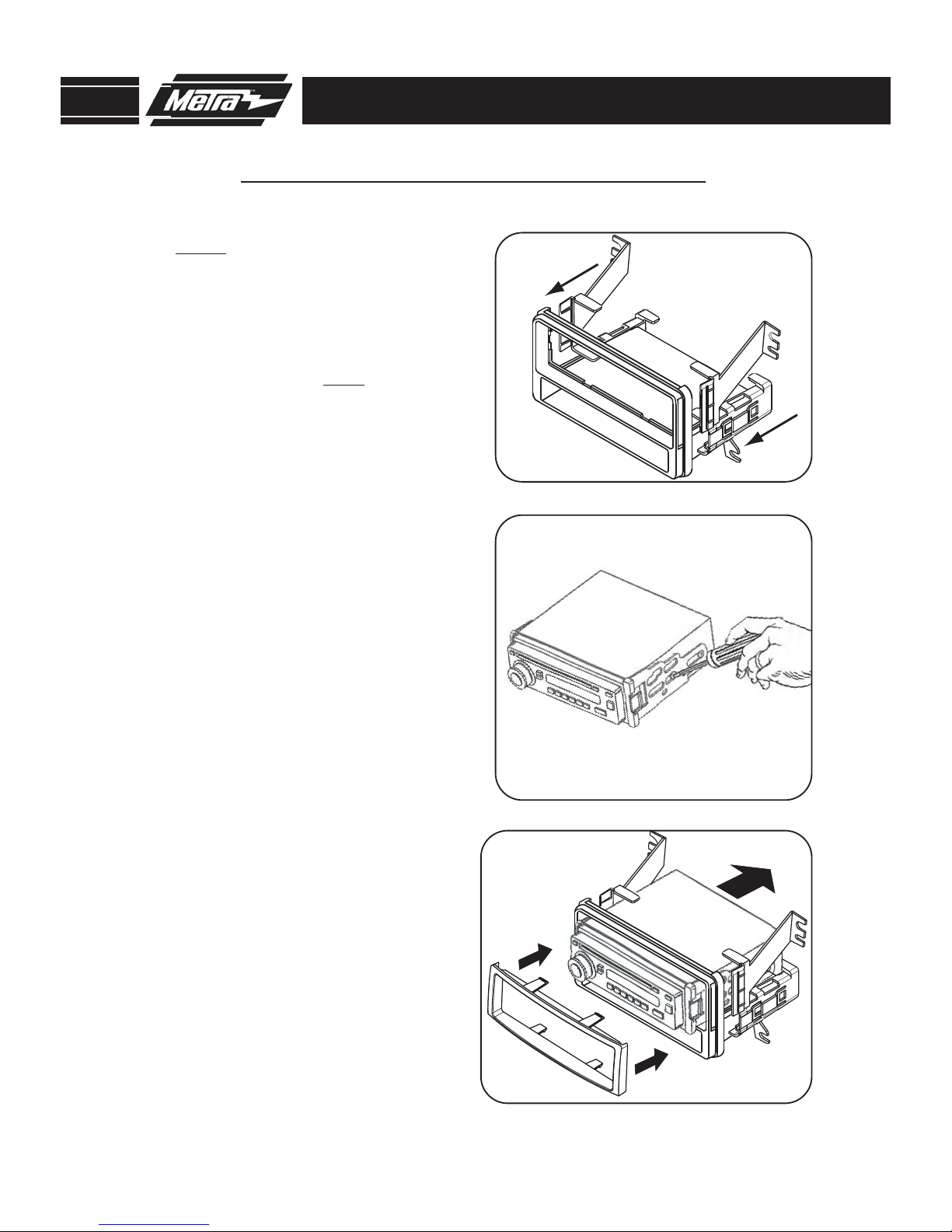

KIT ASSEMBLY

Slide the Mounting Brackets onto the

sides of the Radio Housing until the

side clips engage. Note: Tabs are

marked 8216-3L and R for the 3

door Yaris and 8216-4L and R for the

4 door Yaris. (Figure A)

DIN MOUNT RADIO PROVISION

NOTE: Refer also to the instructions

included with the aftermarket radio.

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs outward.

(Figure B)

Slide the aftermarket radio into the

cage until it snaps into place.

(Figure C)

Continue to final assembly.

99-8216

KIT ASSEMBLY

Slide the Mounting Brackets onto the

sides of the Radio Housing until the

side clips engage. Note: Tabs are

marked 8216-3L and R for the 3

door Yaris and 8216-4L and R for the

4 door Yaris. (Figure A)

ISO MOUNT RADIO PROVISION

NOTE: Refer also to the instructions

included with the aftermarket radio.

Mount the ISO Brackets to the

aftermarket radio using the screws

supplied with the radio. (Figure B)

Slide the radio into the radio opening

until the side clips snap into place.

(Figure C)

Continue to final assembly.

Snap the Trim plate onto the front the

Radio Housing assembly. (Figure C)

FINAL ASSEMBLY

Locate the factory wiring harness in the dash and make the connection as shown.

Metra recommends using the proper mating adapter and making the connections

as shown. (Isolate and individually tape off the ends of any unused wires to pre-

vent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Make wiring connections using the EIA color code chart shown below and the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of any unused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-) . . . . . . Gray / Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

METRA / EIA WIRING CODE

FINAL WIRING CONNECTIONS

99-8216

FINAL ASSEMBLY

99-8216

NOTES

99-8216 INSTRUCTIONS

1-800-221-0932 www.metraonline.com
