INSTALLATION INSTRUCTIONS

95-7393B

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets

A B

Hyundai Accent 2018 up*

KIT FEATURES

• ISO DDIN radio provision

• Painted matte black

*Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................2

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring harness: Please visit metraonline.com

for wiring harness options

Antenna adapter: 40-KI11

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY KIT PREPARATION

1. Unclip and remove the a/c vent trim

panel surrounding the radio. (Figure A)

2. Remove (4) Phillips screws securing the

radio. Slide the radio out, then unplug

and remove the radio. (Figure B)

Continue to Kit Preparation

(Figure B) (Figure B)

(Figure A) (Figure A)

From the factory a/c vent trim panel:

1. Unclip and remove the a/c vents.

2. Remove just (4) panel clips. (Figure A)

To the 95-7393B radio trim panel:

1. Clip in the factory a/c vents. (Figure B)

2. Attach the factory (4) panel clips.

(Figure B)

Continue to Kit Assembly

REV. 11/19/2018 INST95-7393B 3

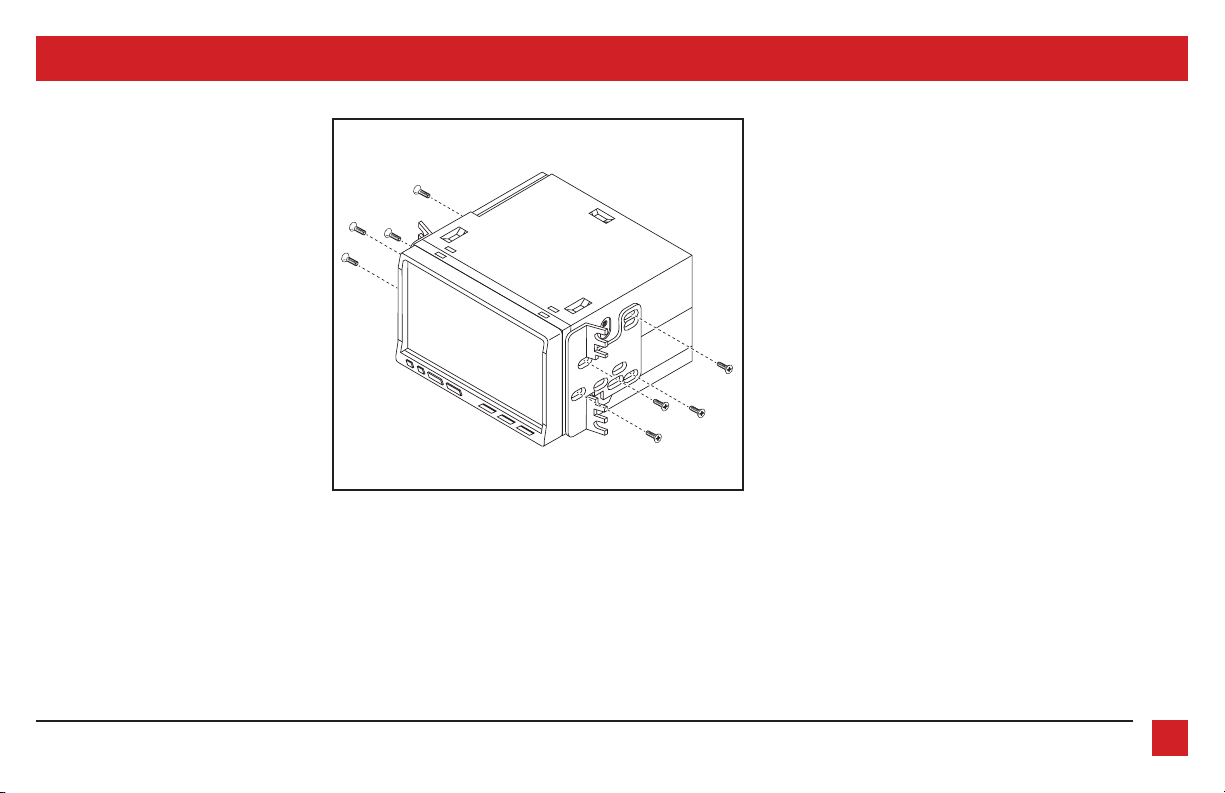

KIT ASSEMBLY

(Figure A)

1. Secure the

radio brackets

to the radio

using the screws supplied with the radio.

(Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using

the proper mating adapter from Metra

and/or Axxess. Test the radio for proper

operation.

3. Secure the radio assembly to the dash

using the factory screws.

4. Reassemble the dash in reverse order of

disassembly using the 95-7393B

radio

trim panel

to complete the installation.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

INSTALLATION INSTRUCTIONS

95-7393B

If you are having difﬁculties with the installation

of this product, contact our Tech Support line

either by phone at 1-800-253-TECH, or email at

techsupport@metra-autosound.com. Before

doing so, look over the instruction booklet a

second time and ensure that the installation was

performed exactly as the instruction booklet

is stated. Have the vehicle apart and ready to

perform troubleshooting steps before contacting

Metra/Axxess Tech Support.
