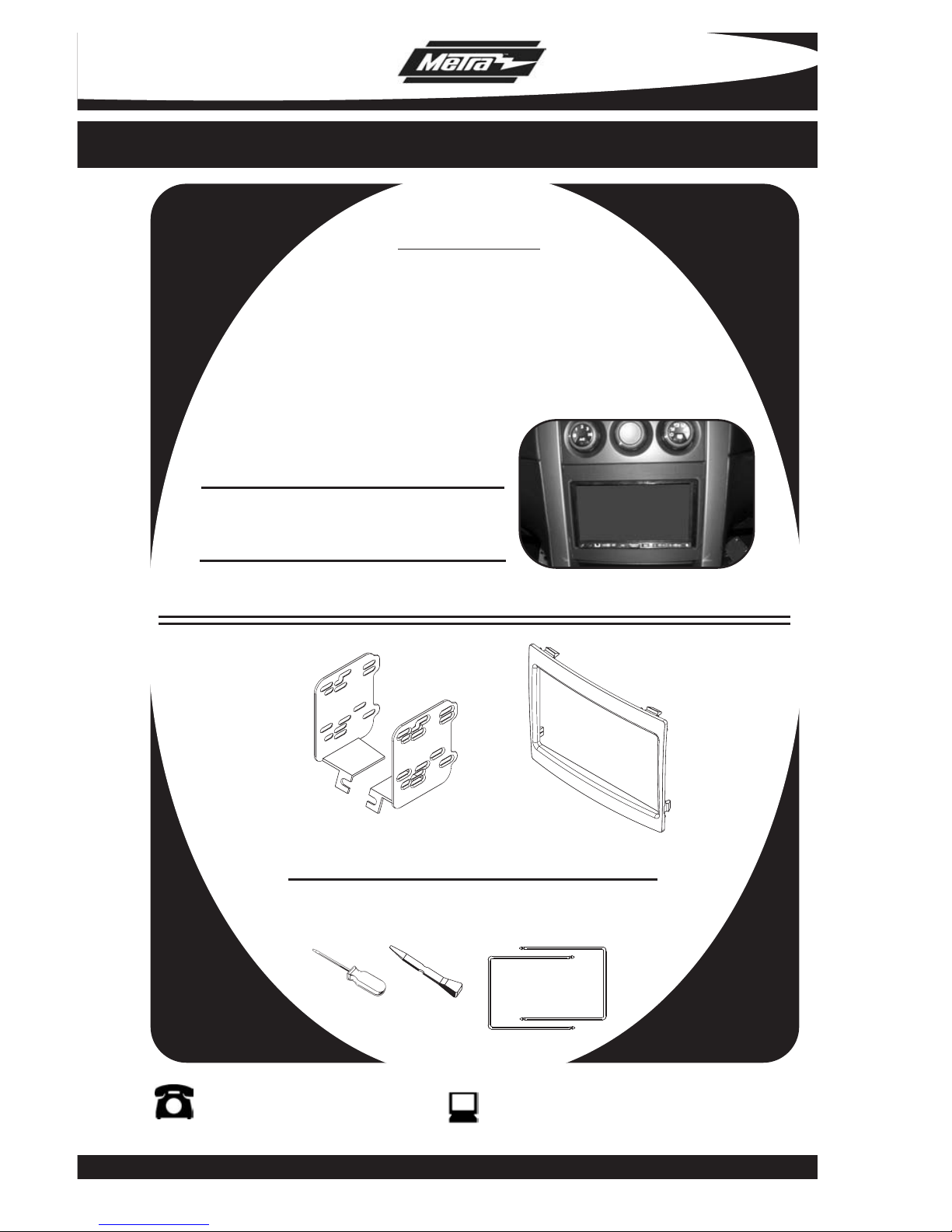

INSTALLATION INSTRUCTIONS FOR PART 95-3528

95-3528

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Mount Units Provision

A) Double DIN Brackets • B) Double DIN Trim plate

KIT COMPONENTS

Small Flat Blade Screwdriver • Panel Removal Tool

•86-3528 Radio Removal Keys

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

APPLICATIONS

PONTIAC GTO

2004-2006

Dash Disassembly

-PontiacGTO2004-2006.........................................1,2

Kit Assembly

-DoubleDINRadioProvision................... ....................3

-Stacked ISO Mount Units Provision . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 4

Final Assembly ..........................................5

TABLE OF CONTENTS

95-3528

*Note:

Refer also to the instructions included with the aftermarket radio.

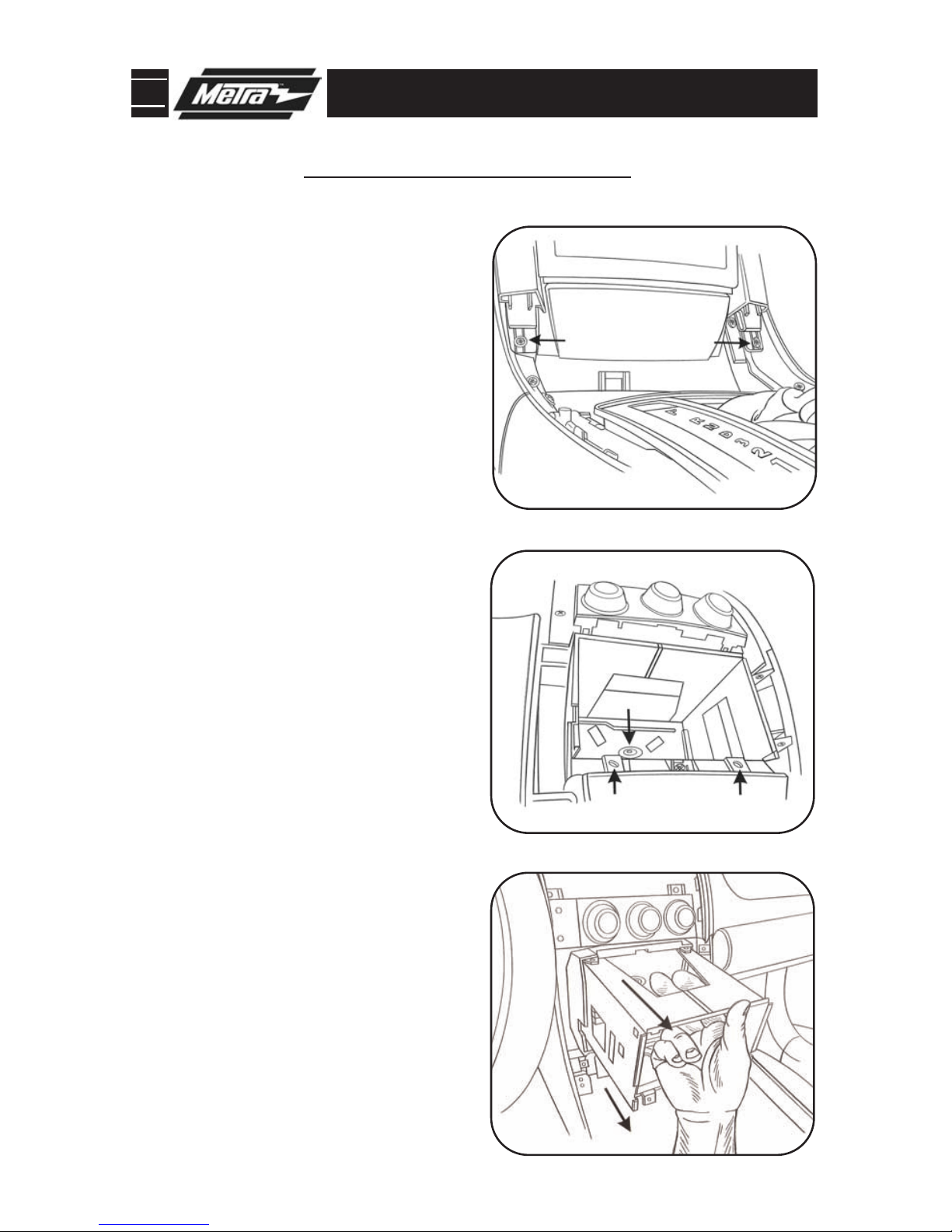

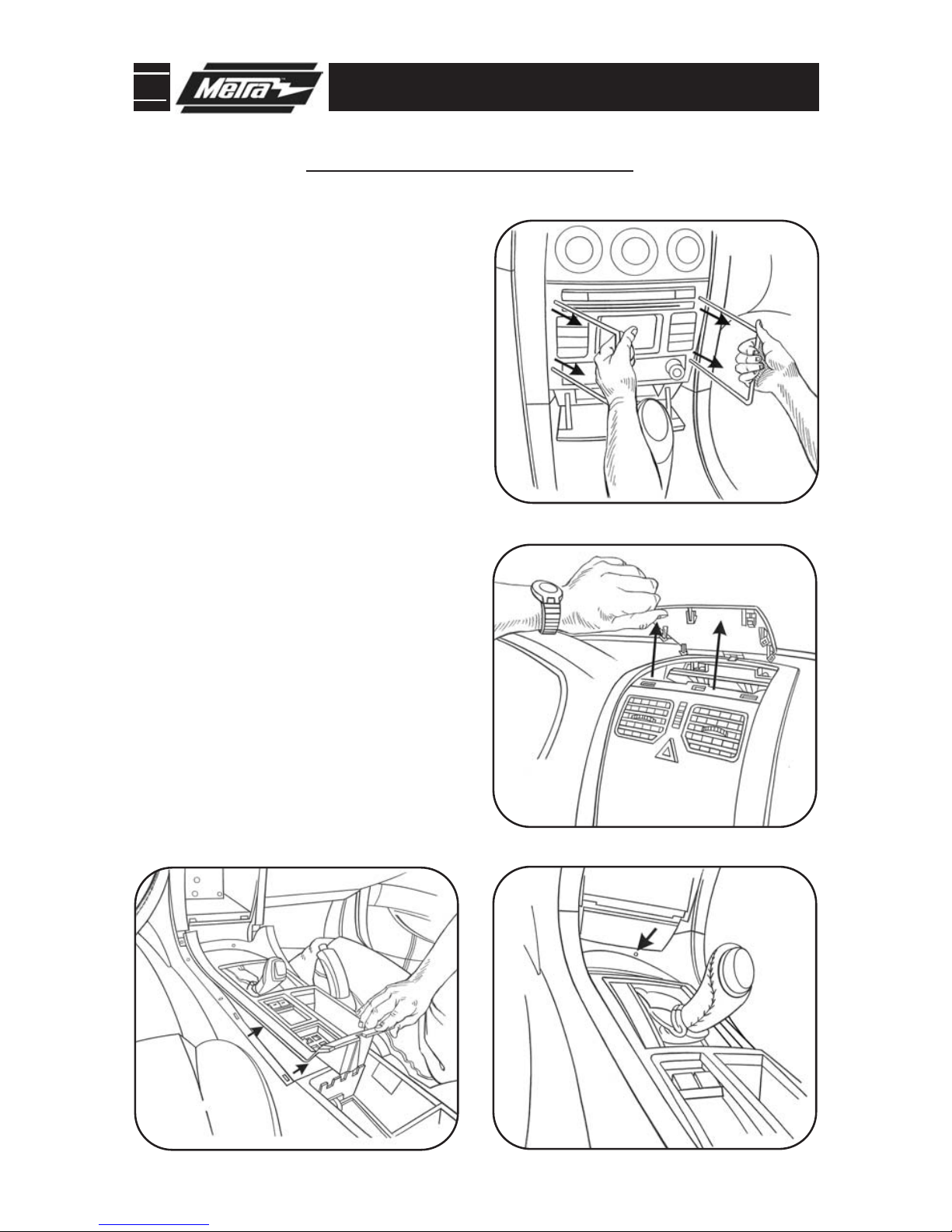

95-3528 DASH DISASSEMBLY

PONTIAC GTO 2004-2006

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Using the radio removal keys, pull the

factory radio from the dash and dis-

connect the wiring.

(Figure A)

Remove (1) Phillips screw from inside

lower open storage area where

center console and dash meet.

(Figure C)

Unsnap and remove center console

(open center armrest/ storage com-

partment and work forward).

(Figure D)

Continue on page 2.

Unsnap and remove the trim panel at

the top center of the dash above the

A/C vents and remove (4) Phillips

screws.

(Figure B)

95-3528 DASH DISASSEMBLY

PONTIAC GTO 2004-2006

Remove (2) Phillips screws exposed

at the bottom of the center panel sur-

rounding radio and remove panel.

(Figure E)

Unclip and remove trim panel sur-

rounding radio and A/C controls.

Pull down on the "cage" from the

opening inside on the top and

remove.

(Figure G)

Continue to final assembly.

Remove (3) Phillips screws holding

"cage" in radio opening.

(Figure F)

95-3528 KIT ASSEMBLY

DOUBLE DIN RADIO PROVISION

Attach the Double DIN brackets to the

Double DIN radio unit using the screws

supplied with the radio.

(Figure A)

*Note: Refer also to the instructions included with the aftermarket radio.

Continue to final assembly.

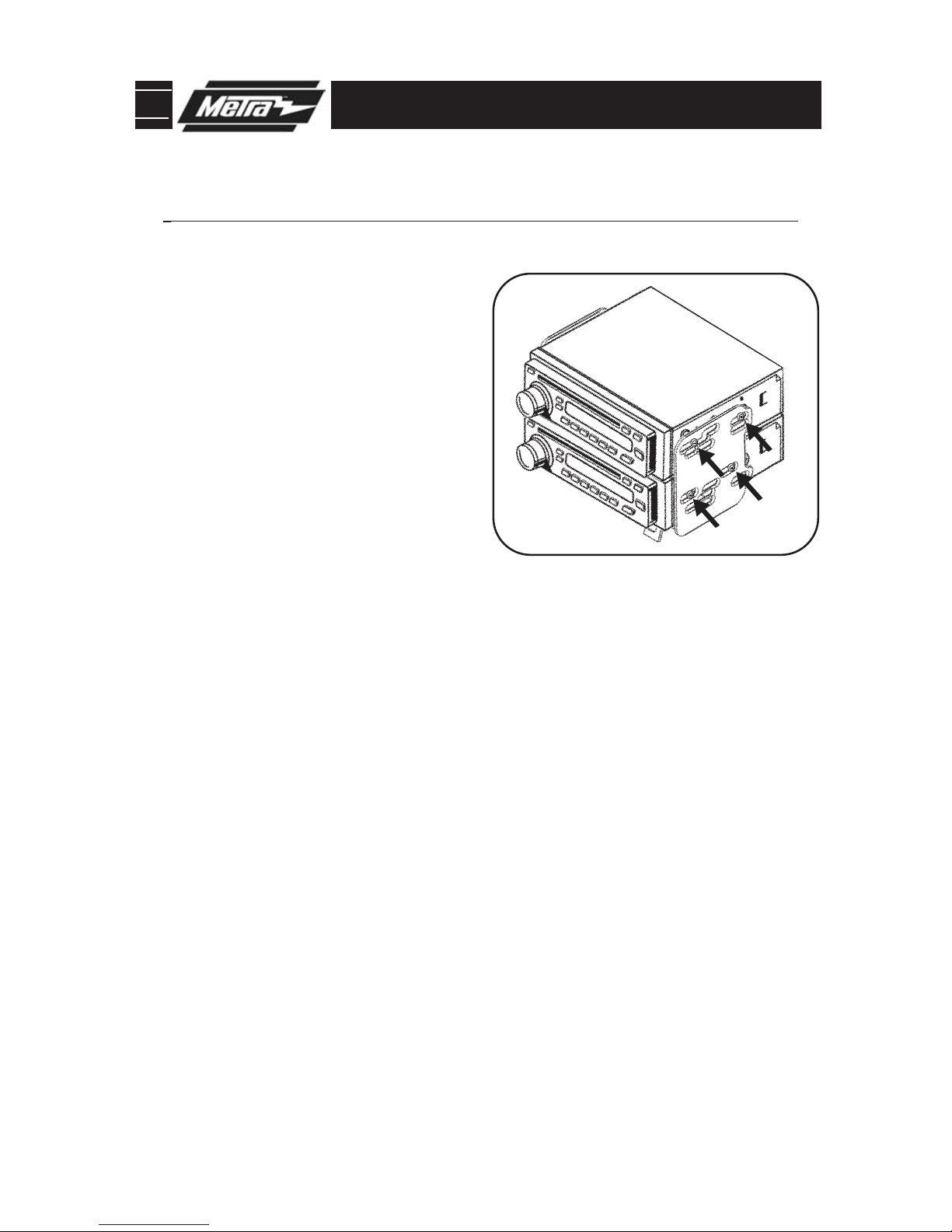

95-3528 KIT ASSEMBLY

STACKED ISO MOUNT UNITS PROVISION

Attach the Double DIN brackets to the

stacked ISO mount units using the

screws supplied with the units.

(Figure A)

*Note: Refer also to the instructions included with the aftermarket radio.

Continue to final assembly.

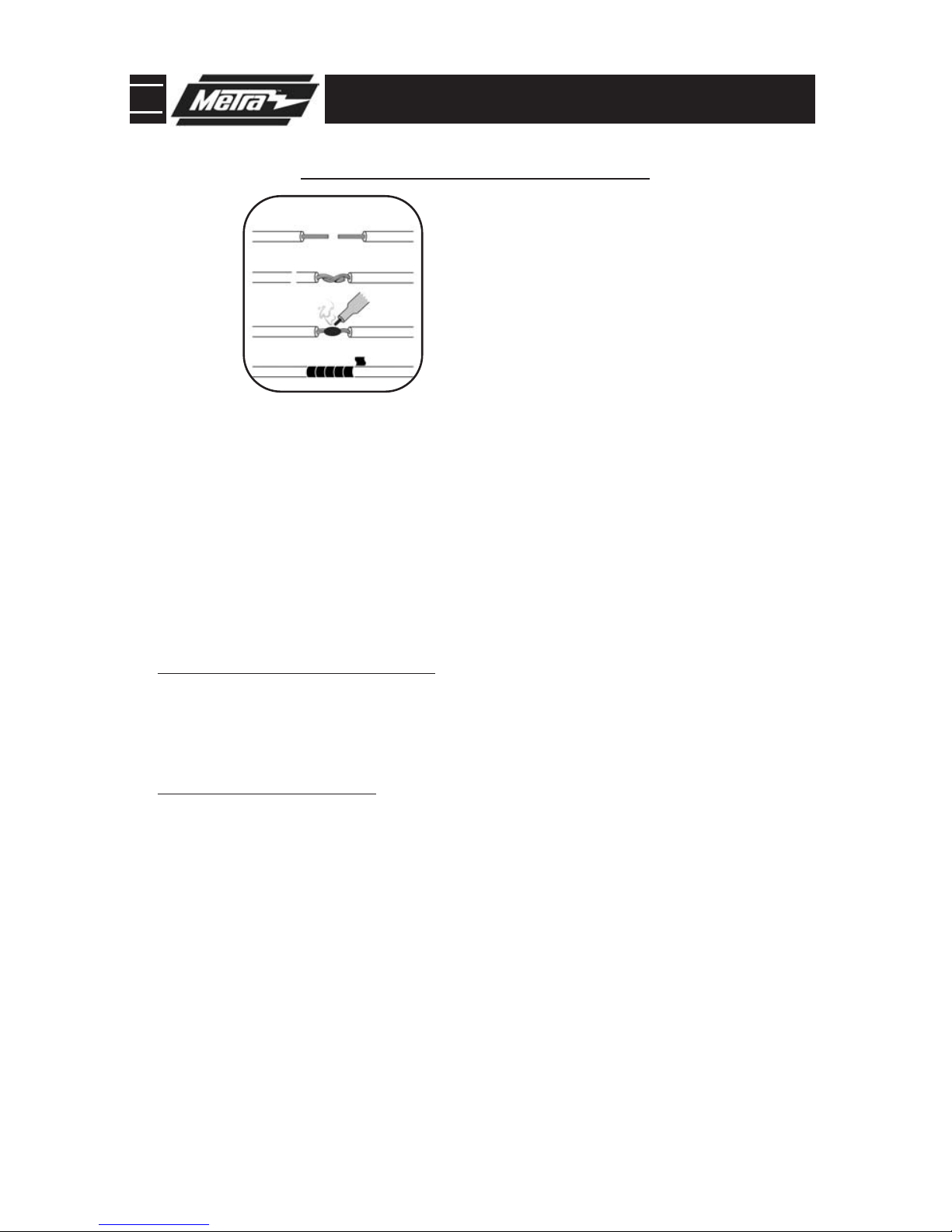

95-3528 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Snap the Double DIN trim plate onto the bracket/radio assembly.

Reassemble in reverse order of disassembly.

Insert and secure the radio/bracket assembly into the radio opening using the

screws removed in step 8 of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown belowand the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of anyunused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer.................Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) ..............Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

95-3528 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
