Metra Electronics MPS-DPSL-BT Manuel utilisateur

MPS-DPSL-BT

INSTALLATION INSTRUCTIONS

Google Play Store Apple App Store

iOS 12.1 or higher

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

TABLE OF CONTENTS

Preface ....................................................................2

Installing bluetooth board ....................................3

Pinout .....................................................................4

Installation .............................................................5

Stand-alone bluetooth diagram ..........................6

Quick setup guide ..............................................7-12

Advanced DSP features & control options .....13-14

Other installation options ....................................15

Speciﬁcations ....................................................... 16

Marine & Powersports Bluetooth Streaming

Audio Interface w/ DSP Controls

No Source Needed.

• 15 Band graphic EQ

• Bluetooth streaming from your smart device

• 4 inputs and 6 outputs, including front, rear, and subwoofer

• Independent equalization for front, rear, and sub

• Independent crossover for front, rear, and sub

• Selectable slope (12, 24, 36, or 48db per octave)

• Front and rear channels can be delayed independently up to 10ms

• Water resistant enclosure with zip tie mounts included

• Clipping detection and limiting circuits

• Bluetooth interface module included

• Volume knob & Bass knob included

•

Settings adjusted via Bluetooth® in a smart device application (tablet

or mobile phone), compatible with both Android and Apple devices

• Read, write, and store conﬁgurations for future recall

• Password protect feature available in the mobile app

• Micro-B USB updatable

• MPS-DSPL-BT circuit board

• Bluetooth streaming audio circuit board

• Volume and Subwoofer knobs

• MPS-DPSL-BT harness (16-pin & 20-pin, with gaskets)

• MPS-DPSL-BT enclosure

• Case

• Cap (with O-ring)

PREFACE

The MPS-DSPL-BT is designed for UTV, Marine and Motorcycle applications when a source is not required. The interface includes the AXDSPL-BT Bluetooth Streaming circuit board. This

board plugs directly into the DSP’s circuit board and will allow your phone or tablet to stream music directly to your aftermarket ampliﬁers. The MPS-DSP-BT is housed in a water tight

case making it perfect for ON/OFF road vehicles that are exposed to the elements. We recommend matching the MPS-DSPL-BT with our MPS-RZKIT for 2014-2020 Polaris RZR.

The MPS-DSPL-BT provides 6 outputs that are assignable to match your systems requirements. Outputs are commonly assigned as Front, Rear, and Subwoofer, which are all setup

through the free Axxess AX-DSP-XL application. Included with interface are two separate knobs that are used as an overall system volume control and a subwoofer’s volume control.

The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all

amps combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

REV. 9/24/2020 INSTMPS-DPSL-BT

INSTALLING BLUETOOTH BOARD

16-Pin Header

AX-DSPL-BT

• The AXDSPL-BT Bluetooth interface will be used for adding a Bluetooth interface to the

MPS-DPSL-BT for playing music from your smart device.

• While playing music the volume can be controlled from your streaming device or from

the included volume knob.

1. Important! Make sure the 16 pin and 20 pin plugs are disconnected from the

circuit board before installing the ASDSPL-BT.

2. Locate the 16-pin header on the circuit board.

3. Important! Referencing how the Bluetooth interface is laid out in the picture,

carefully line up the header pins to the AXDSPL-BT Bluetooth interface. Gently

press down to secure.

Volume Knob Installation:

• Connect the Brown wire (Volume Control Wire) from the MPS-DPSL-BT harness, to the

Orange wire from the volume knob you want controlling the overall volume of your

system. The black wire from your volume control will need to be grounded. Tapping

into the ground wire from the MPS-DSPL-BT harness is recommended.

Subwoofer Knob installation

• Connect the Orange wire from the MPS-DSPL-BT harness, to the Orange wire from

the bass knob. The black wire from your volume control will need to be grounded.

Tapping into the ground wire from the MPS-DSPL-BT harness is recommended.

PINOUT

Input 6 - N/A Black - Chassis Ground

Input 5 - N/A Pink - N/A

Purple RCA Jack - Not Required Blue/Pink - N/A

Green RCA Jack - Not Required

Brown - Control Wire for BT Volume Knob

Gray RCA Jack - Not Required Orange - Control Wire for Bass Knob

White RCA Jack - Not Required Red - Accessory Power

Black/Yellow - N/A Yellow - Battery Power

TBA

INPUT 6

INPUT 5

Blue/White - Amp Turn-On RCA Jack 1 - User Assignable Output

Red/White - N/A RCA Jack 2 - User Assignable Output

White/Red - N/A RCA Jack 3 - User Assignable Output

White/Green - N/A RCA Jack 4 - User Assignable Output

RCA Jack 5 - User Assignable Output

* Cut off RCA jack for speaker level input

REV. 9/24/2020 INSTMPS-DPSL-BT

1. Install the MPS-DPSL-BT harness and make all necessary connections but leave the

amp turn-on wire disconnected.

2. With the arrow stamped onto the cap facing upwards, push the 16-pin connector from

the MPS-DPSL-BT harness harness into the left side of the cap. The locking clip on the

connector should face upward. Make sure the gasket is seating properly in the cap.

(Figure A)

3. With the arrow stamped onto the cap still facing upwards, push the 20-pin connector

from the MPS-DPSL-BT harness into the right side of the cap. The locking clip on the

connector should face upward. Make sure the gasket is seating properly in the cap.

(Figure A)

4. Plug the 16-pin and 20-pin connectors from the MPS-DPSL-BT harness into the

circuit board. (Figure A)

5. Slide the assembly into the case, then click it shut. Zip-tie the enclosure to a secure

location. Make sure the harnesses are pointing down to ensure that no outside

elements can enter the enclosure.

I N S TALL ATI O N

Cap (with O-ring)

Case

MPS-DSPL-BT

Circuit Board

AXDSP L

Harness

16-Pin 20-Pin

Gasket

Zip-tie Mounts

(Figure A)

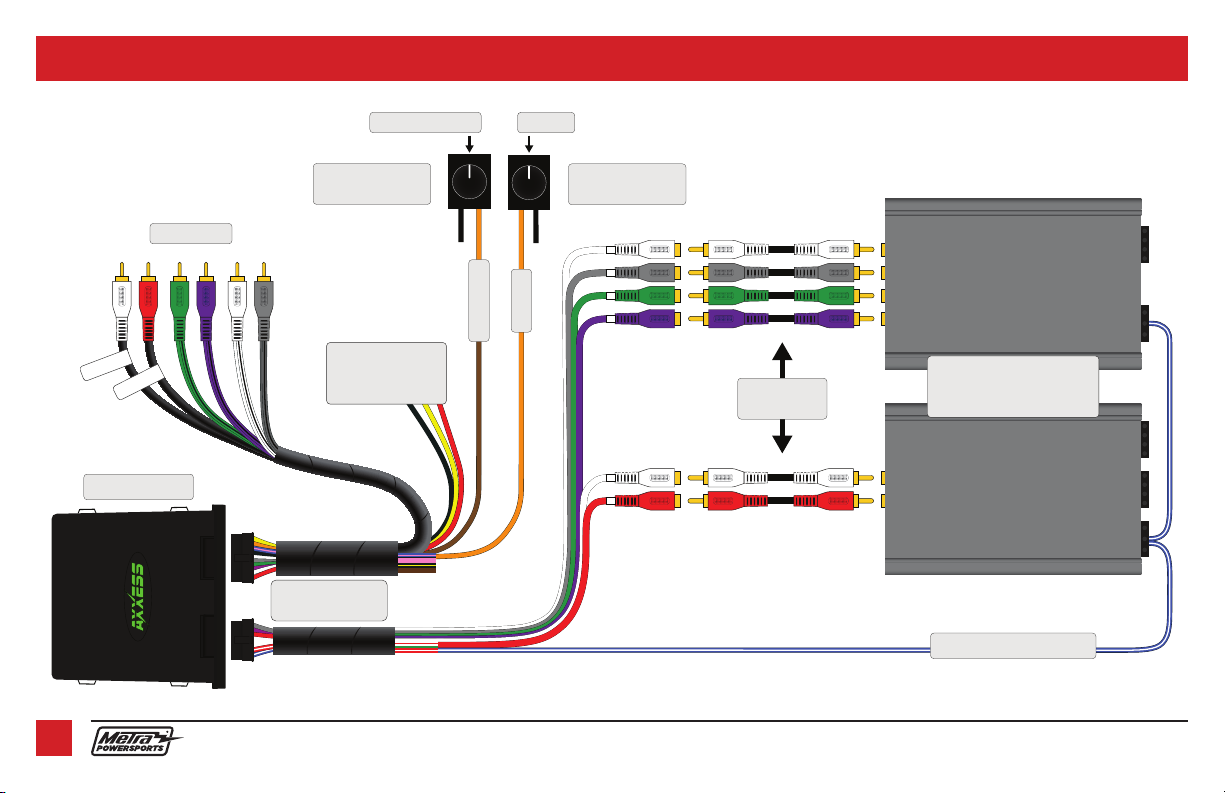

STAND-ALONE BLUETOOTH DIAGRAM

Do Not Connect

Any remaining wires

tape off and disregard

Blue/White - Amp Turn-On Wire

INPUT 5

INPUT 6

Black - Chassis Ground

Yellow - Battery Power

Red- Accessory Power

An SPDT relay, Metra part number

E-123, must be used if more than

one amplifier will be installed

RCA Jacks

(sold separately)

Black - Chassis Ground

Orange - Control Wire

Black - Chassis Ground

Brown - Control Wire

Master Volume Knob

Sub Control

Volume Control

Interface w/ BT board

Bass Knob

REV. 9/24/2020 INSTMPS-DPSL-BT

QUICK SETUP GUIDE

DSP Setup & Controls

The MPS-DSPL-BT uses the Axxess DSP XL application to control and setup your DSP. Only items pertaining to the MPS-DPSL-BT will be shown.

Download and install the AXDSP-XL app from the Google Play Store or Apple App Store.

Below are the quick steps to get your MPS-DSPL-BT system conﬁgured and playing.

The AXDSP-XL app is powerful and offers many features.

To ﬁnd out more about these advanced feature review the Advanced features page.

Open the app then select the Bluetooth Connection tab.

With your MPS-DSPL-BT powered on, select the SCAN button. The app will start searching for available DSP’s. Once found select your device.

In the top left corner of the app you will see it change from Not Connected to Connected.

Continued on the next page

Google Play Store Apple App Store

iOS 12.1 or higher

From the conﬁgurations page you should ﬁrst test

your system to make sure everything is connected

properly after the DSP. To test your setup select the

IDENTIFY button. This will play a chime thought

your setup to conﬁrm your system is ready to pass

audio. (Figure 1)

Next select your VEHICLE TYPE (Figure 1)

The MPS-DSPL-BT interface will be using the

Bluetooth circuit board as the source select General

under the “Select Vehicle Type and OE Amp

Options” menu. Keep “Without OE Amp” selected.

Then select Apply. (Figure 2)

(Figure 1)

(Figure 2)

QUICK SETUP GUIDE (CONT.)

DSP Setup & Controls (Cont’d)

Continued on the next page

REV. 9/24/2020 INSTMPS-DPSL-BT

(Figure 3)

QUICK SETUP GUIDE (CONT.)

DSP Setup & Controls (Cont’d)

Next Select the OUTPUTS tab – This screen is where you setup your speaker’s output channels. Under the GROUP menu, select the ﬁrst drop down arrow to the right of the word NONE.

Select the name from the dropdown menu that matches the location listed on the far left of the screen.

Example: #1 – Location - Left Front, under the Groups dropdown menu select Left Front. (Figure 3)

• Location - Location of speaker.

• Group - Used to join channels together for simple equalization. Example: left front woofer/midrange and left front tweeter will be considered simply left front.

The letter M denotes the speaker assigned as the master speaker.

• Invert - Will invert the phase of the speaker.

• Mute - Will mute desired channel(s) for tuning individual channels.

Continued on the next page

QUICK SETUP GUIDE (CONT.)

DSP Setup & Controls (Cont’d)

(Figure 4)

DSP Setup & Controls (Cont’d)

Next Screen will allow you to set your crossover points, ﬁlter type, and slope. If you would

like to pass full frequency range to your amps set all ﬁlters to High Pass and drag the slider

all the way to the left making sure the entire frequency bar is green. (Figure 4)

• Selecting High Pass and Low Pass will provide one crossover frequency adjustment.

Band Pass should only be chosen if installing just front speakers, with one dedicated

amp for the woofers/mids, a second dedicated amp for the tweeters, along with a

subwoofer.

• If you have a speciﬁc frequency you would like, select the number above the slider

and enter in your exact frequency.

• Select the desired crossover slope, 24db, 36db, or 48 db. Higher is steeper.

Continued on the next page
