STAND FOR GLASSES AND CUPS

Installation and Operation Manual

S/N: Rev.: 1.0

2025319

12.9.2003 Rev.

1. General .......................................................................................................... 1

2. Operation instructions ................................................................................. 1

2.1 Operation ....................................................................................................................... 1

2.1.1 Functional description and use .............................................................................. 1

2.1.2 Cleaning ................................................................................................................. 1

3. Installation ..................................................................................................... 2

3.1 Transport package ......................................................................................................... 2

3.2 Assembly instructions ................................................................................................... 2

3.2.1 Installing the band .................................................................................................. 2

3.2.2 Assembly ............................................................................................................... 4

4. Spare parts .................................................................................................... 6

12.9.2003 Rev.

12.9.2003 Rev. 1.0

General

1. General

Carefully read the instructions in this manual as they contain important information re-

garding proper, efficient and safe installation, use and maintenance of the appliance.

Keep this manual in a safe place for eventual use by other operators of the appliance.

2. Operation instructions

2.1 Operation

2.1.1 Functional description and use

The appliance is designed for storage of cups, glasses and plates. About 150 glasses fit in

the stand.

The appliance body is of stainless steel and the shelves are of thick, shockproof glass. The

shelves rotate easily on ball bearings. Thanks to the spiral construction picking is easy.

The shelf diameters are 55, 50 and 45 cm. The shelves have railings.

2.1.2 Cleaning

In normal use, the appliance does not require any other daily care than sufficient cleaning.

Use only neutral or slightly alkaline cleaning agents or wipe the surfaces with a damp

cloth. Follow the instructions provided by cleaning agent manufacturers. Abrasive mate-

rials should not be used.

12.9.2003 Rev. 1.0

Installation

3. Installation

3.1 Transport package

Take the assembly instructions and the appliance components out of the package and put

them on a work table. The glasses have been packed in cardboard. You will find the axle

on the side of the box, the bottom lowermost in the box and small parts in a bag on the

box edges. The cardboard parts of the transport package are recyclable.

3.2 Assembly instructions

3.2.1 Installing the band

1. Place the bands and the holders on the work table. Press the band D450 in the

holder’s slot. Tighten the retaining screw M5.

2. Mount the holders on the D500 and D550 bands.

3. Place the glasses on the work table. Tighten the bands with the help of plastic

screws on glasses. Assembly order: D450, D500, D550.

12.9.2003 Rev. 1.0

Installation

Installing the band

1. Band D450, D500, D550

2. Band holder

3. Band holder’s slot

4. Retaining screw

5. Glass D450, D500, D550

6. Plastic screw

Glass shelf assembled

12.9.2003 Rev. 1.0

Installation

3.2.2 Assembly

1. Fasten the bottom to the axle with the bottom screw M12.

2. Place the bushing on the axle. Tightly fasten the bushing with the help of the re-

taining screw M5 at the height of the lowermost shelf as desired.

3. Place the sliding bearing on the bushing on the axle.

4. Place the plastic ring, with the raised edge upwards, on the sliding bushing on the

axle.

5. Place the glass D550 on the plastic bushing on the axle. (Band fastened, see “In-

stalling the band”.)

6. Place another plastic ring, with the raised edge downwards, on the glass on the ax-

le.

7. Place the bushing on the axle. Tighten the retaining screw M5 well so that the glass

is steady.

8. Mount the remaining bushings, sliding bearings, plastic rings and glasses on the

axle in the same order, at the shelf height desired. Mounting order: lower shelf

D550, middle shelf D500, upper shelf D450.

9. Finally install the knob using the retaining screw M6 on the axle.

Parts:

3 pcs Glass D450, D500, D550

3 pcs Band D450, D500 D550

9 pcs Band holder (retaining screw M5 and plastic screw fixed)

1 pc Knob + retaining screw M6

1 pc Axle and bottom screw M12

1 pc Bottom

6 pcs Bushing (retaining screw M5 fixed)

6 pcs Plastic bushing

3 pcs Sliding bearing

1 pc Hexagon spanner M5, M12

Y 1:X

Table des matières

Autres manuels Metos Appareils de cuisine

Metos

Metos MONDIAL 300 Manuel utilisateur

Metos

Metos CFXB-180 Manuel utilisateur

Metos

Metos LM-32/P Manuel utilisateur

Metos

Metos RG-400 Manuel utilisateur

Metos

Metos LM-5/P Manuel utilisateur

Metos

Metos LM-10/P Manuel utilisateur

Metos

Metos RG-250 Document technique

Metos

Metos PROVENO E 100 l Manuel utilisateur

Metos

Metos Start L 220 Manuel utilisateur

Metos

Metos Prima 250 Manuel utilisateur

Metos

Metos DOMITOR Manuel utilisateur

Metos

Metos MIXI MG22HD-1 Manuel utilisateur

Metos

Metos SP-30HA-F Manuel utilisateur

Metos

Metos RG-200 Manuel utilisateur

Metos

Metos MARVEL T Manuel utilisateur

Metos

Metos VH-12 Manuel utilisateur

Metos

Metos CL-A1D Manuel utilisateur

Metos

Metos RG-100 Manuel utilisateur

Metos

Metos HD1 Manuel utilisateur

Metos

Metos MARVEL E1 Manuel utilisateur

Metos

Metos BETA BN 300 Manuel utilisateur

Metos

Metos G220 Manuel utilisateur

Metos

Metos DOGGER HD-WS Manuel utilisateur

Metos

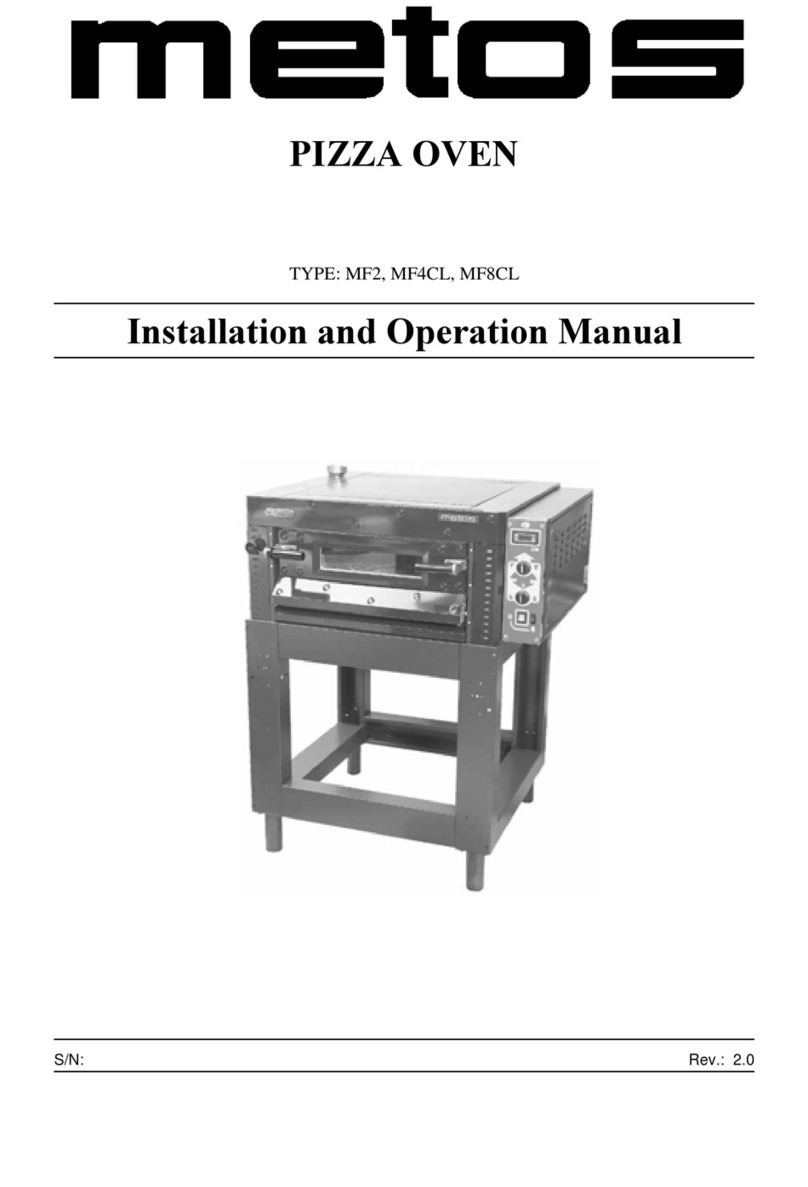

Metos MF2 Manuel utilisateur
