Deluxe Folding Weld Table

METAL MAN

Operating Instructions and Parts Manual FWTD

Please read and save these instructions. Read through this owner’s manual carefully before

using product. Protect yourself and others by observing all safety information, warnings, and

cautions. Failure to comply with instructions could result in personal injury and/or damage to

product or property. Please retain instructions for future reference.

Description

The Metal Man Deluxe Folding Weld Table

provides a quick and easy work surface for welding

projects. Designed to quickly and easily fold up,

this weld table provides a flexible work surface and

is easy to store. The work surface measures 36

inches wide and 20 inches deep. In the middle of

the work surface is a heavy wire grate designed to

allow debris to fall through to the removable

collection tray below. The Deluxe Weld Table is

perfect for mobile welding applications,

maintenance departments or anywhere space is a

premium.

Specifications

Item Specification

Packing Dimension (LXWXH) inch 36” x 10” x 43-1/2”

Product Dimension (LXWXH) inch 36” x 20” x 36”

Packing weight 46 lbs

Net weight 43 lbs

Assembly

1.1 Assemble the No.20 connecting tube to the No.1 top table

1.2 Assemble the No.16 short leg with the No.20 connecting tube

1.3 Assemble the No.13 long leg to the No.1 top table

1.4 Assemble the No.13 long leg to the No.16 short leg

Operating Instructions and Parts Manual

Deluxe Folding Weld Table

Operating Instructions and Parts Manual

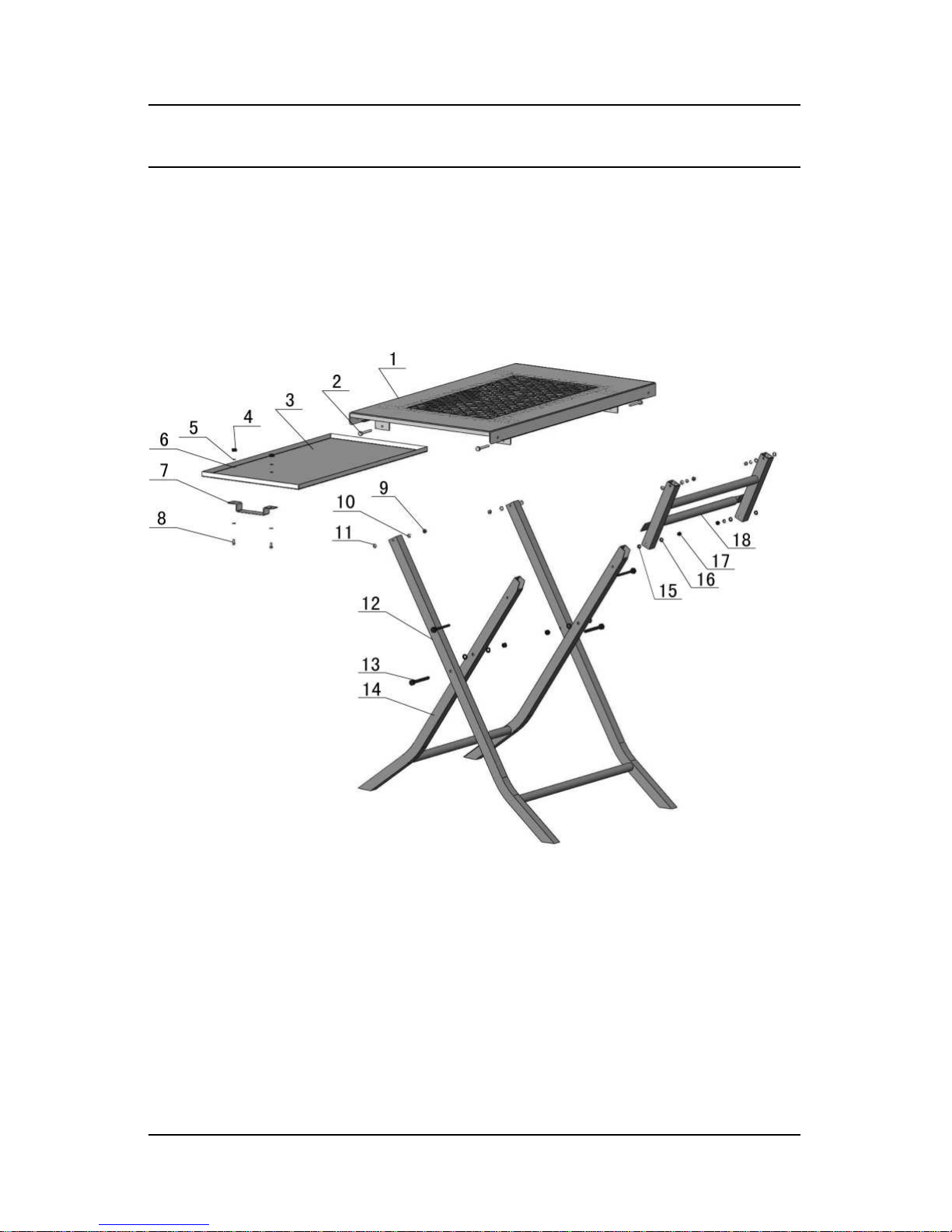

Spare Parts List

Reference

number Description Part number Qty

Top table 1.1.03.01.1549 1

hexagon bolt M6*45 2.06.01.037 4

removable slag drawer 1.1.01.05.2828 1

hexagon nut M5 2.06.14.003 2

spring washer 5 2.06.18.003 2

Flat washer 5 2.06.17.003 4

Handle 1.1.01.05.2826 1

Cross crew M5*12 2.06.08.028 2

hexagon nut M6(lock nut) 2.06.14.811 4

Spring 6 2.06.18.004 4

thicken washer 6 2.06.17.034 4

Long leg 1.1.01.05.2829 1

spring washer M8*75 2.06.18.017 4

Short leg 1.1.01.05.2830 1

Nylon washer 2.05.06.021 4

flat washer 8 2.06.17.018 4

hexagon nut M8(lock nut) 2.06.14.823 4

connecting pipe 1.1.01.05.2827 1

Deluxe Folding Weld Table
