Mesalabs ViewPoint Professional Series Manuel utilisateur

ViewPoint Professional Series

VPx Sensor User Manual

Document No. DV3412

September 24, 2021

Rev. Draft

VPx Sensor User Manual 2

Mesa Labs, Inc.

12100 W. 6th Avenue

Lakewood, CO 80228 USA

Tel: 303-565-2724

monitoring.mesalabs.com

techsupport@mesalabs.com

Contents

1.0 Figures............................................................................................................................................... 3

2.0 Introduction ...................................................................................................................................... 4

2.1 FCC NOTICE ................................................................................................................................... 5

2.2 Industry Canada ............................................................................................................................ 6

3.0 Features ............................................................................................................................................ 7

3.1 Buttons.......................................................................................................................................... 7

3.2 Audio Visual Alarm........................................................................................................................ 7

3.3 Input Types.................................................................................................................................... 8

4.0 Menus ............................................................................................................................................... 9

4.1 Home............................................................................................................................................. 9

4.2 Min Max ........................................................................................................................................ 9

4.3 Clear Min Max............................................................................................................................. 10

4.4 Diagnostics Menu........................................................................................................................ 10

5.0 New Battery ....................................................................................................................................12

5.1 Battery Replacement ..................................................................................................................12

6.0 Ports ................................................................................................................................................ 14

7.0 Specs ............................................................................................................................................... 15

7.1 RTD.............................................................................................................................................. 15

7.2 Temperature and Humidity ........................................................................................................ 15

7.3 Power .......................................................................................................................................... 15

8.0 LCD Icon Legend.............................................................................................................................. 16

9.0 Operation Compatibility .................................................................................................................18

9.1 DS-VP-PRO-900-S Radio Network Compatibility......................................................................... 18

9.1.1 ViewPoint G5 Compatibility ................................................................................................ 18

9.1.2 CheckPoint G4 Compatibility ..............................................................................................18

10.0 Accessory and Probe List ................................................................................................................ 19

11.0 VPx Sensor Models.......................................................................................................................... 19

VPx Sensor User Manual 3

Mesa Labs, Inc.

12100 W. 6th Avenue

Lakewood, CO 80228 USA

Tel: 303-565-2724

monitoring.mesalabs.com

techsupport@mesalabs.com

1.0 Figures

3-1 VPx Sensor with LCD ............................................................................................................................... 7

3-2 VPx Sensor with LCD Buttons.................................................................................................................. 7

Table 3-1 Input Types.................................................................................................................................... 8

4-1 Home Screen........................................................................................................................................... 9

Table 4-1 Access Min Max Menu Procedure ................................................................................................ 9

4-2 Min Max Screen .................................................................................................................................... 10

Table 4-2 Clear Min Max Procedure ........................................................................................................... 10

Table 4-3 Access Diagnostics Screen Procedure.........................................................................................10

4-3 900 MHz Diagnostics Screen.................................................................................................................11

4-4 Wi-Fi Diagnostics Screen.......................................................................................................................11

5-1 VPx Sensor Top and Back View............................................................................................................. 12

5-2 VPx Sensor Internal View (Back Cover Removed) ................................................................................ 13

Table 5-1 Reset Battery Level Display Procedure (LCD).............................................................................. 13

6-0 VPx Sensor Bottom Side View Showing Ports....................................................................................... 14

Table 6-1 VPx Sensor Bottom Side View Showing Ports............................................................................. 14

Table 6-2 VPx Sensor RTD Probe Pin Assignments .....................................................................................14

Table 6-3 VPx Sensor 4-20 ma, 5v, 10v and 30v Inputs ..............................................................................15

Table 8-1 LCD Icon Legend..........................................................................................................................17

Table 9-1 Input and Accessory Type Part Numbers....................................................................................19

Table 10-1 VPx Models ............................................................................................................................... 19

VPx Sensor User Manual 4

Mesa Labs, Inc.

12100 W. 6th Avenue

Lakewood, CO 80228 USA

Tel: 303-565-2724

monitoring.mesalabs.com

techsupport@mesalabs.com

2.0 Introduction

The VPx sensor integrates with Mesa’s ViewPoint 1.1 or above software solution. The VPx 900 MHz

sensor operates in a 902 to 928 MHz range.

This device complies with Part 15 of the FCC Rules. Sensor operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Ex.

Warning: This unit is not explosion proof and is not rated for intrinsically safe installations.

VPx Sensor User Manual 5

Mesa Labs, Inc.

12100 W. 6th Avenue

Lakewood, CO 80228 USA

Tel: 303-565-2724

monitoring.mesalabs.com

techsupport@mesalabs.com

2.1 FCC NOTICE

WARNING

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment.

Operation with non-approved equipment or unshielded cables is likely to result in interference to radio

and TV reception. The user is cautioned that changes and modifications made to the equipment without

the approval of manufacturer could void the user's authority to operate this equipment.

RF Exposure Notice: To satisfy RF exposure requirements, this device and its antennas must operate with

a separation distance of at least 20 cm from all persons and must not be co-located or operating in

conjunction with any other antenna or transmitter.

VPx Sensor User Manual 6

Mesa Labs, Inc.

12100 W. 6th Avenue

Lakewood, CO 80228 USA

Tel: 303-565-2724

monitoring.mesalabs.com

techsupport@mesalabs.com

2.2 Industry Canada

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and

Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two

conditions: (1) This device may not cause interference. (2) This device must accept any interference,

including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de

licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de

brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d’en compromettre le fonctionnement.

VPx Sensor User Manual 7

Mesa Labs, Inc.

12100 W. 6th Avenue

Lakewood, CO 80228 USA

Tel: 303-565-2724

monitoring.mesalabs.com

techsupport@mesalabs.com

3.0 Features

3.1 Buttons

3-1 VPx Sensor with LCD

Cycle

Used for cycling through screens or menu options

Select

Select menu option

Previous /

Return to previous screen or Next option

Mute

Mute local Audio Visual Alarms

3-2 VPx Sensor with LCD Buttons

3.2 Audio Visual Alarm

VPx Sensor has local Audible Visual alarms to notify individuals of sensor alarm states even with no

access to the Viewpoint software.

VPx Sensor User Manual 8

Mesa Labs, Inc.

12100 W. 6th Avenue

Lakewood, CO 80228 USA

Tel: 303-565-2724

monitoring.mesalabs.com

techsupport@mesalabs.com

LED for Visual Alarm

To mute local Audible and/or visual alarms, press the button to silence the local alarm ONLY.* To

perform corrective action for alarm states, do so in the ViewPoint software.

*Note: This is only possible when the sensor is in an alarm state. It cannot be used to mute future

alarms.

Muting the sensor with the button on the device will only mute that alarm. If, after muting the

local alarm, the sensor comes back into and then goes back out of range again, then the local alarm will

be triggered again and will need to be muted again if desired.

3.3 Input Types

Parameter

Application

Temperature

-200 °C to + 250 °C (Type K thermocouple, up to +538 °C)

Humidity

0% to 100% (Temp 5 °C to +40 °C)

CO2

0% to 20%

0% to 25% (use 4-20 mA sensor and third-party sensor)

Door Status

Open / Closed Door

Horizontal Motion

Platelet Incubator

Dry Contact

Normal v. Alarm State (Normally Closed or Open)

Power

100 to 240 V (Detect Power Outages)

DC Voltage

0 to 5 V, 0 to 10 V, 0 to 20 V, 0 to 30 V

4-20 mA

Various sensors with powered 4-20 mA interface

Differential Pressure

-1.0 to + 1.0 inches H20 /-.25 to +.25 / -.5 to +.5

Particle Count

Utilizes 4-20 mA Sensor Output

Leak Detection

Detect water in critical areas

Table 3-1 Input Types

VPx Sensor User Manual 9

Mesa Labs, Inc.

12100 W. 6th Avenue

Lakewood, CO 80228 USA

Tel: 303-565-2724

monitoring.mesalabs.com

techsupport@mesalabs.com

4.0 Menus

4.1 Home

4-1 Home Screen

4.2 Min Max

To get to the Min-Max screen, start at the Home screen,

Press

Result

Step 1

Min Max Screen

Table 4-1 Access Min Max Menu Procedure

VPx Sensor User Manual 10

Mesa Labs, Inc.

12100 W. 6th Avenue

Lakewood, CO 80228 USA

Tel: 303-565-2724

monitoring.mesalabs.com

techsupport@mesalabs.com

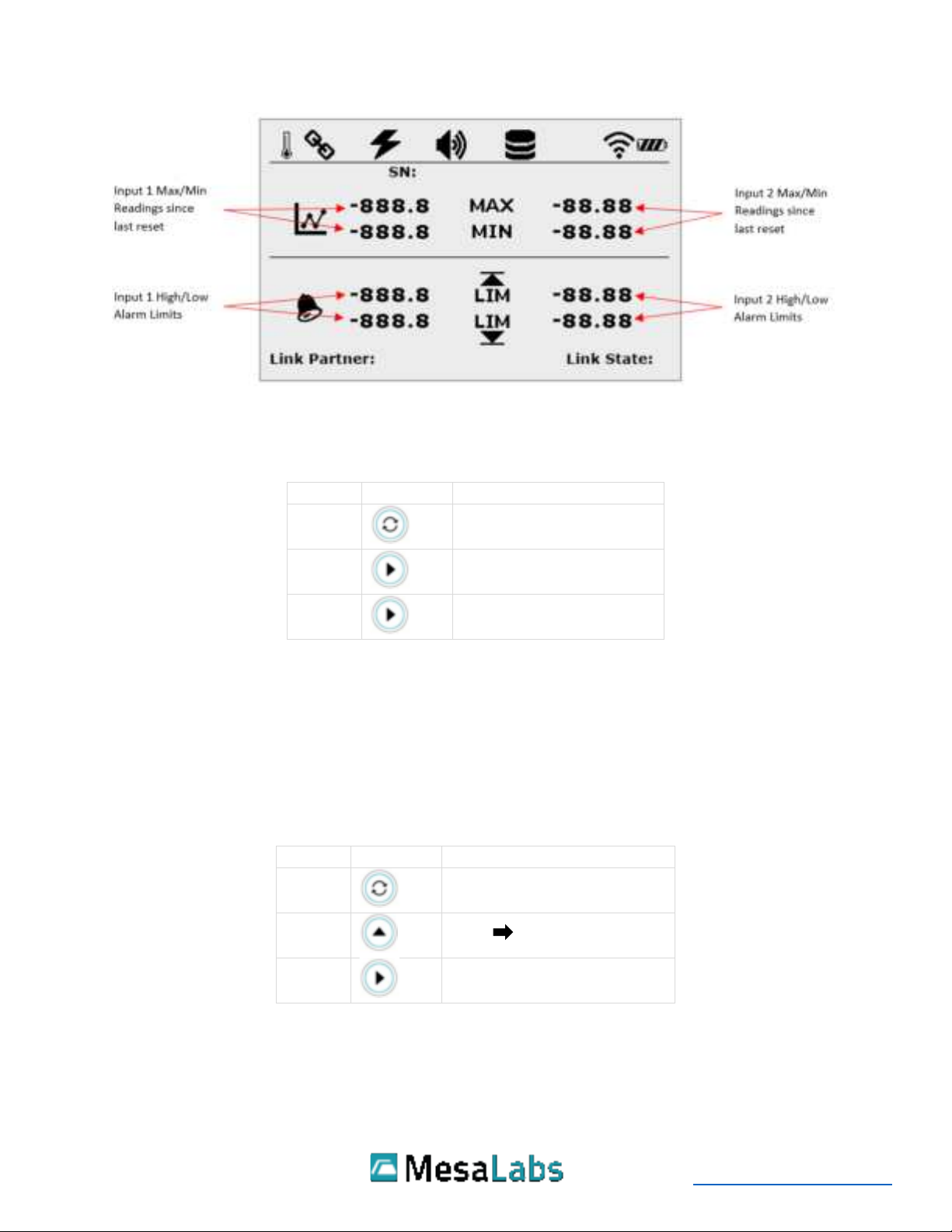

4-2 Min Max Screen

4.3 Clear Min Max

Press

Result

Step 1

Option Screen

Step 2

Select Clear Min Max

Step 3

Confirm Clear Min Max

Table 4-2 Clear Min Max Procedure

4.4 Diagnostics Menu

The VPx sensor has onboard diagnostic capabilities that can assist in a variety of setup or

troubleshooting scenarios.

To access the “Diagnostics” screen, start at the Home screen:

Press

Result

Step 1

Option Screen

Step 2

Move up to “Diagnostics”

Step 3

Diagnostics Screen

Table 4-3 Access Diagnostics Screen Procedure
