OWNER’S MANUAL

Tower Trainer

17.

PART IDENTIFICATION

Tower Trainer™Owner’s Manual2

26.

24.

29.

28.

30.

32.

31.

21.

22.

23.

19.

16.

18.

20.

1Eyehook

2Upper Tube Assembly

3Safety Chain

4Spring Clip

5Large Securing Knob

6Light Arm Springs (Yellow)

7Left Sliding Stability Bar Holder

8Roll-Down Bar

9Foam Grip Handles

10 Left Upright

11 Wheel Cap

12 Outer Cover

13 Base Frame

14 Main Frame

15 Handle Strap

16 Round Feet

17 Serial Number Sticker (see pg. 5 for detail)

18 Extension Frame

19 Raised Extension Mat

20 Raised Main Mat

21 Locking Knob

22 Raised Base Mat

23 Inner Cover

24 Right Upright

25 Push-Thru Bar

26 Push-Pin

27 Fuzzy Hanging Straps [fig. A]

28 Right Sliding Stability Bar Holder

29 Spring-loaded Pin

30 Sliding Stability Bar

31 Padded Sliding Stability Bar Sleeve

32 Rolldown Spring (Black)

33 Single D-ring Strap [fig. B]

34 Leg Springs (White) [fig. C]

35 Padded Long Spine Straps [fig. C]

36 Push-Thru Spring (Blue)

37 Vinyl Spring Cover [fig. D]

38 Locking Spring Clip [fig. D]

39 Bolt-on Wheels [fig. E]

Tower Trainer™

Hardware Identification QTY

40 Screw, Round Head (M4 x 20mm) 4

41 Bolt, Button Head (M8 x 1.25 x 50mm) 2

42 Bolt, Button Head (M8 x 1.25 x 55mm) 2

43 Bolt, Button Head (M8 x 1.25 x 60mm) 4

44 Bolt, Button Head (M8 x 1.25 x 76mm) 8

45 Acorn Nut (M8 x 1.25) 4

46 Nylock Nut (M8 x 1.25) 12

47 Washer (M8) 8

48 Arc Washer (M8) 16

49 Lock Washer (M8) 4

Covered by one or more of the following patents and/or patent applications:

US 8,057,371 B2, 7,878,954 B2, US Application No. 11/329,252, US Application No. 12/233,968,

US Application No. 60/642,985, PCT International Application No. 2006000814.

Required Tools

1/4" (6mm) Hex Key

Adjustable Wrench

1.2.3.

SAFETY & USAGE

Tower Trainer™Owner’s Manual4

IMPORTANT!

This manual contains important assembly, safety and

warranty information. Read the manual carefully

before using your new equipment and keep the

manual on hand for future reference.

UNSAFE OR IMPROPER USE OF THIS EQUIPMENT

BY FAILING TO READ AND COMPLYWITH ALL

REQUIREMENTS ANDWARNINGS COULD RESULT

INSERIOUSINJURY.

It is impossible to predict every situation and

condition that can occur while using this equipment.

Merrithew™makes no representation about the

safe use of any exercise equipment that cannot be

predicted or avoided.

PLEASE DO NOT ATTEMPT TO ASSEMBLE ON YOUR

OWN. SOME OF THESE STEPS REQUIRE TWO PEOPLE.

PLEASEREAD THESE INSTRUCTIONS COMPLETELY

BEFOREBEGINNING ASSEMBLY.

Merrithew recommends cautious assembly and

usage andwishesyou many hours of safe and

effectiveexercise.

User Guidelines

Pilates equipment when used effectively can faciliate many

Pilates exercises safely and effectively. However, care and caution

must be taken as there are some inherent dangers when using

any exercise equipment — especially when spring resistance

isinvolved.

The Trainer comes equipped with a full compliment of

springs,straps and a safety chain. The springs can be attached

tovarious locations on the frame, or on the straps hooked

aroundthe sliding bar. Besure your spring clips are completely

closed and secure.

For inexperienced or first-time users, this equipment

should only be used under the supervision of a

trainedprofessional.

Please ensure that you and your clients/patients have

receivedproper instruction regarding the correct and safe

useofthis equipment.

This manual includes general guidelines for setup and usage.

To get the most out of this equipment, Merrithew offers

instructional DVDs and manuals. Personalized training is offered

through our Host, Licensed and Corporate Training Centers.

Visit merrithew.com for more information.

CAUTION IMPROPER USE OF EXERCISE EQUIPMENT MAY CAUSE SERIOUS BODILY INJURY.

TO REDUCE RISK, PLEASE READ THE FOLLOWING:

wThe Tower Trainer™must be used under the supervision

of a trained professional.

wBefore starting any exercise program, consult a physician.

Stopexercising immediately if you experience chest pain,

feel faint, have difficulty breathing or experience discomfort.

wBefore using equipment, read and follow the safety

instructions in this manual and obtain thorough instruction

from a qualified trainer. Use equipment for intended

exercises only.

wDo not use if equipment appears worn, broken or damaged.

Donot attempt to repair equipment yourself without

contacting Merrithew.

wDo not wear loose clothing while using the Tower Trainer.

wSet up and operate the Tower Trainer on a solid level

surface. Do not position the Tower Trainer on loose rugs or

uneven surfaces.

wMake sure that adequate space is available for access to

and around the Tower Trainer.

wEnsure the equipment is properly adjusted for your size

and ability level.

wWhen springs are used, ensure spring clips are fully closed

at both ends of springs. A spring clip that is only half closed

risks coming undone and detaching with high force.

wWhen using the push-thru bar with spring from below,

locking spring clips must be used to attach to the frame or

uprights, and the safety chain must be attached.

wWhen using the push-thru bar, a trained professional must

keep a hand on the bar at all times.

wEnsure that the Main Frame is secured properly on the

Base Frame with the locking knobs before using the

TowerTrainer.

wAlways make sure that the Dowel Holder is adjusted to the

same height with Spring Pins in parallel holes in Uprights.

wAlways choose the workout which best fits your physical

strength and flexibility level. Know your limits and train

within them. Always use common sense when exercising.

wBe careful to maintain your balance while using, mounting,

dismounting or assembling the Tower Trainer, loss of balance

may result in a fall and serious injury.

wThe Tower Trainer should not be used by persons weighing

over 250 lbs (113 kgs).

wThe Tower Trainer should be used by only one person at a

time. Do not allow children to use or be around equipment

withoutadult supervision.

WARNING: As with any athletic activity, the use of

exercise equipment involves risk of injury, damage

and/or death.

By choosing to use Merrithew equipment, you and/or

your clients/patients assume responsibility for that risk,

not the people who sell, distribute and/or manufacture

this equipment.

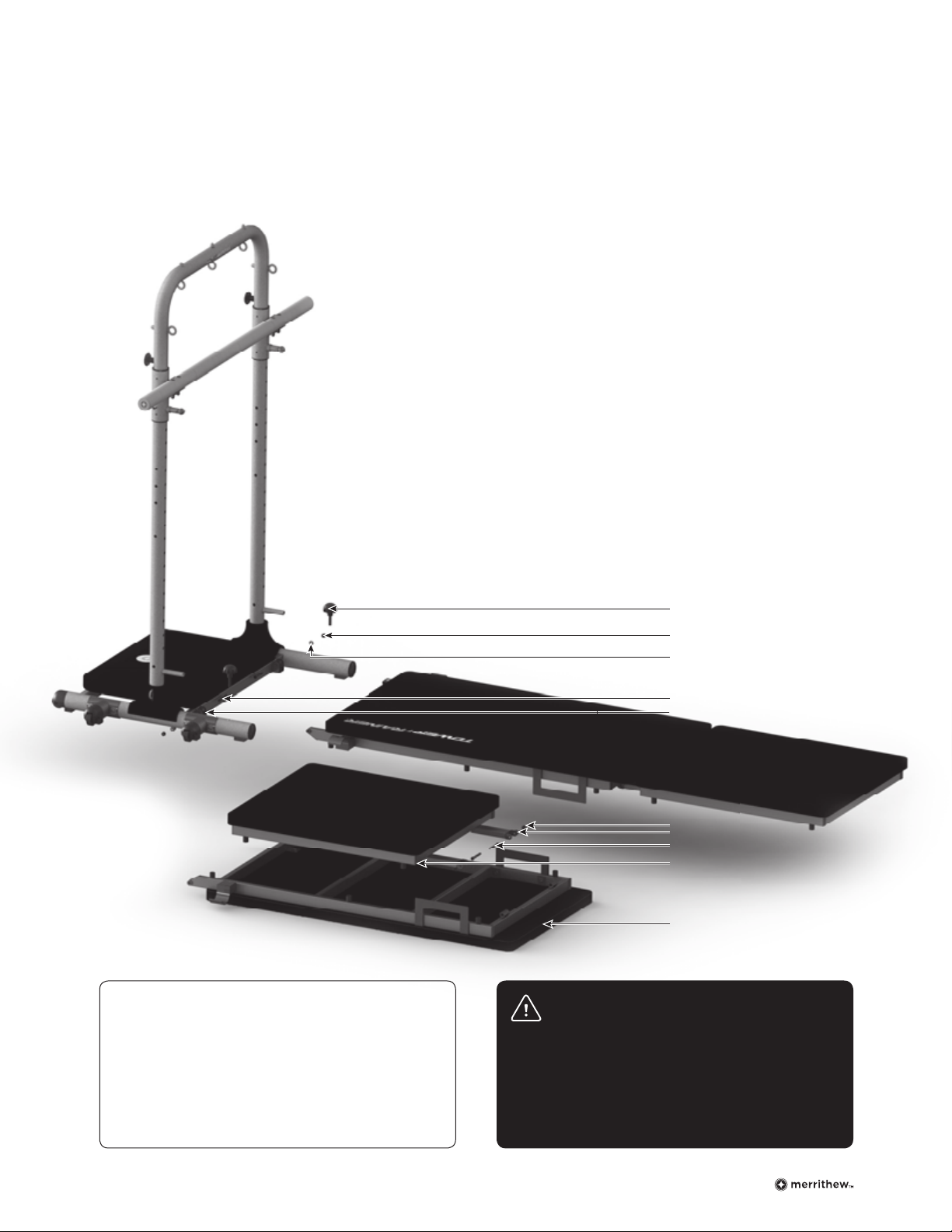

1. Attach the bolt-on wheels [39] to the base frame [13] by

inserting the button head bolts [44] and arc washer [48],

secure with arc washer [48] and nylock nut [46].

2. Attach the left [10] and the right uprights [24] to the base

frame [13] by inserting the button head bolts [44] and arc washers

[48] from top and secure with arc washers [48] and nylock nut

[46] from bottom. Do not tighten the bolts until step 6.

NOTE: The correct positions of the holes and eyehooks on

the left upright and right upright in the illustration. The holes

face away from the raised base mat [22] and the eyehooks

face to the outside.

3. Pull the spring-loaded pin [29] then slide the right sliding

stability bar holder [28] onto the right upright [24]. Release the

spring-loaded pin so it catches in one of the adjustment holes and

locks the holder in place. Repeat with the left sliding stability bar

holder [7] and left upright [10]. Position the left and right sliding

stability bar holders so they are the same distance from the top of

the left and right uprights.

NOTE: The correct position of the eyehooks on the sliding stability

bar holders in the illustration. The eyehooks face to the outside.

SERIAL NUMBER

PLACEMENT

step 1

step 3

step 2

ASSEMBLY INSTRUCTIONS

Assembling the Tower Trainer

STOP! Please do not attempt to assemble on your own. This is, at minimum, a job for two people.

Read these instructions completely before beginning.

wPlace all parts from the box in a cleared area and position on thefloor in front of you.

wRemove all packing materials and place back into the box. Do not dispose of the packing materials untilassembly iscompleted.

28.

24.

44.

30.

49.

45.

40.

step 6

ASSEMBLY INSTRUCTIONS

Assembling the Tower Trainer cont’d

Tower Trainer™Owner’s Manual6

4. Attach the sliding stability bar [30] to the left and right

sliding stability bar holders [7, 28] with button head bolts [43],

lock washers [49] and acorn nuts [45]. Do not tighten

the bolts until Step 6.

NOTE: The padded stability sleeve can easily be removed

by undoing the zipper.

5. Insert the upper tube assembly [2] into the left and right

uprights [10, 24] and secure with the large securing knobs [5].

NOTE: The correct position of the holes and eyehooks [1]

on the upper tube assembly [2] in the illustration below.

6. Tighten the button head bolts [43] to secure the sliding stability

bar [30]. Tighten the button head bolts [44] to secure the left and

right upright [10, 24].

7. Attach the outer cover [12] and inner cover [23] to the right

upright [24] with round head screws [40]. Repeat on other side.

43.

step 5

step 4

step 7

step 9

step 8 18

8. Place the main frame [14] with the mat side face down.

Attach the extension frame [18] by placing it (mat side up)

on top of the mat frame, aligning hinge brackets.

Use button head bolts [42], washers [47] and nylock

nuts [46] to secure together.

9. Unfold the extension frame [18] from the main frame [14]

and turn the mat side face up. Attach the Main frame [14] to the

base frame [13] with button head bolts [41], washers [47], and

nylock nuts [46]. Lock the main frame [14] and the base frame

[13] together with the locking knobs [21].

Care and Cleaning

Wipe vinyl surfaces using warm water with mild soap and

clear water rinses for day-to-day cleaning. Ensure soap does

not leave an oily residue, or make surfaces slippery.

Clean all metal surface areas as required, using a soft cloth

and gentle cleaner. CAUTION: We do not recommend using

chemical-basedproducts.

WARNING

Replace all springs every 24 months and spring clips

every 12 months, or as needed within that period.

FAILURE TO PERFORM RECOMMENDED SAFETY

CHECKS, OR USING EQUIPMENT WITH IMPROPERLY

ADJUSTED, BROKEN OR WORN PARTS, COULD RESULT

IN SERIOUS BODILYINJURY.

EQUIPMENT SET-UP

Tower Trainer™Owner’s Manual8

Safety & Usage

Sliding Stability Bar Adjustment

To adjust the height of the Sliding Stability Bar [30], pull out

on the spring-loaded pins [29] and carefully slide the bar to the

desired location. Release the pins and ensure they are fully locked

in one of the holes. The bar also comes with a soft padded

covering to increase comfort and usability.

NOTE: Always make sure that the sliding stability bar holders

[7, 28] are adjusted so the bar is parallel with the mat.

Set-Up For The Push-Thru Bar

Attach the push-thru bar [25] to the top adjustment hole

in the uprights [10, 24] with two upper push-pins [26].

Attach the safety chain [3] to the eyehook [1] on the top of the

upper tube assembly [2]. For some exercises, the push-thru bar

[25] should be up and secured in position with the safety chain

[3]. The push-thru bar [25] can be used as a foot bar for some

exercises. Attach the push-thru bar (25) to the lowest adjustment

hole in the upright [10, 24] with two upper push-pins [26].

Lock the push-thru bar [25] to the uprights [10, 24] with

two lower push-pins [26].

NOTE:

wThere are three adjustment holes in the uprights that allow you

to attach the push-thru bar [25] at one of the different heights.

wRefer to the inset illustration. Push down the button on the “T”

end of the push-pins [26] to release. Then you can insert

the push-pin [26] into the adjustment hole.

wAlways make sure the safety chain [3] is connected when the

push-thru bar [25] is in use in the rotating positions.

29.

28.

25.

24.

30.7.

25.

24.

37.

36.

38.

25.

Using the Push-Thru Bar

Springs from Above

When doing exercises that require the spring resistance to come

from above the bar, attach the push-thru spring [36] to the

eyehook on the upper side of the push-thru bar [25] with the

locking spring clip [38]. Attach the other end of the push-thru

spring [36] to one of the eyehooks [1] on the upper tube

assembly [2] with the spring clip [4].

CAUTION: To prevent accidental injury, never put your face

(or another body part) above the push-thru or roll-down bars

while spotting an exercise.

Springs from Below

CAUTION! If using the push-thru bar with springs from

below, attach safety chain first.

1. When using the push-thru bar [25] with the push-thru spring

[36] attached from below for bottom load exercises, connect

one end of the safety chain [3] to one of the eyehooks [1] on

the upper tube assembly [2] with the spring clip [4]. Connect the

other end of the chain to the eyehook on the push-thru bar [25]

with the spring clip [4] as per illustration below.

2. Hook the spring to the eyehooks located at the base on the

other side of the upright [10 or 24] with the spring clip [4];

see illustration below. Ensure that the vinyl spring cover [37]

which covers the push-thru spring [36] is moved over the lower

part of the spring to avoid catching the user’s hair or clothing,

and to keep the spring from coming into contact with the

upholstered raised mat.

3. Attach the push-thru spring [36] to the loop on the underside

of the push-thru bar [25] with the locking spring clip [38],

as per illustration below.

Be sure that the safety chain is always connected to the push-thru

bar when in use with springs from below.

38.

10.

35.34.

38

EQUIPMENT SET-UP

Tower Trainer™Owner’s Manual10

Roll-Down Bar

The roll-down bar [8] attaches via the rolldown springs [6]

to the eyehooks [1] on the upper tube assembly [2] between the

twouprights [10, 24] with the spring clip [4]. Attach the arm

springs [6] to the roll-down bar [8] with the spring clip [4].

Ensure the spring clips are completely closed and secure.

Springs

Light Arm Springs – yellow

Attach light arm springs [6] to eyehooks at desired height

with the locking spring clip [38]. Attach the other ends of the

springs to the foam grip handles [9] with the spring clips [4].

Ensure the spring clips are completely closed and secured.

Leg Springs – white

Attach leg springs [34] to eyehooks at desired height with the

locking spring clips [38]. Attach the other ends of the springsto

the padded long-spine straps [35]. Ensure the clips are completely

closed and secured.

10.

24.

Safety & Usage cont’d

Autres manuels pour Tower Trainer

Table des matières

Autres manuels Merrithew vélo elliptique

Merrithew

Merrithew Yoga Block Manuel utilisateur

Merrithew

Merrithew Spine Supporter Manuel utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur
