MERIT INDUSTRIES Megatouch Full MAXX Manuel utilisateur

Merit Industries, Inc.

2525 State Rd.

Bensalem, PA 19020-8529

(215) 639-4700; (800) 523-2760

http://www.meritind.com

90003010 Rev C

Section 1 - Cabinet Information

General Information- All Cabinet Styles

Dimensions/Shipping Weights

General Information - Countertop

Parts Illustrations

General Information - Upright

Parts Illustrations

MAXX Parts List

Section 2 - Hard Drive Information

Hard Drive Numbers

Program Numbers

Part Numbers

Security Key Numbers

Section 3 - Troubleshooting Information

Touchscreens

Troubleshooting

Touchscreen Calibration

MotherboardHandlingPrecautions

Motherboard Diagrams

Access/Removal of Major Assemblies

Motherboard

Monitor

Harddrive

Touchscreen

TroubleshootingGuide

CMOSSetup

Mars2000 BillAcceptor

DIP Switch Settings

Section 4 - Power Supplies

Power Supplies Used in MAXX Games

GlobTek ST-230WHF

EOS VTL100-4000

Mini-GlobTek AT145-S/GPS145-MATX

Enhance SFX-1211J

Section 5 - Motherboards

Circuit Board Cross Reference Chart

Telco

Mitsubishi

Itox

Unicorn

I/O Board Pinouts (Blue)

Section 6 - Monitors

Monitors Used in MAXX Games

Tatung--type 38

Tatung--type 58

Tatung--type 66

Tatung VS-20475TZ21

TatungVT19726Z

Wells-Gardner--type41

Wells-Gardner--type67

Tatung/Wells--type40

Kortek flatscreen

Monitor Adjustments

Degaussing

Monitor Adjustment Procedures

Section 7 - Technical Service Bulletins

TN 27

(Missing spacer for hard drive shock mount

in upright games)

TN 28

(Small coins falling into coin return slot inside

countertop coinbox)

TN 29

(Internal power cord in countertop games)

TN 30

(Cleaning games)

TN 31

(Coinbox Adjustment on Megatouch Slim

MAXX Countertop Games)

TN 32

(MAXX 2K CD upgrade)

TN 33

(Adjustment to Slim MAXX coin chute)

TN 36

(Theft deterrent)

CSBULL26

(Potential electrical short circuit on EZ MAXX

games)

FLDBLL 18

(Idle mode)

TN 41

(CD updates)

FLDBLL 19

(Removing and installing the coin box in

MAXX Select/Slim MAXX games)

FLDBLL 20

(Tri-Towers and 11-UP in games with

version 6.02 software)

TN 42

(Baseball in MAXX Owner’s Manuals)

TN 43

(Using a keyboard in upgrading MAXX

games)

TN 44

(Security key return procedure)

FLDBLL21

(Fanshieldon rear doorofMAXX Classic

games)

Megatouch MAXX Technical Service Manual Contents

Megatouch MAXX Technical Service Manual Contents (cont’d)

TN46

(Linking MAXX games)

TN 47

(DoubleDiamondnamechange)

TN48

(Motherboard identification)

TN 49

(Telco motherboards and TournaMAXX

operation)

FLDBLL 22

(Thumbscrew on Elite MAXX games with

integrated bill acceptor)

FLDBLL 23

(Manufacturer defect in security keys)

TN 54

(Replacing touchscreen controllers on EZ

MAXX and MAXX Elite games)

FLDBLL26

(Softwarebugaffectinghigh scores)

FLDBLL 27

(Bill acceptor failures in New Jersey games)

FLDBLL28

(Rebootingandlockingupproblems--for

gamesupgradedwithXLtoMAXXand Infinity

toMAXX kits only)

TN57

(New Jersey games and coin mech and bill

acceptor operation)

TN61

(Memory upgrade included in Ruby upgrade

Kits)

FLDBLL 29

(CanadianFORCE2003 and Ruby security

keys)

TN58

(Softwareupdatesand championship tourna-

ments)

TN76

(FORCE2004Point 5/Sapphire2 update

disc)

TN65RevD

(DIPswitch settingsin FORCEand MAXX

games)

Section 1

Cabinet Information

GeneralInformation-AllCabinetStyles

Dimensions/Shipping Weights

GeneralInformation-Countertop

Parts Illustrations

GeneralInformation- Upright

Parts Illustrations

MAXXPartsList

Cabinet Information Section

General Information

TheMegatouch MAXXvideogameswereavailable inseveral differentcabinet styles:

Megatouch Full MAXX

Dimensions: H - 15-1/4”; W - 20”; D - 18-1/4”

Shipping dimensions: H - 26-1/2"; W - 23"; D - 21-1/4"

Shipping Weight: 95 lbs.

Megatouch Blue MAXX - MAXX Classic

Dimensions: H - 15-1/4”; W - 20”; D - 18-1/4”

Shipping dimensions: H - 26-1/2"; W - 23"; D - 21-1/4"

Shipping weight: 95 lbs.

Megatouch MAXX Select - Slim MAXX

Dimensions: H - 20”; W - 16”; D - 16-1/2”

Shipping dimensions: H - 22”; W - 20”; D - 17-1/2”

Shipping weight: 88 lbs.

Megatouch EZ MAXX - MAXX Elite

Dimensions: H - 16”; W - 17-1/2”; D - 15-1/2”

Shipping dimensions: H - 18-1/2”; W - 21”; D - 20”

Shipping weight: 75 lbs.

MAXX Upright

Dimensions: H - 54-1/4”; W - 24”; D - 26-1/2”

Shipping dimensions: H - 57-3/4"; W - 28"; D - 30"

Shipping weight: 250 lbs.

Blue MAXX Upright

Dimensions: H - 54”; W - 24”; D - 26-1/2”

No shipping dimensions or weight available

*An optional coin Mech/bill acceptor (Mars 2000) combination unit is available for all countertop models.

Cabinet Information - General Information - All Cabinet Styles

MegatouchMAXXTechnicalReference Manual

Cabinet Information - General Information - Full MAXX

MegatouchMAXXTechnicalReference Manual

Megatouch Full MAXX

Dimensions: H - 15-1/4”; W - 20”; D - 18-1/4”

Shipping dimensions: H - 26-1/2"; W - 23"; D - 21-1/4"

Shipping weight: 95 lbs.

Motherboard Information

Mitsubishi

Telco

Touchscreen Type

Microtouch

Cabinet Information - General Information - Full MAXX

MegatouchMAXXTechnicalReference Manual

Full MAXX

TOUCHSCREEN

ASSEMBLY

SA0103-01

MONITOR

BEZEL

HW0092-01 LID ASSEMBLY

SA0168-XX

SMILEY BILL

ACCEPTOR

BEZEL

HW0088-02

REJECT

BUTTON

HW0089-01

SIDE LOCK

HW8733-03

CHASSIS

MW0181-01

SMILEY

COVER PLATE

HW0093-01

TWIN SPEAKER

ASSEMBLY

SA0173-01

MARS

COVER PLATE

HW0090-01-0A

MARS BILL

ACCEPTOR

BEZEL

HW0088-01

Cabinet Information - General Information - Full MAXX

MegatouchMAXXTechnicalReference Manual

Full MAXX

COIN CHUTE

MW0200-01

COIN BOX

HARNESS

SA0176-01

METRIMATE

RECEPTACLE

CN7507-02 COIN BOX LOCK

HW8731

COIN BOX LID

MW0168-01

OPTICAL

COIN

SENSOR

SA10042-01

CENTRONICS

RIBBON CABLE

EC2191-06

TELCO MOTHERBOARD

ASSEMBLY

SA0163-04

MITSUBISHI MOTHERBOARD

ASSEMBLY

SA0163-05

CIRCUIT BREAKER

EC0340

POWER SUPPLY

EC7528-02

ROCKER SWITCH

SW4024

POWER SUPPLY

CONNECTOR SA0157-02

PC CARD

SLOTS I/O BOARD

SA10047-01-0B

CENTRONICS

CONNECTOR

SA10043-02

Cabinet Information - General Information - Blue MAXX - MAXX Classic

MegatouchMAXXTechnicalReference Manual

Megatouch Blue MAXX - MAXX Classic

Dimensions: H - 15-1/4”; W - 20”; D - 18-1/4”

Shipping dimensions: H - 26-1/2"; W - 23"; D - 21-1/4"

Shipping weight: 95 lbs.

Motherboard Information

Mitsubishi

Unicorn

Telco

Touchscreen Type

Microtouch

ELO

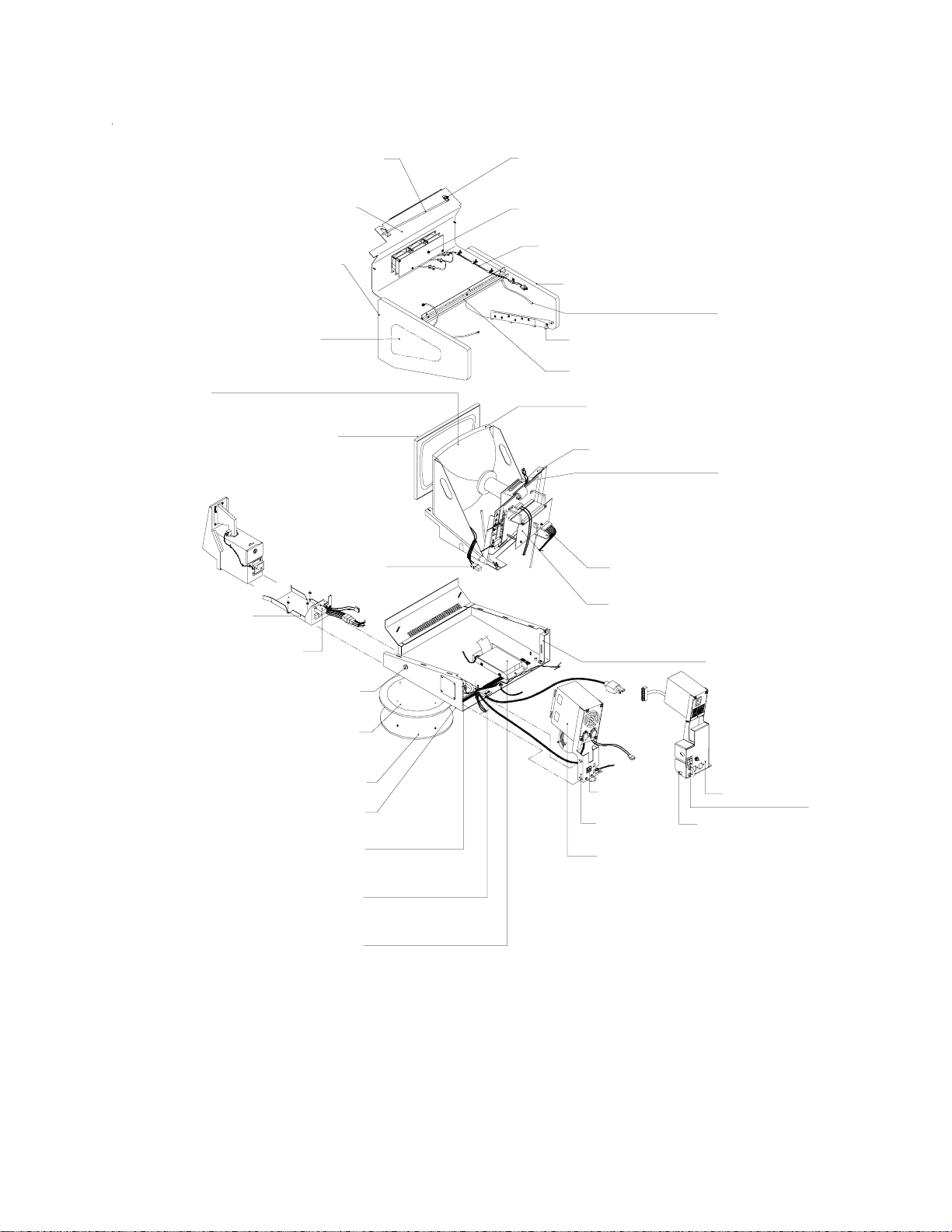

Blue MAXX - MAXX Classic Countertop

Cabinet Information - General Information - Blue MAXX - MAXX Classic

MegatouchMAXXTechnicalReference Manual

REAR DOOR HINGE

(MW5164)

MONITOR HARNESS

(SA0225-04)

CLAMP CORD

(MW0038-01)

12VOLT COUNTER

(EC9154-02)

BRACKET COUNTER

(MW0012-01)

CHASSIS

(MW0009-01)

4" SPEAKER ASSY

(SA4084-02)

LOCK (HW8741)

CAM (HW8756)

ANTI-SKID PAD

(HW8018-01)

LAZY SUSAN

(HW8993-02)

MONITOR (EC9377)

CREEN (SA9824-01)

TAPE KIT

(SB0016-01)

RIGHT SIDE PANEL

BLUE MAXX (WD0001-03)

CLASSIC MAXX (WD0001-05)

SIDE DECAL

JADE (GL3100-44 (LEFT))

JADE (GL3100-45 (RIGHT))

BLUE (GL3100-04)

GASKET BEZEL ASSY.

(SA5129-01)

BOLT LOCK

(MW0023-01)

CTOP DOOR ASSY

(MWOO16-01)

TOP COVER

(MW0013-01-XX)

I/O BOARD

CLASSIC (SA10051-02)

BLUE (SA10051-01)

MAIN HARNESS

(SA0108-03)

RKER SWITCH

(SW4024)

U BOLT W/KEPNUT FOR ALL ASSY.

U-BOLT (HW1310) NUT (HW3301)

LOCK BRACKET

(MW0015-01)

POWER SUPPLY

(EC7531)

ATX BRACKET

(MW0352-01)

POWER SUPPLY

(EC7528)

SPLY BRKT.

(MW0011-01)

RKER SWITCH

(SW4024)

TOUCHSCREEN CONTROLLER

(EC9840-03) SMT3E CENTRONICS ASSY.

(EC2198-01)

PLASTIC TUBE

(HW9001)

TOUCHSCREEN W/VGA ASSY.

(SA0103-01)

LEFT SIDE PANEL

BLUE MAXX (WD0001-04)

CLASSIC MAXX (WD0001-06)

PLATE LATCH

LEFT (MW0014-02)

RIGHT (MW0014-01)

FAN ASSY

(SA5117-04-XX)

FAN POWER CONNECTOR

(SA0117-01)

LOCK (MW0024-01- CAM LOCK)

LOCK W/O CAM (HW8734-01)

COTTER PIN (HW1501-01)

HARD DRIVE

(PA3021-01 - JADE 2)
