Mercura MINI-VEGA Guide de démarrage rapide
MINI- VEGA LIGHTBARS
07/06/2016
GT-0637-RAM IndB
Headquarters : Zone d’Activités « Les Gailletrous » - 4 rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR- France
Tel : 00 33 2 54 57 52 52 – Fax 00 33 2 54 56 80 00
SAS with Capital 102. 400 € - APE (NAF) 2790 Z – SIRET 310 999 891 00040
Page 1
29810-01
TECHNICAL GUIDE FOR BLUE
MINI-VEGA LIGHTBAR WITH MULTI-TONE SIREN
SUMMARY
1. DESCRIPTIONS ...................................................................................................................................2
2. DIMENSIONS & WEIGHT.....................................................................................................................3
3. ELECTRICAL CHARACTERISTICS.....................................................................................................3
4. MOUNTING INSTRUCTIONS ...............................................................................................................4
5. OPERATING INSTRUCTIONS..............................................................................................................4
WARNING CONCERNING MOUNTING OF MERCURA MATERIAL
The Installer is fully responsible for the mounting of equipment in the vehicle.
The Installer must define the means and the material necessary for mounting of equipment in order to deliver
the vehicle equipped according to the regulations.
MERCURA is not responsable for failures occuring due to incorrect definition of the type of mounting system,
reinforcements, drilling holes in roof panel, state and quality of mounting system, use of vehicle
manufacturer anchoring points and the system power supply and protection definition in accordance with the
vehicle energy source.
MINI- VEGA LIGHTBARS
07/06/2016
GT-0637-RAM IndB
Headquarters : Zone d’Activités « Les Gailletrous » - 4 rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR- France
Tel : 00 33 2 54 57 52 52 – Fax 00 33 2 54 56 80 00
SAS with Capital 102. 400 € - APE (NAF) 2790 Z – SIRET 310 999 891 00040
Page 2
29810-01
DESCRIPTIONS
Each light-bar is equipped with 4 x corner light modules, a siren module with loud-speaker, 4 magnetic
pads for easy removal from the vehicle and a 4,5m length cable with cigar lighter plug, The cable exit is
placed in the centre of the lightbar base.
2 operating modes are possible : SIREN with FLASHING LIGHTS & FLASHING LIGHTS ONLY.
1.
Corner module (Lightbar view without the
corner lenses).
2. Front lens for Siren/Loud-speaker
3.
The 4 lights are identical
1. Lens vent enabling air circulation.
2. Magnetic mounting pads.
3. Cable sheath
4. Cable with cigar lighter plug.
5. Towards Cigar lighter plug.
6.
Front lens designed for siren & loud-speaker
MINI- VEGA LIGHTBARS
07/06/2016
GT-0637-RAM IndB
Headquarters : Zone d’Activités « Les Gailletrous » - 4 rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR- France
Tel : 00 33 2 54 57 52 52 – Fax 00 33 2 54 56 80 00
SAS with Capital 102. 400 € - APE (NAF) 2790 Z – SIRET 310 999 891 00040
Page 3
29810-01
DIMENSIONS & WEIGHT
Weight: 6,4 Kg
ELECTRICAL CHARACTERISTICS
VOLTAGE : 10-15 volts
CONSUMPTION
Flash Mode only
•6,3A peak at 13,5 volts
•2,2A average at13,5 volts
Flash Mode with Siren
•
8A peak at 13,5 volts
•
5,2A average at 13,5 volts
APPROVAL
According to Regulation 65
•Blue Lightbar : TB1 E2 0015049
EMC according to Regulation 10
•Blue lightbar : E2 10R05 15217
Siren Tones
:
Up to 3 different siren tones possible
MINI- VEGA LIGHTBARS
07/06/2016
GT-0637-RAM IndB
Headquarters : Zone d’Activités « Les Gailletrous » - 4 rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR- France
Tel : 00 33 2 54 57 52 52 – Fax 00 33 2 54 56 80 00
SAS with Capital 102. 400 € - APE (NAF) 2790 Z – SIRET 310 999 891 00040
Page 4
29810-01
MOUNTING INSTRUCTIONS
Before mounting the MINI VEGA lightbar on the vehicle roof panel, make sure that the surface on which the
magnetic pads are placed is suitable and in good condition.
The surface chosen must be flat and clean in order to optimize the magnetic contact between the roof panel
and the magnetic pads. Clean the roof panel, if necessary. The roof panel must be suitable for a magnetic
mount . Roof panels in polyester or derivatives are not compatible.
Minimise the cable distance
between the lightbar and the
inside of the vehicle,
DANGER
DO NOT EXCEED 150 KM/H MAXIMUM SPEED WITH THE MAGNET PADS
LIGHTBAR INSTALLED ON THE VEHICLE ROOF.
BEYOND THIS SPEED LIMIT, WE CANNOT GUARANTEE THE LIGHTBAR’S
ADHERENCE TO THE VEHICLE ROOF.
OPERATING INSTRUCTIONS
ENSURE THAT THE CIGAR LIGHTER SOCKET IS ADAPTED
TO THE LIGHTBAR'S ELECTRICAL POWER ( FROM 8 TO 10A)
Insert the cigar lighter plug in the vehicle's cigar lighter socket.
MINI- VEGA LIGHTBARS
07/06/2016
GT-0637-RAM IndB
Headquarters : Zone d’Activités « Les Gailletrous » - 4 rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR- France
Tel : 00 33 2 54 57 52 52 – Fax 00 33 2 54 56 80 00
SAS with Capital 102. 400 € - APE (NAF) 2790 Z – SIRET 310 999 891 00040
Page 5
29810-01

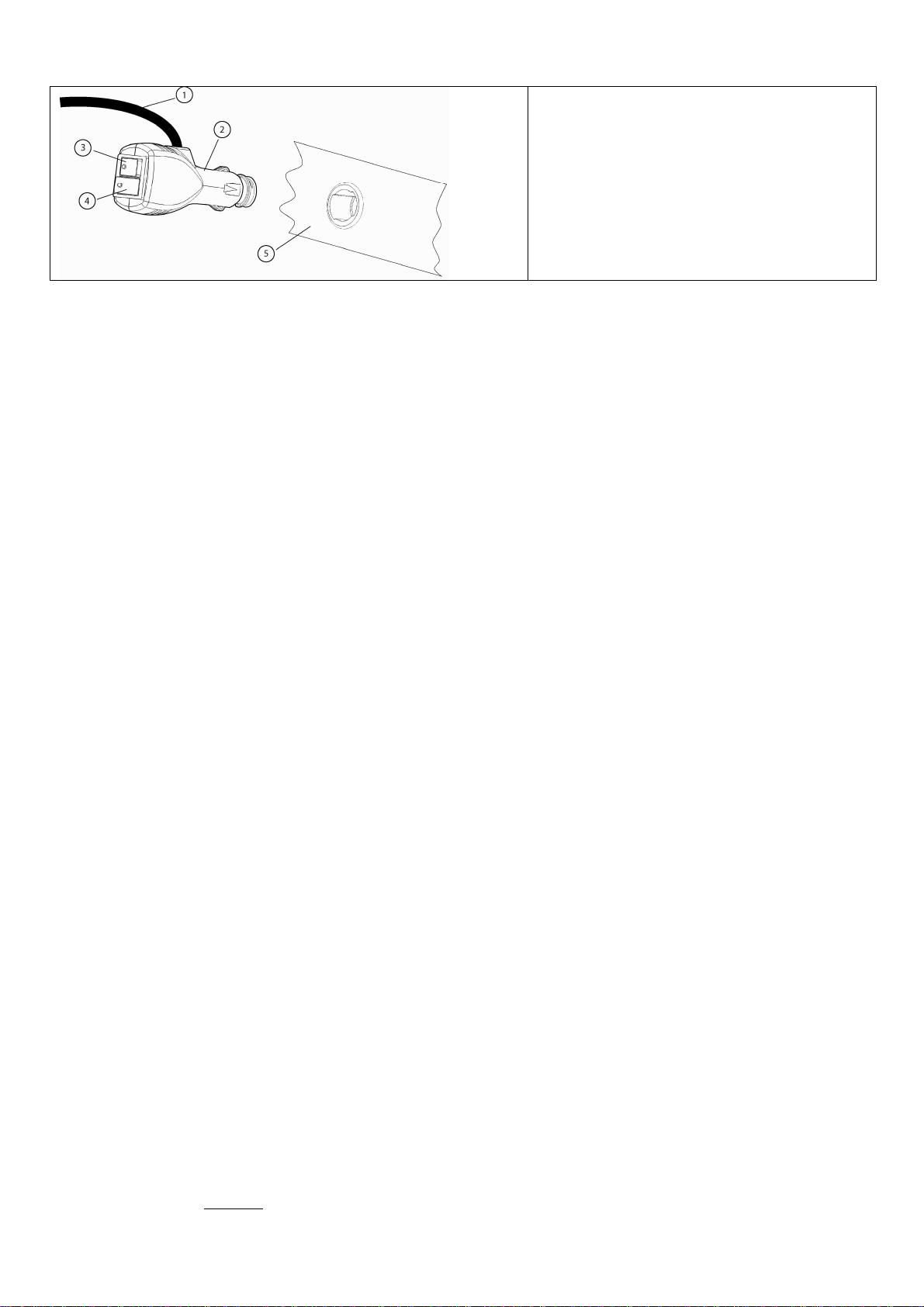

1.
Lightbar cable
2.
Cigar lighter plug
3.
SIREN & FLASH MODE control switch
4.
FLASH MODE ONLY control switch
The SIREN & FLASH MODE is activated using the ON/OFF switch on the cigar lighter plug (4) : Switch with
red LED light which lights up when ON
NB : The SIREN can only function if the FLASH MODE is activated.
In the case of the multi-tone siren (up to 3 tones possible), the tone is selected on pressing the Siren button
for more than 2 seconds when the siren is ON. (Briefly pressing the Siren Button again switches OFF the
siren)
The new tone is memorised when the button is released, This tone will sound the next time that the siren is
swtiched on.
The lightbar is automatically deactivated if the vehicle voltage drops below 11,5 volts.
