Merax SW000009FAA Manuel utilisateur
Merax 14FT Trampoline with Enclosure
Assembly instruction, installation, use, maintaince and care
-
-
-
-
-
Don't try to somersaults or cartwheels. Falling on the head or neck can result in
paralysis or even death.
No more than one person at the same time making use of the trampoline. Multiple users
can increase the risk of injury.
Use the trampoline only under the supervision of an adult with knowledge of use. These
instructions are for your safety. Please carefully read each of them before assembly and
use of the trampoline. We retain this manual for future reference.
The maximum user weight should not exceed 330lbs / 150Kg for this product.
Read before using the product.
Telephone : 626-912-8886 Ext. 104
E-mail: csr@merax.com
Caution
USER MANUAL
1
Caution
No flips or twists, a fall on the head or
Neck can result in paralysis or even
death.
Do not use in
case of plaster
or any injury to
the leg, ARM,
Head, neck or
back.
Inspection before use, check that the legs are fixed, without Springs Loose, mesh, mat
and security are in place and in good condition without scratches.
Not more than one person at the same
time on the trampoline (330 lbs / 150 kg).
Do not allow the
use of the
trampoline for
children under
six (6) years of
age.
Remove all sharp
or Hard objects
such as Jewelry,
eyeglasses and /
or sunglasses
before jumping.
In case of
pregnancy, do
not use it without
your doctor's
consent.
0-6 ANOS
2

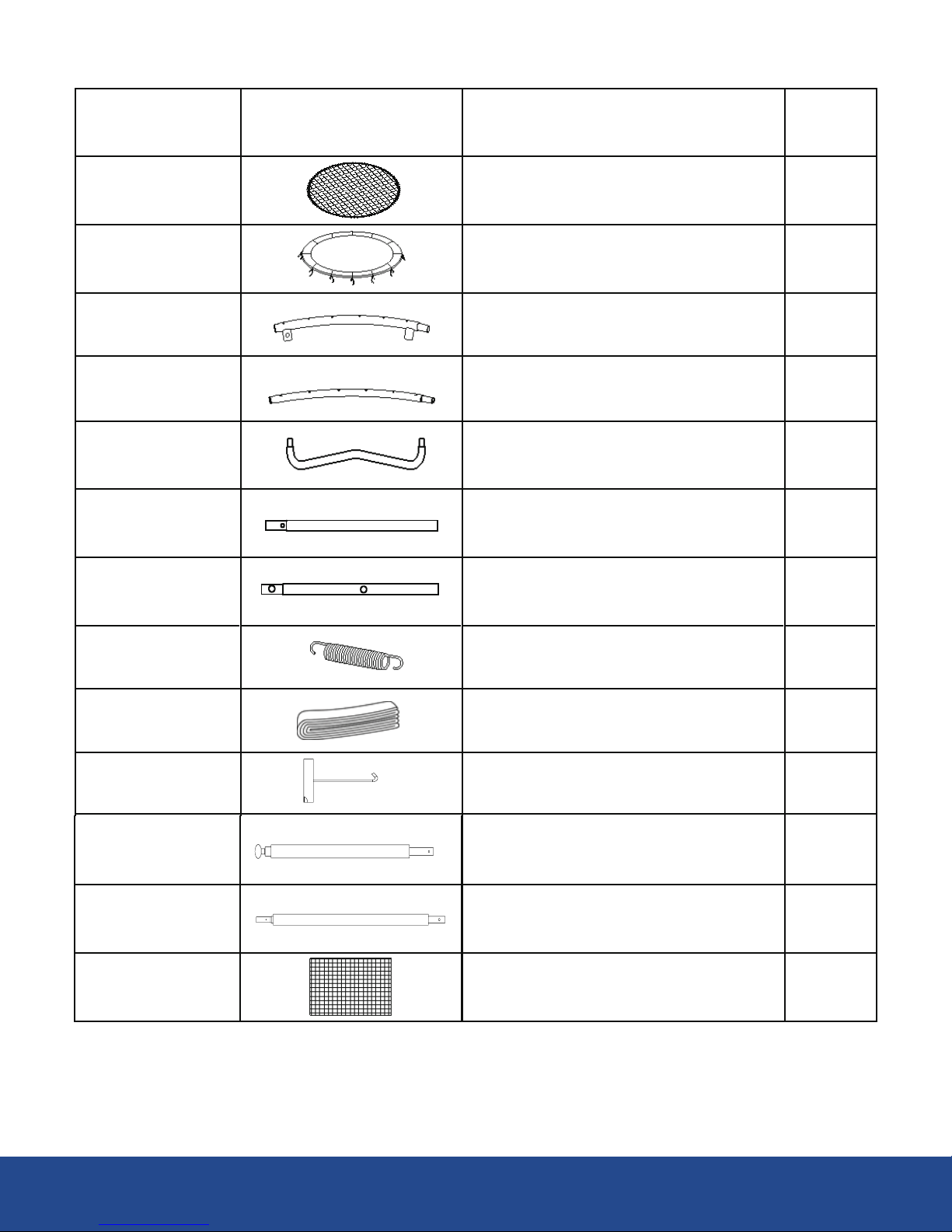

Number Diagram Description Quantity
1 Trampoline Mat 1
2 Frame Pad 1
3 Top Rails with Legs 6
4 Top Rail 6
5 Base Leg 6
6B
6A
Vertical extension leg
(Two Holes)
Vertical extension leg 6
6
7 Galvanized Springs
28N (5 1/2 "long)
8 Green PVC Sleeves 6
9 Loading Spring Tool 1
Part List - Trampoline
72
10 Top Frame Tube(with foam) 5
11 Bottom Frame Tube(with foam) 5
12 Mesh Cover 1
3
Part list - Tools
11
BSmall Spring Wahser
Screw
11
Allen Tool
Tool
Gap Spacer
Bolt 10
Basketball Hoop
Number Diagram Description Quantity
13 Board 1
14 Ring 1
15 Board connect hook 2
10A 1
11A 1
Upper Board Tube(No Foam)
Lower Board Tube(No Foam)
4
Number Diagram Description Quantity
Installation and Assembly instructions
This trampoline and the cover can be disassembled and stored easily by Reversing the order of the installation.
At least two people are required to assemble the trampoline and cover.
Before Assemble
Before Assembly, please make sure you have all the parts required to assemble the product. If a part is missing,
please contact our customer service agents.
8
Bolt 2
G1
Big Spring Wahser
Lock Nut 16
Arc Washer
1
Square Neck Bolt
Round Head bolt 4
Washer
M
N
O
Rope
V
X
Plastic Nut
Ladder
2
8
2
5
FIGURE 1
# 6B
# 4
# 5
# 6A
# 3
Assemble Frame of Trampoline
Before you start: check all the steps before assembling and Read All precautions before using the trampoline.
It requires at least two adults to assemble the trampoline. Must use Protective Gloves to avoid injury during the
Assembly
Locate the following 30 pieces of Steel Tubes that will need to begin to assemble the trampoline:
6 - Top rail with Legs (# 3)
6 - Top Rails (# 4)
6 - Base Leg (# 5)
6 - Vertical extension leg(# 6A)
6 - Vertical extension leg with two (2) Holes (# 6B)
Note: all parts are interchangeable with the same number and orientation have no right or left.
Make sure you have a spacious, clean and dry place, suitable for the assembly of the trampoline. It is essential that
the right place for this trampoline is completely flat and level. If the ground Is uneven, this could cause movement in
the frame and can cause stress in the united sections of the trampoline and / or can cause serious injury.
Step 1 - Assemble Frame
6
Step 2 - Leg Support Assembly
Connect the vertical extensions leg (# 6A and #6B) to the base leg (# 5) as shown in Figure 2 (The mounted parts
will be referred to hereafter as "Support Leg"). Repeat this step for all the support legs.
Note: The vertical extension leg (#6B) has two holes (2)
# 6B
# 6A
# 5
FIGURE 2
7
Step 3 - Main rail Assembly with screw
At this point, two people are needed to assemble the trampoline.
Lift two sets of legs brackets mounted in STEP 2 to a vertical position (standing). Connect one end of the top rail (# 3)
to the vertical extension of the leg (# 6A) and the other other end to the vertica leg extension with two holes (# 6B) as
shown in Figure 3 .
Repeat the same way for all the top Rails with Legs
Tip: Make sure that the holes in all parts of the steel pipe are aligned out (the holes in the legs both face
outwards in the same direction): This is important for the following installation of the net.
Support Leg
# 3
# 6A
# 6B
# 6A
# 6B
# 5
Holes
# 3
FIGURE 3
8
Step 4 - Top Rail Assembly
Complete the main frame by inserting top rail (# 4) on top rail (# 3) as shown in Figure 4.
Step 5 - Securing the support leg to the top rail.
Secure one side of the support leg - Extension of vertical leg (# 6A) to the frame using the locking screw (#A),
washer small security (# B) and Allen key (# C) as shown in FIGURE 5. If the holes do not match, turn the
extension of the Vertical leg back and forth to align the holes. Repeat the same way for all the leg holders.
NOTE:
The holes on the other side of the support leg will be used later, when installing the cover net - after all the springs
(# 7) have been installed (steps 7 - 10).
Do not overtighten the screws in this moment, screws should be tightened until the end
Tip: make sure that the holes in all the pieces of Steel Pipe Line and the hole is outwards. This is important for
the installation of the cover later.
# 6A # 6B
# 5
# 4
# 6A # 6B
# 3 # 3
# 6A
Turn the Vertical
extension leg to
align with the
drilling
Orifice
# B
# C
# A
FIGURE 4
FIGURE 5
9
Assembly of the trampoline Mat
To assemble the trampoline Mat, only need the Spring Loading Tool (# 9) included in this product.

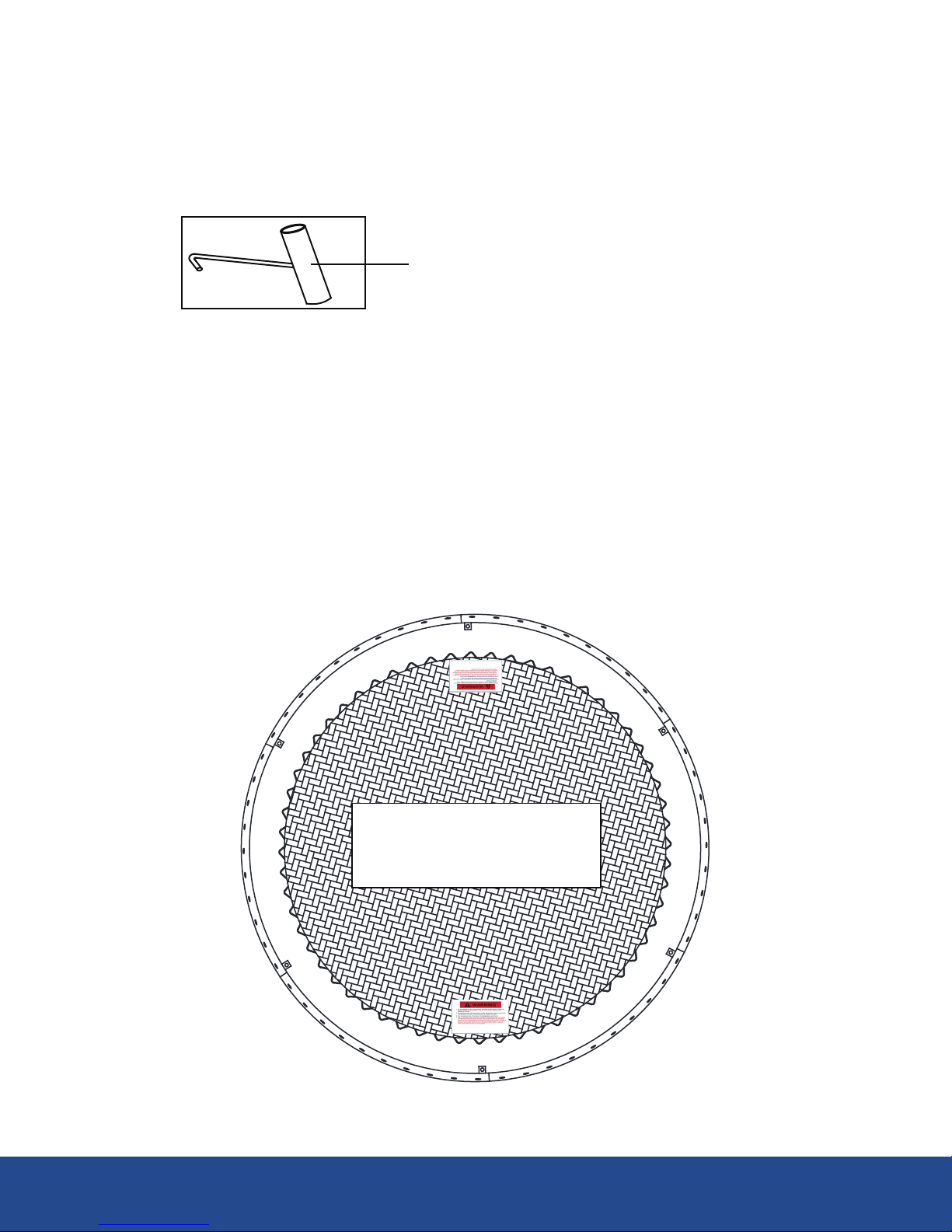

Step 6 - place the Mat
Place the trampoline Mat (#1) on the floor in the Interior of the frame assembled with the Label facing up as shown
in Figure 6. Align the warning labels with any of the trampoline legs, make sure that the warning labels are up. This
makes the installation process easier.
Select a starting point in the frame and name it "zero" point (pick a point that is above a frame leg and facing a
warning label).
Tool - Spring Loaded (# 9)
Trampoline Mat
(# 1)
Zero
FIGURE 6
10
