Merach MR-S02 Manuel utilisateur
MERACHMR-S02
EXERCISEBIKE
USERMANUAL
IMPORTANT! Please read all details before use, and retain this owner's manual for
future reference. Your satisfaction is very important to us, PLEASE CONTACT US
BEFORE THE RETURN: [email protected].
Questions or Concerns?
SAFETY INSTRUCTIONS....................................................................1
PRODUCT OVERVIEW........................................................................3
PARTS LIST..........................................................................................4
ASSEMBLY INSTRUCTIONS...............................................................6
PRECAUTIONS FOR USE.................................................................14
ADJUSTMENT INSTRUCTIONS........................................................15
BLUETOOTH CONNECTION INSTRUCTIONS.................................18
This device contains a radio transmitter module with type approval
code FCC ID ENTIFIER: 2A6QWMR-BLE001.
Please read the entire manual carefully
before installing and usingthe bike, and
save for further use.
CONTENTS
INSTRUCTIONS FOR [MERACH] APP
CONNECTION AND USE .............................................19
WARM UP ..........................................................................................24
TROUBLESHOOTING.......................................................................25
WARRANTY INFORMATION............................................................26
INSTRUCTIONS FOR [KINOMAP] APP
CONNECTION AND USE
............................................21
SAFETY INSTRUCTIONS
01
Please properly keep this manual in a safe place for future reference.
It is very important to read the entire manual thoroughly before installing and using the
machine. Safe and effective training can only be achieved if the machine is properly
assembled, properly maintained and used. Make sure all users are familiar with all
warnings and precautions for this machine.
Please consult your physician to determine if you have any medical or physical conditions
that could put your health and safety at risk or prevent you from using the equipment
properly. Your physician's advice is essential if you are taking medication that affects
your heart rate, blood pressure, or cholesterol level.
Please always pay attention to your body signals, improper use of the machine may affect
your health. If you experience any symptoms (including headache, chest pain, irregular
heartbeat, shortness of breath, dizziness, or any discomfort), stop exercising immediately
and consult your physician for permission before retraining.
Always keep children and pets away from the machine. The machine is for adult use only.
Please use this machine on stable and horizontal level ground, and put a protective layer
on the floor or carpet to prevent floor damage. Make sure the distance between the
machine and each obstacle should be at least 1.6 ft (0.5m).
safetyPlease check all screws and nuts are tightened for before using the machine.
The safe use of the machine can only be guaranteed by regular maintenance and repairs
of vulnerable, worn and broken parts.
Please follow the instructions in this manual to use this machine. Please stop using and
operating immediately when you find any defective parts or abnormal sound. Make sure
all issues are resolved before get back to use again.
Loose-fitting clothing Please wear sports clothes, sports shoes, or other proper clothes.
is not recommended, as loose clothing may get caught somewhere in the machine,
hindering operation and possibly causing injury.
This machine is only for home use. The Maximum user weight is 330lbs.
SAFETY INSTRUCTIONS
02
This machine is not for professional medical treatment.
This product is only for family use, and the rating is HC class.
The overall performance of the machine and all moving parts must be checked
regularly as to ensure the safety of the product.
If the moving parts are damaged, please do not use until the parts are repaired.
The product is not children's toys, parents and other guardians should know their
responsibilities, because children's playful and adventurous inwardness might
lead to some unexpected accidents.
Care & Maintenance
Do not store the machine in a place exposed to direct sunlight, wind and rain,
or with high humidity. Besides, if needed, please pack the machine to keep
children away from touching or playing with the machine.
Please check if there’s rust or cracks after long-term storage.
Please understand for the consumable parts, the wear and tear may also
occur deterioration even with proper maintenance.
For long-term use of this machine, please wipe the dust regularly. Do not water
it directly, or wipe with gasoline, abrasive powder, etc. Otherwise, it might cause
cracks on the parts or main body, electric shock or fire. Please use Dilute
neutral detergent for maintenance.
Before starting any training, please consult your physician,
especially for those who are over 35 years old or with
pre-existing health conditions. Please read all
instructions before using the machine.
PRODUCT OVERVIEW
03
04
PARTS LIST
NO Parts Name Spec. QTY
Main Frame
Handlebar Post
Seat Post
Seat
Knob
Left Pedal
Right Pedal
Front Stabilizer
Rear Stabilizer
Screw
Handlebar
Decorative Cover
Screw
Battery
Allen Key
Open-end
Wrench 14-15
(with washer)
AAA (No.7)
S6
14-15

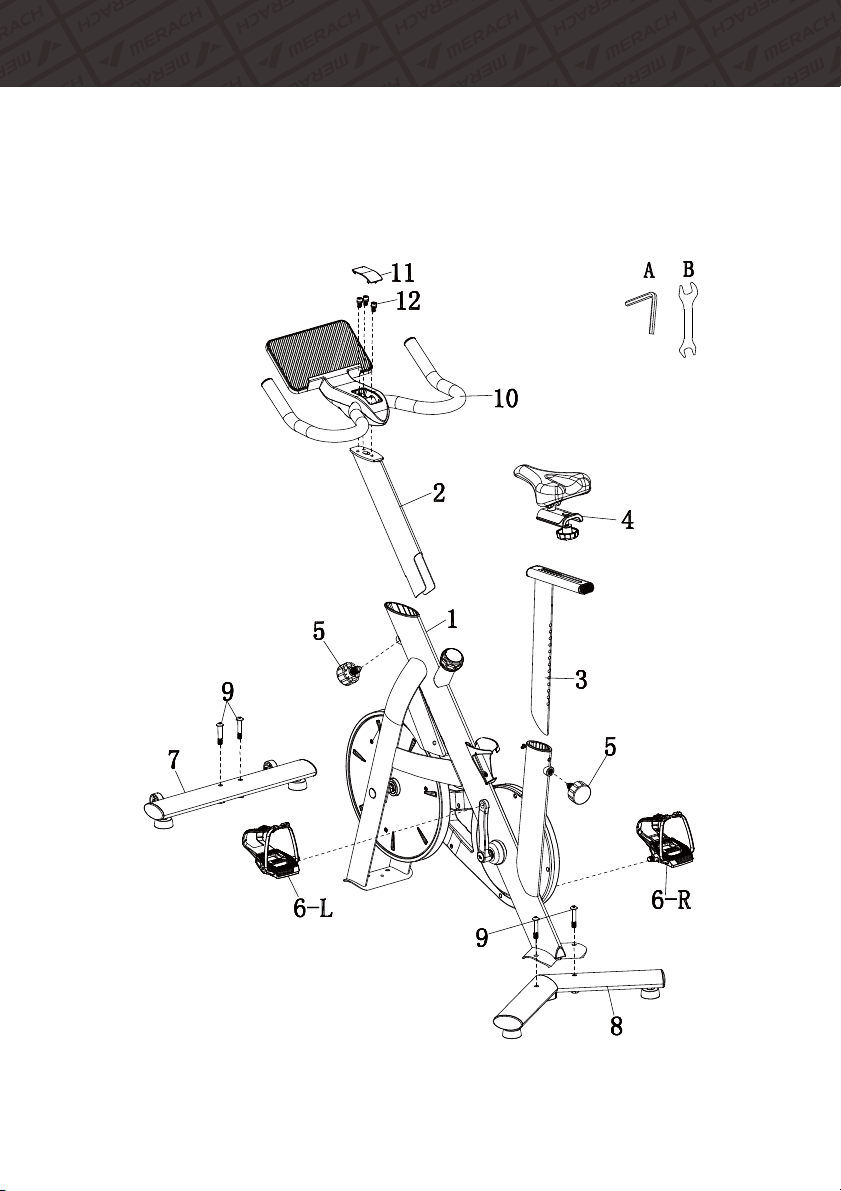

05
PARTS LIST
06
A S S E M B L YI N S T R U C T I O N SA S S E M B L YI N S T R U C T I O N S
ASSEMBLY INSTRUCTIONS
1.Remove the wheel chock bolt locked on
the main frame with A: Allen Key.
2.Place the wheel chock, protective paper
and bolt aside.
(Please store them in a bag as spare)
3.Prepare #7 Front Stabilizer, two #9
Screws and A: Allen Key. 4.Align the holes on #7 Front Stabilizer
and the front bracket on the #1 Main
Frame.
5.Insert two #9 Screws into the holes. 6.Tighten and secure the two #9 Screws
with A: Allen Key.
07
ASSEMBLY INSTRUCTIONS
7.Complete assembly of #7 Front Stabilizer. 8.Prepare #8 Rear Stabilizer, two #9 Screws
and A: Allen Key.
9.Align the holes on #8 Rear Stabilizer and
the rear bracket on the #1 Main Frame.
10.Insert two #9 Screws into the holes.
11.Tighten and secure the two #9 Screws
with A: Allen Key.
12.Complete the assembly of #8 Rear
Stabilizer.
08
ASSEMBLY INSTRUCTIONS
13.Loosen the #5 Knob pre-locked on the
#1 Main Frame, then pull it outward.
14.Pull the #5 Knob outward with one hand,
then insert the #2 Handlebar Post to
#1 Main Frame with the other hand.
15.Align the #5 Knob to an adjustment hole
in #2 Handlebar Post and then tighten
this knob.
16.Prepare #10 Handlebar, three #12
Screws and A: Allen Key.
17.Align the #10 Handlebar to the
#1 Main Frame.
18.Tighten three #12 A: Allen Key.Screws with
