MELAG MELAdem 47 Manuel utilisateur

User Manual

Pressure increase pump

for MELAdem 47

Dear customer,

We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated

family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice-

based use. Our focus on innovation, quality and the highest standards of operational reliability has established MELAG

as the world’s leading manufacturer in the instrument reprocessing and hygiene field.

You, our customer are justified in your demand for the best products, quality and reliability. Providing “competence in

hygiene” and “Quality – made in Germany”, we guarantee that these demands will be met. Our certified quality man-

agement system is subject to close monitoring: one instrument to this end is our annual multi-day audit conducted in ac-

cordance with ENISO13485. This guarantees that all MELAG products are manufactured and tested in accordance with

strict quality criteria.

The MELAG management and team.

This device is to be maintained exclusively by a qualified service technician trained by MELAG and working in accord-

ance with the valid directives.

Contents

1 General guidelines ...............................................................................................................................................................4

Symbols used.......................................................................................................................................................................4

Disposal ...............................................................................................................................................................................4

2 Safety.....................................................................................................................................................................................5

3 Description of the device.....................................................................................................................................................6

Intended use ........................................................................................................................................................................6

Scope of delivery..................................................................................................................................................................6

Pressure increase pump ......................................................................................................................................................6

Symbols on the device .........................................................................................................................................................7

4 Installation ............................................................................................................................................................................8

5 Operation ............................................................................................................................................................................11

6 Maintenance........................................................................................................................................................................12

7 Technical data ....................................................................................................................................................................13

8 Accessories and Spare Parts............................................................................................................................................14

Glossary .................................................................................................................................................................................15

1 General guidelines

Please read this user manual carefully before using MELAG accessories. It contains important safety instructions.

Please store this user manual carefully and in close proximity to your device. It represents a component of the product.

Should the manual no longer be legible, is damaged or has been lost, you can download a new copy from MELAG down-

load centre at www.melag.com.

Symbols used

Symbol Explanation

Indicates a dangerous situation, which if not avoided, could entail slight to life-threatening

injuries.

Draws your attention to a situation, which if not avoided, could result in damage to the

instruments, the practice fittings or the device.

Draws your attention to important information.

Disposal

MELAG devices are synonymous with high quality and a long life-span. When you eventually need to decommission your

MELAG device, we offer a special disposal service. Simply contact your stockist.

Dispose of accessories and consumption media which you no longer require in the appropriate manner. Comply with all

relevant disposal specification in terms of possibly contaminated waste.

The packaging protects the device against transport damage. The packaging materials have been selected for their envi-

ronmentally-friendly disposability and can be recycled. Returning the packaging to the material flow reduces the amount

of waste and saves raw materials. Dispose of all non-required packaging materials at the collection points of the dual

system.

2 Safety

When operating the device, comply with the following safety instructions as well as those contained in

subsequent chapters. Use the device only for the purpose specified in these instructions. Failure to comply

with the safety instructions can result in injury and/or damage to the device.

Setup, installation and commissioning

nCheck the device after unpacking for any damage suffered during transport.

nWe recommend that the device only be set-up, installed and commissioned by MELAG authorized persons.

nUsing the optional electronic leak detector (water stop) minimizes the risk of water damage.

nInstall and operate the device in a frost-free environment.

nThe device is not suitable for operation in explosive atmospheres.

nThe device is conceived for use outside the patient area. The device should be located a minimum of 1.5m radius

away from the treatment area.

Power cable and power plug

nOnly the power cable included in the scope of delivery may be connected to the device.

nThe power cable may not be replaced by a cable determined to be insufficient.

nIn the case of obvious or suspected damage/defects, the device may not be operated further. In such cases, the

device has to be repaired.

Storage and transport

nStore and transport the device frost-free.

nAvoid strong shocks/vibrations.

nStore the device in a fashion protected against moisture.

nDamage to the housing and the device interior as a result of using unsuitable transport packaging. Only transport the

device in its original packaging or other suitable packaging.

Maintenance

nMaintenance should only be performed by authorized technicians.

nMaintain the specified servicing intervals.

nOnly original MELAG spare parts may be used.

Daily operation

nUse only original MELAG accessories or those from other stockists authorized for use by MELAG.

nNever operate the device unattended. Unsupervised operation of the device can result in damage to the device or

your facility. In such a case, MELAG does not accept any liability.

Leaks

nClose the water intake upon detecting a leak. Check all hoses and hose connections for leaks.

nOnly original MELAG spare parts may be used.

3 Description of the device

Intended use

The pressure increase pump for MELAdem47 enables the increase of the inlet pressure of the water treatment unit

MELAdem47.

The MELAdem47 can thus produce higher quantities of demineralized water (DI water) at low line pressure on the build-

ing side. The pressure increase pump is installed by trained service technicians. After the installation, the operation of

the pressure increase pump is automatic. The pressure increase pump must be operated together with the

MELAdem47. User groups and usage environment correspond to those of MELAdem47. The pressure increase pump

is intended for use in the medical field, e.g. in clinics, medical and dental practices outside the patient environment.

Scope of delivery

Please check the scope of delivery before using the product.

Standard scope of delivery

▪ Pressure increase pump

▪ User manual

▪ High-pressure switch

▪ MELAdem cold water adapter, direct connection - water pipe

▪ PUR hose, short (6/4 x 70)

▪ PUR hose, medium (6/4 x 130)

▪ PUR hose, long (6/4 x 3000)

▪ Straight screw-in fitting

▪ Dirt filter (filter MELAdem 37/40/47)

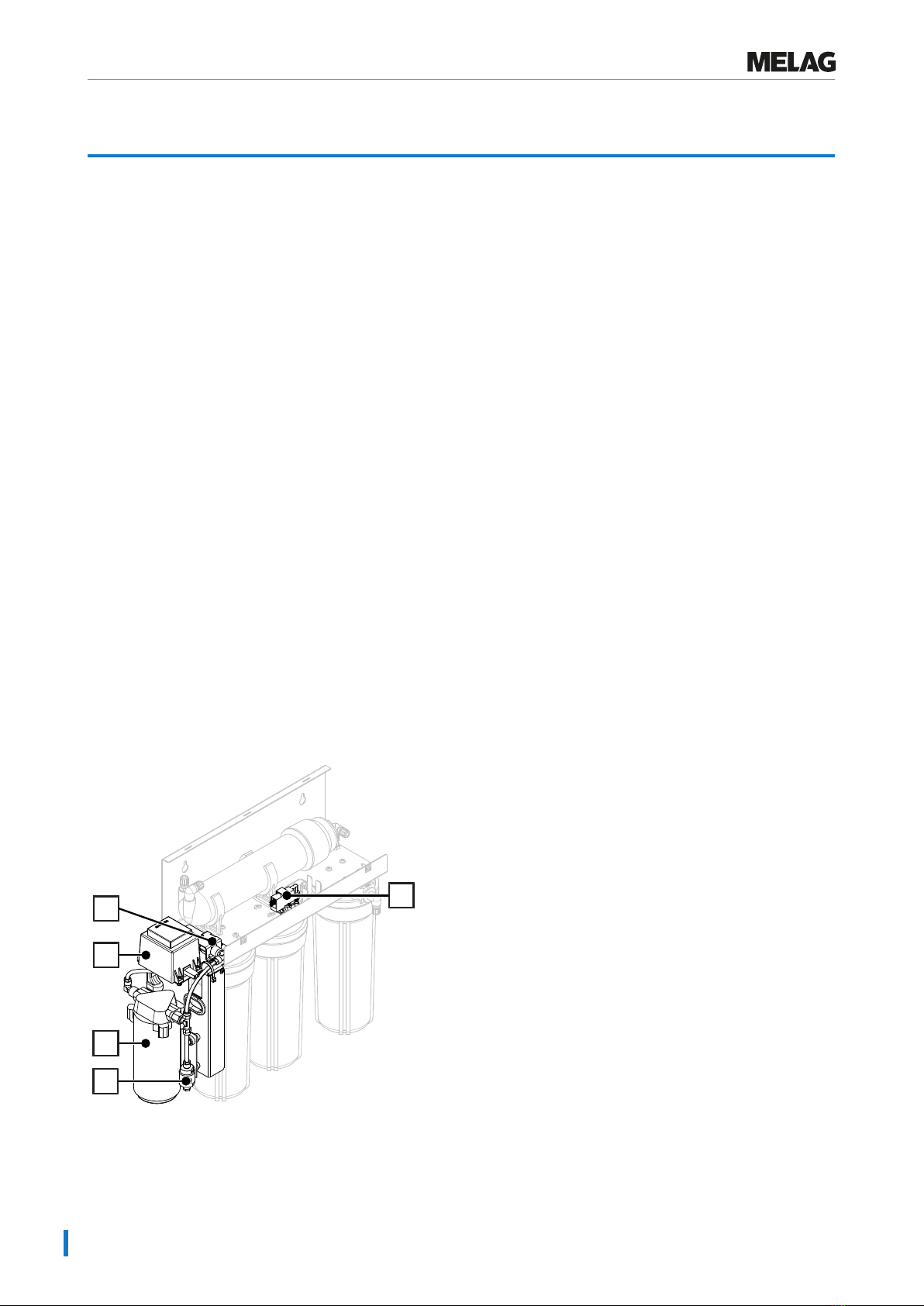

Pressure increase pump

1 High-pressure switch

2 Dirt filter

3 Pressure increase pump

4 Power supply

5 Low pressure switch

3 Description of the device

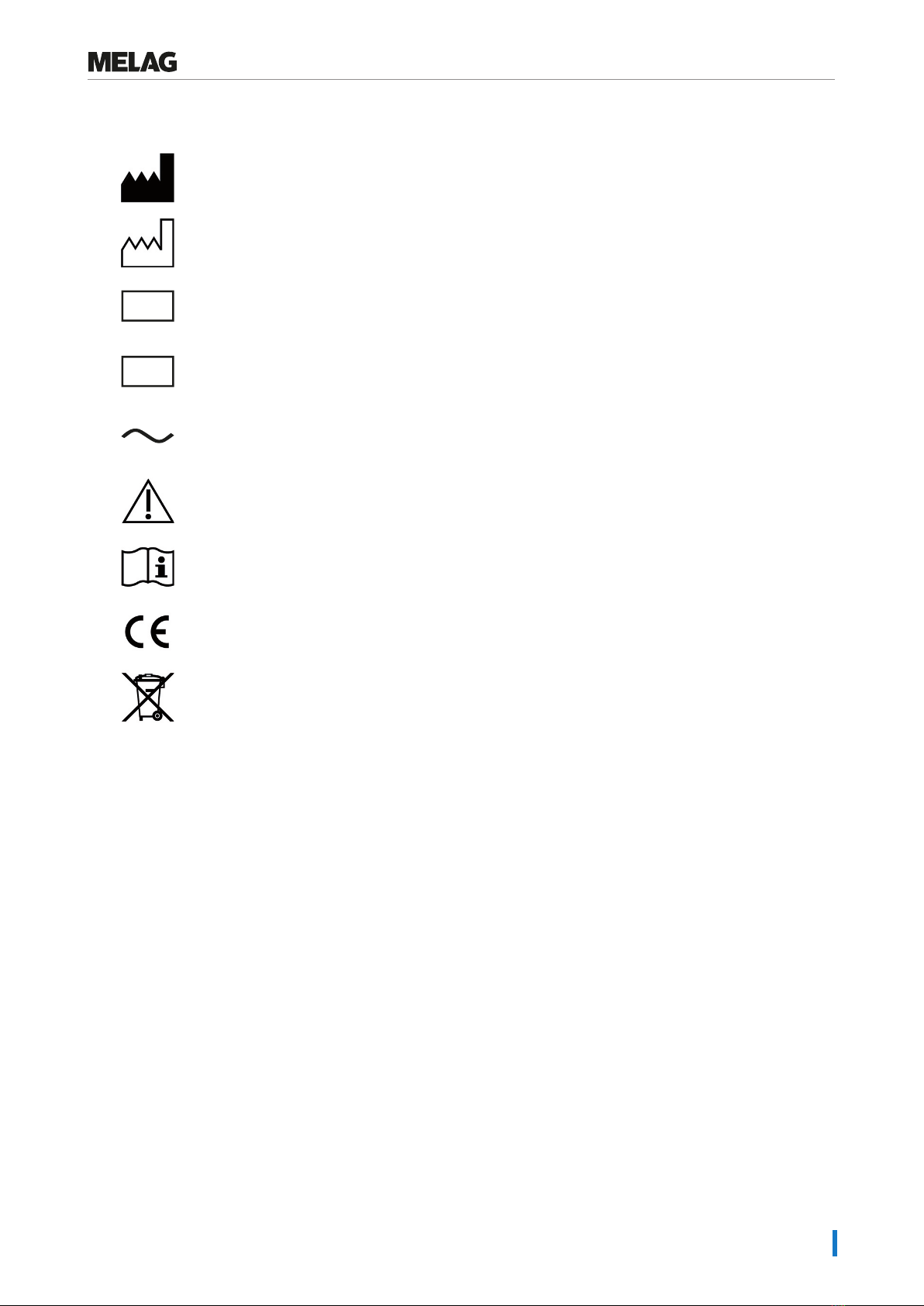

Symbols on the device

Manufacturer of the product

Date of manufacture of the product

Product serial number from the manufacturer

REF

Article number of the product

Electrical connection of the device: AC current

The user manual includes important safety information. Failure to comply with these instructions can

result in injury and material damage.

Read this user manual carefully before commissioning the device.

In affixing the CE mark, the manufacturer declares that this product fulfils the corresponding EU

requirements.

The device may not be disposed as domestic waste. The vendor is responsible for appropriate

disposal of the device - it must be delivered to the vendor to be disposed of.

4 Installation

Tools required: Allen key (4mm), open-end wrench (SW10, SW12, SW19, SW27), Phillips screwdriver (PH2), water-

pump pliers, hose cutter

The following must be fulfilled or present:

The line pressure is at 1-6bar.

The cold water inflow and the shut-off valve of the pressure tank of the water treatment unit are closed.

The water treatment unit is pressure-free.

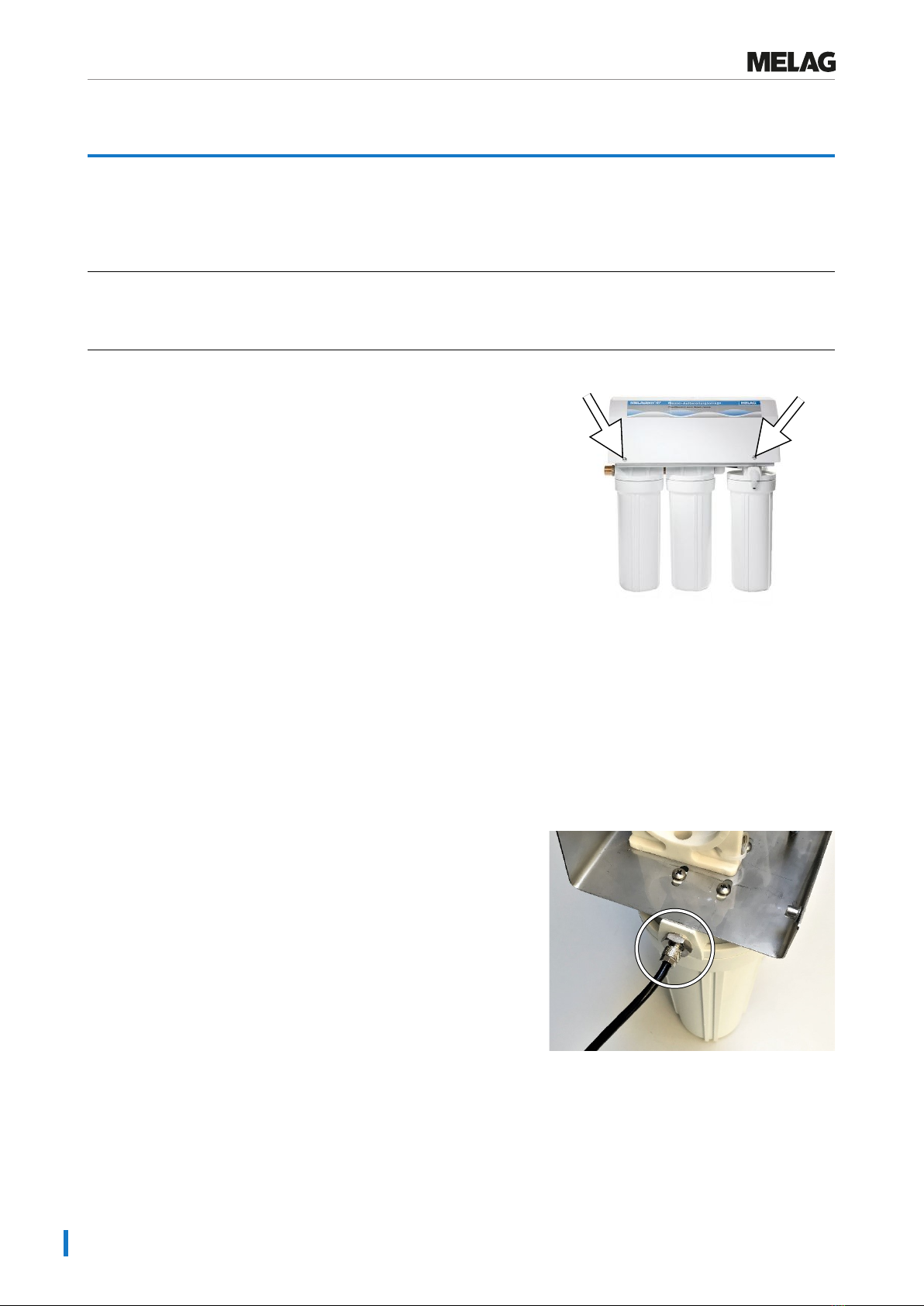

1. Loosen the two screws on the front of the water treatment unit.

2. Pull out the cover hood upwards.

3. Remove the cold water inflow hose from the water tap or water

stop.

4. Remove the cold water inflow hose from the water treatment unit.

5. Remove the brass double nipple (¾") from the inflow of the water

treatment unit.

6. Install the straight screw-in fitting into the inflow of the water

treatment unit. Slightly tighten the straight screw-in fitting.

7. Mount the PUR hose of medium length on the straight screw-in

fitting.

8. Slide the osmosis module slightly to the right.

4 Installation

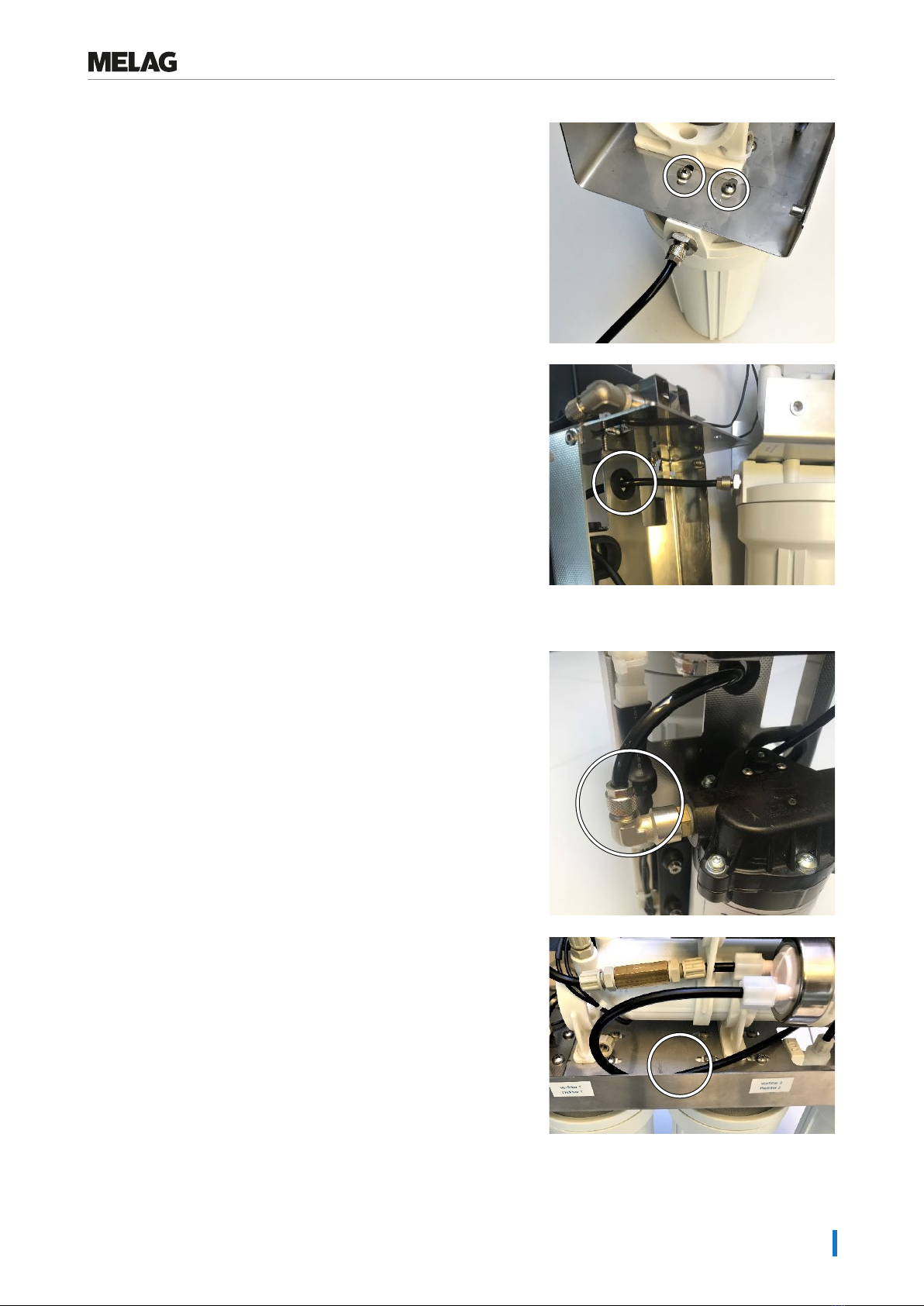

9. Remove the two screws on the filter housing of the fine filter.

10. Lead the PUR hose of medium length through the recess to the

pump.

11. Attach the pressure increase pump to the water treatment unit

using the two screws that were previously loosened.

12. Connect the PUR hose of medium length to the output side of the

pressure increase pump.

13. Cut the PUR hose approximately in the middle between the mixed-

bed resin cartridges and the switchover valve.

14. Insert the pressure switch at the point where it was cut.

4 Installation

15. Lead the pressure increase pump cables under the osmosis

module. Connect the cables to the pressure switch.

16. Push the osmosis module back to the left into the initial state.

PLEASE NOTE

When inserting the dirt filter, pay attention to the flow direction on the dirt filter.

The arrow on the dirt filter must point in the direction of the pressure increase pump.

17. Attach the short PUR hose directly behind the dirt filter.

18. Attach the other end of the short PUR hose to the T-piece of the

pressure increase pump on the input side.

19. Attach the long PUR hose to the other end of the dirt filter.

PLEASE NOTE

The installation of a leakage water detector with cut-off valve (e.g. the water stop from MELAG) is

recommended.

20. Connect the other end of the long PUR hose to the MELAdem

direct connection on the water tap or water stop.

21. Check all hose screw connections on the water treatment unit for

tightness.

22. Open the cold water inflow and the shut-off valve on the pressure

tank and restart the water treatment unit.

23. Insert the power plug of the pressure increase pump into a

socket.

24. Check the water treatment unit for correct function and leakages.

25. Replace the cover hood when the water treatment unit is

functioning correctly and fasten the cover hood with both screws.
