Meistergram PRO1200 Manuel utilisateur
User’s Guide
2
3
Contents
Warnings
Installation and Power Up
Overview
Controller Functions
Thread Trim Function
Head Rotate Function
Needle Selection
Arrow Keys
Drive Mode
Idle (Float) Mode
Color Change Mode
Controller Menu Options
Disk (Read) Menu
Machine Parameters Menu
Common
Advanced
Design Memory Menu
Manual Operations Menu
Assistant Menu
Machine Functions
Thread Break detection
Automend
Threading
Top Thread
Bobbin
4

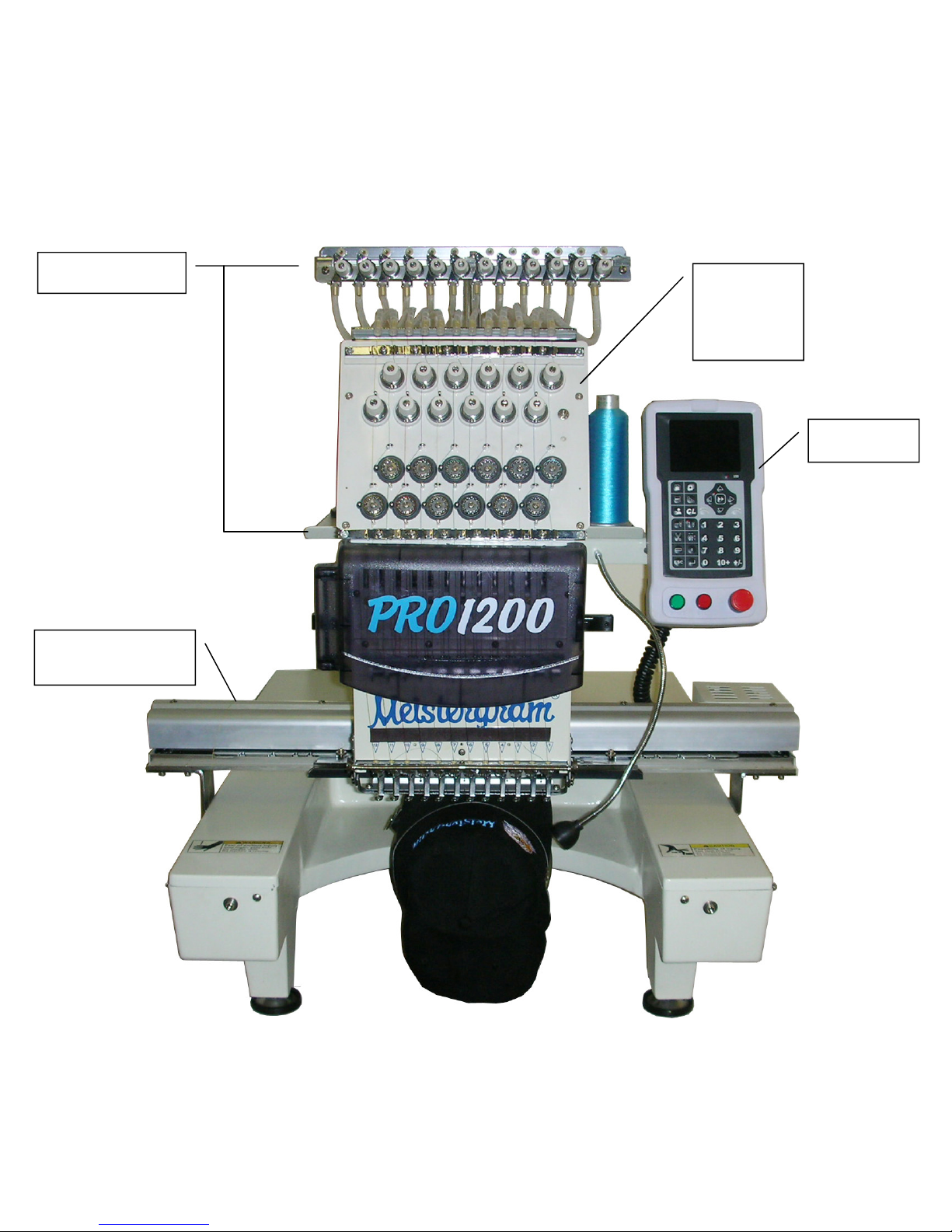

Machine Overview
Controller
Pantograph
Thread
Tension
Base
Thread Stand
5
Controller Overview
LCD
Display
Start
Button Stop
Button
Emergency
Stop
Switch
Arrow
Keys
Adjust
Machine
Speed
Operational
Control Buttons
Head Position
Indicator
(Machine stops at
100°)
6
Controller Overview
Button Descriptions
Manual
Operations
Menu
Clear
Button
Set Design
Parameters
Menu
Assistant
Menu
Design
Menu
Disk (Read)
Menu
Idling (Float)
Mode Select
Thread Trim
Button
Alternate
Option
Select
Escape
Button
Drive (or Sewing) Mode
with Indicator (Lit when in
Drive mode)
Color Change
Mode
Rotate
Head
Button
Enter
Button
7

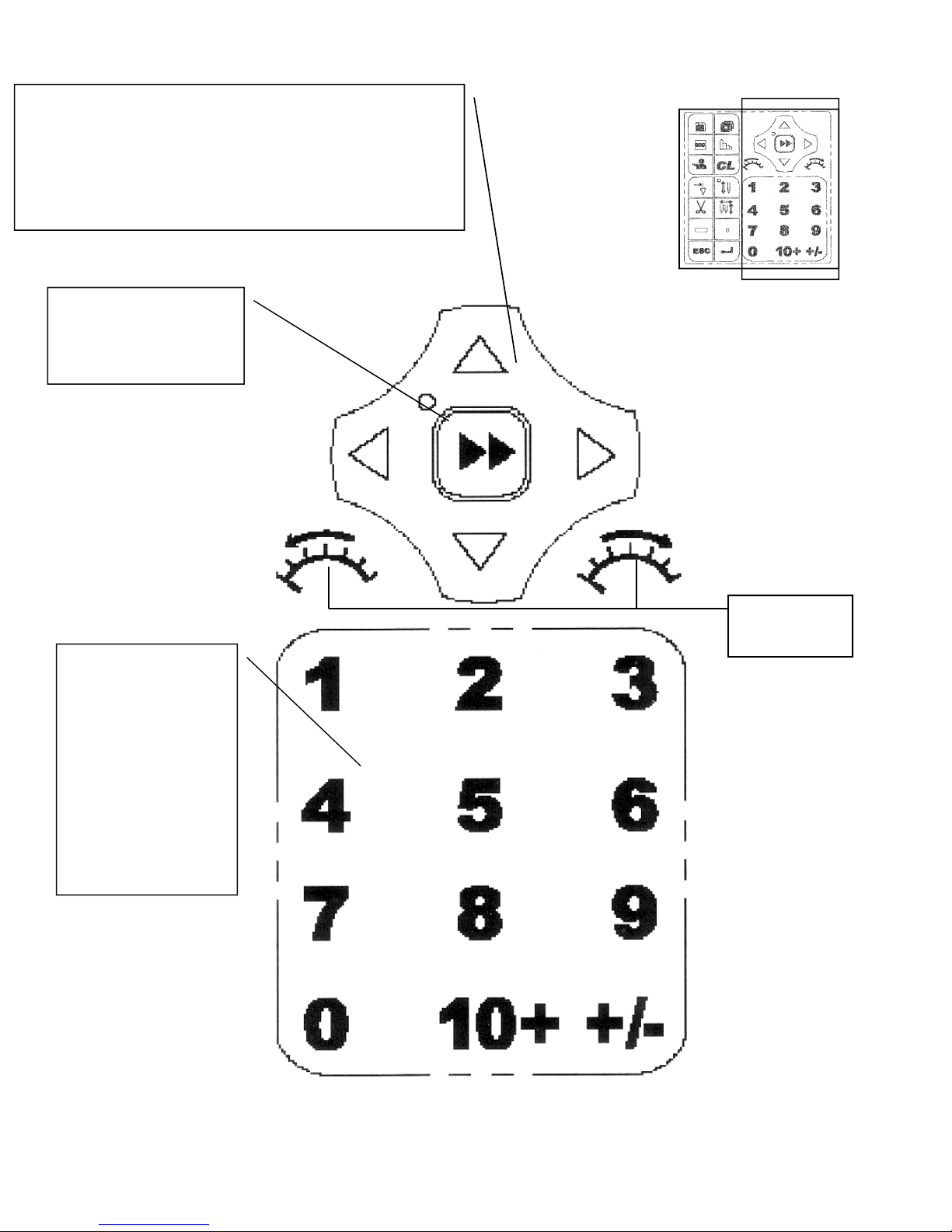

Arrow Keys:
Normally used to move the pantograph frame.
When in any menu, the up and down arrows are used to
move up and down the list of menu options and the left
and right arrows are used to page up and page down
through the menu options
High Speed Pantograph
mode. Indicator is lit
when pantograph is in
high speed mode.
Speed Control
Buttons
Numeric Keypad:
Used whenever a
numeric entry is
required. To enter
digits 10 or higher,
first press the +10 key
and then the
corresponding number
to equal the needle
number desired.
8
Controller Overview
Screen Layout
Drive (or Sewing)
mode status
Color Change
mode status
Float (or Idling)
mode status
Current
needle
selection
Design
Orientation
Indicator
Current
Design
Information
Machine stop
cause
indicator
Current
design
display area
Machine
Speed
Total Stitches
Sewn (resettable)
9
Controller Functions
This section covers:
Thread Trim Function
Head Rotate Function
Needle Selection
Arrow Keys
Drive Mode
Idle (Float) Mode
Color Change Mode
10
Thread Trim Function
The Thread Trim key will cause the machine to perform a
thread trim at any time. Simply press
The machine will then perform a thread trim instantly
If for some reason the sewing head is in a the wrong position,
the machine will not start. An error message will appear on the
screen that reads:
Head Rotate Function
To correct this, or anytime the head needs to be cycled around
to insure the proper positioning, press
The sewing head will cycle around and stop at the proper
position.
Error Number: 51
Stop Position Error
