Meilan BLADE Manuel utilisateur

Wireless Bike Computer

Quick Start Guide

Blade

Introduction

The Blade is a bike computer that connects to bike sensors. In addition to the included Bluetooth Speed & Cadence

Sensor, optional or third party sensors can also be connected for use.

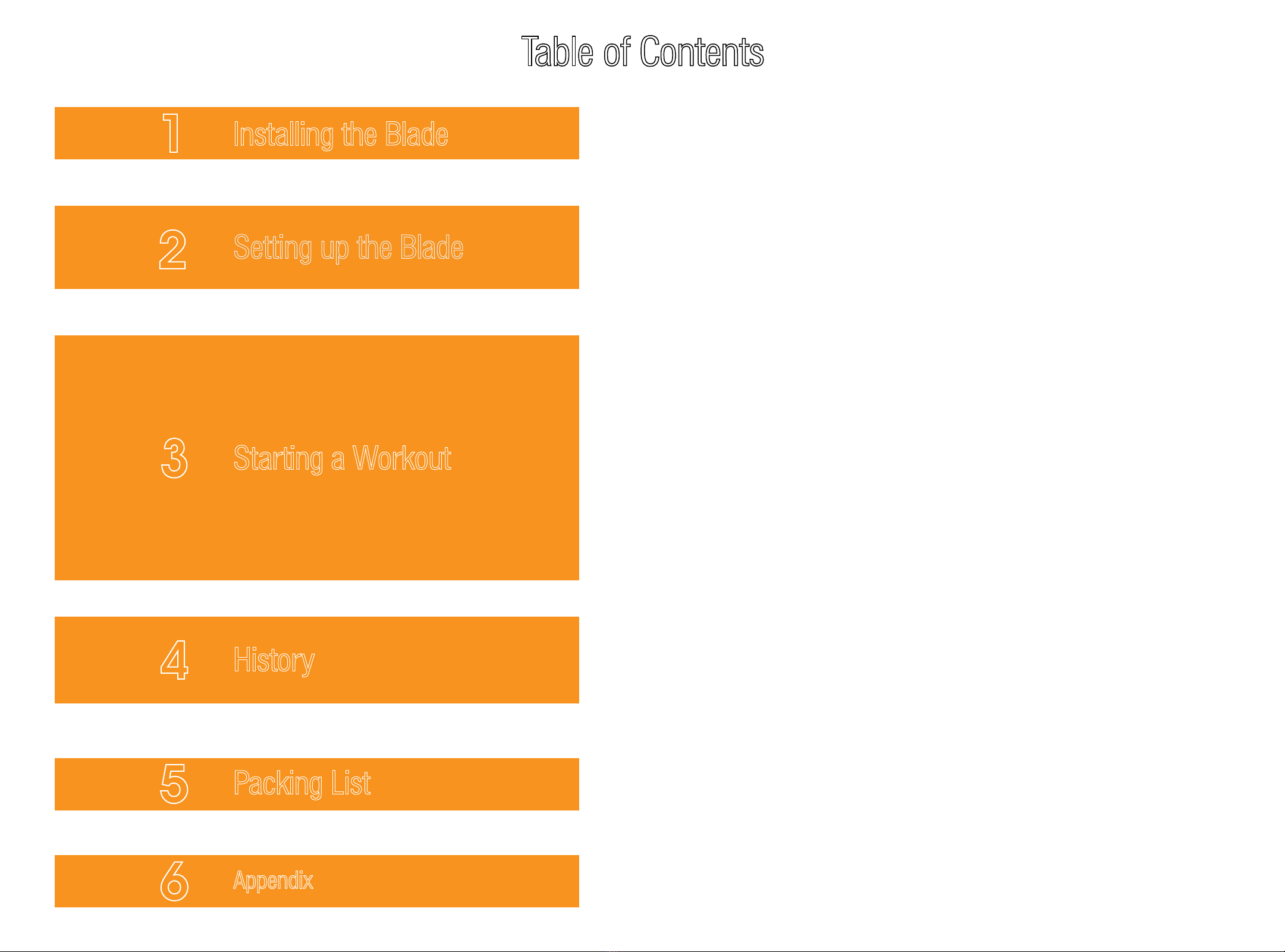

Table of Contents

• Installing the Mount: F-mount and Bike Mount ..................................... 01

• Installing the Speed and Cadence Sensor (C3) ................................... 02

• Setting up with Blade ....................................................................................... 03

• Setup with a Smartphone (MEILAN app) ............................................... 04

• Pair Sensors ......................................................................................................... 05

• Display Screen .................................................................................................... 06

• Icon Description .................................................................................................. 06

• Starting Measurement ..................................................................................... 06

• Changing Settings .............................................................................................. 07

Changing the Measurement Unit (KM/H or MPH) ........................... ...... 07

Inputing the Initial Settings for Total Distance ........................................... 07

Adding a New Sensor .........................................................................................07

Changing Sensor Tire Circumference Values ............................................ 07

• Viewing Your Ride .............................................................................................. 08

• Deleting Your Riding Data ..................................................................................08

• Uploading Your Ride Data to MEILAN app ............................................. 08

• Standard Accessories ...................................................................................... 08

• Optional Accessories ........................................................................................ 08

Appendix .................................................................................................................... 09

Setting up the Blade

Starting a Workout

History

Packing List

Appendix

Introduction

The Blade is a bike computer that connects to bike sensors. In addition to the included Bluetooth Speed & Cadence

Sensor, optional or third party sensors can also be connected for use.

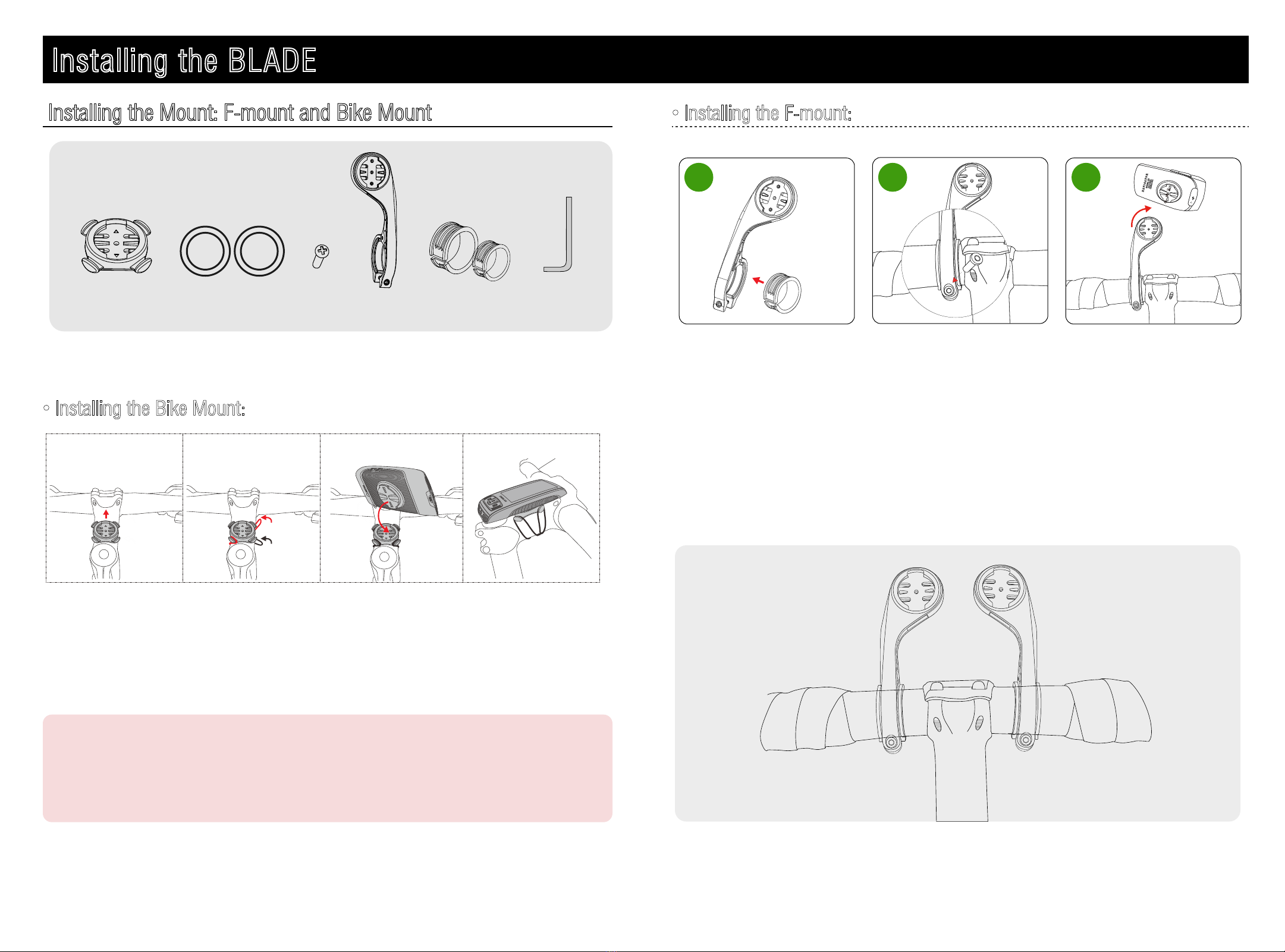

Installing the Blade

Installing the BLADE

Installing the Mount: F-mount and Bike Mount

• Installing the Bike Mount:

* The mount can be mounted on either the stem or the handlebar.

1. Place the bike mount on the stem or handlebar of your bicycle with the rubber

side down.

2. Attach the bike mount securely using the two rubber bands.

3. Place the Blade in the mounting grooves and turn clockwise until it locks in place.

To remove, turn counterclockwise or clockwise and lift.

1. Begin by removing the screw with the allen key from the F-mount.

2. Select a suitable thickness of silicone pad into fixed ring of the mount.

3. Place the F-mount and silicone pad around the handlebar.

4. Replace and tighten the screw.

5. Place the Blade in the mounting grooves and turn clockwise until it locks in place.

To remove, turn counterclockwise or clockwise and lift.

* NOTE:

• Lock the mount firmly with two suitable rubber bands according to the size of the stem and

handlebar.

• Two rubber bands fix the bracket diagonally.

• The triangle symbol in front must point in the direction of travel.

* NOTE: The F-mount double-sided available.

• Installing the F-mount:

.......................................................................................................................................................................................................................................................................................................

Bike Mount Rubber Bands *4 Screw Silicone Pads Allen KeyF-mount

1 2 3 4

1 2 3

Installing the Speed and Cadence Sensor (C3)

* NOTE: The battery insulator sheet needs to be removed for the first use in order

to activate the sensor.

1. Use a coin to twist the cover counter-clockwise until it is loose enough to remove

(the arrow points to unlocked).

1. Place the sensor on the rear chain stay of your bike, near the pedal. The logo

should be facing up and the arm of the sensor should be inside the rear chain

stay, facing down.

2. Attach the magnet:

(1). Loosen the sensor arm screw using a

phillips screwdriver to move it into the

correct position.

(2). Secure the sensor in place with the

provided rubber band or nylon ties,

whichever is preferred. If using nylon

ties, do not completely tighten yet, as the

magnets still need to be aligned before

completely securing the sensor in place.

We recommend using the nylon ties for the

most secure connection.

(1). Cadence magnet:

A. Remove white liner on the back of cadence magnet and place the pedal magnet

onto the crank, magnet facing in towards the sensor.

B. Align so that the magnet will pass by the indicator sensing area on the body of

the MEILAN C3 sensor.

C. The magnet will have to within 0.79 inch (about 2cm) to get a reading.

2. Remove the cover, the battery and blue battery insulator sheet.

3. Insert the battery with the positive side facing up. Use a coin to twist the cover

clockwise back into place.

Installing the Speed and Cadence Sensor C3 Mounting the Speed and Cadence Sensor

Cadence magnet

Sensor zone (CADENCE)

Wheel magnet

Spoke

Sensor zone (SPEED) side

Sensor zone (SPEED)

Sensor zone (CADENCE) side

Speed and Cadence Sensor C3 Spoke Magnet Cadence Magnet Nylon Ties *4 Rubber Band

1 2 3

Setting up the Blade

(2). Wheel magnet:

A. Screw the wheel magnet onto any spoke on your back wheel, facing in towards

the sensor.

B. Align so that the magnet will pass by the indicator line on the arm of

the MEILAN C3 sensor.

C. The magnet will have to pass within 0.79 inch (about 2cm) to get a reading.

D. Once again, adjust the position of the sensor and/or magnet if required. Tighten

the magnet in place on the spoke.

E. Once satisfied with the magnet positioning and tighten.

D. Attach the pedal magnet to the crank arm using two nylon ties. As such, adjust the

position of the sensor if required.

The first time that you use this product, perform the initial setup from the Blade or

from a smartphone (MEILAN app) .

1. Hold left-side button to power on/off.

2. Press SETTING key and go to setting menu.

* NOTE: Press (middle key) to change the data; Press (left key) to scroll

forwards through the functions; Press (right key) to Scroll backwards through

the functions.

3. Press to change the Time, Year and Date based on your current location. Press

to confirm and scroll backwards. Please refer to Figure 03.

4. Press to change the measurement unit: ODO (KM/MI) and WGT (KG/LB),

Press to confirm and scroll backwards. Please refer to Figure 04.

5. Press to change the default settings for ODO. Press to confirm and scroll

backwards. Please refer to Figure 05.

6. Press to change the default settings for WGT. Press to confirm and scroll

backwards. Please refer to Figure 06.

7. Pair with the sensors (speed and cadence sensor c3)

Speed signal Cadence signal Heart rate signal

(Optional)

Power meter signal

(Optional)

Setting up with Blade

1 2 3

4 5 6

within 0.79 inch

21 3

03 04 05 06

ODO

WGT

ODO

WGT

ODO

WGT

The icons are blinking on the screen.

Meanwhile, rotate the wheel to activate the sensor.

1. Download the MEILAN app (download from Google Play or App Store) and ensure

Bluetooth is on.

2. Turn on MEILAN app to register / log in, follow the app instructions, select the

measurement unit and authorize app.

3. Turn on Blade: hold left-side button to turn on.

4. Tap ‘+Add device’ to search and add Blade to the app.

Please refer to Figure 01 to 04.

* For detailed explanations on how to pairing with speed and

cadence sensor C3.

Please refer to the Pair Sensors on (page 5)

8. After BLADE is paired with C3 (The icons on

the screen stop blinks), press to enter WS (Wheel

circumference) setting screen. Press to change the

default settings for the wheel circumference, press

to confirm and scroll backwards through enter the

second bike pairing.

* Set tire circumference : Refer to “Tire circumference table”( page 9 )

9. You can pair and set wheel circumference just

like the first bicycle (If you have second bike).

If not, you can press SETTING key to save and

complete the Blade setting.

Long press ‘Power’ and ‘SETTING’ key at the

same time, go to factory default settings menu.

* All the data will be deleted when the device

is reset to the factory default mode by

pressing ; if you want to cancel the operation,

you can press .

* Restore Factory Settings

Setup with a Smartphone ( MEILAN app)

(Free of Charge)

If using an iPhone If using an Android smartphone

01 02 03 04

5. Tap icon of “BLADE” to enter the setting menu, then set ODO and update firmware

(if prompted). Refer to the Figure 05 to 07.

05 06 07

08 09 10

6. Pairing sensors. Tap the sensor, search and add sensor, Meanwhile, rotate the

wheel to activate the sensor. Refer to the Figure 08 to 10.

MPH

RPM

BPM W

INS

MPH

RPM

BPM W

INS

Download on the

App Store

GET IT ON

Google Play

Pair Sensors

7. After the paired, set or modify the name of sensor and wheel circumference, then

complete the setting. Refer to the Figure 11 to 12.

The sensors has been connected successfully

when the icon is green.

* Blade can be used with wireless Bluetooth BLE or ANT+ sensors. Pair your Blade with

compatible speed and cadence sensor, heart rate monitor and power meter.

1.The unit switches to the pairing standby

screen and the icons are blinking on the

screen.

2. Use one of the methods in the following

table to activate the sensor.

3. Measurement icons will stop blinking when available sensors are paired.

When all the sensors of speed, cadence, heart rate, and power meter are

paired, the Blade interface will display SUCC. Therefore, when your sensors has

stopped flashing, it means that the pairing has been successful. You can confirm

and enter the next step to set the wheel circumference.

* NOTE:

If Blade has been paired and

connected with the sensor before, it

will prompt before entering the pairing:

means your Blade is clearing its paired

history, and ready to repair, press

to confirm the clearing and re-enter

the repair.

Sensors

MEILAN Speed and

Cadence Sensor (C3)

MEILAN Heart Rate

Sensor (C5) - (Optional)

Power Meter

(Optional)

Activating the sensor Display

Rotate the wheel

Wearing the heart

Pedaling

8. Tap “More”, you can switch units and authorize third-party apps: Strava,

Trainingpeaks (Blade does not support Komoot app). Refer to the Figure

13 to 16.

* NOTE:

• Time setting: After connecting to the app, the time is automatically synchronized with the phone

time.

• When you in update device software process, don’t turn off your phone and bike computer, and

do not exit the update menu, Otherwise your bike computer may be damaged.

* Set tire circumference : Refer to the “Tire circumference table”( page 9 )

11 12

13 14 15 16

KM/H

RPM

BPM W

MP/H

RPM

BPM W

Starting a Workout

Icon Description

Clock

Start recording

Pause recording

The history view

Segmentation: current segment number of turns

Battery power

Current Temperature

Imperial Unit

Metric Unit

Average

Calorie

Current Distance

Total Distance

Maximum

Time (active time): Moving Time

Weight

Wheel Size (wheel circumference)

Power (Optional)

* Heart rate data will not be displayed unless heart rate sensor (Optional) is paired.

* Power data will not be displayed unless power meter (Optional) is paired.

1. Press to start recording.

2. Press to view different measurement data.

3. Press to start the next lap (press for a moment).

4. Press to manual pause the Blade when you stop moving. But Blade has an

automatic Start/Stop function , no manual operation is required for a short

pause.

5. Long press the to save your ride; Then enter the history view; Long press the

to exit the history view.

6. Importing ride data to a smartphone (MEILAN app). You can view the ride data on

smartphone and share it to Strava and Trainingpeaks.

* You can import measurement results by connecting the Blade to a smartphone

(MEILAN app).

* For detailed explanations of the ride data, please refer to "History- Upload Your Ride to

MEILAN app " (page 8)

* NOTE: After manual pause, must press to started manually, then you can start riding.

* For detailed explanations of the history view, please refer to "History" (page 8)

Total time, is the duration from the moment you hit start on the Blade or phone to the m

oment you finish the workout (including Auto Pause feature or pause the timer manually).

Display Screen Starting Measurement

Icon Description

TM TOT

WGT

HOURS LB KG

AVG

CAL

DST

ODO

MAX

TOT

WGT

Current cadence

Heart rate (Optional)

Current speed

Current distance

Pace arrows

Indicates whether the current speed is faster ( ) or slower ( ) than the average speed.

1. Change the setting from the Blade: It needs to be re-set.

2. Use smartphone (MEILAN app) to change settings:

A. Tap ‘More’ > ‘Measurement’, you can see Metric or Imperial.

B. Select: Metric or Imperial, and Confirm. Refer to the Figure 01 to 03.

* For detailed explanations of the setting up with Blade please refer to "Setting up with BLADE"

(page 3)

* Launch MEILAN app, tap "+ Add devices" to add Blade and the smartphone will connect with

the Blade. Then follow the procedure below.

Changing settings

• Changing the measurement unit (KM/H or MPH)

A. Tap “BLADE” to go to Blade setting menu.

B. Tap “ODO”, input the total distance. Refer to the Figure 04 to 06.

• Inputing the initial settings for total distance

01 02 03

04 05 06

A. Tap “BLADE” to go to Blade setting menu.

B. Tap “Sensor” →“Add sensor” to searching and add sensor.

Refer to the Figure 07 to 10.

• Adding a new sensor

A. Tap “BLADE” to go to Blade setting menu.

B. Tap “Sensor” →“Triangle indicator area” of picture 13 to change tire

circumference and sensor rename. Refer to the Figure 11 to 14.

• Changing sensor tire circumference values.

07 08 09 10

11 12 13 14

1. Long press to enter or exit history view.

2. Press to check different measurement data

in the record you are viewing.

3 .Press to check the segment data (lap) in the

record you are viewing.

4. Press to scroll to the next one.

1. Launch MEILAN app.

2. Tap “More”to view ‘Total’, ‘7 days’, ’30 days’,

‘1 year’, you can choose to view any ride records.

3. Tap “Datasheets of 7 days”, you can view the ride

records of the last 7 days.

1. Long press to enter or exit history view.

2. Press to scroll to the record view you want to delete.

3. Then press the SETTING button on the back of Blade to delete. Just delete this

record.

* Blade and MEILAN app have been connected and the ride data has been imported.

* If you want to delete all the records at once, please restore the factory settings.

C5 Heart rate monitor

C2 Dual-sided bike computer mount C3 Bluetooth speed and cadence sensor

C1 Speed / cadence sensor C1*2 Speed and cadence sensor

* Launch MEILAN app, Turn on the Blade, it will automatically connect with the app. Then the

data of you save on Blade is automatically uploaded and imported into the MEILAN app.

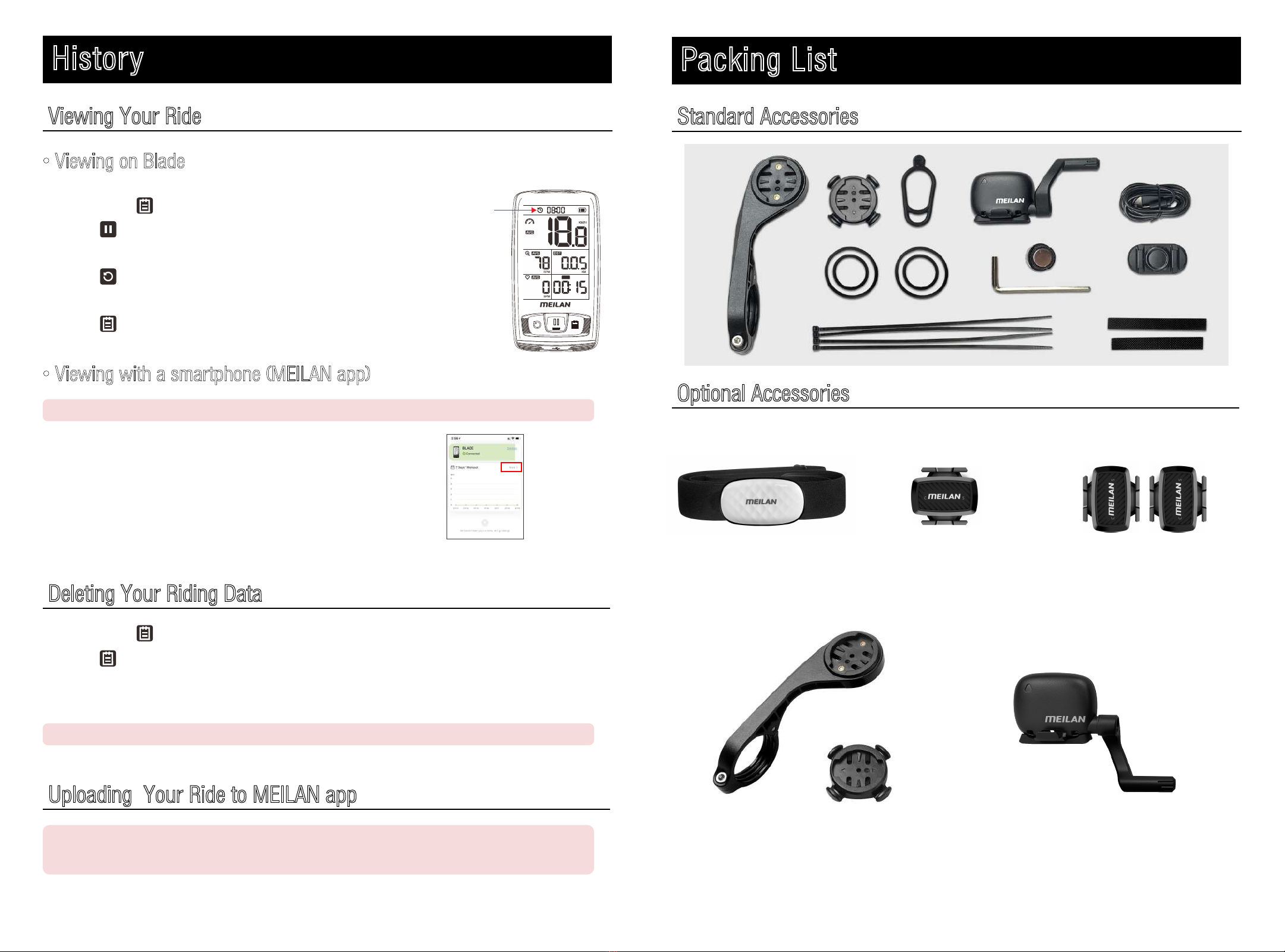

History Packing List

Viewing Your Ride Standard Accessories

Optional Accessories

Deleting Your Riding Data

Uploading Your Ride to MEILAN app

History Mark

• Viewing on Blade

• Viewing with a smartphone (MEILAN app)

Autres manuels pour BLADE

Table des matières

Autres manuels meilan Accessoires pour vélos

meilan

meilan CUTE EYE Manuel d'instructions

meilan

meilan M3 Manuel utilisateur

meilan

meilan BLADE Manuel d'instructions

meilan

meilan FINDER Manuel d'instructions

meilan

meilan OVAL Manuel utilisateur

meilan

meilan BLADE Manuel utilisateur

meilan

meilan X5 Manuel d'instructions

Manuels Accessoires pour vélos populaires d'autres marques

Sigma

Sigma BC 16.16 Manuel utilisateur

Playcore

Playcore Dero Setbacks Manuel utilisateur

VDO Cyclecomputing

VDO Cyclecomputing x3dw Manuel utilisateur

Cateye

Cateye RAPID X2 Manuel utilisateur

buratti meccanica

buratti meccanica Clorofilla Trail Manuel utilisateur

Shimano

Shimano SG-8R20 Mode d'emploi

BOB

BOB YAK Manuel utilisateur

APLIC

APLIC 303303/20190717TW012 Manuel utilisateur

SRAM

SRAM AXS BlipBox Manuel utilisateur

Garmin

Garmin EDGE 500 Manuel utilisateur

Shimano

Shimano FD-RX810 Manuel utilisateur

Cateye

Cateye V2C - Manuel d'instructions

KMART

KMART 43115907 Manuel utilisateur

SIGMA SPORT

SIGMA SPORT Buster 2000 Manuel utilisateur

NVO Components

NVO Components STEM Manuel utilisateur

DAXYS

DAXYS BP188 Manuel utilisateur

XLC

XLC BV-W17 Manuel utilisateur

Deda Elementi

Deda Elementi SUPERBOX Manuel utilisateur
