Meier-NT ADL-SR Manuel utilisateur
Meier-NT GmbH ·Rittergutsweg 5 · 08297 Zwönitz · Tel. 037754 304 0
CEO Dipl. Ing.(FH) Heiko Meier · HRB 25917 Amtsgericht Chemnitz
1

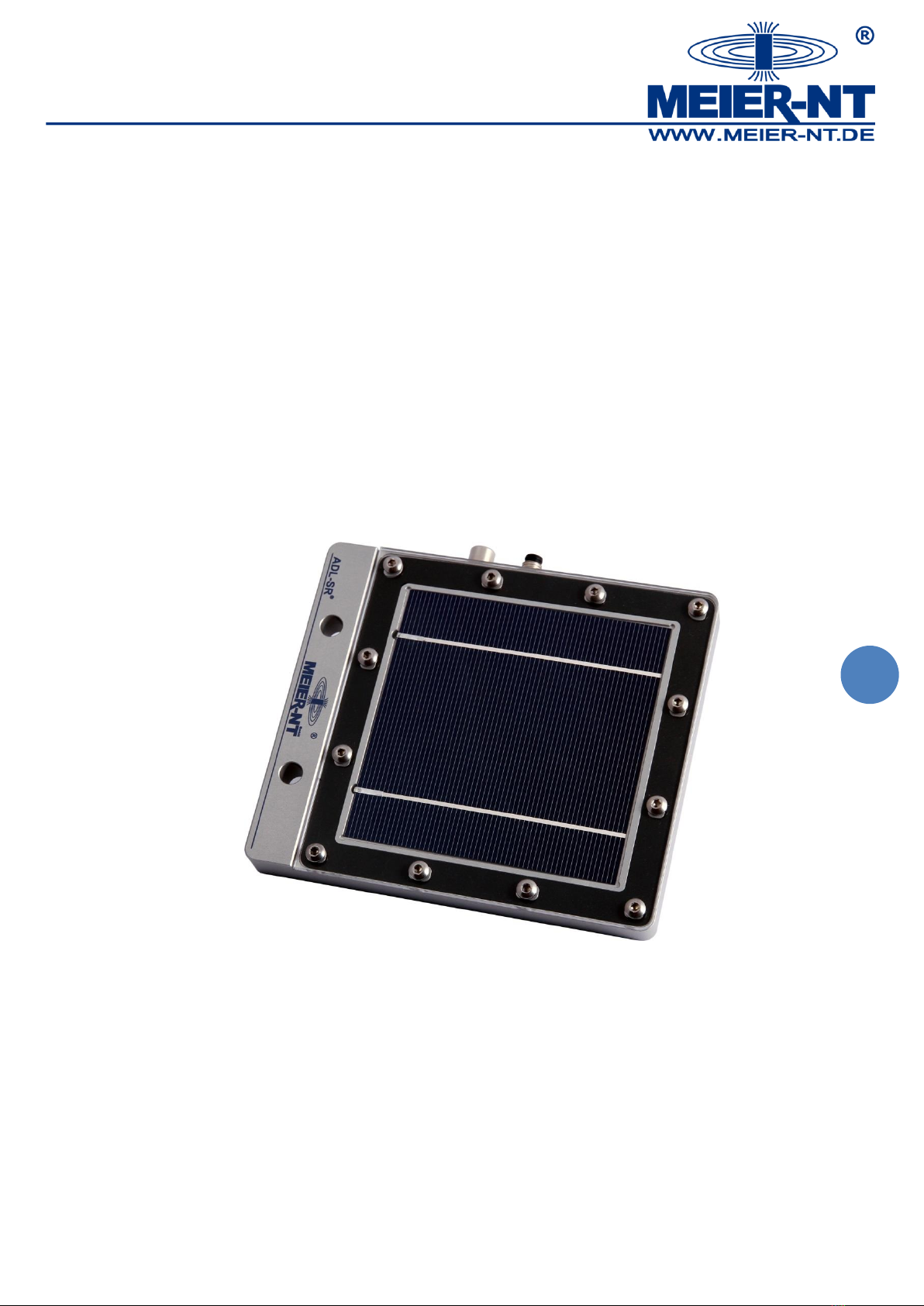

Instruction manual
ADL-SR®
2
Contents
1. General description ............................................................................................................................. 3
2. Safety instructions............................................................................................................................... 3
3. Package contents................................................................................................................................. 4
4. Mounting ADL-SR® .............................................................................................................................. 4
5. Connecting ADL-SR® ............................................................................................................................ 5
6. Technical specifications....................................................................................................................... 6
7. Contact ................................................................................................................................................ 6
© 2016 Meier –NT GmbH
Operating instructions, manuals and software are protected by copyright.
The copying, reproduction, translation, conversion into any electronic medium or machine-
readable form in whole or in part is permitted only with permission of Meier-NT GmbH. An
exception applies to making a backup copy of software for own use as a backup, as far as
technically possible and recommended by us. Violators will be prosecuted and liable for
damages.
All trademarks used in this document are used only for reference They are the property of
their respective owner. The naming of products which are not produced by the Meier-NT
GmbH are used for informational purposes only. Meier-NT GmbH does not raise claims to
other than their own trademarks or brands.
ADL-SR®
Instruction manual ADL-SR® v1.1
Date: 01.09.2019
Author: D.Lohse
Printed in Germany, Copyright by Meier- NT GmbH
Meier-NT GmbH ·Rittergutsweg 5 · 08297 Zwönitz · Tel. 037754 304 0
CEO Dipl. Ing.(FH) Heiko Meier · HRB 25917 Amtsgericht Chemnitz
3
1. General description
The sun sensor is used to measure the irradiance in photovoltaic systems. Among other
things, the instantaneous irradiance in W/m² and the module temperature in °C are available
as output signal. With the integrated high-resolution ADL-FE Field Extension, the analog
signal of the solar module is converted into a digital RS485 signal.
2. Safety instructions
Failure to comply with this requirement may void the warranty!
Read careful all safety instructions before installation or maintenance
Safe operation of this device requires proper and professional transportation, storage,
assembly and installation, operation and maintenance.
Only trained and qualified personnel should work on this equipment. Such persons
are qualified if they have sufficient knowledge of the assembly, installation and
operation of the product as well as with all warnings and precautions noted in these
instructions. Further, it is trained, instructed or authorized to switch electric circuits
and devices on and off, to mark them appropriately to earth and in accordance with
the work requirements for established safety practices. It must have adequate safety
equipment and be trained in first aid.
Use only manufacturer-approved accessories and spare parts.
Observe safety regulations and requirements of the country in which the device is
used.
The ambient conditions given in the product documentation must be adhered to.
Commissioning is prohibited until the entire system complies with the national rules
and safety regulation of the application.
Operation is only permitted if the national EMC rules for the application are met.
The manufacturer of the machine or plant is responsible for compliance with the
required limits by national regulations.
European countries: EC Directive 2004/108 / EC (EMC Directive).
Technical data, connections and operational conditions are specified in the product
documentation and must be observed.
4
3. Package contents
ADL-SR®
Instruction manual
Connection cable M8 (for Power supply and RS485 communication)
Cover caps for unused connectors
Optional components:
oexternal temperature sensor
owind speed sensor
oY-splitter (when both optional sensors are ordered)
4. Mounting ADL-SR®
The ADL-SR® is designed for outdoor installation. The front of the reference cell should be
aligned depending on the requirement level or the same angle as the solar modules. At the
rear there is a small hole with a ventilation membrane. The ADL-SR® must be mounted so
that this hole points downward and no rain water can penetrate. In this bore no objects may
be inserted, otherwise the membrane is damaged.
Meier-NT GmbH ·Rittergutsweg 5 · 08297 Zwönitz · Tel. 037754 304 0
CEO Dipl. Ing.(FH) Heiko Meier · HRB 25917 Amtsgericht Chemnitz
5
5. Connecting ADL-SR®
Connector for power supply and RS485-Bus (Cable with Socket M8, A-coded)
Pin
Wire color
Usage
1
brown
Supply Ground (GND, --)
2
white
Supply voltage (VCC, +)
3
blue
RS485-A (+)
4
black
RS485-B (--)
Connector for external temperature and wind speed sensor: (Cable with Plug M8, A-coded)
Pin
Wire color
Usage
1
brown
PT1000
2
white
PT1000
3
blue
Wind speed sensor
4
black
Wind speed sensor
Should an external temperature sensor and a wind speed sensor connected simultaneously,
an additional adapter is required (Y-splitter or tee will be supplied when both sensors are
ordered together).

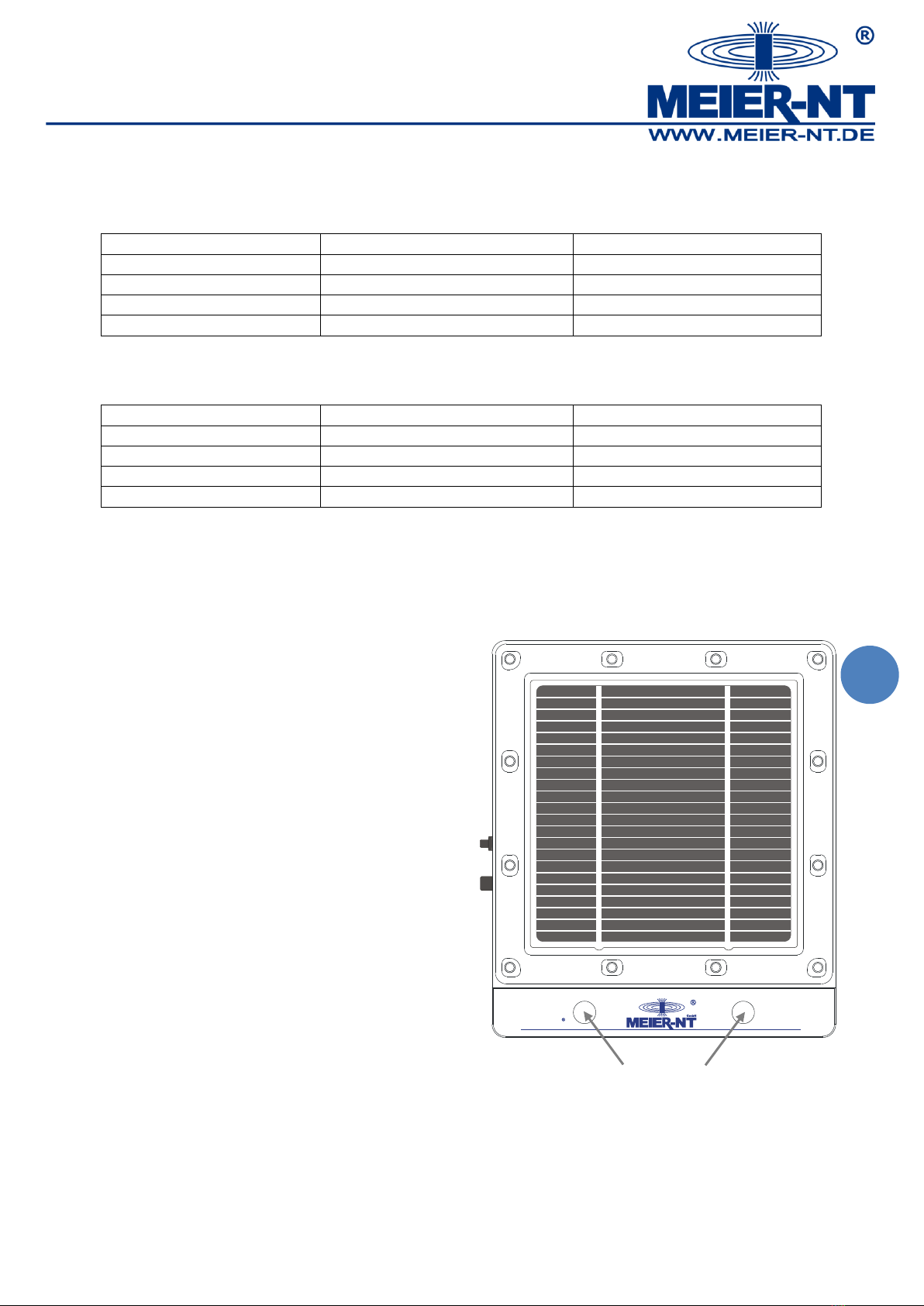

ADL-SR
Connector for power supply and RS485-Bus
Connector for external
temperature and wind speed sensor
Mounting holes (distance 60 mm, ø 8,5mm)
6
6. Technical specifications
General specifications
Supply voltage
9 - 36 VDC
Power consumption
0,26 W
Operating temperature range
-30 - 70 °C
Operating humidity range
0 - 100 % rH
Housing material
Aluminum / PMMA Plexiglas
Protection class
IP 65 according to DIN 40 050-9/5.93
Weight
550 g
Dimensions (L/W/H)
150x130x20 mm
Temperature sensor
Type
PT1000 1/3 DIN
Measuring range
-30 °C to 70 °C +/- 1 °C
Connector (external)
Socket M8 4-pin, A-coded (opt. Y-splitter)
Wind speed sensor
Type
Impulse input, open-collector
Measuring range
1 kHz, resolution 1 Hz
Connector (external)
Socket M8 4-pin, A-coded (opt. Y-splitter)
Communication interface
Type
RS-485
Protocol
Modbus RTU
Baud rate / Format
19200 8n1
Connector (Supply / Bus)
Plug M8 4-pin, A-coded
7. Contact
Meier-NT GmbH
CEO: Dipl. Ing.(FH) H. Meier
Rittergutsweg 5
D - 08297 Zwönitz
GERMANY
Phone + 49 37754 304 0
Telefax + 49 37754 304 20
http://www.meier-nt.de
http://www.solardatenlogger.de
Meier-NT GmbH ·Rittergutsweg 5 · 08297 Zwönitz · Tel. 037754 304 0
CEO Dipl. Ing.(FH) Heiko Meier · HRB 25917 Amtsgericht Chemnitz
7
EG –Declaration of conformity
Manufacturer: Meier-NT GmbH
Rittergutsweg 5
D-08297 Zwönitz
hereby declares that the product:
Radiation Sensor ADL-SR
complies with the essential requirements of the European Directives:
1999/5/EG R&TTE Richtlinie
2004/108/EG EMV Richtlinie
For conformity following standards were applied:
EN 55022:2010
EN 55024:2010
EN 61000-6-2:2005
EN 61000-6-4:2007
EN 60950-1:2006
The device must be powered by a power supply which complies to the valid CE
standards.
The conformity to the standards mentioned above is confirmed by the CE sign.
Zwönitz, 2016-07-01
