MEGASTEK MT-200 Manuel utilisateur

Waterproof MINI Tracker

___________________________

User Manual

V1.0

MINI

Contents

1. Waterproof notices and disclaimers····················································· 1

2. Products overview··············································································· 1

3. Specifications······················································································ 2

4. Overview····························································································· 2

4.1. What is in the package·································································· 2

4.2. How to use the belt··············································错误！未定义书签。

4.3. View······························································································ 3

4.4. LED status, ports and buttons description······································3

4.5. Getting started·············································································· 4

5. Instruction and function applications··················································· 6

5.1 Change password·········································································· 6

5.2 Authorized number········································································6

5.3 Working mode··············································································· 7

5.4 Tracking by calling·········································································8

5.5 Real time tracking········································································· 9

5.6 Uploaded regularly via GPRS························································· 9

5.7 Reset remote···············································································10

5.8 Restore default············································································ 10

5.9 Tracking regularly via SMS·························································· 11

5.10 SMS format················································································· 11

5.11 Set the time zone········································································ 12

5.12 SD card test················································································ 12

5.13 Over speed alarm········································································ 12

5.14 Geo-fence alarm··········································································13

5.15 Moving alarm·············································································· 13

5.16 Vibration alarm············································································13

5.17 Low battery alarm······································································· 14

5.18 SOS emergency calling································································14

5.19 Belt-off alarm······················································ 错误！未定义书签。

6. Problems & solutions········································································· 14

Attachment 1：SMS data format····································································15

User manual of tracker

-1-

1. Waterproof notices and disclaimers

Do not let the tracker stay in the water too long, taken out the tracker in time if it falls into

the water, and then siphoning off the water with a towel or paper towel.

The structural design of the our products fully comply with the requirements of waterproof

rating, in no event shall our company be liable for direct, indirect, special, incidental, or

consequential damages (including but not limited to economic loss, personal injury, and

loss of asset and property) arising out of use or inability or illegality to use the product or

documentation.

2. Products overview

Thanks for purchasing our product！

It is an industry waterproof, small, light tracker.

It is easy to take and specially designed for field staff, security guard, old man, Business

personnel and pet.

Build in U-blox GPS module, GPRS module and low power ARM processor.

Through GPS (Global Positioning System), tracker can get its position and send the position

data to your smart phone via map (Google Earth or Google Map). At the same time, it will

send the position data to the internet server by GPRS, so you can track the tracker’s

position.

Tracker has the following features and functions:

◆Waterproof (waterproofing grade: IP67)

◆AGPS position assisted

◆SOS alarm (LBS position assisted)

◆Two-way communication

◆Monitoring mode

◆Pet mode

◆Long standby time mode

◆SMS and GPRS (TCP/UDP) communication

User manual of tracker

-2-

◆Support up to 5 authorized cell phone numbers

◆Real time tracking

◆SOS emergency calling

◆Geo-fence alarm

◆Over speed alarm

◆Low battery alarm

◆Vibration alarm

◆Data Logger in no GSM signal area using Micro SD card (Max: 2GB)

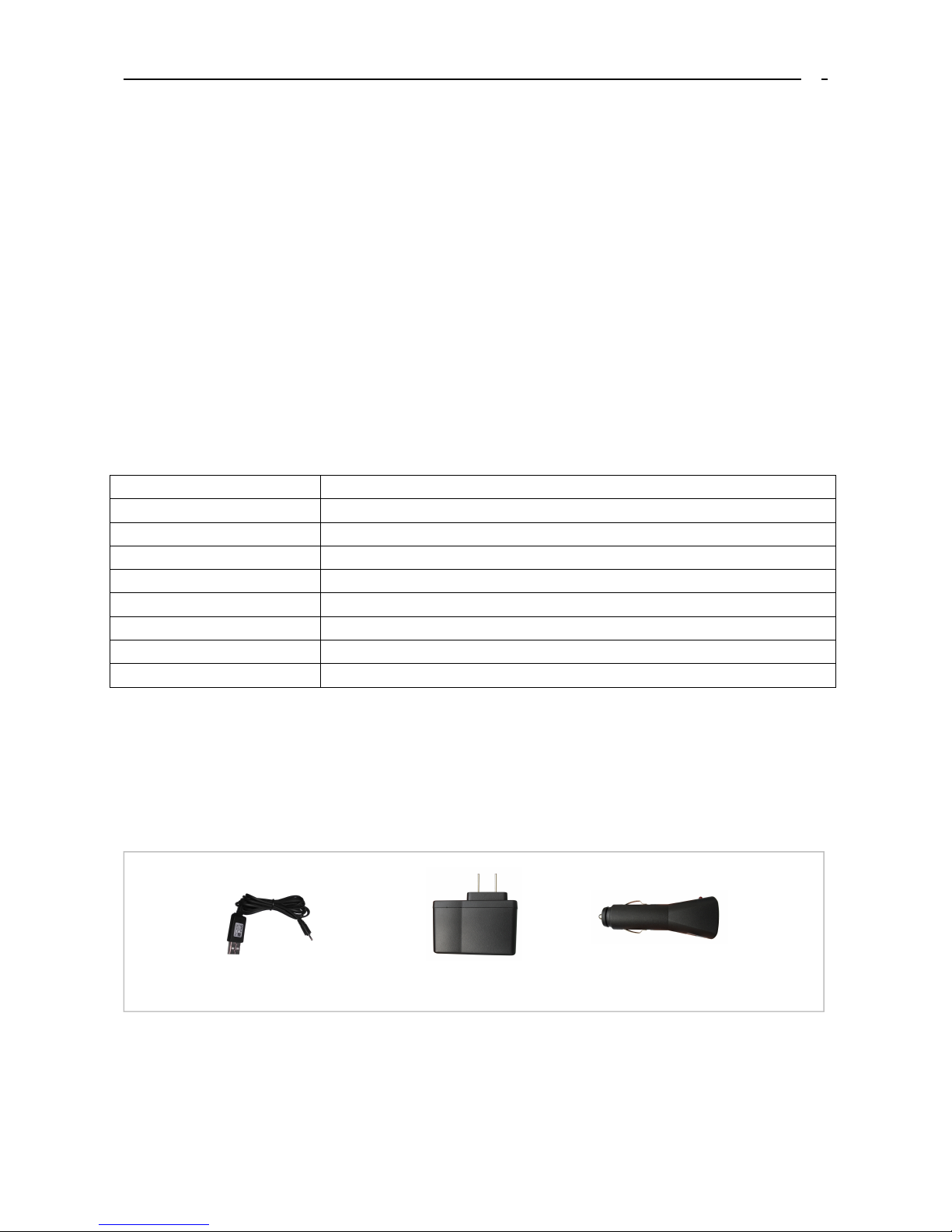

3. Specifications

Items

Specification

Charging Voltage

DC 4.8-5.5V/500mA

Battery

Rechargeable，lithium-polymer battery 1800mAh battery 3.7V

Dimension

70mmx64mmx20mm

Weight

173g

Operating Temperature

-25°C to 60°C

GSM Module

Quad Band GSM 850/900/1800/1900MHz

GPS Chipset

Ublox-7Q

Memory

Micro SD card (Max: 2GB)

4. Overview

4.1. What is in the package

USB to serial cable

AC adapter

Car adapter (optional)

User manual of tracker

-3-

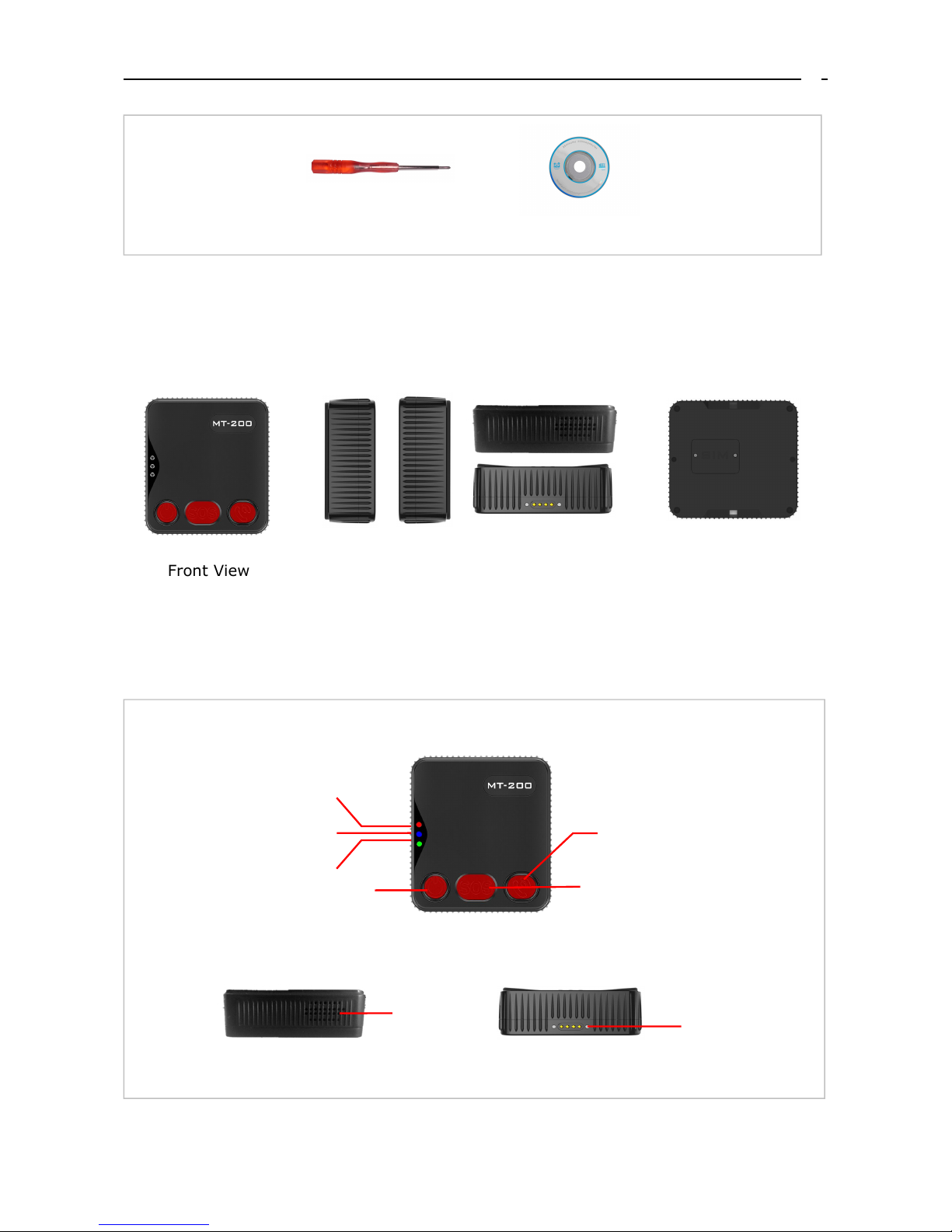

Screw driver

4.2. View

Front View

Side View

Back View

4.3. LED status, ports and buttons description

Power LED

GSM LED

GPS LED

SOS button

CALL button

Soft switch button

Speaker

Charging port

User manual of tracker

-4-

Blue LED — GSM LED

Blue LED flashing 0.5s on & 0.5s off

Initializing

Blue LED flashing 1s on & 3s off

Registered to GSM network

Red /Yellow LED — Power LED

The red LED is always on

Charging

The red LED turn Yellow

Fully charged

Green LED — GPS LED

Green LED flashing 1s on & 3s off

Positioning success

Green LED flashing 1s on & 1s off

Searching for satellite signal

Button

On/Off button

Function blocked

CALL button

Press for 1s to pick up a call，press for 3s to call to

an authorized number (vibration touch for calling)

SOS button

Press it for 3s to send an alarm SMS with

coordinates

Other ports

Main power switch

Slide switch to ON position to power on tracker

SIM card and micro SD card slots

Insert SIM and micro SD card

Micro USB port

For setup the parameter and firmware upgrade

4.4. Getting started

Please read this manual before using tracker and check if all parts are in the box.

4.5.1 Ensure that your tracker has a working SIM

card.

Please make sure SIM card has enough credit.

Please make sure that the SIM is not locked and do not require a password to operate.

Please make sure the SIM card is supporting caller ID display.

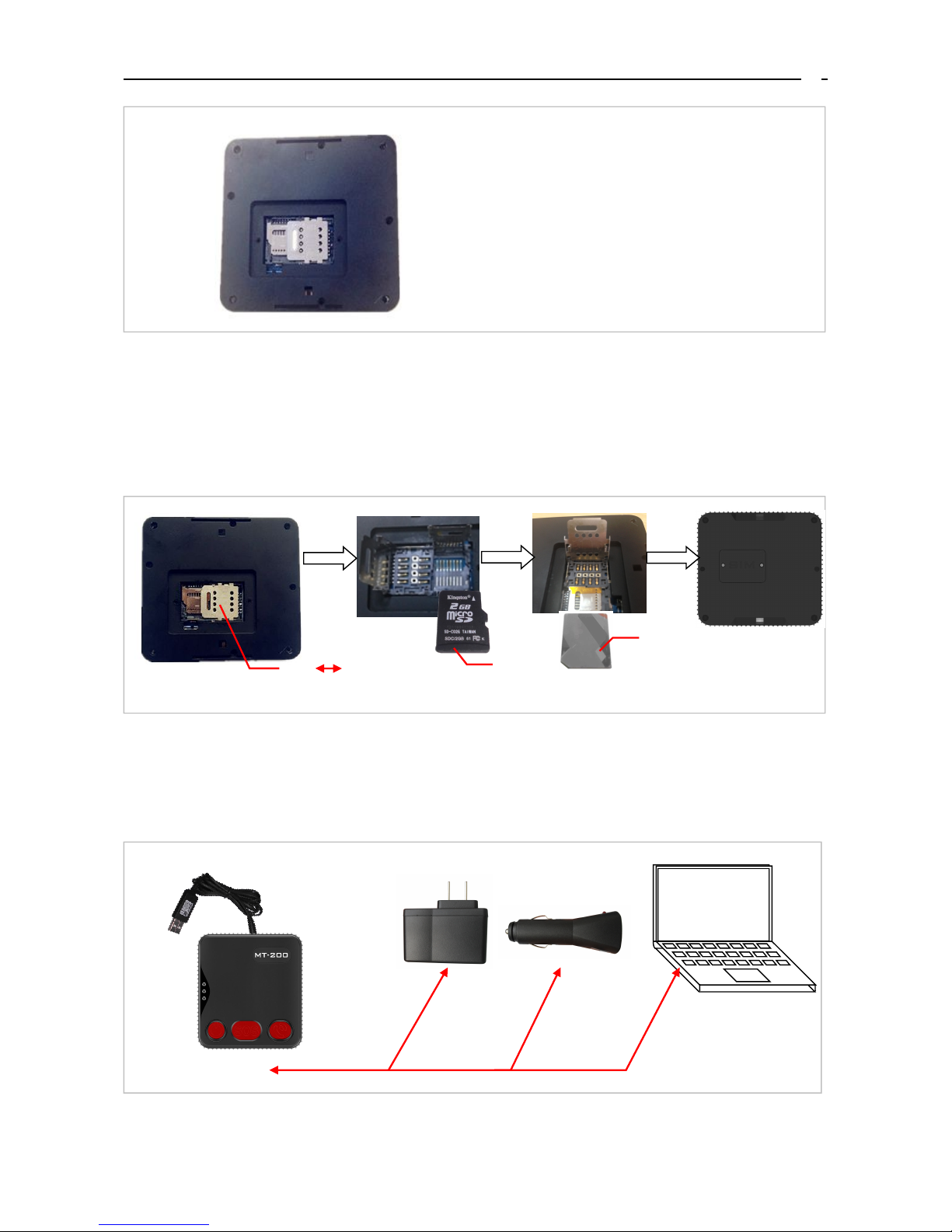

4.5.2 Insert SIM/micro SD card and switch on the main power switch

- Twist off the screws and then open the cover

User manual of tracker

-5-

- Switch on the main power switch, insert a SIM card, and micro SD card (optional), and

switch off the main power switch, then close the cover, as follow:

- Close the cover and seal it up with the screw

4.5.3

SD card

OFF ON

SIM card

When using tracker for the first time please charge the battery for at least for 3 hours with

the main power switched off. There are three ways to charge: using supplied AC adapter,

car adapter, and connecting USB charging cable to USB port of any computer. (Note: Please

turn off the tracker when charging!)

Computer

AC adapter

adaptor

Car adapter

USB port

User manual of tracker

-6-

Make sure that tracker front side is up to the open sky when

the main power switched on.

-- If the tracker operates normally and positioning successfully, the blue LED flashes 1s on

& 3s off; the green GSM LED flashes 1s on & 3s off.

5. Instruction and function applications

There are three ways to set up the tracker: SMS command, GPRS command and setup by

computer.

Notice:

1. All changes to setup require a password. Make

sure that you are using correct password

otherwise changes will be rejected.

2. All commands are not case sensitive.

5.1 Change password

For example:

Command: FACID,123456,PASSWORD,V=888888

You receive SMS reply: FACID password ok!

123456 is the factory default password, 888888 is the new one.

Password must be six digits!

5.2 Authorized number

Tracker supports up to 5 authorized telephone numbers, which you can set at your choice.

To receive alarms and calls from tracker you have to set at least one authorized telephone

number. If there are no any authorized number has been set the tracker cannot send out

User manual of tracker

-7-

any alarm SMS (but you still can receive alarms through GPRS, if set) and cannot call out.

Advice: set the authorized number first when

you first use!

Command:

FACID,123456,AUTHORIZE,1=13145826121,2=13145826122,3=13145826123,4=1314

5826124,5=13145826125

SMS reply: FACID authorize ok!

It means that set tracker success.

This command also can set 1 or 2 authorized number only, just don’t fill in behind.

Cancel this command:

FACID,123456,AUTHORIZE

SMS reply: FACID authorize ok!

5.3 Working mode

Tracking mode:

Default mode is tracking mode, if the tracker is in operation you can get SMS with its

current location by dialing from an authorized telephone to the tracker.

If you already set the other working mode and then wanted to go back to tracking mode

can use this command to set.

For example:

FACID,123456,MODE,Tracker

SMS reply: FACID mode ok!

CALL mode:

Command:

FACID,123456,MODE,CALL

SMS reply: FACID,123456,MODE,CALL

At this working mode, if there is a phone call, you will hear a bell; press the CALL button

for 1s to answer the phone. If you want to make a phone call by tracker, press the CALL

button for 3s to calling the first authorized phone number, if the first authorized phone

number can not get through, it will call the second authorized phone number…At the end,

if there is no authorized phone number answer the incoming call, tracker will call all the

authorized phone number in turn.

Monitoring mode

Command:

User manual of tracker

-8-

FACID,123456,MODE,MONITOR

SMS reply: FACID mode ok!

When in this mode the tracker will answer incoming call from an authorized number

automatically without vibration or sound signal and you can monitor surroundings.

The speaker is mute automatically in

surveillance mode.

Long time standby mode

Tracker do not set up any work tasks; turn the GPS system power supply off via command,

so tracker can be low standby power consumption.

For example:

FACID,123456,config,gpsautosearch=610000（0—9999999 seconds）

SMS reply: FACID config ok!

Advice: GPS interval must be set 610000s or longer to activate this mode.

Cancel this command:

FACID,123456,config,gpsautosearch=600（600s is the factory standard parameters）

SMS reply: FACID config ok!

At this function, you can get its current position by calling to it

from an authorized number.

Pet mode（set its working time）

This function is according to set the tracker’s working time.

For example:

FACID,123456,config,poweron1=10:30,poweroff1=11:00,poweron2=18:30,poweroff2=1

9:00,poweren=1

SMS reply: FACID config ok!

Poweren =1 Start the timing switch machine function. Poweren =0 Close the timing switch

machine function

poweron1=10:30 turn on time

poweroff1=11:00 turn off time

poweron2=18:30 turn on time

poweroff2=19:00 turn off time

5.4 Tracking by calling

This function is only effective in tracking mode.

Operation：

Table des matières

Autres manuels MEGASTEK GPS

MEGASTEK

MEGASTEK GT99 Manuel utilisateur

MEGASTEK

MEGASTEK S921 Manuel utilisateur

MEGASTEK

MEGASTEK XT-007 Manuel utilisateur

MEGASTEK

MEGASTEK GT5C Manuel utilisateur

MEGASTEK

MEGASTEK GVT800 Manuel utilisateur

MEGASTEK

MEGASTEK MT70 Manuel utilisateur

MEGASTEK

MEGASTEK GVT-430 Manuel utilisateur

MEGASTEK

MEGASTEK GVT368 Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur
