Medion MD 30227 Manuel utilisateur

27” Flat Panel LCD TV

QUICK START GUIDE

The accessory box contains the user’s manual, quick start guide, remote control, power cord, component video

cable, composite video cable, audio cable, 75Ω antenna cable and VGA cable.

Make sure that all components are turned off

before making connections.

Video Connections*

Your LCD TV is equipped with several different

input types. To achieve best picture/signal

quality, use the best connection types available

on your components. The illustration on the

right shows the connection types from best

(component) to worst (RF/Coaxial).

* Each video connection requires a separate audio connection.

Component Video

S-Video

Composite Video

RF/Coaxial

Subwoofer

Earphones

GAME CONSOLE

CAMCORDER

1. Connect the power cord to the AC inlet terminal and to a properly grounded power outlet.

2. Press the main power switch beside the AC inlet terminal.

3. Press the power button on the front of the LCD TV or press (POWER) on the remote control.

4. To begin channel scanning, toggle to SCREEN II on the remote and press MENU on the touch screen of the universal

remote control to bring up the menu screen on the LCD TV. Press 56 buttons to highlight TUNER; press4 to enter

the submenu. Highlight the AUTOSCAN with the 56 buttons on the touch screen of the universal remote control.

Press4 to select YES. The LCD TV will automatically scan for available channels.

5. After the channel scanning is complete, the channel screen appears and you can begin watching TV.

Wall mount brackets are available for purchase.

Please call (866) 633-4660 or visit www.medionusa.com for additional details.

Channel Programming

Check Supplied Accessories

Make the Connections

Side Panel | Audio Connections

Side Panel | Composite & S-Video Connections

Additional Information

Green Blue Red

Yellow

MD30227QSG_v2 10/29/04, 9:38 AM1-2

DVD PLAYER

CAMCORDER

GAME CONSOLE

iMost cables and AV connectors on your equipment follow a standard color code.

Observing this code can be very helpful when connecting your AV equipment.

To install the batteries:

1. Turn the remote over, pull on the tab

and lift the cover off.

2. Insert the batteries, matching the batteries

to the (+) and (-) marks inside the battery

compartment.

3. Slide the battery cover back into place.

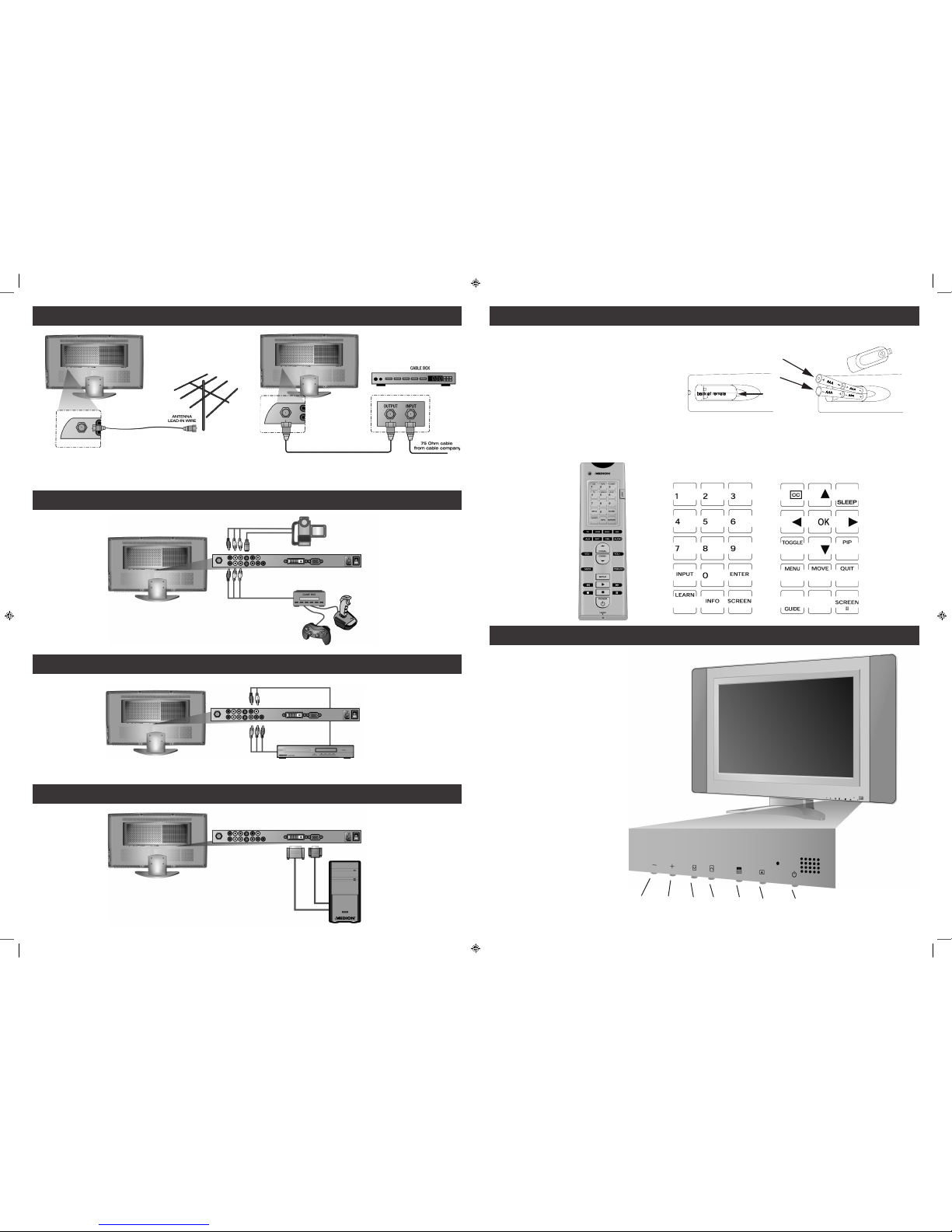

Below are the illustrations of the universal remote control. The LCD touch screen of the universal remote

control is used to input channels and navigate all of the menus of the LCD TV. Press SCREEN to toggle between

SCREEN I and SCREEN II.

Screen I Screen II

Volume

Down

Volume

Channel

Down Menu InputChannel

Power

Power Turn on/off the display

Input Switch the Input source

Menu Display the OSD menu

Channel Up/Down Press to change TV channel. Also

used to select options in OSD

Volume Up/Down Adjust volume. Also used to

adjust options in OSD menu

Antenna | Cable Connections

Rear Panel | Composite & S-Video Connections

Initial Setup | Controls

Rear Panel | Component Connections

Rear Panel | DVI & VGA Connections

Front Panel

MD30227QSG_v2 10/29/04, 9:38 AM3-4
